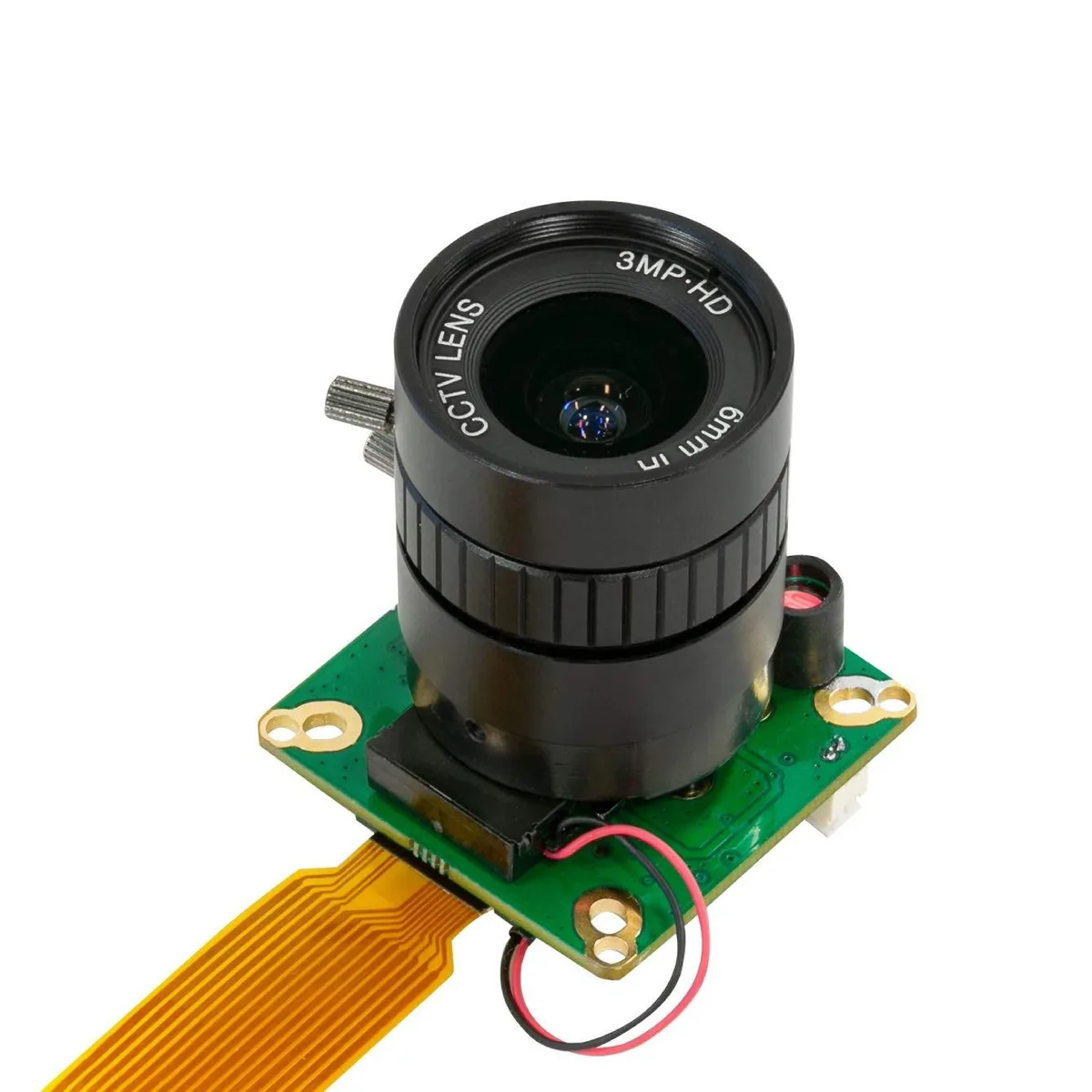

Small square camera board with CS-mount lens and motorised IR-cut filter

KEHIPI

KEHIPI Arducam IMX477 12MP IR-Cut Camera RB-Adu-159

SKU CH-HT0N-51VS0

12MP IMX477 camera with automatic IR-cut switching for day and night vision, includes 6mm CS lens and 38mm board with 29-34mm hole pitch

  • All-day imaging with automatic IR-cut switching based on light conditions
  • 3MP IMX477 sensor delivers 4056×3040 resolution for detailed captures
  • 6mm CS-mount lens included with 65° horizontal field of view
  • Compatible with Jetson Orin NX and Raspberry Pi Compute Modules
  • Compact 38×38mm board fits 29mm, 30mm and 34mm hole patterns

All-Day IMX477 Camera for Jetson & CM Boards

This Arducam module pairs a 12.3MP IMX477 sensor with a motorised IR-cut filter that switches automatically between daylight and infrared modes. It targets developers building Jetson Orin NX vision systems or Raspberry Pi Compute Module projects that need continuous 24-hour imaging without manual lens changes. The board is not compatible with standard Raspberry Pi models.

6mm CS Lens and Mounting Hardware Included

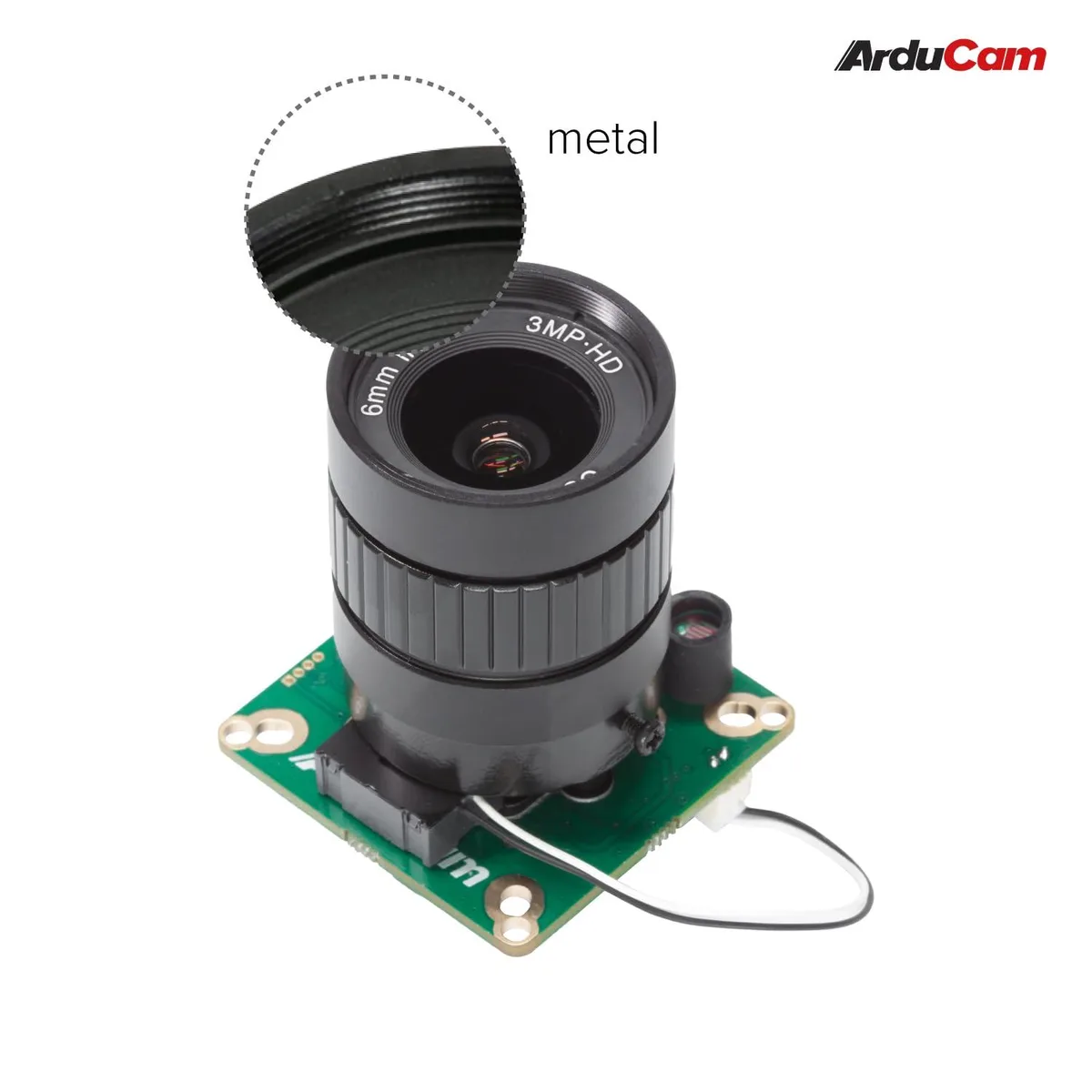

A 6mm F1.2 CS-mount lens ships in the box, delivering a 65° horizontal field of view and a 0.2m minimum object distance. The camera board measures 38×38mm with hole spacing that matches 29mm, 30mm and 34mm pitches, so it fits standard industrial enclosures without extra adapter plates.

Compact 38mm Board with 4-Lane MIPI CSI-2

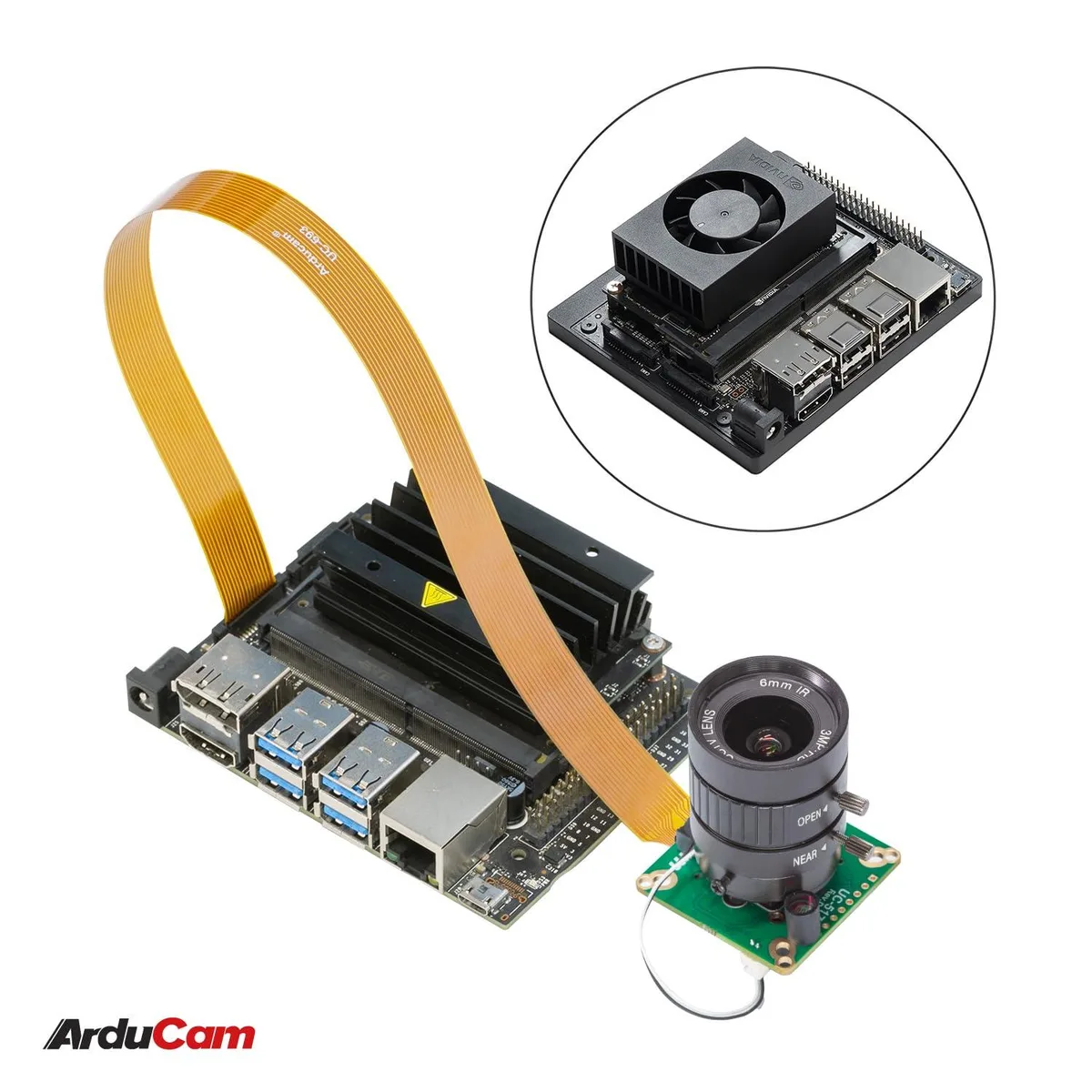

The 53g lens assembly and 38mm square PCB keep the profile thin for tight enclosures. A 4-lane MIPI CSI-2 interface connects directly to Jetson developer kits and Compute Module IO boards, supporting up to 60fps at full resolution, 4K at 60fps or 1080p at 240fps depending on the host platform.

Highlights

  • All-day imaging with automatic IR-cut switching based on light conditions
  • 3MP IMX477 sensor delivers 4056×3040 resolution for detailed captures
  • 6mm CS-mount lens included with 65° horizontal field of view
  • Compatible with Jetson Orin NX and Raspberry Pi Compute Modules
  • Compact 38×38mm board fits 29mm, 30mm and 34mm hole patterns

Specifications

BrandArducam
ModelRB-Adu-159
Part NumberB0274

Questions about this item

Will the motorised IR-cut filter on the IMX477 sensor need periodic replacement?

The IR-cut filter is a solid-state mechanism with no consumable parts, so no scheduled replacement is required.

What limits continuous 12.3 MP capture at 60 fps on this module?

The 4-lane MIPI CSI-2 interface and the host platform's ISP throughput cap sustained full-resolution frame rate.

How much heat does the 38 mm × 38 mm board generate during all-day 4 K 60 fps streaming?

The board draws only milliwatts from the CSI bus; thermal load is negligible and requires no active cooling.
