Small square camera board with silver CS-mount lens and two ribbon cables

KEHIPI

KEHIPI B024002 IMX477 12.3MP HQ Camera 6mm CS Lens

SKU CH-X8W1-6FCCP

A 12.3MP Sony IMX477 camera module with a 6mm F1.2 CS-mount lens, manual focus, and cables for Raspberry Pi 5, 4B, 3B+, Zero and CM boards

  • Captures sharp 12.3 MP stills with a 4056 x 3040 pixel Sony IMX477 sensor
  • 6 mm CS-mount lens with manual focus and F1.2 aperture gives a 65° horizontal field of view
  • Includes both 22-to-22-pin and 15-to-22-pin cables for Pi 5, 4B, 3B+, Zero and CM boards

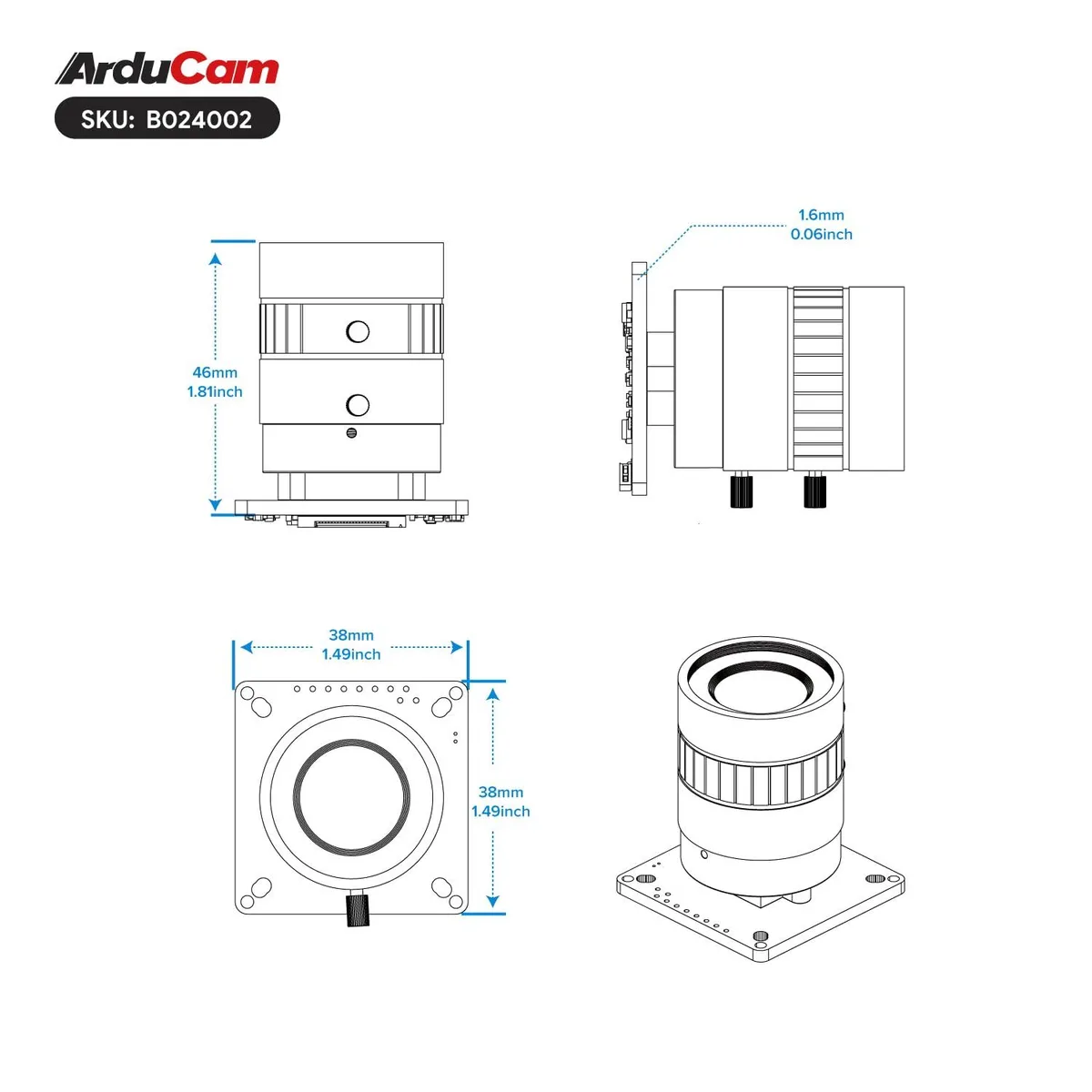

  • Compact 38 x 38 mm board fits 29, 30 and 34 mm mounting-hole patterns
  • Records 1080p50, 1520p40 and 990p120 video modes for flexible capture

12.3 MP IMX477 sensor with CS lens

This camera module pairs a 12.3 megapixel Sony IMX477 sensor with a 6 mm CS-mount lens. It captures stills at 4056 x 3040 pixels and records video at 2028 x 1080p50, 2028 x 1520p40 or 1332 x 990p120. Two ribbon cables are included for direct connection to Raspberry Pi boards.

Makers using Raspberry Pi 5, 4B, 3B+, 3, 2.

The board fits Pi models with a 22-pin or 15-pin CSI connector and mounting holes spaced at 29, 30 or 34 mm. It is not suited for projects that require autofocus, motorised zoom or a different focal length. Users needing global-shutter capture or thermal imaging should select another module.

Manual-focus 6 mm CS lens with F1.2 aperture

The supplied lens provides a 65° horizontal field of view, manual focus and an adjustable aperture of F1.2. Its minimum object distance is 0.2 mm and back focal length is 7.53 mm. This fixed focal length determines the framing and depth of field for every shot.

Highlights

  • Captures sharp 12.3 MP stills with a 4056 x 3040 pixel Sony IMX477 sensor
  • 6 mm CS-mount lens with manual focus and F1.2 aperture gives a 65° horizontal field of view
  • Includes both 22-to-22-pin and 15-to-22-pin cables for Pi 5, 4B, 3B+, Zero and CM boards
  • Compact 38 x 38 mm board fits 29, 30 and 34 mm mounting-hole patterns
  • Records 1080p50, 1520p40 and 990p120 video modes for flexible capture

Specifications

BrandArducam
ModelB024002
Part NumberB024002

Questions about this item

What size CS-mount lens and back focal length does this camera require?

The module uses a 6mm focal length CS-mount lens with a 7.53mm back focal length and a 30×31mm lens dimension.

Which 22-pin cable matches my Raspberry Pi 5 or Zero, and which 15-to-22-pin cable matches a Pi 4B or 3B+?

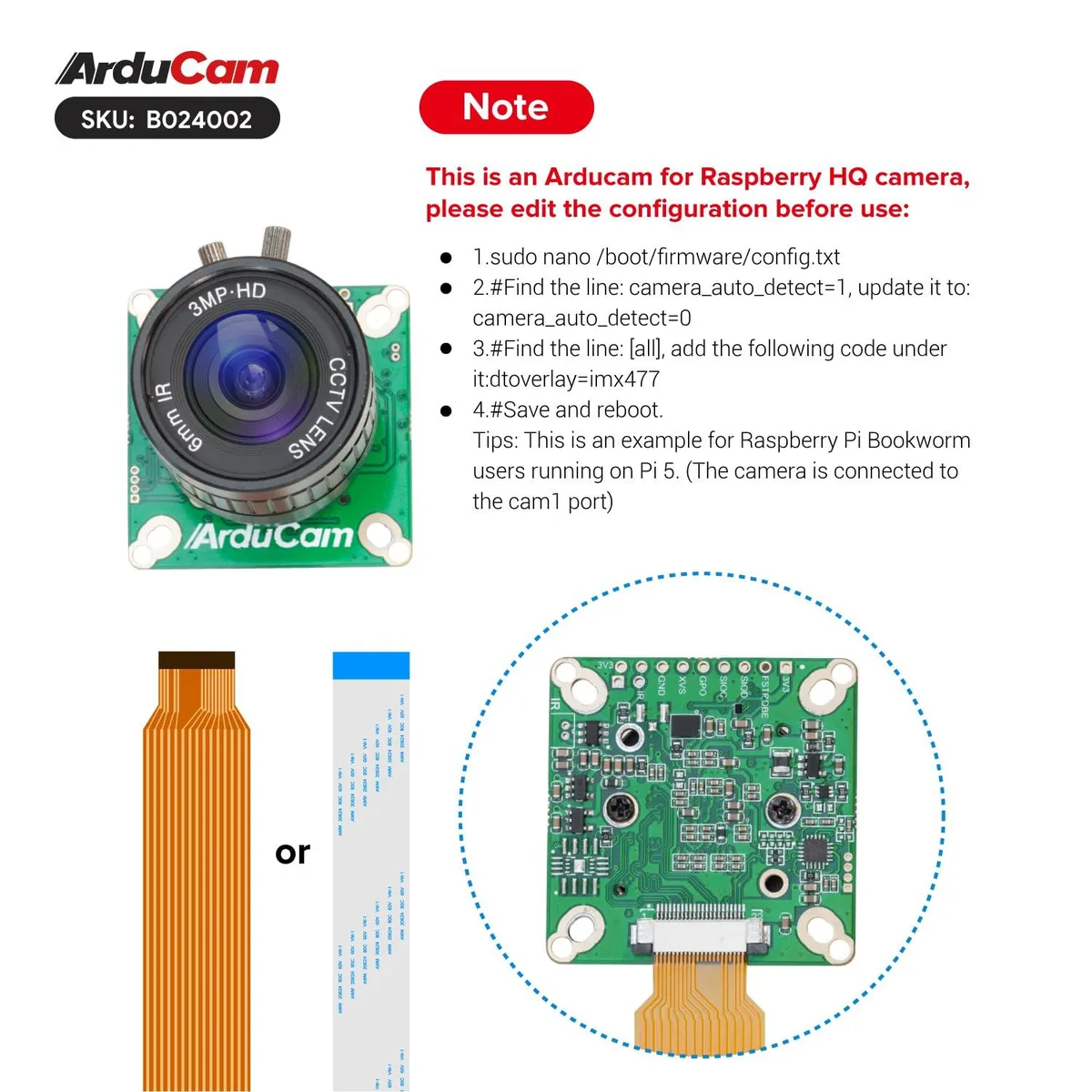

Use the 300mm 22-to-22-pin cable for Pi 5 or Zero; use the 150mm 15-to-22-pin cable for Pi 4B or 3B+. On Pi 5, cam1 is default; for cam0 add dtoverlay=imx477,cam0.

How do I clean the integral IR-cut filter without damaging the 1.55µm pixels?

Gently blow off dust with compressed air, then wipe the filter surface with a lint-free microfibre cloth slightly moistened with isopropyl alcohol; avoid pressure on the sensor area.
