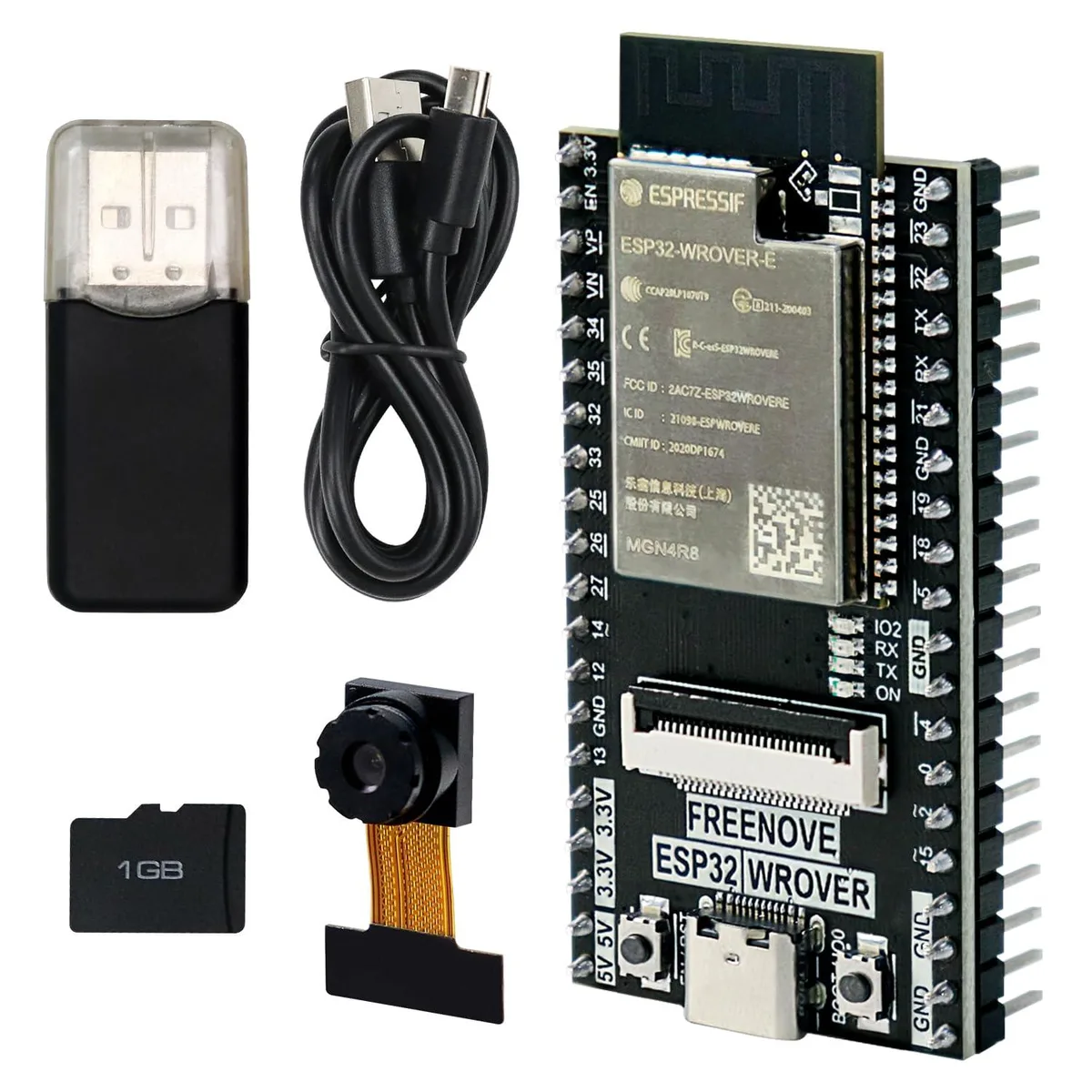

Small green circuit board with silver camera module and microSD slot

KEHIPI

KEHIPI ESP32 CAM Development Board FNK0060B 240 MHz 4 MB Flash 8 MB PSRAM

SKU CH-1YPQ-DQRWZ

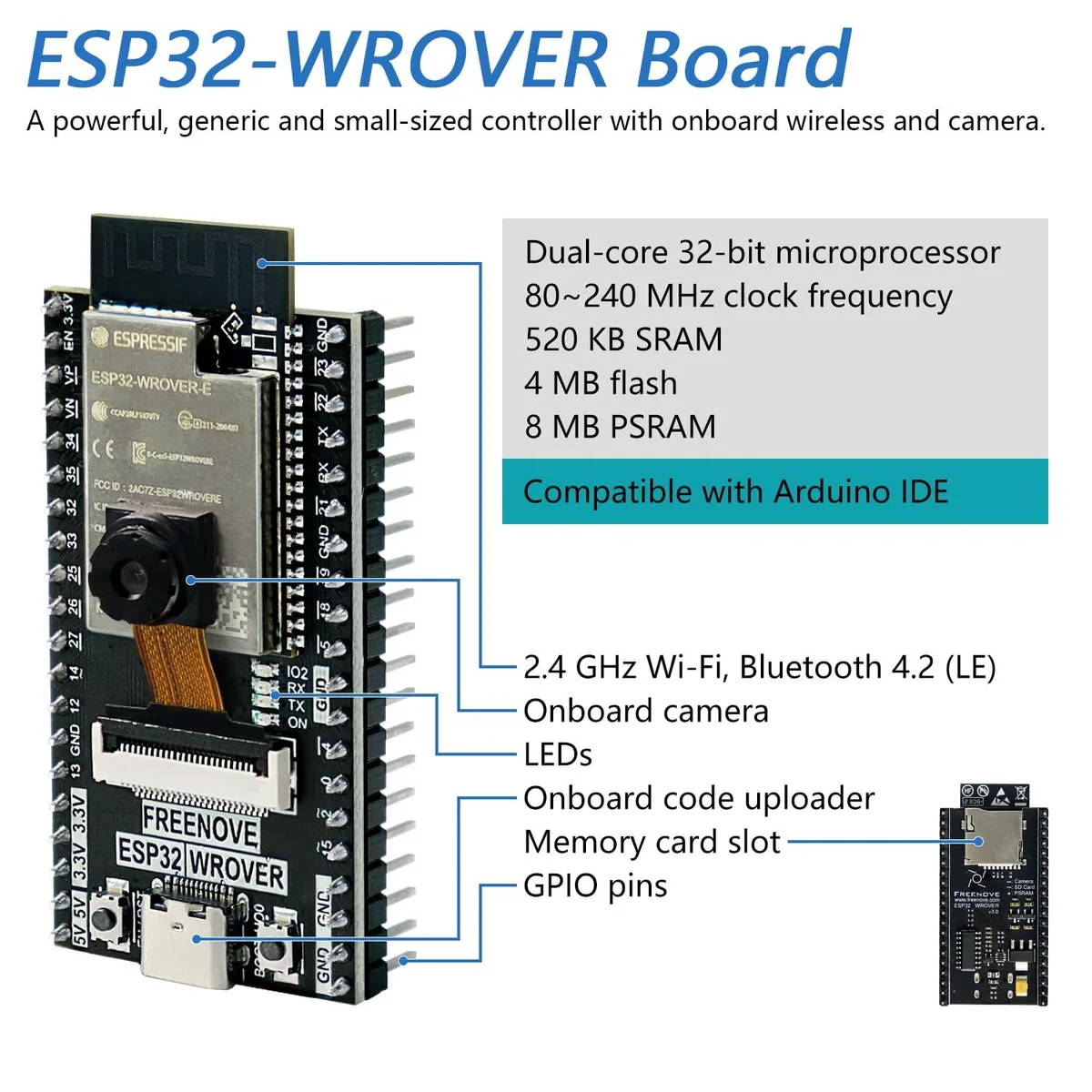

ESP32-WROVER board with dual-core 32-bit processor at 240 MHz, 4 MB Flash, 8 MB PSRAM, onboard camera, Wi-Fi and Bluetooth 4.2, includes 1 GB memory card and tutorial

  • Dual-core 240 MHz processor handles demanding IoT tasks
  • 4 MB flash plus 8 MB PSRAM stores code and buffers
  • Onboard camera and 2.4 GHz wireless enable vision projects
  • MicroPython and C examples accelerate learning
  • Included 1 GB memory card adds removable storage

ESP32 CAM board for IoT learning

The KEHIPI ESP32 CAM Development Board FNK0060B pairs a dual-core 32-bit processor running at 240 MHz with an onboard camera and wireless connectivity. It includes 4 MB Flash and 8 MB PSRAM plus a 1 GB memory card for local file storage. Makers and students can program it in MicroPython or C using the supplied tutorial and example projects.

Wireless limits on the 2.4 GHz band

The board uses 2.4 GHz Wi-Fi and Bluetooth 4.2 (LE), so range and throughput depend on local interference and antenna orientation. Camera streaming resolution and frame rate are constrained by the wireless bandwidth and the processor's 240 MHz clock. Projects that need continuous high-definition video or long-distance links may exceed what this interface can sustain.

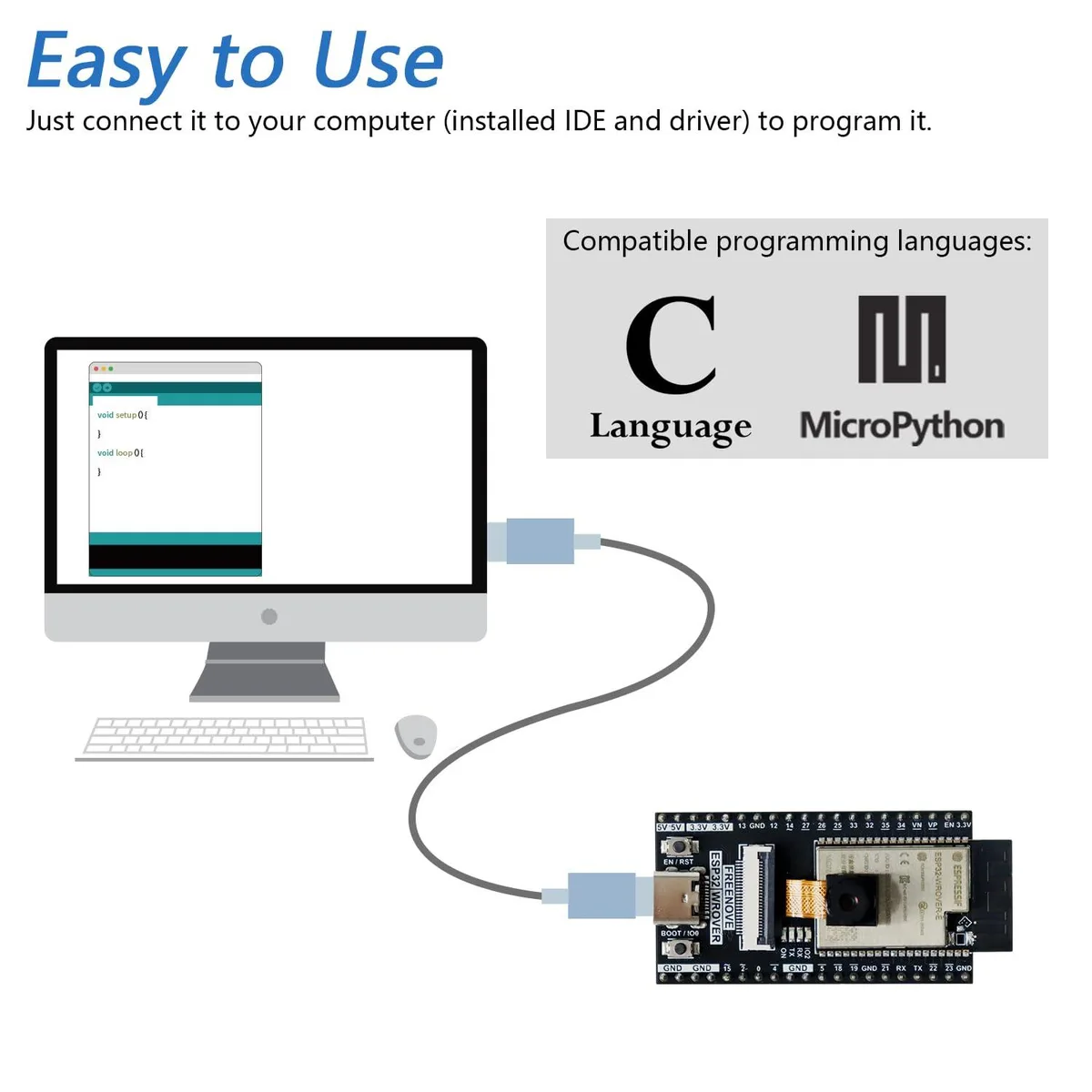

Check USB driver and IDE setup before ordering

You need a computer with a USB port, the appropriate USB driver installed, and a configured IDE to upload code. The tutorial and code are downloaded from a link on the product box; no paper guide is included. Verify that your development environment supports MicroPython or C for the ESP32 platform and that you can access the download link before starting.

Highlights

  • Dual-core 240 MHz processor handles demanding IoT tasks
  • 4 MB flash plus 8 MB PSRAM stores code and buffers
  • Onboard camera and 2.4 GHz wireless enable vision projects
  • MicroPython and C examples accelerate learning
  • Included 1 GB memory card adds removable storage

Specifications

BrandFREENOVE
ModelFNK0060B
Part NumberFNK0060B

Questions about this item

Should I pick the 4 MB Flash or the 8 MB PSRAM version of this ESP32 CAM board?

This board includes both 4 MB Flash and 8 MB PSRAM on the ESP32-WROVER module, so there is no separate version to choose.

What does the 240 MHz dual-core speed mean when I am running a camera web server?

The dual-core 32-bit processor at up to 240 MHz handles image capture, Wi-Fi streaming and HTTP serving simultaneously for the Camera Web Server project.

How does Bluetooth 4.2 limit the data passthrough projects on this board?

Bluetooth 4.2 Low Energy caps the passthrough throughput to the LE PHY rate, which the tutorial demonstrates in Projects 2.1 and 2.2.
