Green rectangular circuit board with silver HDMI port, black USB connectors, gold 40-pin header, two antenna connectors, white labels

Khadas

Khadas VIM3 Basic 4GB 32GB development board

SKU CH-9KHN-M4M1W

Single-board computer with Amlogic A311D SoC, 4 GB LPDDR4, 32 GB storage and 5.0 TOPS NPU for edge AI development

  • Package Contents1. WiFi Antenna*2 2. VIM3 Basic*1 3. User Manual*1

Name Advance Kit

  • Octa-core Amlogic A311D at 2.2 GHz and 1.8 GHz for responsive edge computing
  • 0 TOPS NPU with 800 MHz clock accelerates TensorFlow and Caffe inference
  • Dual 4K@60fps and 1080P@60fps video decode via HDMI and MIPI-DSI
  • Wi-Fi 5 2T2R, Bluetooth 5.0 and Gigabit Ethernet with WoL for reliable connectivity
  • 40-pin GPIO, MIPI-CSI, M.2 PCIe and USB 3.0 give flexible peripheral expansion

Capability & Audience

The Khadas VIM3 Basic is a single-board computer built around the Amlogic A311D system-on-chip. It combines four Cortex-A73 cores at 2.2 GHz with two Cortex-A53 cores at 1.8 GHz on a 12 nm process. An integrated NPU delivers 5.0 TOPS INT8 inference for edge AI workloads. The board ships with 4 GB of LPDDR4 memory and 32 GB of onboard storage.

Pre-Purchase Checks

Confirm your power supply can provide USB-C Power Delivery to the board, as no adapter or cable is included. Verify that your target operating system — Android, Ubuntu or LibreELEC — supports the A311D SoC and the NPU toolkit you intend to use. Ensure any M.2 extension modules you plan to attach, such as an NVMe 2280 SSD or a 4G LTE module, match the single PCIe lane and the M2X interface specification.

Build & Daily Use

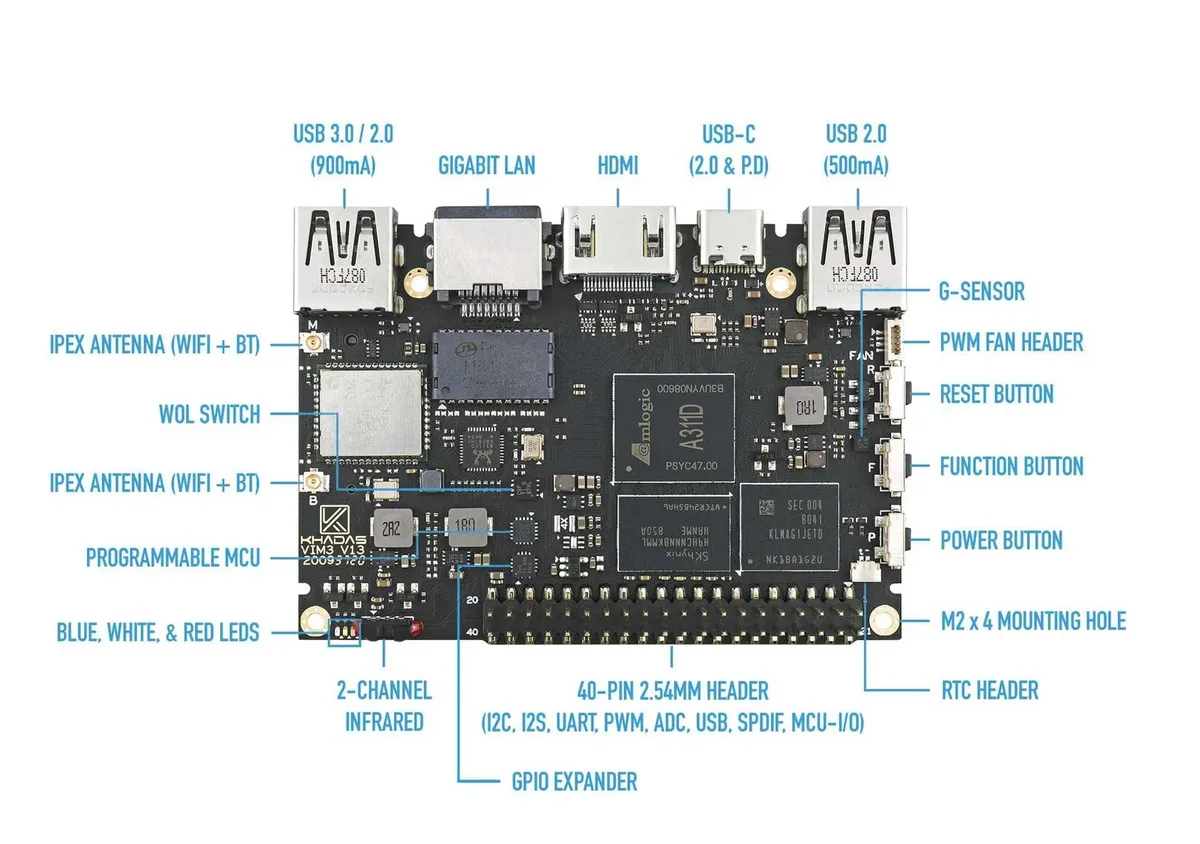

The board uses a thin, stackable form factor with four M2 mounting points for secure integration. A programmable MCU and three status LEDs give immediate visual feedback during development. Dual independent display output is available through HDMI for 4K resolution and MIPI-DSI for 1080p panels. The 40-pin GPIO header exposes USB, I2C, I2S, UART and ADC lines, while an M.2 connector adds eight-channel I2S for microphone arrays.

Highlights

  • Octa-core Amlogic A311D at 2.2 GHz and 1.8 GHz for responsive edge computing
  • 0 TOPS NPU with 800 MHz clock accelerates TensorFlow and Caffe inference
  • Dual 4K@60fps and 1080P@60fps video decode via HDMI and MIPI-DSI
  • Wi-Fi 5 2T2R, Bluetooth 5.0 and Gigabit Ethernet with WoL for reliable connectivity
  • 40-pin GPIO, MIPI-CSI, M.2 PCIe and USB 3.0 give flexible peripheral expansion

Specifications

BrandKhadas
ModelKhadas VIM3 Basic
Package Contents1. WiFi Antenna*2
2. VIM3 Basic*1
3. User Manual*1

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is included with the Khadas VIM3 Basic and what must be purchased separately?

The board ships with two Wi-Fi antennas and a user manual. A power adapter and USB-C cable are not included and must be bought separately.

How do I choose between the Basic and Pro versions of the VIM3?

This is the Pro version with 4 GB of LPDDR4 memory and 32 GB of onboard storage. The Basic version offers 2 GB and 16 GB instead.

What does the 5.0 TOPS NPU figure mean for real workloads?

The NPU runs at up to 800 MHz and delivers 5.0 TOPS INT8 inference with 1536 MAC units, supporting TensorFlow and Caffe for on-device AI tasks.
