Green rectangular M.2 2280 circuit board with black chips and gold edge connector

KingSpec

KingSpec XF 2280 2TB internal SSD

SKU CH-8E77-2VD7W

M.2 2280 2 TB internal SSD with PCIe 4.0 and NVMe 1.4 reaching 5100 MB/s read and 4600 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options XF-2TB-2280

  • Up to 5100 MB/s read accelerates boot and load times
  • Up to 4400 MB/s write speeds large file transfers
  • 715000 random read IOPS keeps multitasking responsive
  • 2400 TBW rating supports heavy workloads over time
  • 36 W idle power extends laptop battery life

KingSpec XF 2280 2TB PCIe 4.0 NVMe SSD

This internal solid-state drive uses the M.2 2280 form factor and a PCIe 4.0 x4 interface with NVMe 1.4 protocol. It is built for consumers who need fast storage for gaming, content creation or everyday computing. The drive offers 2TB of capacity using 3D NAND flash memory.

Controller-based thermal control

KingSpec's own controller manages NAND thermals so the drive can accept an aftermarket heatsink. That compatibility makes it suitable for PlayStation 5 expansion slots as well as desktop and laptop M.2 sockets. Idle power draw is 1.36 W and active consumption reaches 6.75 W.

Verify M.2 key, PCIe generation

Confirm your motherboard or laptop provides an M-key M.2 2280 slot wired for PCIe 4.0 x4. Check that the physical space around the slot allows a heatsink if you plan to add one for sustained workloads or PS5 installation.

Highlights

  • Up to 5100 MB/s read accelerates boot and load times
  • Up to 4400 MB/s write speeds large file transfers
  • 715000 random read IOPS keeps multitasking responsive
  • 2400 TBW rating supports heavy workloads over time
  • 36 W idle power extends laptop battery life

Specifications

BrandKingSpec
SeriesXF Series
ModelXF 2280
Part NumberXF-2TB 2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
Max Sequential ReadUp to 5100 MBps
Max Sequential WriteUp to 4400 MBps
4KB Random ReadUp to 715,000 IOPS
4KB Random WriteUp to 890,000 IOPS
Terabytes Written (TBW)2400TB
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)1.36W
Power Consumption (Active)6.75W
Operating Temperature0°C ~ +70°C
Storage Temperature-25°C ~ +75°C
Operating Humidity5-95%
Height80mm
Width22mm
Depth2.1mm
Weight30g

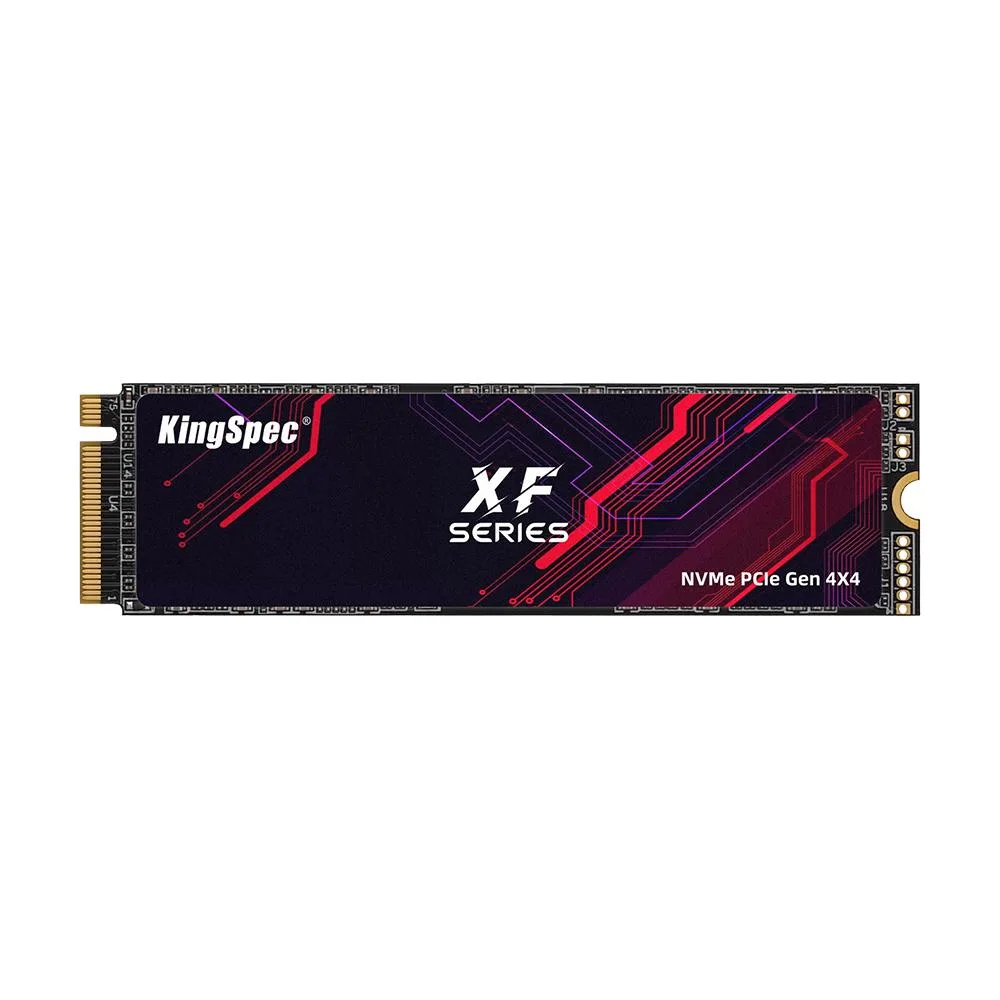

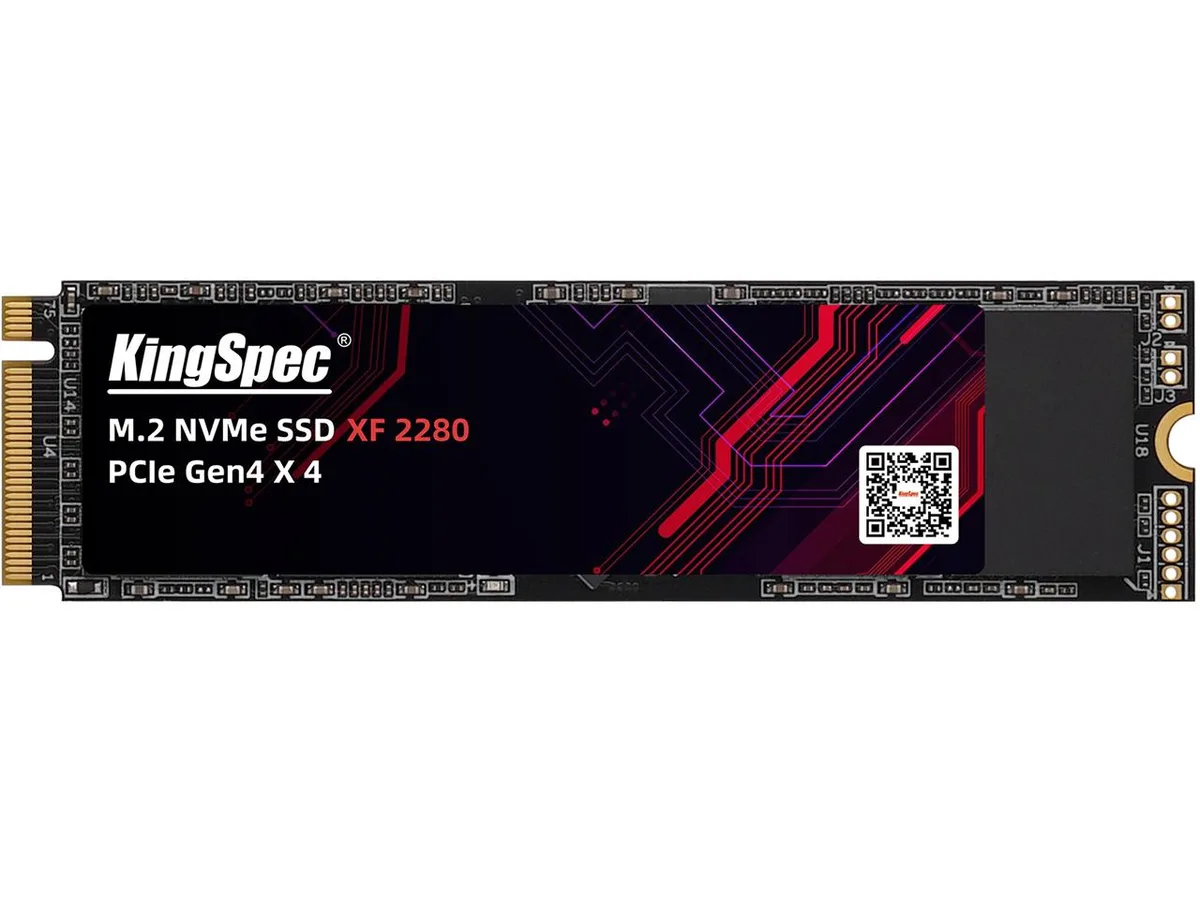

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation and lane count does the KingSpec XF 2280 2TB use, and what sequential read speed does that cap at?

It uses a PCIe 4.0 x4 interface with NVMe 1.4 protocol, delivering up to 5100 MB/s sequential read and 4400 MB/s sequential write.

What physical slot and clearance does the M.2 2280 form factor require?

It fits a standard M.2 2280 slot (22 mm wide, 80 mm long) and ships without a heatsink, so it clears low-profile motherboards and laptop bays.

How is the drive installed, and what step do people often miss?

Insert the drive at an angle into the M.2 slot, secure it with the motherboard screw, then enable the NVMe controller in BIOS so the OS can detect it.
