Rectangular green circuit board with silver heatsink and gold edge connector

KingSpec

KingSpec XF-2TB 2230 internal SSD with HeatSink

SKU CH-TK53-6XAN3

A compact M.2 2230 SSD with an integrated heatsink delivers 4800 MBps reads and 4200 MBps writes for handheld PCs and thin notebooks

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options XF-2TB-2230

  • Fits Steam Deck and ultra-thin laptops with M.2 2230 form factor
  • Sequential reads up to 4800 MBps and writes up to 4200 MBps via PCIe 4.0 x4
  • Random read 410000 IOPS and write 660000 IOPS for responsive multitasking
  • 1200 TBW endurance and 1000000-hour MTBF backed by built-in ECC and over-provisioning
  • Low 0.76 W idle and 5.3 W active power draw extends battery life

Compact 2230 NVMe drive for handhelds

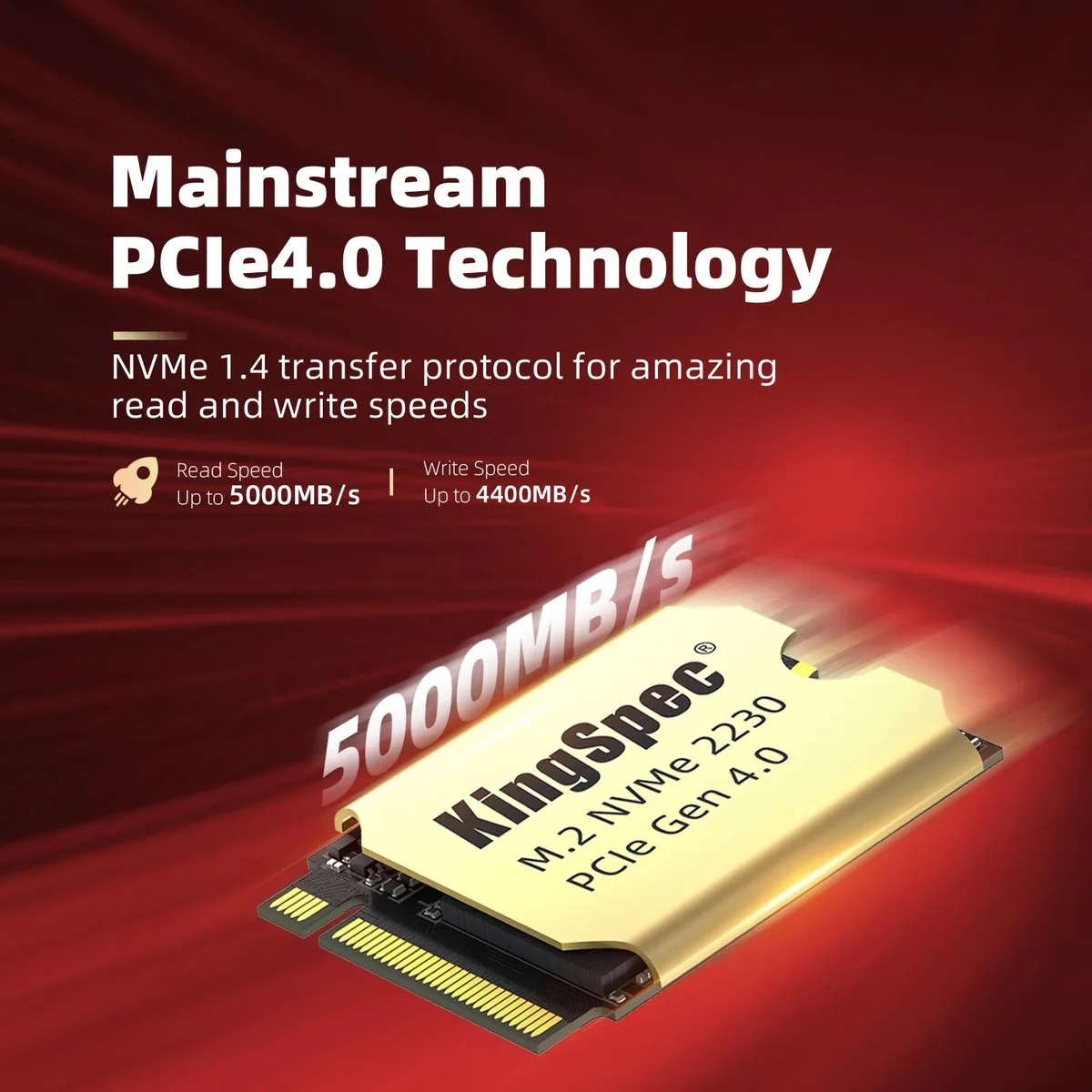

The KingSpec XF-2TB 2230 is a PCIe 4.0 x4 NVMe solid-state drive built in the M.2 2230 form factor. Its 2 TB capacity and integrated heatsink target Steam Deck, ROG Ally, Surface and similar space-constrained devices that need fast internal storage without a full-length slot.

Idle draw of 0.76 W and active draw of 5.3 W

The drive idles at 0.76 W and draws up to 5.3 W under load, limiting thermal output inside tight chassis. The bundled heatsink spreads heat across the controller and NAND, keeping sustained sequential reads of 4800 MBps and writes of 4200 MBps stable without throttling or audible fan noise.

Firmware features extend endurance

TRIM, garbage collection, over-provisioning, host memory buffer mode and ECC operate automatically to maintain write performance and protect data across the 1200 TBW rating. The controller manages wear levelling and error correction without user intervention, supporting the quoted 1,000,000-hour MTBF.

Highlights

  • Fits Steam Deck and ultra-thin laptops with M.2 2230 form factor
  • Sequential reads up to 4800 MBps and writes up to 4200 MBps via PCIe 4.0 x4
  • Random read 410000 IOPS and write 660000 IOPS for responsive multitasking
  • 1200 TBW endurance and 1000000-hour MTBF backed by built-in ECC and over-provisioning
  • Low 0.76 W idle and 5.3 W active power draw extends battery life

Specifications

BrandKingSpec
SeriesXF 2230 Series
ModelXF-2TB 2230
Part NumberXF-2TB 2230
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.3
Max Sequential ReadUp to 4800 MBps
Max Sequential WriteUp to 4200 MBps
4KB Random ReadUp to 410,000 IOPS
4KB Random WriteUp to 660,000 IOPS
Terabytes Written (TBW)1200TB
MTBF1,000,000 hours
HeatSinkwith HeatSink
Power Consumption (Idle)0.76W
Power Consumption (Active)5.3W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height30.00mm
Width22.00mm
Depth2.1mm
Weight20g

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2230 form factor with its integrated heatsink fit inside a Steam Deck without interfering with the motherboard?

The drive uses the M.2 2230 form factor which matches the Steam Deck slot length. The included heatsink adds minimal height and is designed for ultra-thin notebooks and handheld consoles, so it fits within the tight clearance of the Steam Deck chassis.

Does the drive support the TRIM command and error correction to maintain performance over its 1200 TBW endurance rating?

Yes, the controller supports TRIM, garbage collection, over-provisioning, HMB mode and ECC. These features work together to sustain write performance and data integrity across the full 1200 TBW rated lifespan.

What are the realistic sequential read and write speeds I can expect when installing this in an ASUS ROG Ally?

The drive is rated for up to 4800 MBps sequential read and 4200 MBps sequential write over the PCIe 4.0 x4 interface. Actual speeds in the ROG Ally will depend on thermal limits and workload but will reach the rated ceiling under sustained loads.
