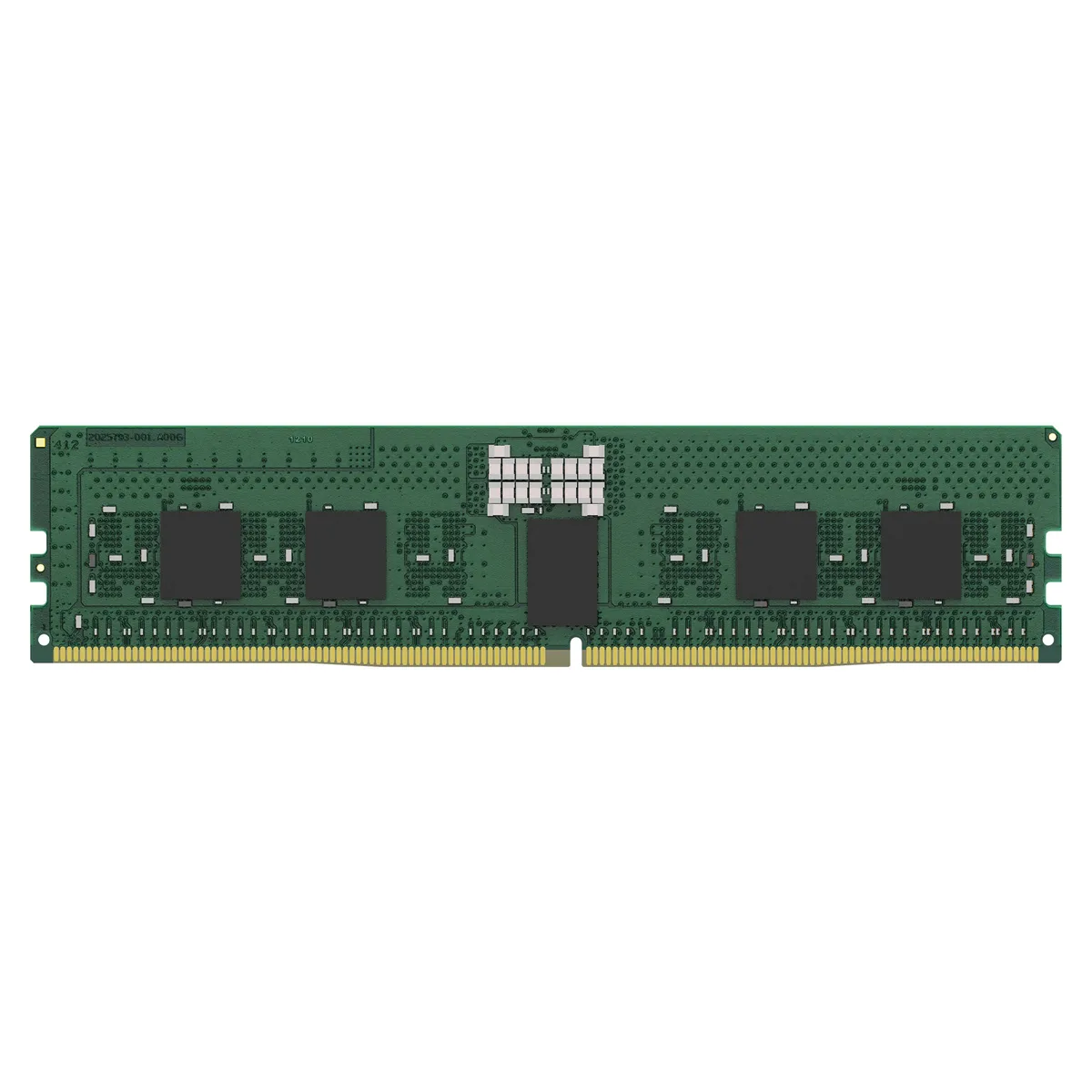

Green 288-pin DDR5 RDIMM circuit board with black memory chips, no heat spreader, gold edge connectors

Kingston Technology Corp.

Kingston Technology Corp. KSM56R46BS4PMI-48HMI 48GB DDR5 5600MT/s CL46 ECC Registered Server RAM

SKU CH-TJ7T-7A2FB MPN KSM56R46BS4PMI-48HMI

48 GB DDR5 registered ECC module running at 5600 MT/s with CL46 latency for server workloads

  • Capacity48GB
  • Type288-Pin DDR5 RDIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Timing46-45-45
  • Voltage1.10V

Capacity 48GB

Rank 1Rx4

Option Hynix, Full Lock

  • 48GB capacity supports large server workloads
  • DDR5 5600MT/s speed delivers high data throughput
  • CL46 latency with 46-45-45 timing balances responsiveness
  • Registered ECC with on-die and x80 ECC protects data integrity
  • 10V operation reduces power draw per module

48GB DDR5 Registered Server Memory

This Kingston KSM56R46BS4PMI-48HMI module delivers 48GB of DDR5 5600 registered ECC memory for server and workstation motherboards. It operates at 1.10V with CL46 latency and a single-rank 1Rx4 organisation. The 288-pin RDIMM form factor fits compatible DDR5 registered DIMM slots. On-die ECC and x80 ECC provide data-integrity features for mission-critical workloads.

Suited for servers needing registered ECC DDR5.

This module suits servers and workstations that require registered DDR5 memory with ECC for stability. Builders using consumer desktop motherboards that accept only unbuffered non-ECC DIMMs cannot use this part. Systems lacking DDR5 registered DIMM support should look at alternative memory types. The 48GB capacity fits high-density configurations where registered buffering is mandatory.

Deciding spec: registered DDR5 ECC RDIMM

The single specification that decides fitment is the registered DDR5 ECC RDIMM interface. Only motherboards with DDR5 registered DIMM slots supporting ECC can accept this module. Unbuffered or non-ECC platforms will not work. Verify your platform documentation for registered DDR5 ECC support before purchase.

Highlights

  • 48GB capacity supports large server workloads
  • DDR5 5600MT/s speed delivers high data throughput
  • CL46 latency with 46-45-45 timing balances responsiveness
  • Registered ECC with on-die and x80 ECC protects data integrity
  • 10V operation reduces power draw per module

Specifications

BrandKingston
ModelKSM56R46BS4PMI-48HMI
Capacity48GB
Type288-Pin DDR5 RDIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Timing46-45-45
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank1Rx4
Heat SpreaderNo
FeaturesPower Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
x80 ECC (x40, 2 independent I/O sub channels)
32 internal banks
Hard/Soft Post Package Repair
Sideband access with I3C/I2C
PCB: Height 1.23" (31.25mm)
RoHS Compliant and Halogen-Free
Shipping weight0.45 kg
Package size178 × 127 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need to support 288-pin DDR5 RDIMM slots and registered memory for this 48GB module to work?

Yes, the module is a 288-pin DDR5 RDIMM with registered buffering, so the motherboard must provide DDR5 RDIMM slots that accept registered DIMMs and operate at 1.10V.

Can I mix this CL46 5600MT/s registered ECC module with older DDR5 ECC UDIMMs running at 4800MT/s?

No, registered RDIMMs and unbuffered UDIMMs cannot be mixed on the same platform; the motherboard must support registered memory exclusively for this 1Rx4 module to function.

How can I verify the module is running at 5600MT/s with CL46 timings and ECC active after installation?

Check the BIOS memory information or use a tool such as dmidecode to confirm the speed shows 5600MT/s, timings read 46-45-45, and ECC status reports as enabled for this 48GB DIMM.
