Green circuit board with gold edge connector and black controller chip

Kingston Technology Corp.

Kingston Technology Corp. NV3 4TB internal SSD

SKU CH-J55T-XEC3K

M.2 2280 PCIe 4.0 x4 NVMe internal SSD with 4TB capacity, up to 6000MB/s read and 5000MB/s write speeds, 1280TBW endurance, and single-sided 2.3mm design for laptops and desktops

  • Device TypeM.2 2280 PCIe 4.0 x4 NVMe Internal Solid State Drive
  • Used ForDesktop PC, Gaming Laptop, Notebook, Mini PC, All-in-One PC
  • Form FactorM.2 2280
  • Capacity4TB
  • InterfacePCIe 4.0 x4 NVMe
  • ConnectorM.2 NVMe edge connector

NV3 4TB

  • Massive 4TB capacity stores huge game libraries and video projects
  • PCIe 4.0 x4 NVMe delivers up to 6000MB/s read and 5000MB/s write speeds
  • 1280TBW endurance rating and 2000000-hour MTBF ensure long-term reliability
  • Single-sided 2.3mm design fits slim notebooks and compact chassis without extra heatsink
  • Low 0.07W idle and 3.2W active power consumption extends laptop battery life

4TB M.2 NVMe drive for desktops and laptops

The Kingston NV3 is a 4TB internal solid-state drive built for desktop PCs, gaming laptops, notebooks, mini PCs and all-in-one systems. It uses the M.2 2280 form factor with a single-sided 2.3mm PCB that fits slim chassis and portable devices. The drive targets users who need large capacity for games, media files, video editing projects and daily workloads.

PCIe 4.0 x4 interface

The decisive specification is the PCIe 4.0 x4 NVMe interface, which delivers maximum sequential read speeds up to 6000MB/s and write speeds up to 5000MB/s. Sustained performance matches those peaks, while random access reaches 480000 IOPS read and 450000 IOPS write. Endurance is rated at 1280TBW with an MTBF of 2000000 hours, backed by the Phison PS5021-E21 controller and 3D TLC NAND.

Single-sided design needs only an M.2 NVMe slot

Installation requires a standard M.2 NVMe edge-connector slot; the single-sided layout clears tight spaces in thin notebooks and compact builds. Low power draw of 0.07W idle and 3.2W active reduces thermal load, so passive cooling is sufficient without an extra heatsink. The drive withstands 1000G shock and 20G vibration, making it suitable for portable game devices and mobile workstations.

Highlights

  • Massive 4TB capacity stores huge game libraries and video projects
  • PCIe 4.0 x4 NVMe delivers up to 6000MB/s read and 5000MB/s write speeds
  • 1280TBW endurance rating and 2000000-hour MTBF ensure long-term reliability
  • Single-sided 2.3mm design fits slim notebooks and compact chassis without extra heatsink
  • Low 0.07W idle and 3.2W active power consumption extends laptop battery life

Specifications

BrandKingston
SeriesNV3
ModelKingston NV3 4TB
Part NumberSNV3S2000G
Device TypeM.2 2280 PCIe 4.0 x4 NVMe Internal Solid State Drive
Used ForDesktop PC, Gaming Laptop, Notebook, Mini PC, All-in-One PC storage upgrade; for games, large files, video editing, daily office use
Form FactorM.2 2280
Capacity4TB
InterfacePCIe 4.0 x4 NVMe
ConnectorM.2 NVMe edge connector
ControllerPhison PS5021-E21
Max Sequential ReadUp to 6000MB/s
Max Sequential WriteUp to 5000MB/s
Sustained Sequential Read6000MB/s
Sustained Sequential Write5000MB/s
4KB Random ReadUp to 480,000 IOPS
4KB Random WriteUp to 450,000 IOPS
FeaturesPCIe 4.0 x4 NVMe interface, single-sided M.2 2280 design, 3D TLC NAND flash, Phison PS5021-E21 controller, low power consumption, shock & vibration resistance, MTBF 2,000,000 hours, compatible with most M.2 NVMe slots
Power Consumption (Idle)Typical 0.07W
Power Consumption (Active)Typical 3.2W
Max Shock Resistance1000G
Max Vibration Resistance5G (10–2000Hz)
20G (10–1000Hz)
Height2.30mm
Width22mm
Depth80mm
Weight2.8

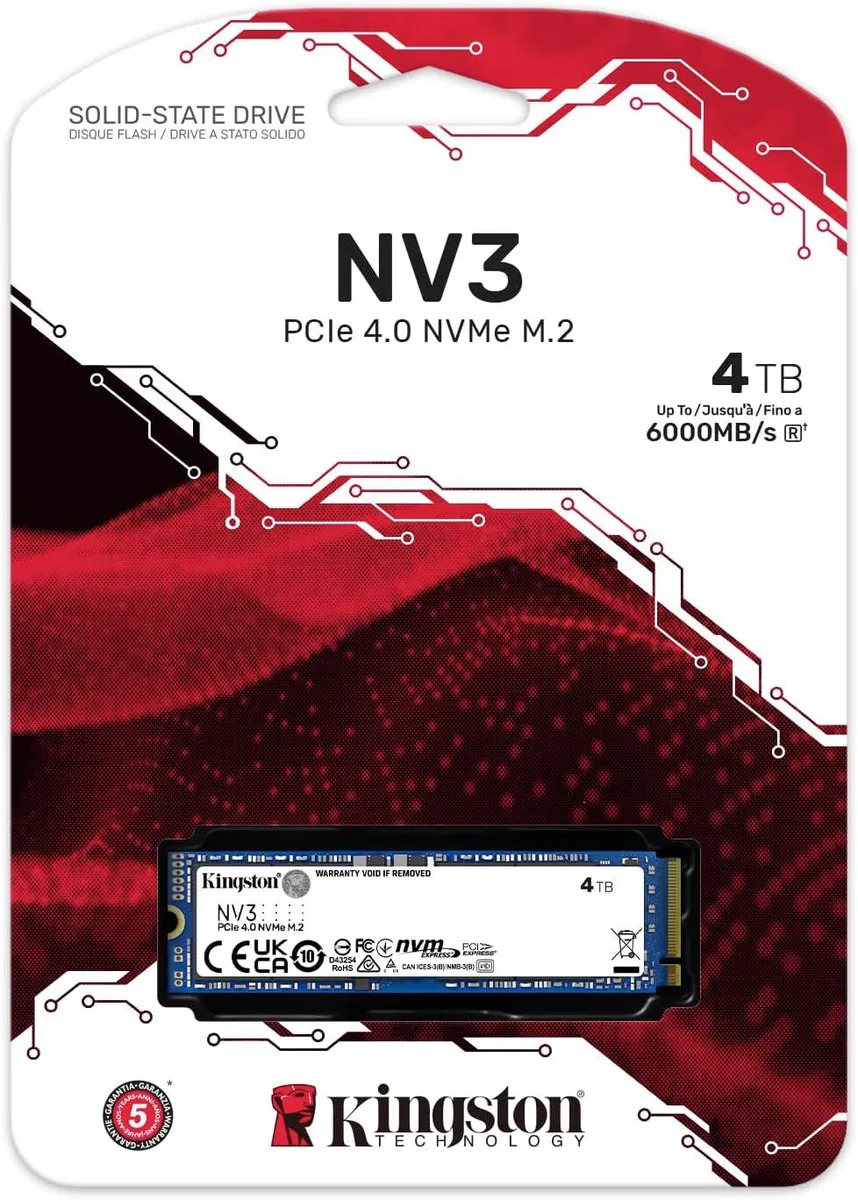

Package Content1 × Kingston NV3 NVMe M.2 SSD
User manual

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the single-sided M.2 2280 board fit a slim laptop with a 2.3mm slot height limit?

Yes, the drive uses a single-sided PCB measuring 2.3mm thick, so it fits slim notebooks and compact chassis that accept standard M.2 2280 modules.

Does the 4TB model need an extra heatsink for sustained 6000MB/s reads?

The NV3 is designed for passive heat dissipation; typical active power is 3.2W and idle power 0.07W, so no additional heatsink is required for normal desktop or laptop workloads.

What endurance rating does the 4TB drive carry for heavy write workloads?

The drive is rated for 1280TBW total bytes written and an MTBF of 2000000 hours, covering heavy gaming, video editing and daily office use.
