Green rectangular circuit board with gold edge connector and black controller chip visible

Kingston Technology Corp.

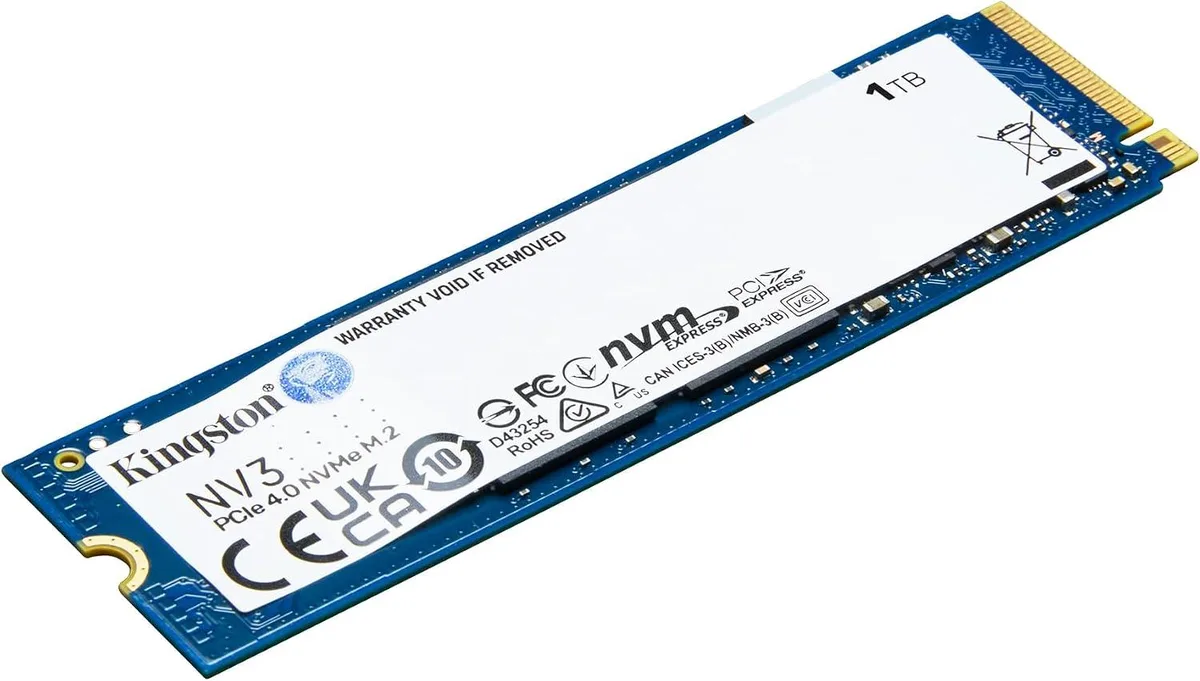

Kingston Technology Corp. NV3 1TB M.2 2280 PCIe 4.0 x4 NVMe internal SSD

SKU CH-S2DA-GD095

1TB PCIe 4.0 x4 NVMe M.2 2280 drive with 6000MB/s read, 4000MB/s write and 320TBW endurance

  • Max Sequential ReadUp to 6000MB/s
  • Max Sequential WriteUp to 4000MB/s
  • 4KB Random ReadUp to 420,000 IOPS
  • Sustained Sequential Read6000MB/s
  • Sustained Sequential Write4000MB/s
  • 4KB Random WriteUp to 390,000 IOPS

NV3 1TB

  • Sequential reads up to 6000MB/s accelerate game loads
  • Sequential writes up to 4000MB/s speed up large file saves
  • Random reads up to 420000 IOPS sharpen system responsiveness
  • Low 3.2W active draw extends laptop battery life
  • Single-sided M.2 2280 PCB fits slim laptops and compact chassis

NV3 1TB PCIe 4.0 x4 NVMe

The Kingston NV3 is a 1TB internal solid state drive built on a single-sided M.2 2280 PCB. It uses 3D TLC NAND and a Phison PS5021-E21 controller to deliver up to 6000MB/s read and 4000MB/s write speeds for desktops, laptops and compact handheld consoles.

Upgrade from slower NVMe or hard drives

Replacing an older PCIe 3.0 NVMe drive or a mechanical hard drive with the NV3 brings sustained sequential reads of 6000MB/s and writes of 4000MB/s, plus 420,000 random read IOPS and 390,000 random write IOPS. The jump is worth it when game loading, large file transfers or video editing workflows need higher throughput and 320TBW endurance.

Fits slim builds without extra cooling

The thin, single-sided design draws a typical 3.2W active and 0.07W idle, producing low heat so no separate heatsink is required. It slots into any mainstream M.2 motherboard socket, supports 1000G shock and 20G vibration resistance, and frees up space in small chassis while providing 2,000,000 hours MTBF reliability.

Highlights

  • Sequential reads up to 6000MB/s accelerate game loads
  • Sequential writes up to 4000MB/s speed up large file saves
  • Random reads up to 420000 IOPS sharpen system responsiveness
  • Low 3.2W active draw extends laptop battery life
  • Single-sided M.2 2280 PCB fits slim laptops and compact chassis

Specifications

Max Sequential ReadUp to 6000MB/s
Max Sequential WriteUp to 4000MB/s
4KB Random ReadUp to 420,000 IOPS
Sustained Sequential Read6000MB/s
Sustained Sequential Write4000MB/s
4KB Random WriteUp to 390,000 IOPS
ControllerPhison PS5021-E21
ConnectorM.2 NVMe edge connector
Form FactorM.2 2280
Capacity1TB
InterfacePCIe 4.0 x4 NVMe
Power Consumption (Active)Typical 3.2W
Power Consumption (Idle)Typical 0.07W
Max Shock Resistance1000G
Max Vibration Resistance5G (10–2000Hz)
20G (10–1000Hz)
BrandKingston
SeriesNV3
ModelKingston NV3 1TB
Part NumberSNV3S1000G
Device TypeM.2 2280 PCIe 4.0 x4 NVMe Internal Solid State Drive
Used ForDesktop PC, Gaming Laptop, Notebook, Mini PC, All-in-One PC storage upgrade; for games, large files, video editing, daily office use
FeaturesPCIe 4.0 x4 NVMe interface, single-sided M.2 2280 design, 3D TLC NAND flash, Phison PS5021-E21 controller, low power consumption, shock & vibration resistance, MTBF 2,000,000 hours, compatible with most M.2 NVMe slots
Height2.30mm
Width22mm
Depth80mm
Weight2.8
Package Content1 × Kingston NV3 NVMe M.2 SSD
User manual

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the single-sided M.2 2280 PCB fit in a slim laptop?

The single-sided thin PCB design keeps the drive low-profile, so it fits most slim laptops and compact small chassis without a heatsink.

What is the step people get wrong when installing the NV3 1TB on a motherboard?

Many forget to enable the PCIe 4.0 x4 NVMe slot in BIOS before booting, leaving the drive invisible to the installer.

When will the 3D TLC NAND reach its 320 TBW endurance limit?

At 320 TBW the drive is rated for heavy daily writes; typical workloads take years to approach that figure.
