M.2 2280 SSD with low-profile graphene aluminum heat spreader, 22mm wide, 80mm long, 3.5mm thick

Kingston Technology Corp.

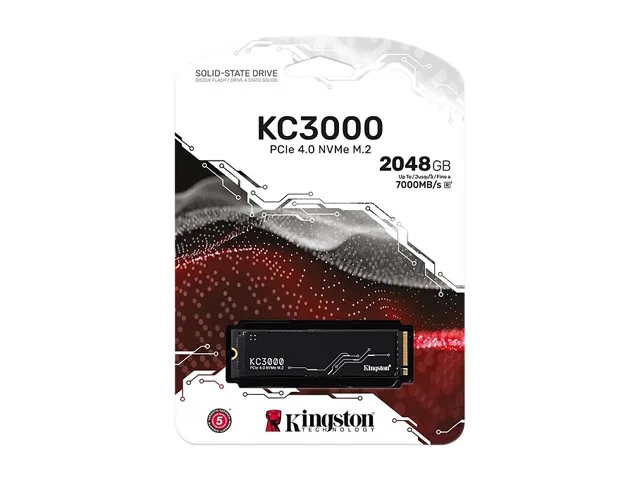

Kingston Technology Corp. SKC3000D/2048G 2TB internal SSD

SKU CH-691P-XWGEN MPN SKC3000D/2048G

PCIe 4.0 NVMe drive with graphene-aluminium heat spreader delivers 7000 MB/s reads and writes plus 1.6 PBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D TLC
  • InterfacePCI-Express 4.0 x4

Options 2TB

  • 2TB capacity stores large game libraries and media projects
  • Sequential speeds up to 7000 MBps load files and levels quickly
  • 1,000,000 IOPS random performance keeps multitasking responsive
  • 6PBW endurance rating supports heavy write workloads
  • Graphene aluminum heat spreader maintains performance under sustained loads

KC3000 2TB NVMe drive

This Kingston KC3000 model is a 2TB internal SSD built for consumer workloads that demand sustained throughput. It uses a Phison E18 controller paired with 2GB of DRAM cache and 3D TLC flash. The M.2 2280 form factor fits modern desktops and laptops, and the low-profile graphene aluminium heat spreader helps manage thermals during heavy use.

PCIe 4.0 x4 slot and M.2 2280 key

Before ordering, confirm the host system provides an M.2 2280 slot wired for PCIe 4.0 x4 and NVMe protocol. The drive draws up to 9.9W during peak write activity, so verify the platform can supply adequate power and airflow. Operating temperature range is 0°C to 70°C, and the board measures 22.00mm wide by 80.00mm long with a 3.50mm height.

Sustained 7000 MBps with 1.6PBW endurance

Under continuous load the drive maintains sequential read and write speeds up to 7000 MBps and random performance up to 1000000 IOPS. The 1.6PBW rating and 1800000-hour MTBF reflect long-term write endurance. Active power averages 0.36W while idle consumption is 5 mW, and the drive tolerates 2.17G operating vibration.

Highlights

  • 2TB capacity stores large game libraries and media projects
  • Sequential speeds up to 7000 MBps load files and levels quickly
  • 1,000,000 IOPS random performance keeps multitasking responsive
  • 6PBW endurance rating supports heavy write workloads
  • Graphene aluminum heat spreader maintains performance under sustained loads

Specifications

BrandKingston
SeriesKC3000
ModelSKC3000D/2048G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D TLC
InterfacePCI-Express 4.0 x4
ProtocolNVMe
ControllerPhison E18
Cache2GB DRAM
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 7000 MBps
4KB Random ReadUp to 1,000,000 IOPS
4KB Random WriteUp to 1,000,000 IOPS
Terabytes Written (TBW)1.6PBW
MTBF1,800,000 hours
HeatSinkwith HeatSink
FeaturesPCIe 4.0 NVMe high-performance
Upgrade with full capacities up to 4096GB
Compact M.2 2280 form factor
Low profile graphene aluminum heat spreader
Power Consumption (Idle)5 mW
Power Consumption (Active)0.36W Avg / 2.8W (MAX) Read / 9.9W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7-800Hz)
Non-operating: 20G Peak (20-1000Hz)
Height3.50mm
Width22.00mm
Depth80.00mm
Weight9.70g
Shipping weight0.02 kg
Package size178 × 127 × 6 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the box include a mounting screw or only the drive with its graphene aluminum heat spreader?

The package contains the 2TB M.2 2280 drive with its low-profile graphene aluminum heat spreader already attached. A motherboard mounting screw is not included and must be sourced separately.

How do I decide between the 2TB model and the higher-capacity versions that go up to 4096GB?

Choose the 2TB SKC3000D/2048G if you need up to 1.6PBW endurance and 7000 MBps sequential speeds for typical consumer workloads; step up to 4096GB only when you require more raw capacity for large media libraries or heavy write caching.

What does the 7000 MBps sequential figure actually deliver inside a PCIe 4.0 x4 slot?

In a PCIe 4.0 x4 M.2 slot the Phison E18 controller with 2GB DRAM cache can sustain up to 7000 MBps reads and writes, while 4KB random performance reaches 1,000,000 IOPS for responsive OS and application loading.
