Lenovo
Lenovo ThinkSystem ST250 V3 7DCEA01ZNA tower/rack server Xeon E-2488 3.20 GHz 16 GB DDR5
Tower or rack-mountable server with one Intel Xeon E-2488 processor at 3.20 GHz and 16 GB DDR5 ECC memory, expandable to 128 GB
- TypeTower/Rack-mountable
- Rack Height4U/Tower
- CPU TypeIntel Xeon E-2400 Series
- # of Processors Installed1
- MAX Processors1
- Installed Memory Size16GB
- Intel Xeon E-2488 8-core 3.20 GHz processor delivers high single-thread performance
- 16 GB DDR5 ECC memory expandable to 128 GB across four DIMM slots
- Flexible storage with up to 16 hot-swap 2.5-inch or 8 hot-swap 3.5-inch drive bays
- Dual 1 GbE embedded LAN plus dedicated 1 GbE management port for network separation
- PCIe Gen5 x16 slot and Gen4 x8/x4 slots enable GPU or high-speed adapter upgrades
Purpose-built tower server

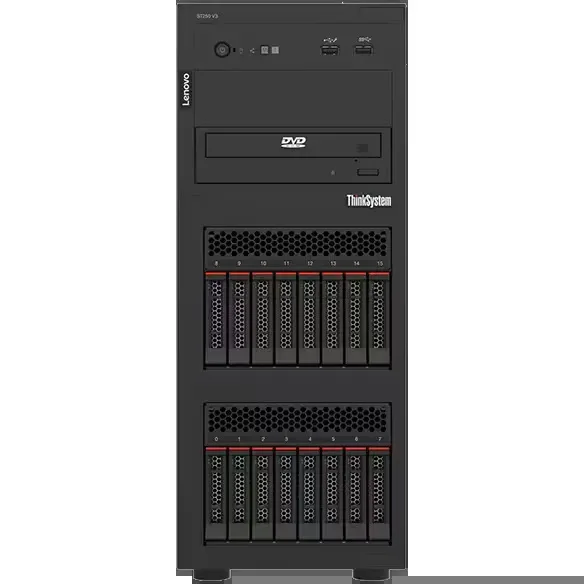

The Lenovo ThinkSystem ST250 V3 7DCEA01ZNA is a 4U tower or rack-mountable system equipped with one Intel Xeon E-2488 processor running at 3.20 GHz and 16 GB of DDR5 memory. It targets small businesses and remote offices that need a single-socket platform for file, print, virtualisation or light database workloads with room to grow memory and storage later.
Installation and common pitfalls
The chassis accepts standard UDIMMs in four slots and supports up to 128 GB using 32 GB modules at 4400 MHz. Drive bays are tool-less for hot-swap configurations but simple-swap trays require screws; mixing bay types is not supported. GPU options are limited to NVIDIA Quadro T1000 or T400 cards, which need the x16 slot and adequate PSU headroom. The fixed 300 W or 500 W supply leaves limited power for multiple GPUs or dense NVMe installations.
Pre-order checklist
Confirm that your rack kit matches the 4U height and that the chosen drive-bay variant aligns with your SAS, SATA or NVMe drives. Verify the operating system from the supported list — Windows Server, SUSE, Red Hat or VMware vSphere — and ensure the single-processor limit meets your licensing model. Check that the two 1 GbE LOM ports plus the dedicated management port satisfy your network topology before ordering.
Highlights
- Intel Xeon E-2488 8-core 3.20 GHz processor delivers high single-thread performance
- 16 GB DDR5 ECC memory expandable to 128 GB across four DIMM slots
- Flexible storage with up to 16 hot-swap 2.5-inch or 8 hot-swap 3.5-inch drive bays
- Dual 1 GbE embedded LAN plus dedicated 1 GbE management port for network separation
- PCIe Gen5 x16 slot and Gen4 x8/x4 slots enable GPU or high-speed adapter upgrades
Specifications
| Brand | Lenovo |
|---|---|
| Series | ThinkSystem ST250 |
| Part Number | 7DCEA01ZNA |
| Type | Tower/Rack-mountable |
| Rack Height | 4U/Tower |
| CPU Type | Intel Xeon E-2400 Series |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 16GB |
| Memory Type | DDR5 |
| Max Memory Capacity | Up to 128GB in 4x DIMM slots using 32GB UDIMMs 4400MHz TruDDR5 |
| Number of Memory Slots | 4 |
| GPU Type | Support NVIDIA Quadro T1000 or NVIDIA Quadro T400 GPU |
| LAN Ports | 2x 1GbE Embedded LOM 1x 1GbE Dedicated Management |
| Expansion Slots | Support x8 Slimline with two PCH PCIe Gen4 x4 lanes PCIe x4 slot with PCH PCIe Gen4 x4 lanes PCIe x16 slot with CPU PCIe Gen5 x16 lanes PCIe x4 slot with PCH PCIe Gen4 x4 lanes PCIe x8 slot with PCH PCIe Gen4 x4 lanes |
| Expansion Bays | 4 or 8x 3.5" simple-swap SATA/SAS HDD (Up to 2x NVMe SSDs) 4 or 8x 3.5" hot-swap SATA/SAS HDD 8 or 16x 2.5" hot-swap SATA/SAS HDD Hybrid 4x 3.5" + 8x 2.5" hot-swap SATA/SAS HDD 2x 5.25” media bay (ODD/Tape) 1x Internal USB 3.2 G1 (5Gb) Optional 2x M.2 kit (SATA, in PCIe slots) |

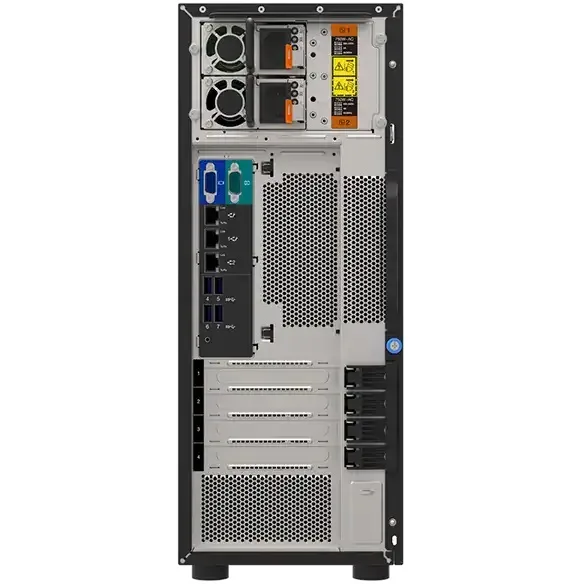

| Other ports | Front: 1x USB 2.0 (XCC Mobile); 1x USB 3.2 G1 (5Gb) Rear: 4x USB 3.2 G1 (5Gb) ports; 2x RJ45 Ethernet port, 1x Dedicated Management port; 1x Serial port, 1x VGA port, NMI button |
| Operating System | Support Microsoft Windows Server, SUSE, Red Hat, VMware vSphere. Microsoft Windows 10/11 tested. |
| Power Characteristics | Fixed 300W (Gold) / 500W (Titanium) Power Supply Unit (PSU) Redundant CRPS (Platinum) / CRPS (Titanium) PSU Fixed and Redundant PSU meets ErP lot 9 |
| Features | Lenovo XClarity Controller 2; Root of Trust module with integrated Platform Firmware Resiliency, TPM 2.0 Optional front lockable bezel, Optional chassis intrusion switch |
| Shipping weight | 23.59 kg |
| Package size | 610 × 457 × 203 mm |
Questions about this item
How can I verify the Xeon E-2488 3.20 GHz processor and 16 GB DDR5 memory are detected correctly after initial power-on?
Check the Lenovo XClarity Controller 2 management interface and the BIOS POST screen; both will display the installed CPU model, core count, clock speed and the 16 GB DDR5 memory configuration.
What components are included with the 7DCEA01ZNA server and which storage drives or GPU must be purchased separately?
The chassis, motherboard with Intel C266 chipset, one Xeon E-2488 processor, 16 GB DDR5 UDIMM, fixed or redundant power supply, bezel and rack-mount hardware are included; 3.5″ or 2.5″ SATA/SAS HDDs, NVMe SSDs and optional NVIDIA Quadro T1000 or T400 GPU are not included.
Which memory capacity should I choose for the four DIMM slots to reach the 128 GB maximum using 32 GB 4400 MHz TruDDR5 modules?
Populate all four slots with 32 GB DDR5 UDIMMs to achieve the supported 128 GB maximum; smaller 16 GB or 8 GB DDR5 UDIMMs can be mixed but will not reach the 128 GB limit.
