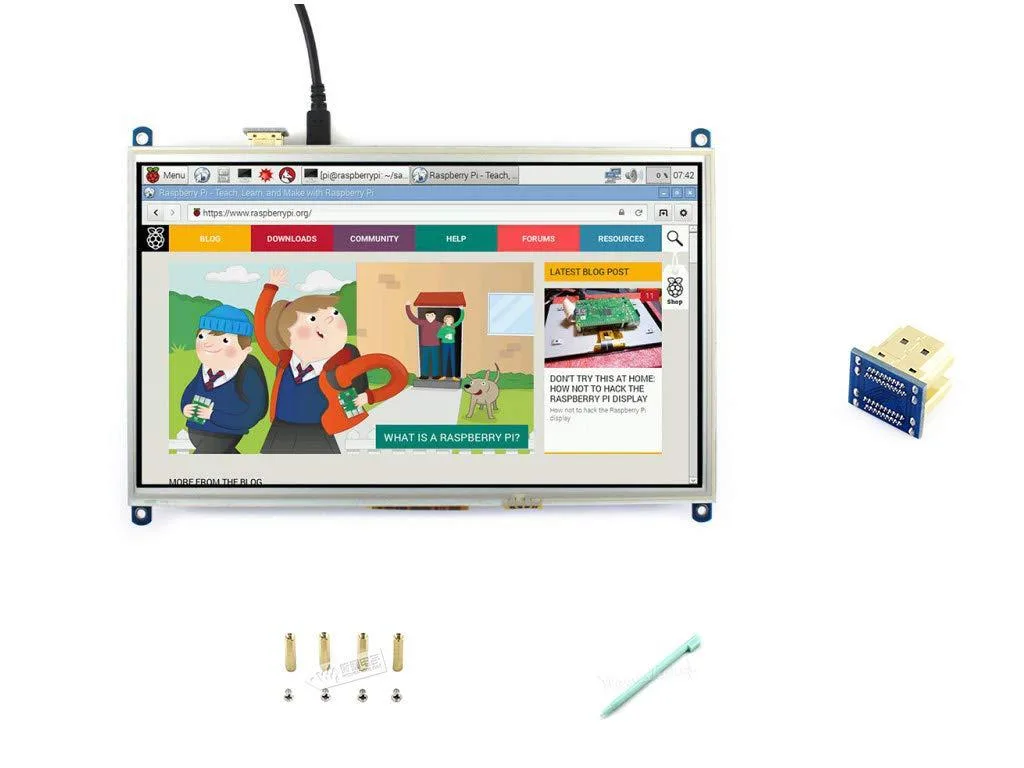

10.1 inch development board with resistive touch screen 1024 by 600 resolution

LORDWORLD

LORDWORLD 10.1inch 1024x600 Resistive Touch development board

SKU CH-B1BH-SB6YT

10.1-inch resistive touch display with 1024x600 resolution connects directly to most Raspberry Pi boards

  • 1 inch 1024x600 resolution gives crisp visuals for embedded projects
  • Resistive touch control enables precise input with stylus or gloved fingers
  • Direct connection to Raspberry Pi 2B, 3B, 3B+ and 4B without extra wiring
  • HDMI video needs no GPIO pins, leaving them free for other hardware
  • Backlight off function reduces power draw for battery-powered builds

10.1 inch Resistive Touch Development Board

This 10.1 inch board provides a 1024x600 hardware resolution display with resistive touch control. It is designed for makers and developers building IoT edge devices or embedded projects that need a compact screen. The board connects directly to most Raspberry Pi revisions without extra wiring for the display signal. It suits hobbyists and engineers adding a touch interface to single-board computer projects.

Drivers and Backlight Control

Supplied drivers enable the touch panel on Raspbian, Ubuntu, Kali and Retropie without additional configuration effort. The backlight can be switched off through software to reduce power draw when the screen is not actively viewed. When used as a generic computer monitor the touch function is disabled and an HDMI cable must be connected separately. These software and power features let developers tailor the board to battery-powered or always-on applications.

HDMI and GPIO Connectivity

Video is carried over an HDMI interface that requires no general-purpose I/O pins for the display itself. The resistive touch panel does need GPIO connections, so header access on the host board remains necessary. Direct mounting aligns with the Raspberry Pi 2B, 3B, 3B+ and 4B form factor, while the Pi 1 Model B and Pi Zero need an HDMI cable for the video link. This connector arrangement determines how the board fits inside enclosures and whether extra cabling is required.

Highlights

  • 1 inch 1024x600 resolution gives crisp visuals for embedded projects
  • Resistive touch control enables precise input with stylus or gloved fingers
  • Direct connection to Raspberry Pi 2B, 3B, 3B+ and 4B without extra wiring
  • HDMI video needs no GPIO pins, leaving them free for other hardware
  • Backlight off function reduces power draw for battery-powered builds

Specifications

BrandLORDWORLD

Questions about this item

Does the resistive touch layer on the 10.1inch screen wear out and need replacing?

Resistive panels can lose sensitivity after heavy, repeated pressing; the overlay is bonded to the glass so the whole display must be swapped if it fails.

What stops the 1024x600 panel from running continuously at full brightness?

The backlight generates the most heat; leaving it on all day will raise the enclosure temperature until thermal limits throttle the Pi or the LCD itself.

How much power does the 10.1inch display draw when the backlight stays on for 24 hours?

The backlight is the main load; turning it off cuts consumption sharply, but with it on the board pulls several hundred milliamps from the Pi’s 5 V rail continuously.
