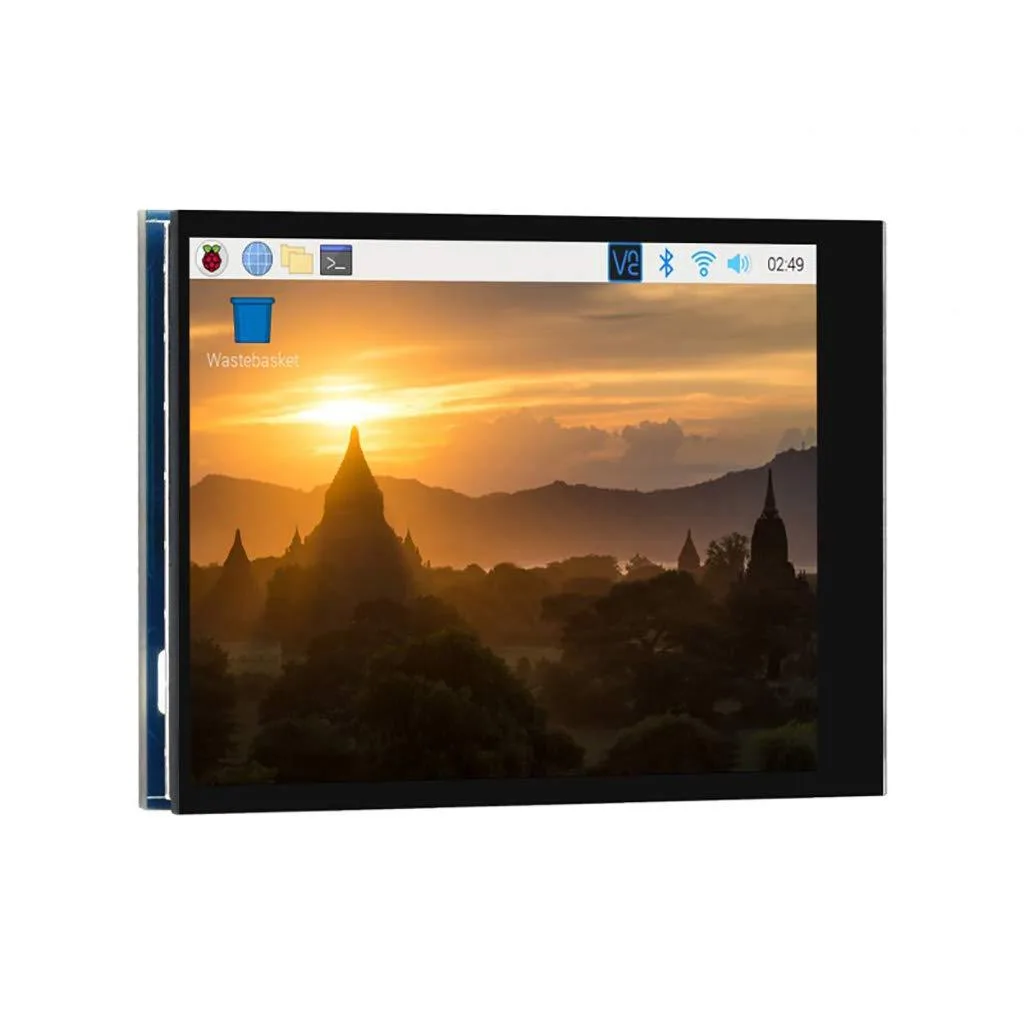

Small rectangular 2.8 inch LCD touchscreen board with glass face and exposed circuit back

LORDWORLD

LORDWORLD 2.8" 480×640 DPI LCD Touchscreen Development Board

SKU CH-3KWJ-7PG1H

2.8-inch 480×640 IPS touchscreen for Raspberry Pi with 5-point capacitive touch, DPI666 interface and optical bonding glass

  • Sharp 480×640 portrait display at 60Hz via DPI666 interface
  • Responsive 5-point capacitive touch over I2C for interactive control
  • IPS panel with optical bonding glass gives wide angles and glare reduction
  • Low-power DPI design suits battery-powered Pi projects
  • Works with Raspbian, Kali and other DPI-compatible OS images

2.8" DPI LCD Touchscreen Development Board

This 2.8 inch portrait display delivers a 480×640 resolution over a DPI666 interface at 60Hz. It is built for Raspberry Pi projects that need a compact, interactive screen with capacitive five-point touch input via I2C.

Makers building portable Pi control panels

The board suits developers creating handheld or battery-powered interfaces that benefit from low-power DPI signalling and wide-angle IPS clarity with optical bonding glass. It is not for projects requiring HDMI or SPI connectivity, larger screen real estate, or non-Raspberry Pi platforms without DPI support.

Integrates directly with Raspberry Pi GPIO

The module connects through the Pi's DPI peripheral, freeing the HDMI port for other uses and reducing overall power draw for mobile deployments. It requires a Raspberry Pi OS image with DPI overlay enabled and works with Raspbian, Kali and similar distributions that expose the interface. Portrait orientation is default; landscape rotation is handled in software configuration.

Highlights

  • Sharp 480×640 portrait display at 60Hz via DPI666 interface
  • Responsive 5-point capacitive touch over I2C for interactive control
  • IPS panel with optical bonding glass gives wide angles and glare reduction
  • Low-power DPI design suits battery-powered Pi projects
  • Works with Raspbian, Kali and other DPI-compatible OS images

Specifications

BrandLORDWORLD

Questions about this item

Which Raspberry Pi models have the DPI666 interface required to drive this 480×640 panel?

Any Raspberry Pi board that exposes the DPI666 parallel interface can drive the display; the panel connects directly to those GPIO pins and draws power from the Pi.

Will the capacitive 5-point touchscreen still register touches if I keep an older resistive display attached to the same Pi?

The touch controller uses a separate I2C bus, so it operates independently of any other display connected via HDMI or SPI; both can coexist without conflict.

How can I confirm the 60 Hz refresh rate is active after configuring the DPI overlay?

Run a frame-rate test or on-screen FPS counter in Raspberry Pi OS; a stable 60 reading verifies the DPI666 link is running at the specified refresh rate.
