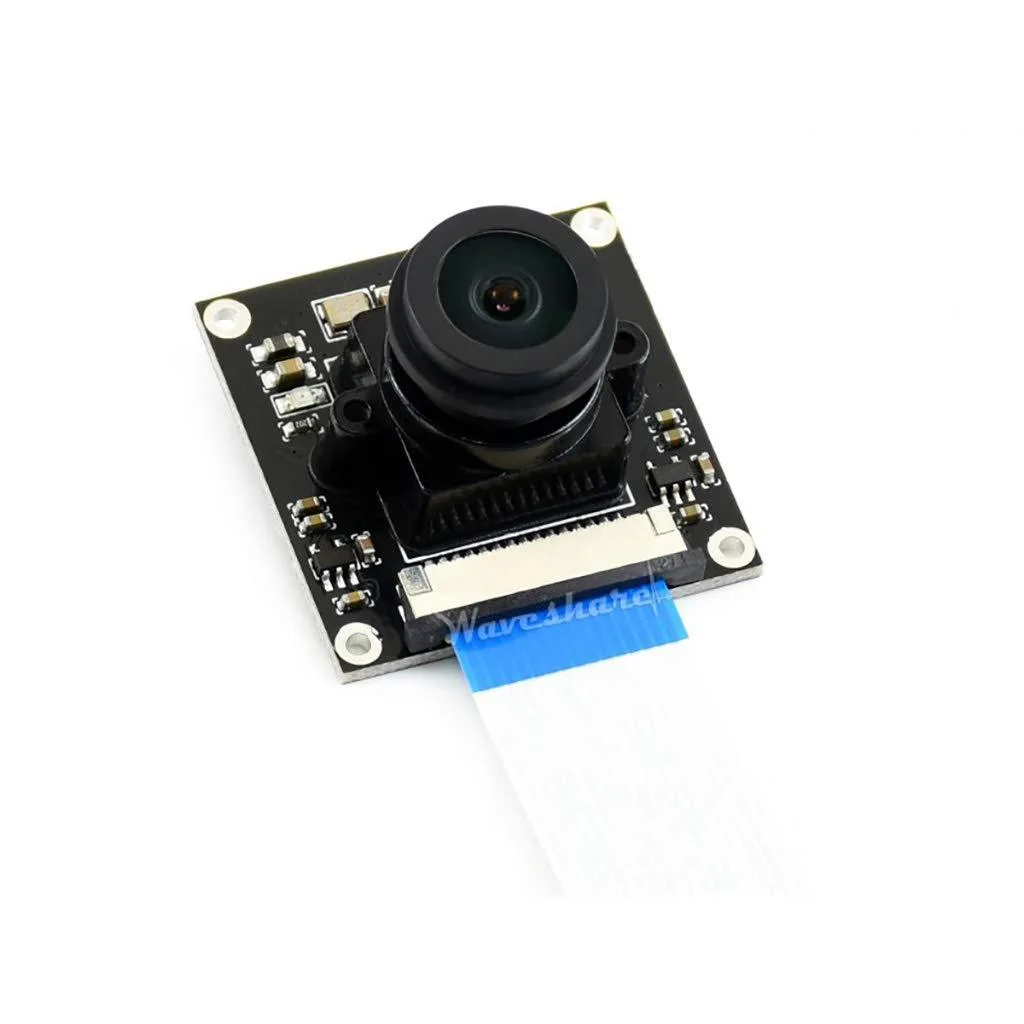

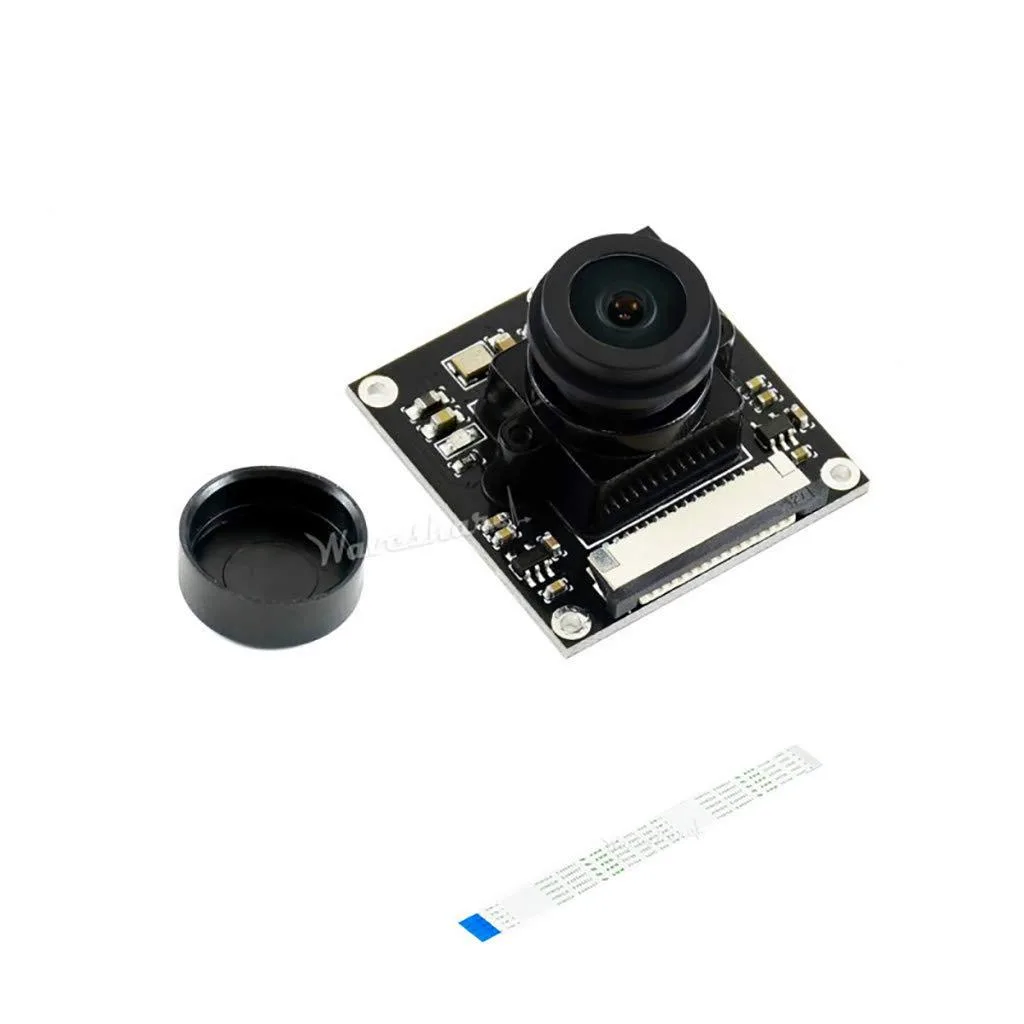

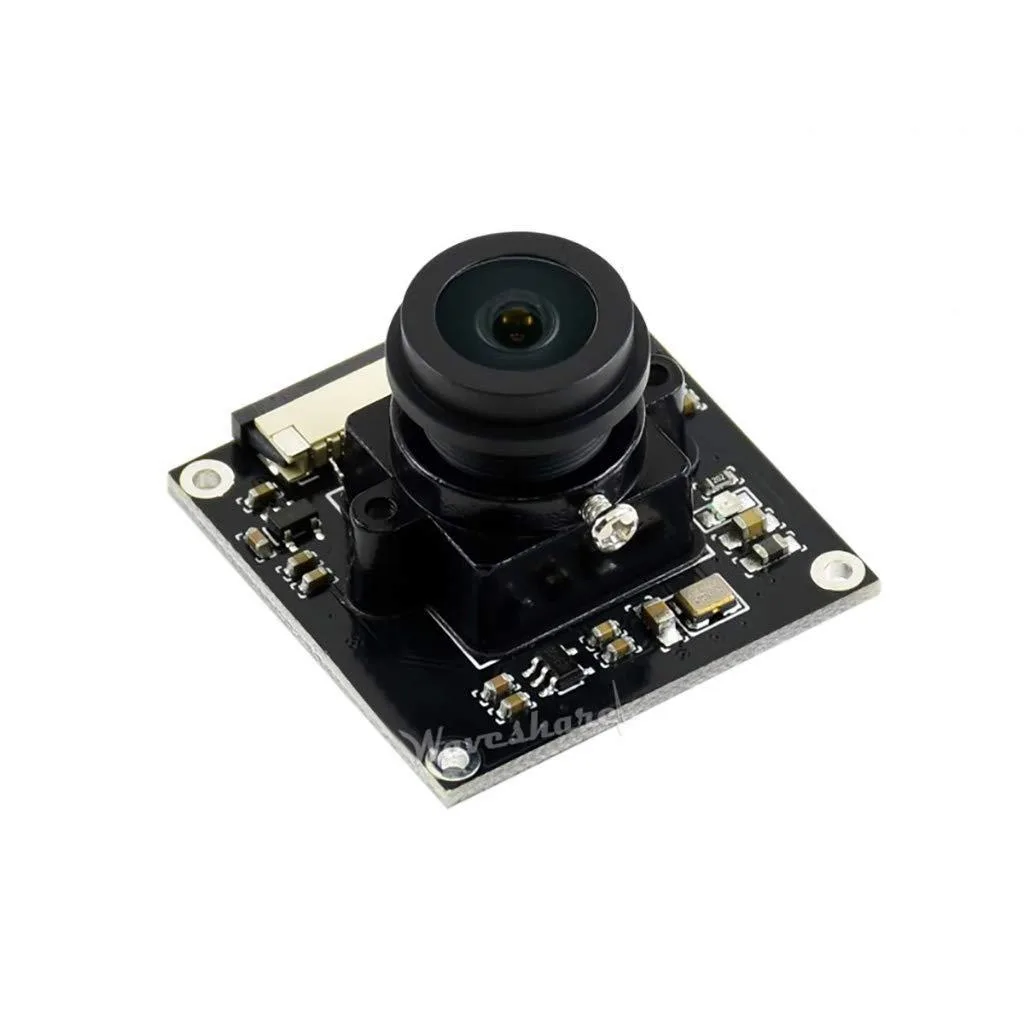

Small square camera board 32mm across with wide lens and four mounting holes

LORDWORLD

LORDWORLD IMX219-170 Camera Module 8MP 170° FOV 3280×2464

SKU CH-04V9-XBJFE

8 MP camera module with 170° field of view and 3280×2464 resolution for NVIDIA Jetson Nano AI projects

  • 8 MP Sony IMX219 sensor captures detailed 3280 × 2464 images
  • 170° diagonal field of view covers wide scenes with
  • F2.0 aperture and 2.2 mm focal length gather light for low‑light clarity
  • 32 mm square board with four screw holes mounts securely on Jetson Nano
  • 3 V power output simplifies wiring for AI vision projects

Wide-angle camera module for Jetson Nano

The LORDWORLD IMX219-170 camera module adds 8-megapixel vision to NVIDIA Jetson Nano Developer Kit projects. It uses a Sony IMX219 sensor behind a 2.2 mm focal-length lens with an F2.0 aperture. The board measures 32 mm by 32 mm and includes four screw holes for secure mounting. It draws 3.3 V power from the host platform.

170-degree field of view with distortion noted

The diagonal angle of view reaches 170 degrees, giving a wide perspective for face recognition, road mark detection and licence plate recognition. Distortion stays below 22 percent, which affects edge accuracy in measurement tasks. The 3280 by 2464 pixel resolution provides detail for close-range AI inference. Extreme wide-angle scenes will show noticeable barrel distortion.

Mechanical mounting and power integration

Four screw holes allow rigid attachment to enclosures or robot chassis without extra brackets. The module supplies a 3.3 V power output pin for simple daisy-chaining of low-current peripherals. No additional drivers or software bundles are mentioned in the specifications. Builders needing narrower fields of view or global shutter sensors should select a different module.

Highlights

  • 8 MP Sony IMX219 sensor captures detailed 3280 × 2464 images
  • 170° diagonal field of view covers wide scenes with
  • F2.0 aperture and 2.2 mm focal length gather light for low‑light clarity
  • 32 mm square board with four screw holes mounts securely on Jetson Nano
  • 3 V power output simplifies wiring for AI vision projects

Specifications

BrandLORDWORLD

Questions about this item

Will the 170° wide-angle lens work with the standard CSI connector on my Jetson Nano Developer Kit?

Yes, the module is designed for the Jetson Nano Developer Kit and uses the board's native CSI camera interface for direct connection.

How can I verify the IMX219 sensor is streaming at the full 3280×2464 resolution after installation?

Run a GStreamer pipeline or the Jetson Nano camera test scripts; a live preview showing the 170° field of view at 8 megapixels confirms correct operation.

Does the package include the ribbon cable and mounting screws for the four 32 mm-spaced holes?

The module provides the 32 mm × 32 mm board with four screw holes; a compatible CSI ribbon cable and mounting screws are typically purchased separately.
