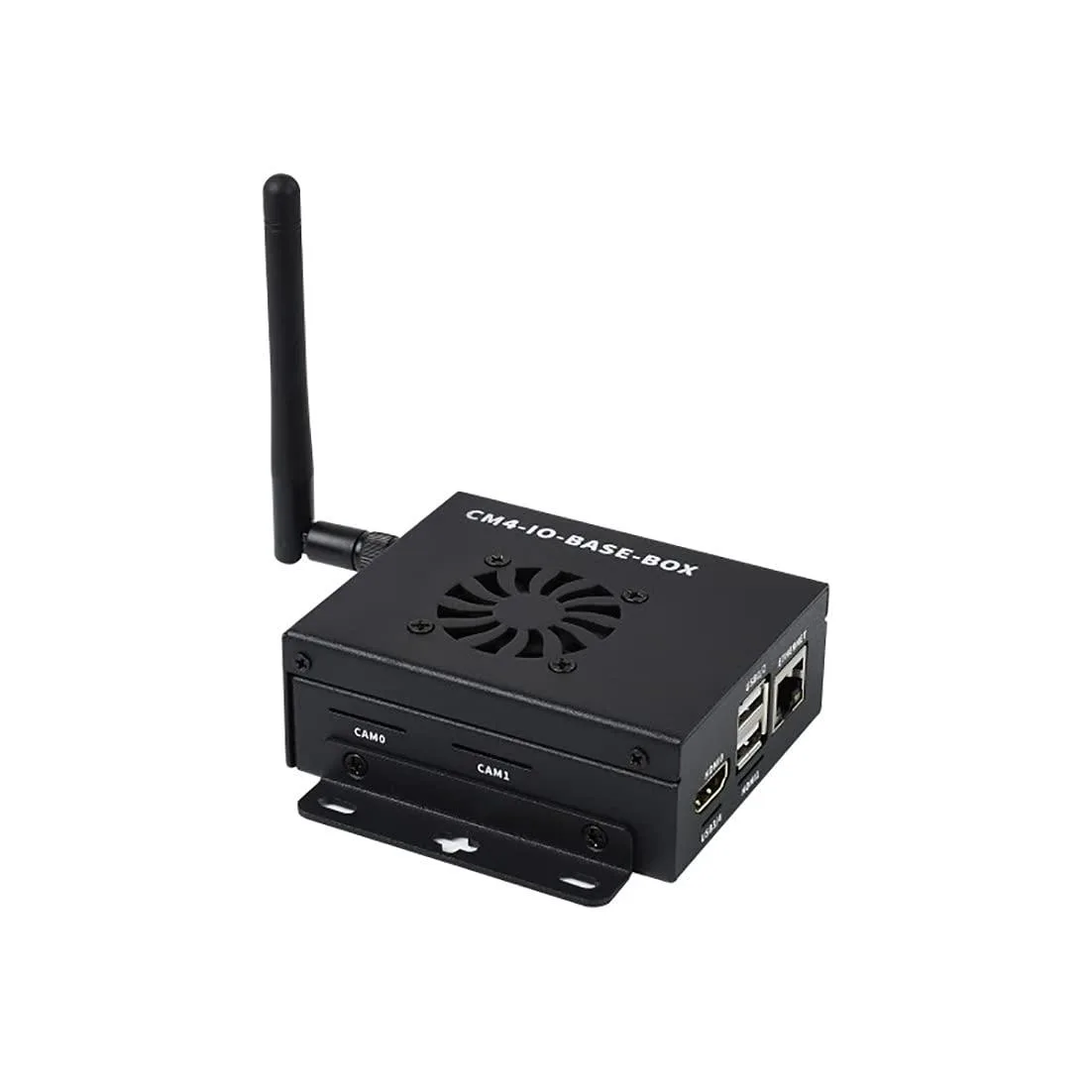

Metal enclosure with cooling fan and labelled port cut-outs for Raspberry Pi CM4 Lite board

LORDWORLD

LORDWORLD Mini-Computer for Raspberry Pi CM4 Lite Ver Cooling Fan Metal Case Development Board

SKU CH-NAHH-GTMK3

A metal-cased development kit with a Waveshare CM4-IO-BASE-A Lite board, cooling fan, HDMI, USB, Gigabit Ethernet, CSI, DSI, microSD and M.2 slots for Raspberry Pi Compute Module 4 projects

  • Ready-to-build mini PC with Waveshare CM4-IO-BASE-A Lite inside
  • Rich I/O including CSI, DSI, HDMI, USB, Gigabit Ethernet, microSD and M.2 slot
  • Precise cut-outs aligned and labelled for every connector
  • Active cooling fan plus vented airflow for better heat dissipation
  • Wall-mount holes on two sides suit industrial or vision projects

Mini-computer kit for Raspberry Pi CM4

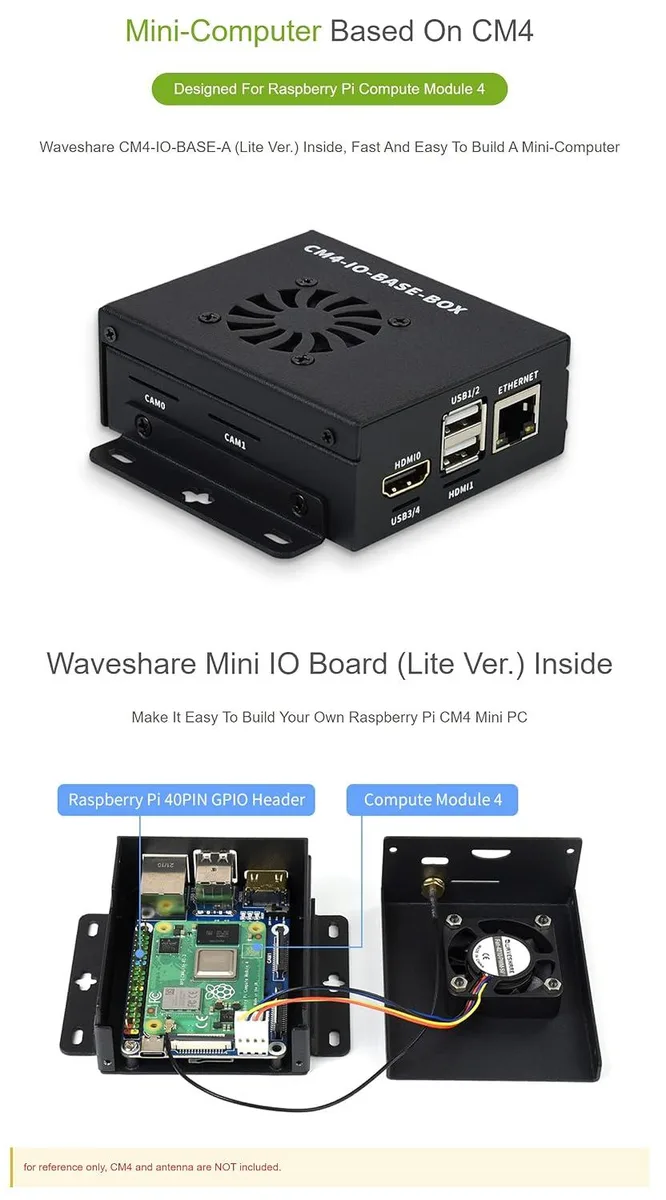

This metal-cased kit holds a Waveshare CM4-IO-BASE-A Lite board and a cooling fan, giving makers a compact platform for Raspberry Pi Compute Module 4 projects. The Compute Module itself is not included. It suits developers building binocular-vision rigs or small industrial controllers who want a ready-to-mount enclosure.

Installing the module and closing the case

Slide the Compute Module 4 into the onboard connector, attach the supplied fan to the FAN header, then secure the metal lid — the cut-outs line up with every port label. The only common snag is forgetting to seat the module fully before tightening the screws, which leaves HDMI or USB ports misaligned.

Check your module and mounting plan first

Verify you have a genuine Raspberry Pi Compute Module 4; the Lite board will not accept earlier modules. Confirm your project can use the exposed CSI, DSI, HDMI, USB, Gigabit Ethernet, microSD and M.2 connectors. Ensure the 45 mm wall-mount hole spacing matches your intended surface.

Highlights

  • Ready-to-build mini PC with Waveshare CM4-IO-BASE-A Lite inside
  • Rich I/O including CSI, DSI, HDMI, USB, Gigabit Ethernet, microSD and M.2 slot
  • Precise cut-outs aligned and labelled for every connector
  • Active cooling fan plus vented airflow for better heat dissipation
  • Wall-mount holes on two sides suit industrial or vision projects

Specifications

BrandLORDWORLD

Questions about this item

How do I confirm the mini-computer is working after I install a Compute Module 4?

Power the unit and verify the fan spins, the activity LED on the CM4-IO-BASE-A board flashes, and video appears on the HDMI port.

What comes in the box and what must I purchase separately?

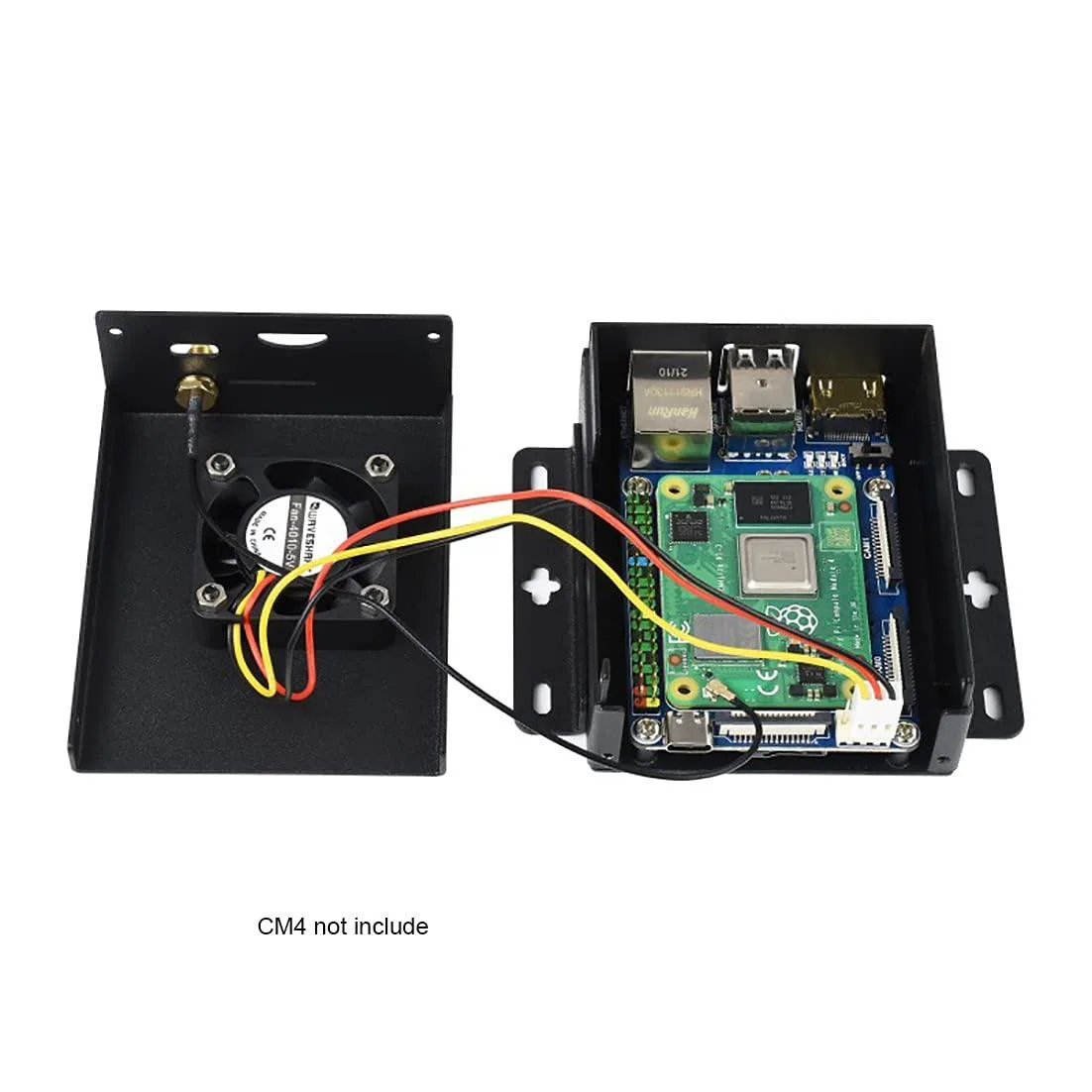

The package includes the metal case, the Waveshare CM4-IO-BASE-A Lite board mounted inside, and a cooling fan. You must buy a Raspberry Pi Compute Module 4 and a micro SD card separately.

Which version of the CM4-IO-BASE-A board is fitted inside the case?

The case contains the Lite version of the Waveshare CM4-IO-BASE-A board.
