White ABS enclosure with rounded edges, RJ45 port and three USB sockets on one side, snap-fit lid open showing Pi Zero board inside

LORDWORLD

LORDWORLD PoE HUB Box for Raspberry Pi Zero, 3x USB 2.0, 10/100 Ethernet, 802.3af

SKU CH-BW72-K03AQ

A Power-over-Ethernet enclosure adds 10/100 networking and three USB 2.0 ports to a Raspberry Pi Zero through an isolated supply

  • Power via Ethernet cable using 802.3af standard
  • Three USB 2.0 ports expand connectivity for peripherals
  • Wired 10/100 network link through RTL8152B chip
  • Isolated switch-mode supply protects the Pi Zero
  • Snap-shut ABS case resists fingerprints and feels smooth

Raspberry Pi Zero PoE HUB Box

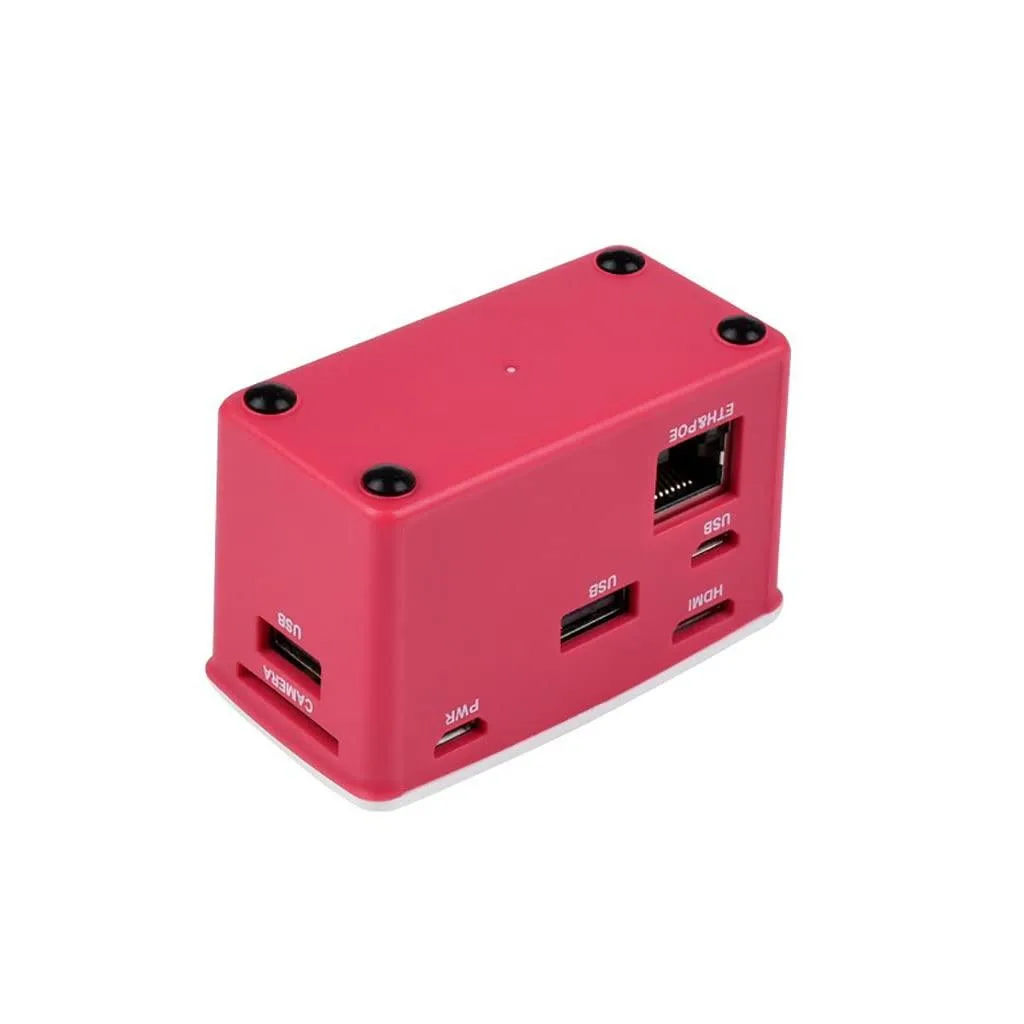

This enclosure integrates a PoE HAT and a three-port USB hub for the Raspberry Pi Zero series. It accepts 802.3af power over Ethernet through an RTL8152B chip with a 10/100 RJ45 port. The fully isolated switch-mode supply powers the board and peripherals from a single cable. The ABS case snaps shut with rounded edges and an anti-fingerprint finish.

Verify Zero board and PoE infrastructure

Confirm you are using a Raspberry Pi Zero model with a 40-pin header. Your network must provide 802.3af power sourcing equipment such as a PoE switch or injector. The Ethernet link negotiates at 10 or 100 megabits per second only. Attached USB devices must operate within the USB 2.0 or 1.1 current budget supplied by the onboard regulator.

Single-cable deployment for headless nodes

The box delivers power, networking and three USB 2.0 ports in one package, removing the need for a separate micro-USB power adapter. It suits headless sensor gateways, camera nodes or kiosk controllers mounted where AC outlets are absent. The snap-on lid keeps the assembly compact without screws, while the isolated SMPS protects the Pi from ground loops on long cable runs. Buyers needing gigabit Ethernet or more than three USB ports should look elsewhere.

Highlights

  • Power via Ethernet cable using 802.3af standard
  • Three USB 2.0 ports expand connectivity for peripherals
  • Wired 10/100 network link through RTL8152B chip
  • Isolated switch-mode supply protects the Pi Zero
  • Snap-shut ABS case resists fingerprints and feels smooth

Specifications

BrandLORDWORLD

Questions about this item

Does the box include the Raspberry Pi Zero board itself, or only the PoE HAT and case?

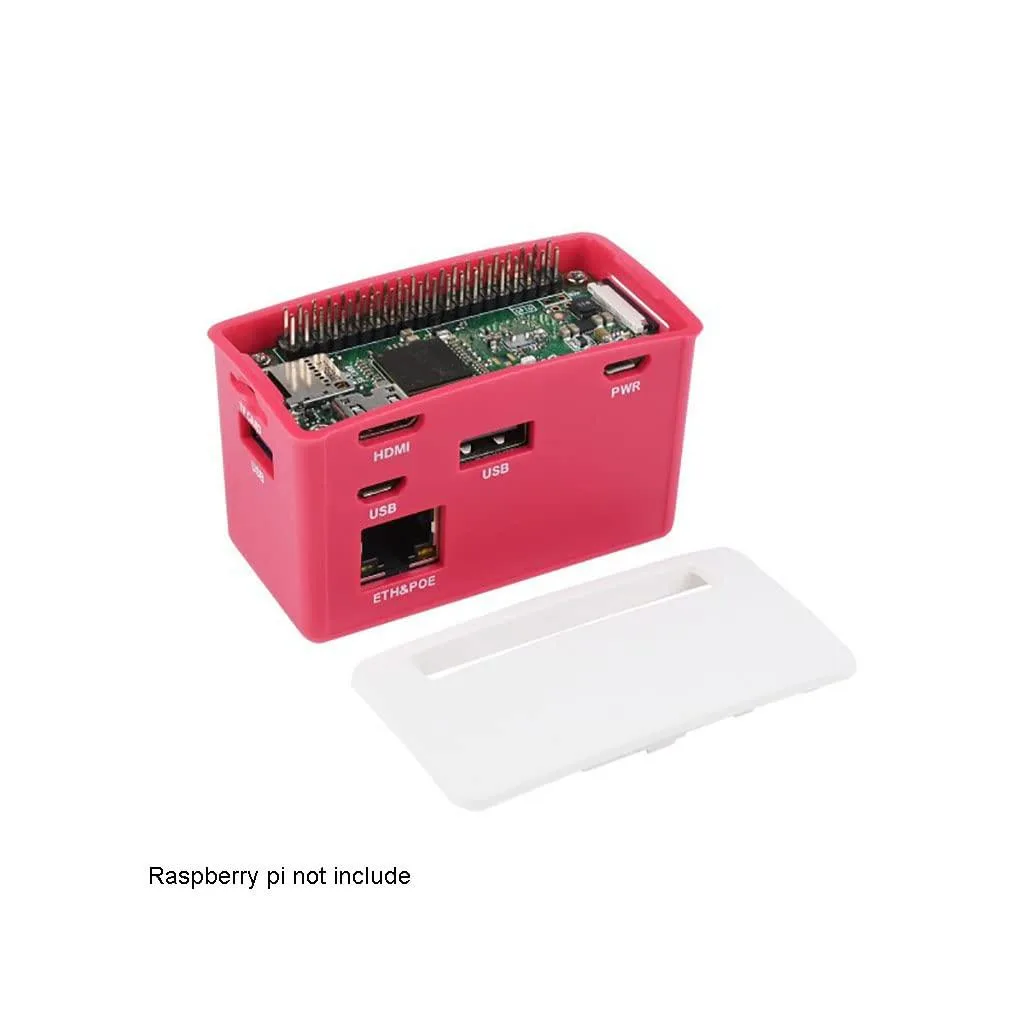

The product is a PoE HUB box with the HAT built in; the Raspberry Pi Zero board is not included and must be purchased separately.

Which Raspberry Pi Zero models does the HAT support?

The HAT is compatible with the Raspberry Pi Zero series boards, so it fits Zero, Zero W, Zero 2 W and other Zero-form-factor variants.

What network speed will I actually get through the RJ45 port when the HAT is powered by PoE?

The RTL8152B chip provides a 10/100 Mbps Ethernet link with auto-negotiation, so the maximum throughput is 100 Mbps.
