Rectangular metal power supply with finned sides and cable connections

Mean Well

Mean Well HLG-150H-24A 24V 6.3A 150W power supply

SKU CH-69YK-X9RXW

A 150W LED switching power supply delivering 24V at 6.3A with up to 94% efficiency and IP67/IP65 rating for indoor or outdoor lighting installations

  • TypeAT
  • High efficiency up to 94% reduces energy waste
  • IP67 and IP65 ratings suit indoor or outdoor installs
  • Active PFC function improves power factor
  • Universal AC input up to 305VAC for global use
  • Output current adjustable via internal potentiometer

HLG-150H-24A LED Power Supply

The Mean Well HLG-150H-24A is a 150 W single-output switching power supply that delivers 24 V at 6.3 A. It accepts a universal AC input up to 305 VAC and achieves up to 94 % efficiency with built-in active PFC. The IP67/IP65 rated enclosure allows installation in indoor or outdoor LED lighting and street lighting applications.

Suitable for outdoor LED installs

This unit suits installers who need a rugged, high-efficiency driver for LED lighting systems where exposure to moisture or dust is expected. The adjustable output current and multiple protection features support reliable operation in demanding environments. Buyers who require an integrated dimming interface or a terminal-block connection should look at other variants in the series.

150 W 24 V 6.3 A output

The 150 W rating at 24 V and 6.3 A is the decisive specification; it determines whether the driver can power the intended LED array without overload. Verify that the total load matches this voltage and current before purchase.

Highlights

  • High efficiency up to 94% reduces energy waste
  • IP67 and IP65 ratings suit indoor or outdoor installs
  • Active PFC function improves power factor
  • Universal AC input up to 305VAC for global use
  • Output current adjustable via internal potentiometer

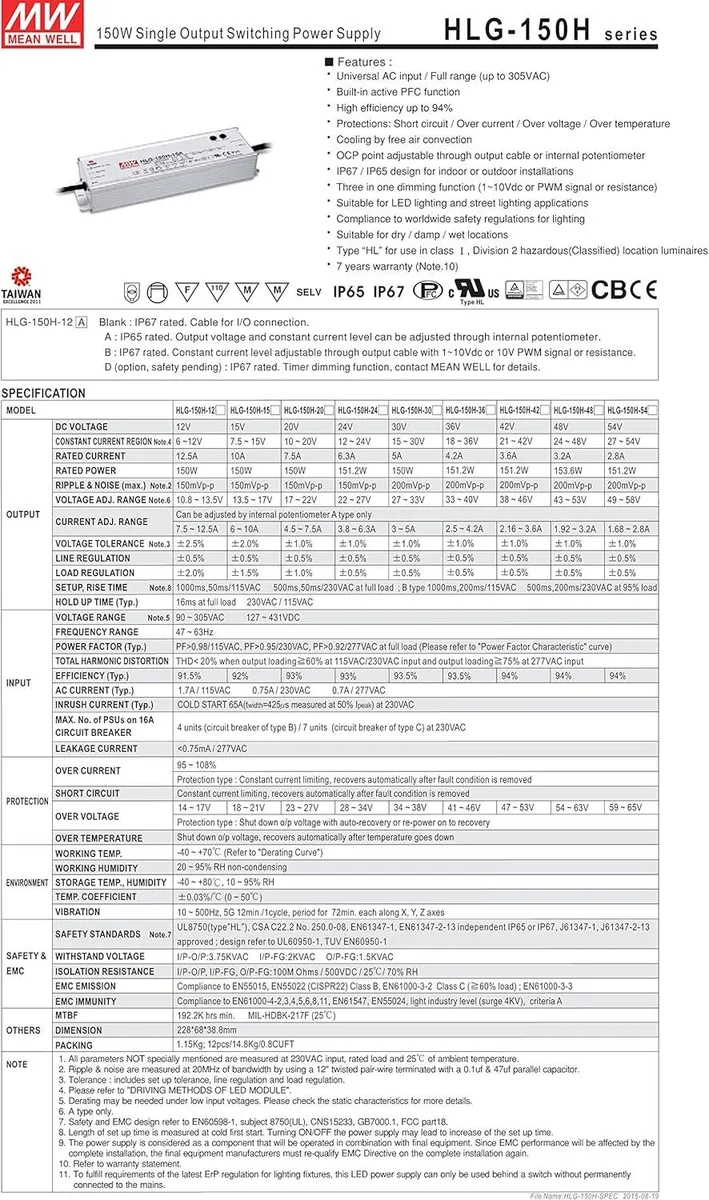

Specifications

TypeAT

Questions about this item

Does the 24 V output require a specific LED load to start correctly?

The unit provides a 24 V constant-voltage output rated at 6.3 A, so it powers any compatible 24 V LED array within the 150 W limit without a proprietary load.

Will the IP67-rated housing survive the same outdoor conditions as older IP65-only drivers?

Yes, the IP67 rating protects against temporary immersion and dust ingress, exceeding the IP65 protection found on many earlier outdoor drivers.

How can I confirm the active PFC is functioning after installation?

Measure the input current waveform at full load; a sinusoidal shape in phase with the 305 VAC maximum line voltage confirms the built-in active PFC is operating.
