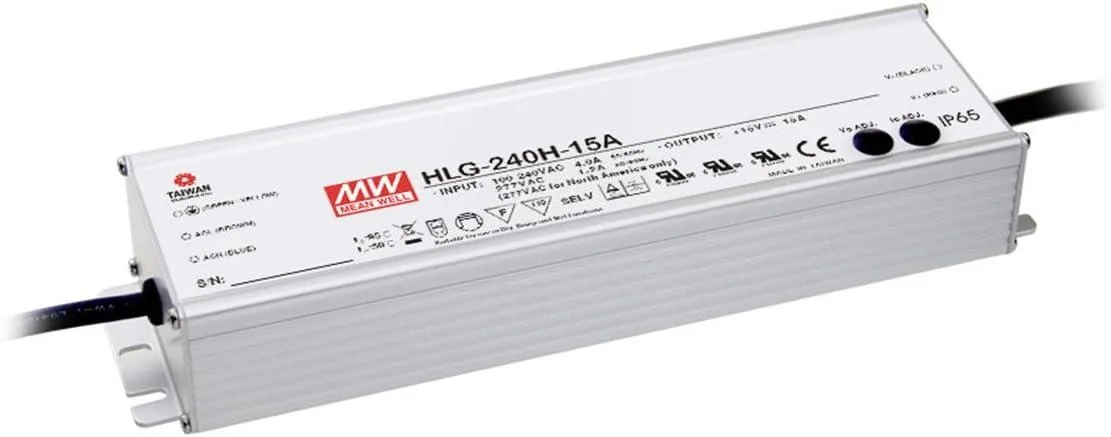

Rectangular metal power supply unit with IP65/IP67 rating

Mean Well

Mean Well HLG-240H-24A 240W 24V 10A Power Supply

SKU CH-V2RE-6SM5R

A 240W single-output LED driver delivering 24V at 10A with up to 94% efficiency, active PFC and IP67/IP65 ingress protection for indoor or outdoor lighting

  • TypeAT
  • Delivers 240 W continuous power for demanding LED installations
  • Active PFC function maintains 94 % efficiency across the load range
  • IP67 and IP65 ratings protect against dust and water ingress outdoors
  • Adjustable output current matches diverse LED array requirements
  • Meets 4 kV surge immunity per IEC 61000-4-5 for reliable operation

240 W 24 V LED Power Supply

The Mean Well HLG-240H-24A delivers 240 W at 24 V with a 10 A maximum output. It accepts a universal AC input up to 305 VAC and achieves up to 94 % efficiency. Built-in active PFC and protections against short circuit, over current, over voltage and over temperature are included. The unit meets 4 kV surge immunity per IEC61000-4-5.

IP67 or IP65 rated for wet locations

This model suits LED lighting and street lighting installations that require an IP67 or IP65 enclosure for indoor or outdoor use. Output current is adjustable via internal potentiometer on A-Type variants. It is not intended for builders who need an ATX form factor for a desktop PC or for systems requiring multiple isolated output rails.

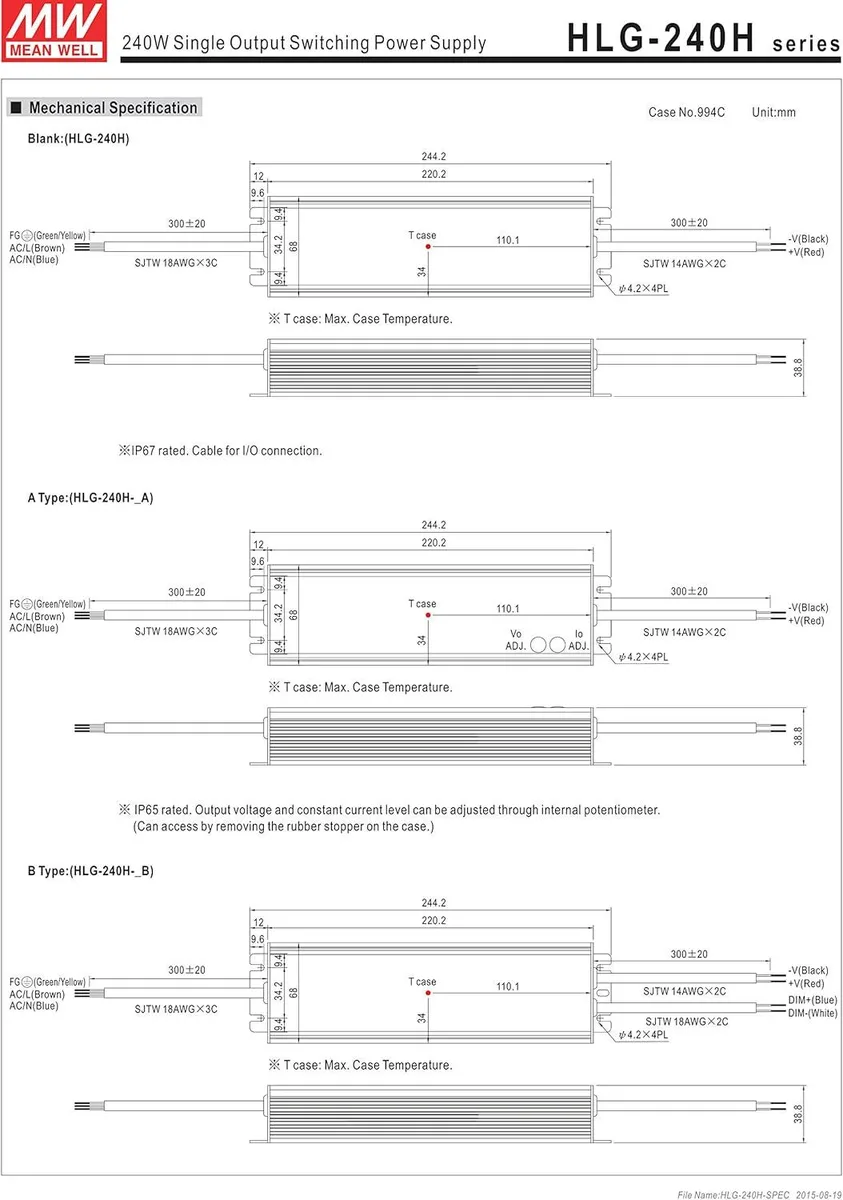

Convection-cooled with cable or terminal I/O

Cooling is by free air convection, so no fan clearance is needed. A-Type and Blank-Type versions use cable connections while C-Type provides a terminal block for I/O. Installers must verify the specific variant matches their wiring plan and ensure the enclosure rating fits the mounting environment.

Highlights

  • Delivers 240 W continuous power for demanding LED installations
  • Active PFC function maintains 94 % efficiency across the load range
  • IP67 and IP65 ratings protect against dust and water ingress outdoors
  • Adjustable output current matches diverse LED array requirements
  • Meets 4 kV surge immunity per IEC 61000-4-5 for reliable operation

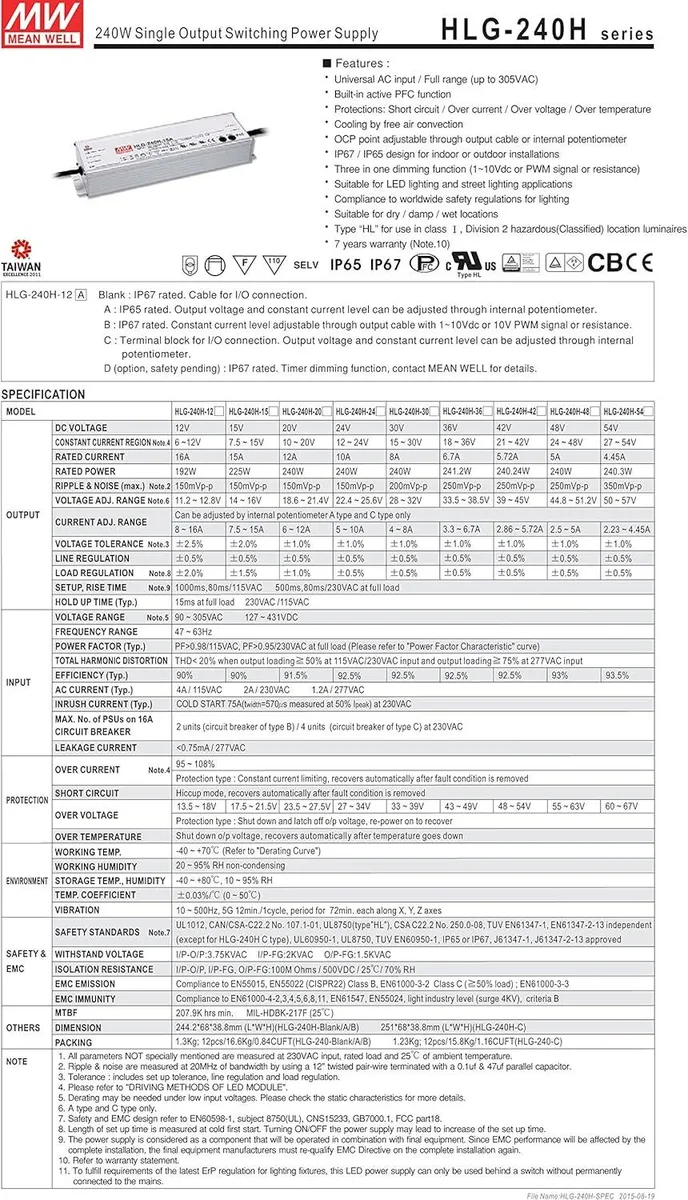

Specifications

TypeAT

Questions about this item

What input voltage range must my mains supply provide for the HLG-240H-24A to operate?

The unit accepts a universal AC input up to 305 VAC, so any standard mains voltage within that range will work.

Can I run this 240 W driver alongside an older HLG-150H or HLG-185H model on the same circuit?

Yes, both older models share the same universal input range and protection features, so they can operate together on a common mains feed.

How do I verify the HLG-240H-24A is delivering its rated 24 V and 10 A after installation?

Measure the output terminals with a multimeter under load; you should read 24 V and up to 10 A, confirming the driver is working as specified.
