Rectangular metal power supply unit with cooling fins and cable connections

Mean Well

Mean Well HLG-60H-36A 36V 1.7A 60W LED Power Supply

SKU CH-EYDS-B2FRA

A 60 W LED driver delivering 36 V at 1.7 A with universal AC input up to 305 VAC and IP67-rated protection for outdoor installations

  • TypeAT
  • Reliable worldwide operation with universal AC input up to 305VAC
  • Durable outdoor installation thanks to IP67 and IP65 rated enclosure
  • Energy-efficient performance reaching up to 90.5% efficiency
  • Comprehensive protection including short circuit, over current, over voltage and over temperature
  • Flexible LED dimming via built-in 3 in 1 function supporting 1-10VDC, PWM signal or resistance

LED Driver for Lighting Projects

The Mean Well HLG-60H-36A is a 60W single-output LED switching power supply delivering 36V at 1.7A. It is built for installers and system integrators working on indoor or outdoor LED lighting and street lighting applications where a reliable constant-voltage or constant-current source is required.

Integration into an Electrical Build

The unit accepts a universal AC input up to 305VAC and mounts directly in dry, damp, or wet locations thanks to its IP67 and IP65 rated enclosure. Output voltage and current can be adjusted via an internal potentiometer or through the output cable, removing the need for external control gear in many lighting circuits.

Thermal, Noise and Power Behaviour

Cooling is handled by free air convection with no moving parts, so the driver runs silently in normal operation. High efficiency up to 90.5% keeps waste heat low, while built-in protections cover short circuit, over current, over voltage and over temperature. The design meets 4kV surge immunity per IEC61000-4-5.

Highlights

  • Reliable worldwide operation with universal AC input up to 305VAC
  • Durable outdoor installation thanks to IP67 and IP65 rated enclosure
  • Energy-efficient performance reaching up to 90.5% efficiency
  • Comprehensive protection including short circuit, over current, over voltage and over temperature
  • Flexible LED dimming via built-in 3 in 1 function supporting 1-10VDC, PWM signal or resistance

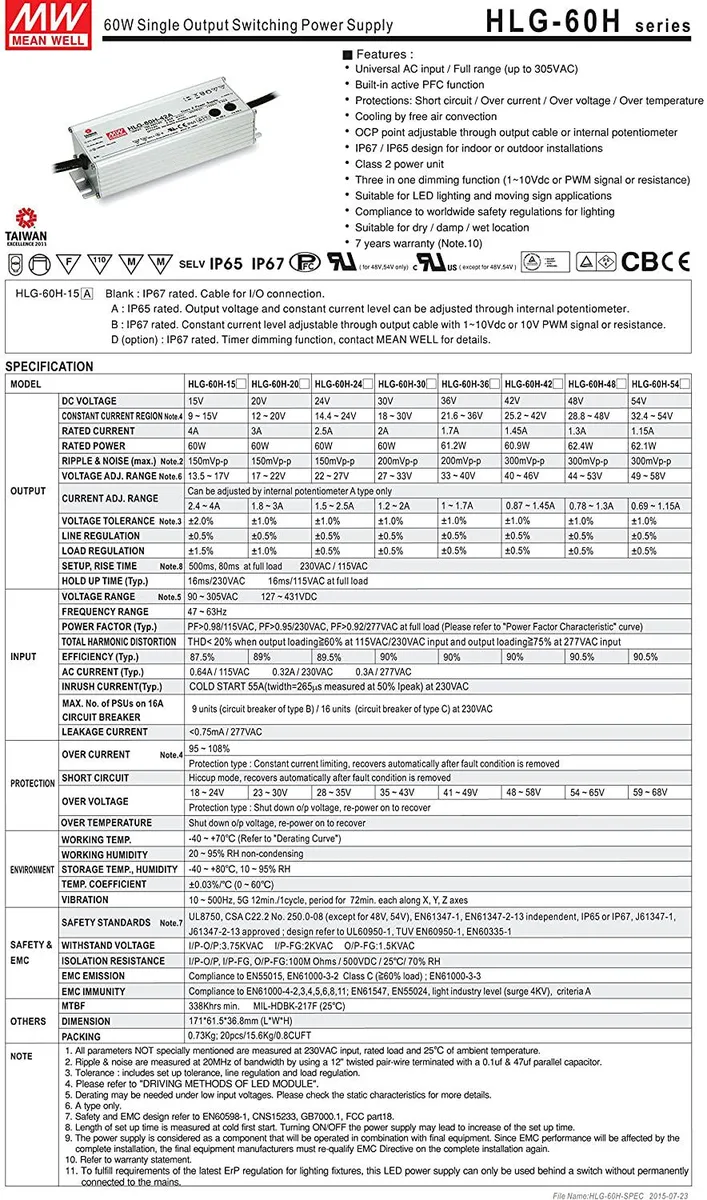

Specifications

TypeAT

Questions about this item

What is the maximum output power this supply can sustain without overheating?

The unit is rated for 60 W continuous output at 36 V and 1.7 A, cooled by free air convection with no fan.

How much heat and noise does it produce during all-day operation?

Convection cooling makes it silent; at up to 90.5 % efficiency only about 6 W becomes heat, keeping the case warm but not hot.

What mains voltage range must the installation already provide?

It accepts a universal AC input from 90 V up to 305 VAC, so any standard single-phase supply in that range will work.
