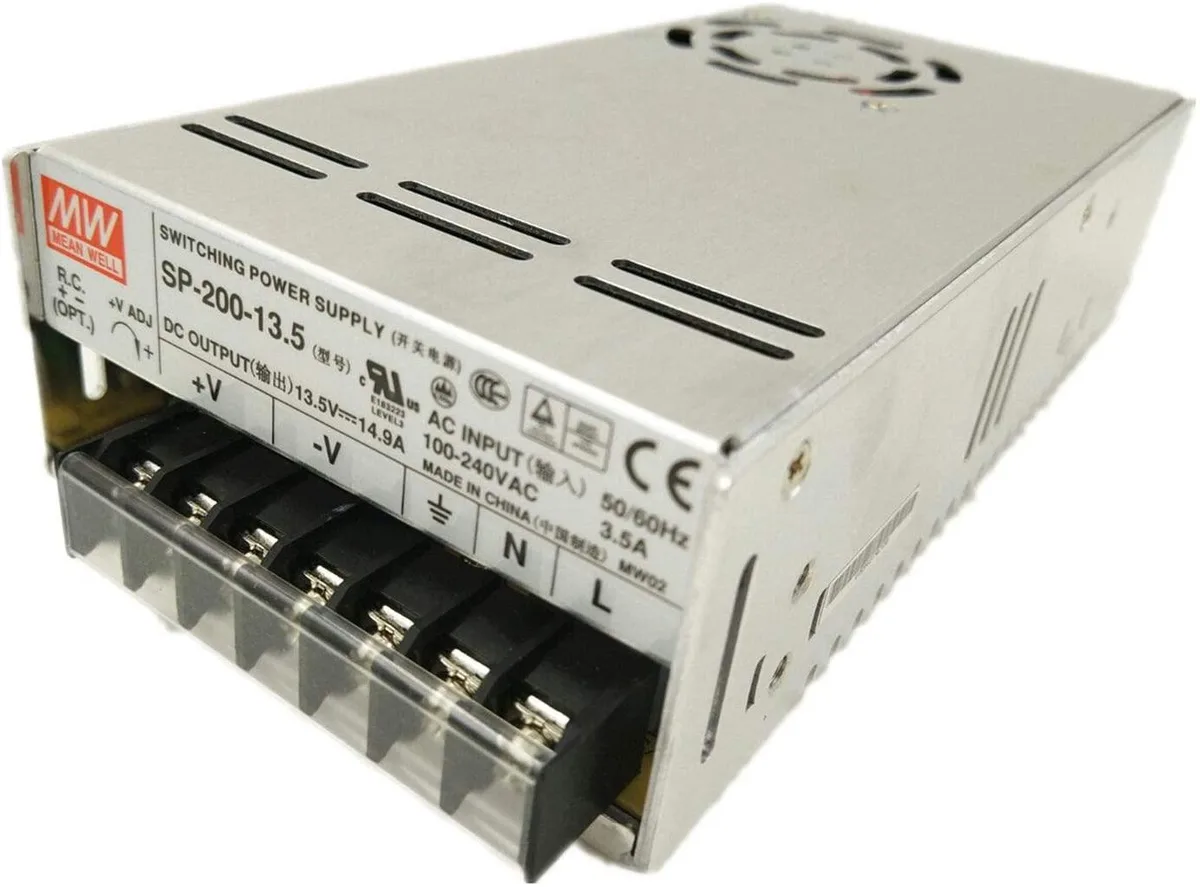

Rectangular metal power supply unit with built-in fan, silver-grey finish, label showing 13.5V 14.9A 200W

Mean Well

Mean Well SP-200-13.5 power supply 13.5V 14.9A 200W

SKU CH-AWX6-FPTVH

Single-output AT power supply delivering 13.5 V at 14.9 A (200 W) with universal AC input, active PFC and built-in fan cooling

  • TypeAT
  • Universal AC input supports worldwide voltages
  • Active PFC function improves power factor efficiency
  • Forced air cooling with built-in DC fan manages 200 W heat
  • Multiple protections guard against short circuit, overload, over voltage and over temperature
  • 100 % full load burn-in test validates reliability

Mean Well SP-200-13.5 AC-DC Power Supply

This Mean Well SP-200-13.5 is a single-output AT-type power supply delivering 13.5 V at 14.9 A for a total of 200 W. It accepts a universal AC input range and includes an active PFC function. Cooling is handled by a built-in DC fan with speed control. The unit has passed a 100 % full load burn-in test.

Suits Fixed-Voltage Industrial Loads

Builders powering 13.5 V DC equipment such as LED arrays, battery chargers or industrial controllers will find the regulated output and protection suite appropriate. The fan-cooled design requires airflow clearance, so sealed enclosures without ventilation are not a good match. Buyers needing adjustable voltage or multiple isolated rails should look at other units. Remote on/off control is optional on this model.

13.5 V 14.9 A Single Output

The defining specification is the fixed 13.5 V output rated at 14.9 A, giving 200 W continuous power. Protections cover short circuit, overload, over voltage and over temperature. The active PFC function improves power factor across the universal input range. Verify that your load matches this exact voltage and current before purchasing.

Highlights

  • Universal AC input supports worldwide voltages
  • Active PFC function improves power factor efficiency
  • Forced air cooling with built-in DC fan manages 200 W heat
  • Multiple protections guard against short circuit, overload, over voltage and over temperature
  • 100 % full load burn-in test validates reliability

Specifications

TypeAT

Questions about this item

How can I verify the SP-200-13.5 is delivering the rated 13.5V output after installation?

Measure the DC output terminals with a multimeter under load; the unit should read approximately 13.5V while supplying up to 14.9A.

What comes in the box with the SP-200-13.5 and what must I source separately?

The power supply itself is included; an AC mains cord and any DC output connectors or wiring are not supplied and must be purchased separately.

Which SP series model should I choose if I need exactly 13.5V at 200W?

Select the SP-200-13.5; it is the only variant in this series rated for 13.5V output and 200W continuous power.
