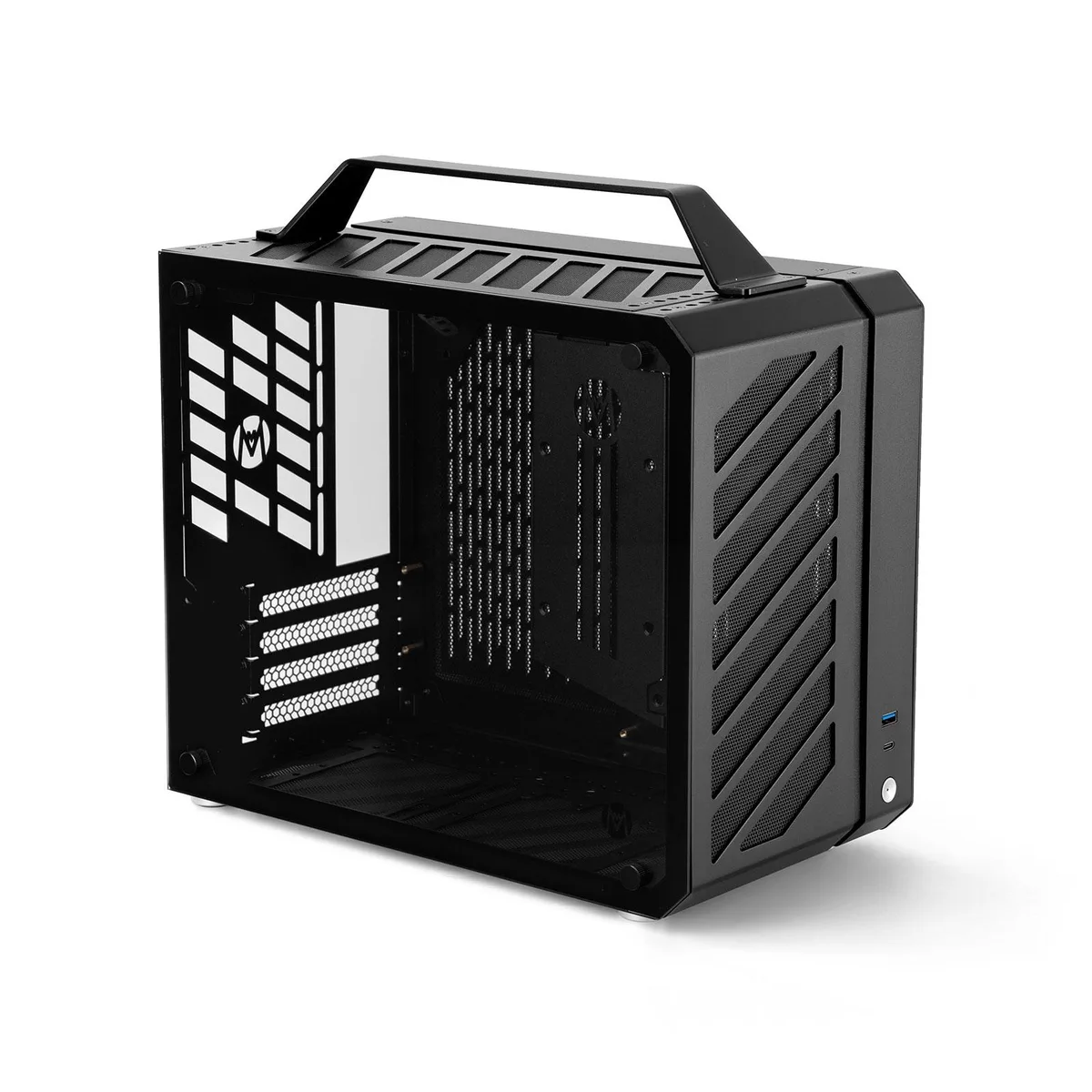

Compact 17.9L black Micro-ATX case with top carry handle, aluminum and tempered glass panels

Mechanic master

Mechanic Master C28 KuFang 17.9L Micro ATX PC case

SKU CH-X9F2-6T5P5

An ultra-compact 17.9L Micro-ATX chassis with a carry handle, supporting 335mm GPUs, 162mm coolers, 240mm radiators and ATX power supplies up to 140mm

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialAlumium / Steel / Temered Glass
  • With Power SupplyNo
  • Power Supply MountedTop
  • Motherboard CompatibilityMicro ATX / Mini-DTX / Mini-ITX

Options Black

  • Ultra-compact 17.9L chassis with integrated top carry handle for easy mobility
  • Supports 240mm AIO or 162mm air coolers alongside 140mm ATX power supplies
  • Fits graphics cards up to 335mm long and accepts SFX, SFX-L or ATX PSUs
  • Aluminium and tempered glass panels deliver a minimalist look suited to office or living room
  • Mesh panels and dual-chamber layout optimise airflow within the compact 18L volume

Ultra-Compact 17.9L Chassis

The Mechanic Master C28 KuFang is a 17.9-litre Micro-ATX case built around a top-mounted carry handle. It accepts Micro-ATX, Mini-DTX and Mini-ITX boards in a footprint of 342 by 185 by 284 millimetres. The aluminium, steel and tempered-glass construction targets builders who want a portable system that fits on a desk or shelf.

Dual-Chamber Airflow Limits

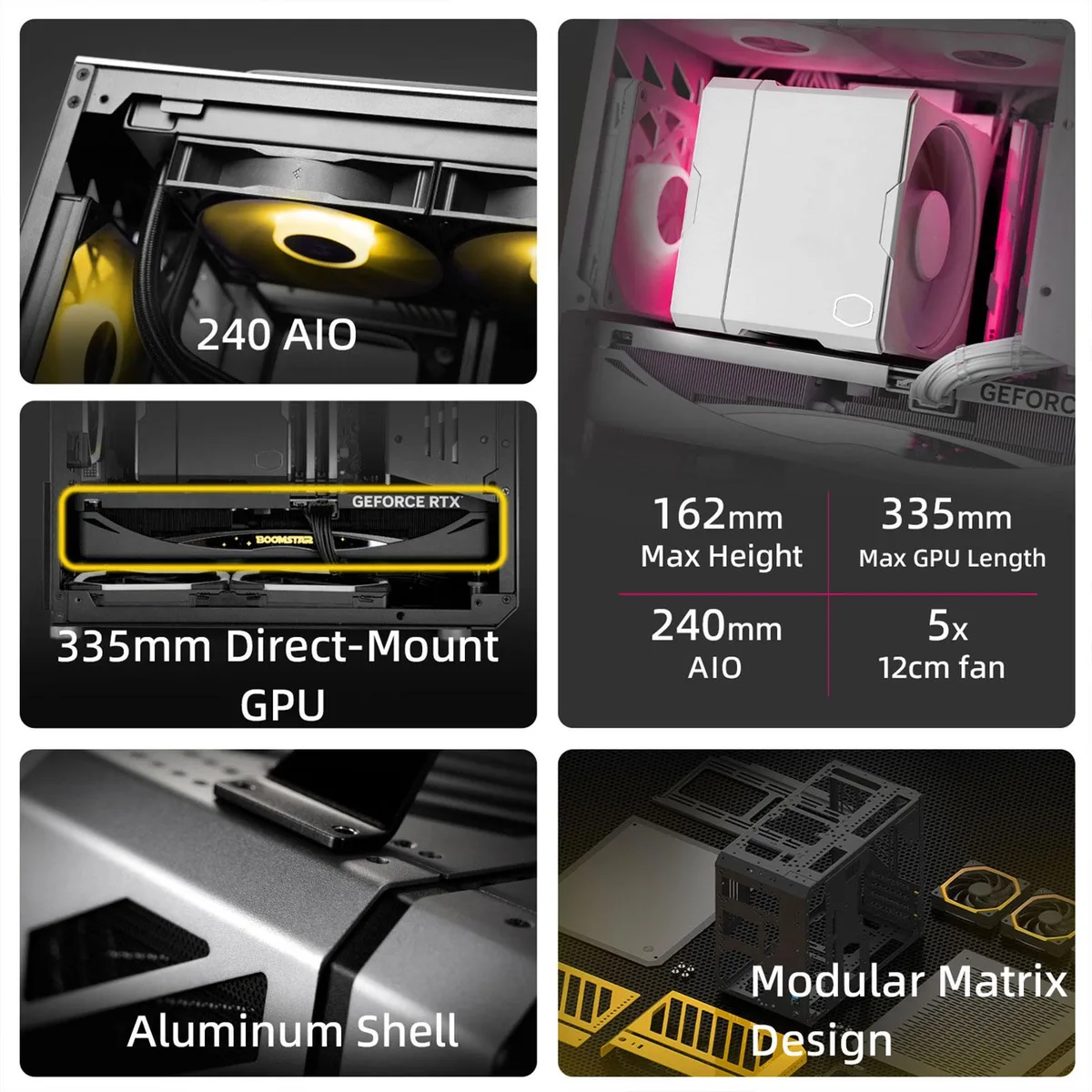

A mesh layout feeds two 120 mm bottom fans and two 120 mm top fans, while the rear supports a single 120 mm radiator. A 240 mm AIO can be fitted only when memory modules stay below 44 mm in height. With an ATX power supply installed, the top radiator option is not supported, restricting liquid cooling to the rear 120 mm position.

Hardware Headroom And Constraints

Graphics cards up to 335 mm long and 3.4 slots thick are accommodated, covering roughly 90 per cent of mainstream models. CPU coolers up to 162 mm tall fit alongside an ATX supply no longer than 140 mm. Longer GPUs require a custom-length PSU cable, and SFX units must use the supplied bracket to avoid clash with a 240 mm AIO.

Highlights

  • Ultra-compact 17.9L chassis with integrated top carry handle for easy mobility
  • Supports 240mm AIO or 162mm air coolers alongside 140mm ATX power supplies
  • Fits graphics cards up to 335mm long and accepts SFX, SFX-L or ATX PSUs
  • Aluminium and tempered glass panels deliver a minimalist look suited to office or living room
  • Mesh panels and dual-chamber layout optimise airflow within the compact 18L volume

Specifications

BrandMechanic Master
ModelC28 KuFang
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialAlumium / Steel / Temered Glass
With Power SupplyNo
Power Supply MountedTop
Motherboard CompatibilityMicro ATX / Mini-DTX / Mini-ITX
Side Panelwith Side Window
Fan OptionsBottom - 2 x 120mm, Top - 2 x 120mm
Radiator OptionsRear - Up to 120mm
Max GPU Length335 mm
Max CPU Cooler Height162 mm
Max PSU Length140 mm
Dimensions342mm * 185mm * 284mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the C28 or C26 version for my build?

The C28 KuFang supports both SFX and ATX power supplies up to 140 mm, while the C26 only accepts SFX or SFX-L units. If you already own an ATX PSU, the C28 is the correct choice.

What does the 17.9 L volume mean for actual component fit?

The 17.9 L chassis fits Micro-ATX boards, graphics cards up to 335 mm long, CPU coolers up to 162 mm tall, and a 240 mm radiator with RAM no taller than 44 mm.

Which power-supply standard does the case use and what length does it cap?

The case mounts the PSU at the top and accepts SFX, SFX-L and ATX units, but ATX models must be 140 mm or shorter.
