Silver micro-ATX cube case with top carry handle and tempered glass side panel

Mechanic master

Mechanic Master C28 KuFang 17.9L Micro-ATX PC Case Silver

SKU CH-WYV1-9HXGK

A 17.9L Micro-ATX chassis with carry handle, 335mm GPU clearance, 162mm CPU cooler height, and support for ATX PSUs up to 140mm

  • TypeMicro ATX / Mini-ITX
  • ColorSilver
  • Case MaterialAlumium / Steel / Temered Glass
  • With Power SupplyNo
  • Motherboard CompatibilityMicro ATX / ITX
  • Side Panelwith Side Window

Options Silver

  • Ultra-compact 17.9L chassis with integrated top handle for easy mobility
  • Supports 240mm AIO or air coolers up to 162mm height with ATX PSU
  • Fits GPUs up to 335mm length covering 90% of mainstream models
  • Accepts SFX, SFX-L and ATX power supplies up to 140mm depth
  • Mesh panels and dual-chamber layout optimise airflow in an 18L volume

Compact 17.9L Micro-ATX Chassis

The Mechanic Master C28 KuFang is a 17.9 litre case built for Micro-ATX and Mini-ITX motherboards. Its integrated top carry handle makes it simple to move between workstations or living-room setups. Aluminium and steel construction with a tempered-glass side panel gives a clean, minimalist look suited to office or home environments.

Check PSU Length GPU Clearance and RAM Height

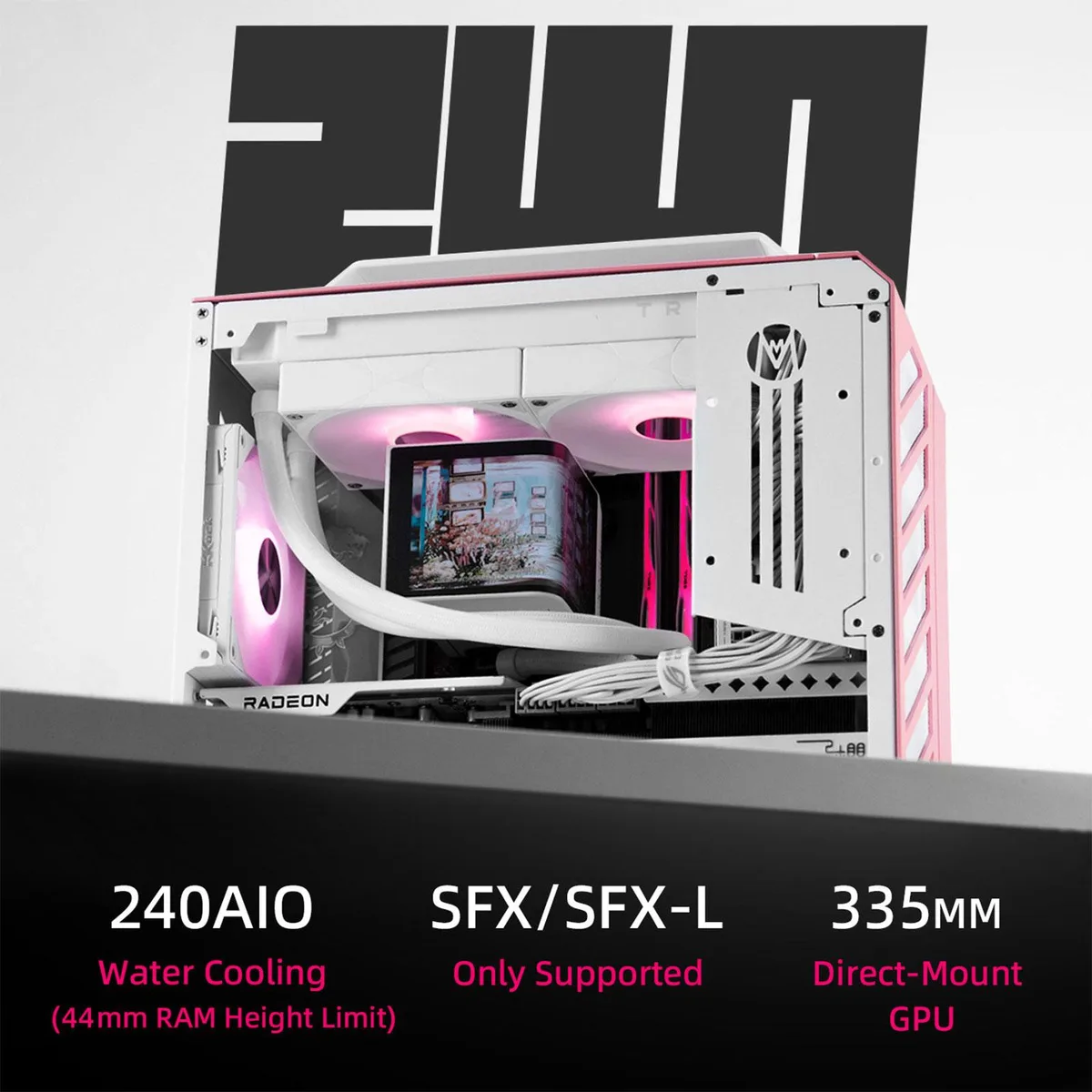

Verify that your power supply fits the 140mm maximum length; ATX units must be 14cm or shorter. Graphics cards can be up to 335mm long and 3.4 slots thick, but a longer card may need a custom cable and temporary removal of the rear frame. If you plan a 240mm AIO, ensure memory modules stay under 44mm tall and install the SFX supply in the correct orientation using the included bracket.

Aluminium Steel Glass Build With Mesh Airflow

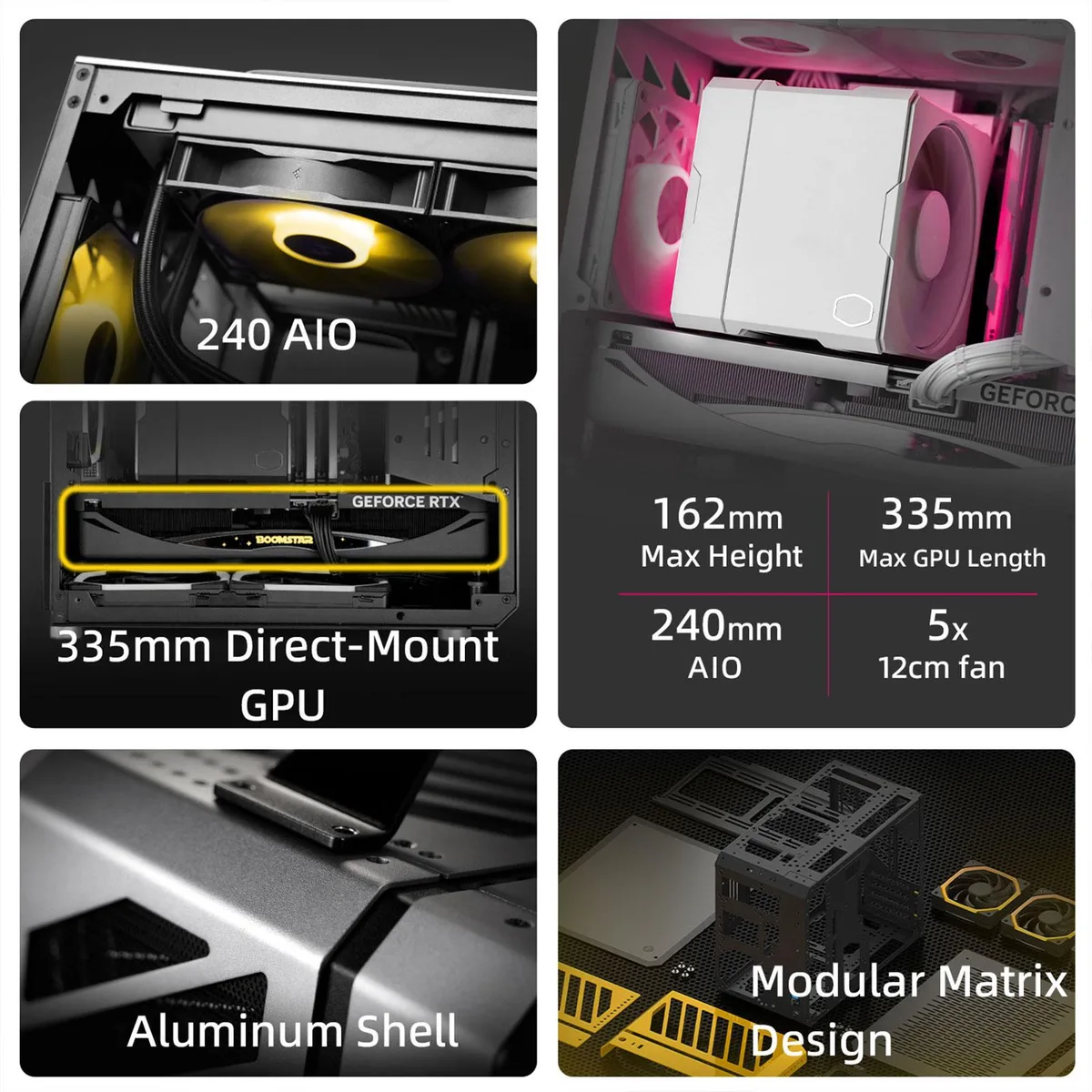

The mixed-material panels feel rigid and the glass window shows the interior without flex. Mesh on multiple sides feeds a dual-chamber layout that separates the power supply from the GPU zone. A single rear 120mm fan mounts alongside top and bottom 120mm positions, while the 162mm cooler-height limit accommodates large air towers or a 240mm radiator up top.

Highlights

  • Ultra-compact 17.9L chassis with integrated top handle for easy mobility
  • Supports 240mm AIO or air coolers up to 162mm height with ATX PSU
  • Fits GPUs up to 335mm length covering 90% of mainstream models
  • Accepts SFX, SFX-L and ATX power supplies up to 140mm depth
  • Mesh panels and dual-chamber layout optimise airflow in an 18L volume

Specifications

BrandMechanic Master
ModelC28 KuFang
TypeMicro ATX / Mini-ITX
ColorSilver
Case MaterialAlumium / Steel / Temered Glass
With Power SupplyNo
Motherboard CompatibilityMicro ATX / ITX
Side Panelwith Side Window
Fan OptionsRear 1*120mm
Top 2*120mm
Bottom 2*120mm
Radiator Optionsheight 162mm
Rear 120mm
Top 240/120mm
Max GPU Length335 mm
Max CPU Cooler Height162 mm
Max PSU Length140 mm
Dimensions342mm * 185mm * 284mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the case ship with any fans or power supply, and what must I buy separately?

The C28 KuFang includes no fans and no power supply. You must purchase an SFX, SFX-L or ATX PSU up to 140 mm long, plus any 120 mm fans you want for the rear, top or bottom mounts.

Which CPU cooler clearance should I plan for — the 162 mm air-cooler limit or the 240 mm AIO limit?

Both are supported simultaneously. You can install an air cooler up to 162 mm tall, or a 240 mm radiator on top provided your RAM modules stay under 44 mm in height.

Will a 335 mm graphics card fit without modifications?

Yes, the case accepts GPUs up to 335 mm long and 162 mm wide. If the card is especially thick you may need to remove the tail frame temporarily during installation, then refit it afterwards.
