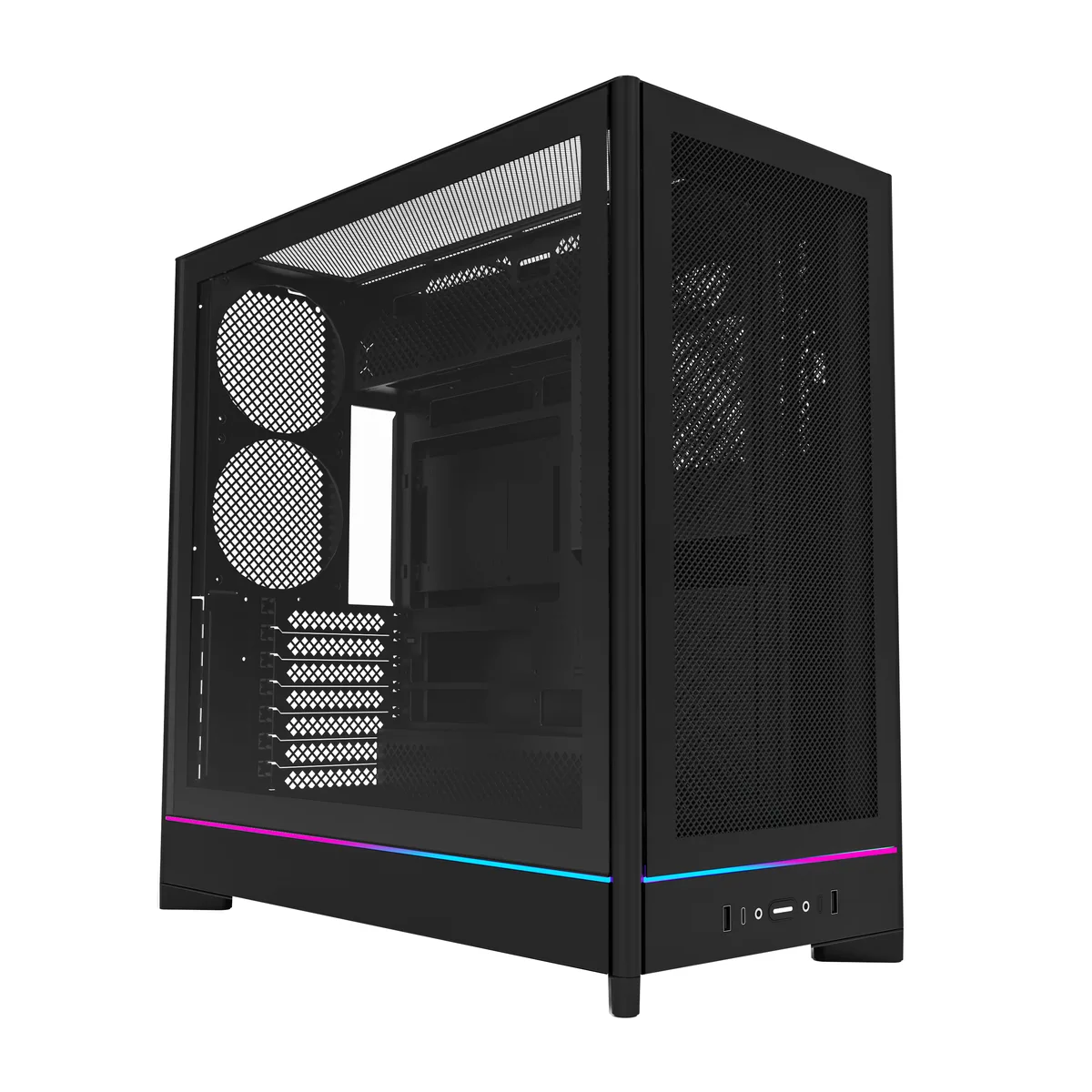

Black mid-tower PC case with mesh front panel and tempered glass side panel

Montech

Montech HS01 (B) PC Case Black ATX Mid-Tower

SKU CH-27MN-M62G5 MPN HS01 (B)

ATX mid-tower with reversible layout, mesh front panel and vertical GPU support holds 420 mm graphics cards and 360 mm top radiators

  • ColorBlack
  • Case MaterialSPCC / Tempered Glass
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays2
  • Expansion Slots14
  • Reversible layout lets you mirror the build left or right
  • Vertical airflow path draws cool air from below and exhausts it above
  • Mesh front panel supports up to 120 mm fans on three sides for high airflow
  • Rotatable PCIe slots enable a vertical GPU install without extra brackets
  • PSU relocated to the rear suits back-connect motherboards and hides cables

Montech HS01 reversible mid-tower

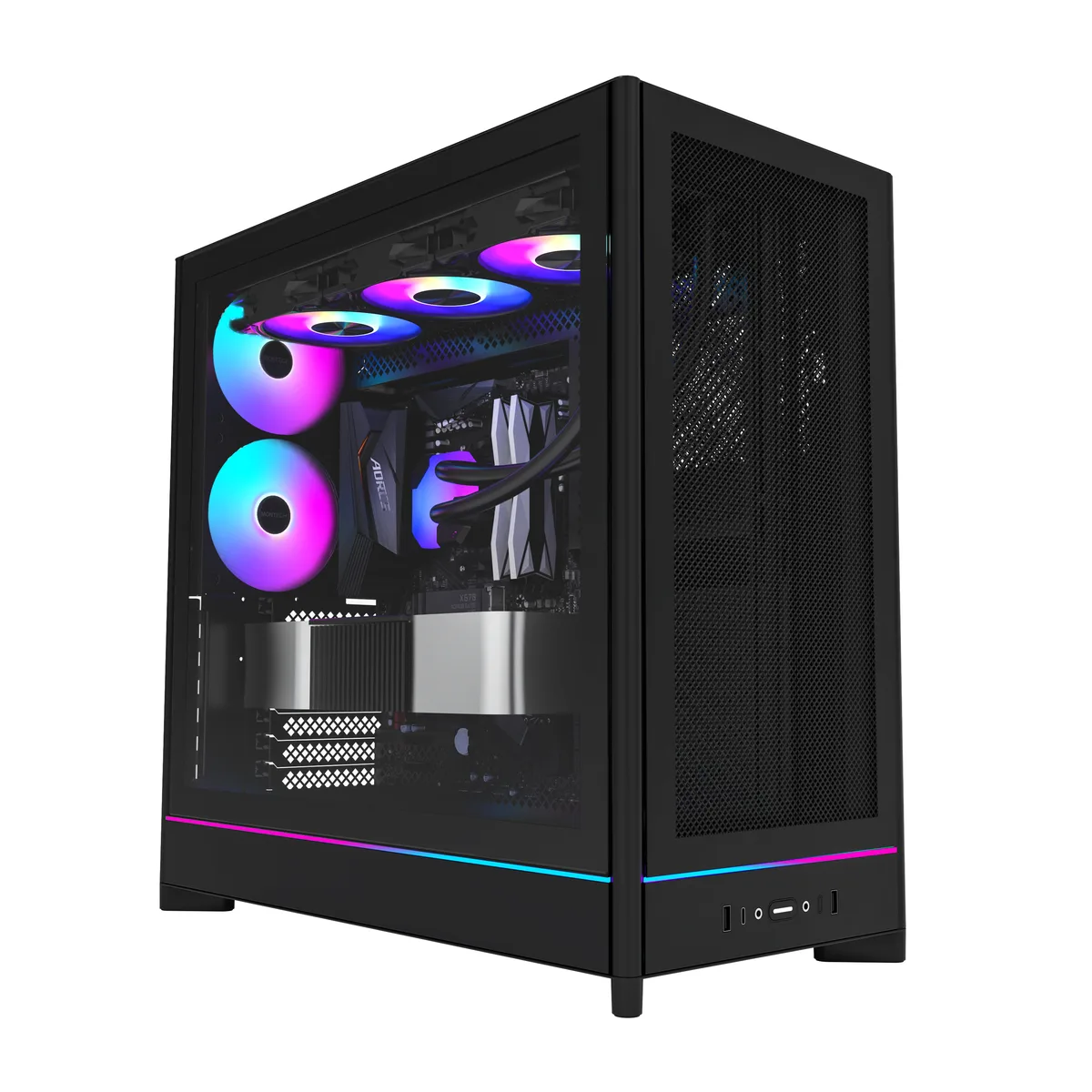

The Montech HS01 is a black ATX mid-tower case built from SPCC steel and tempered glass. It accepts ATX, Micro-ATX and Mini-ITX motherboards and provides fourteen expansion slots for flexible card placement. The reversible layout lets the whole interior flip to the opposite side for desk positioning.

Chimney airflow and vertical GPU support

A mesh front panel feeds bottom intake while top exhaust creates a natural chimney effect. The case supports three 120 mm fans at the bottom, front and top plus two at the rear. Radiator clearance reaches 360 mm on top and 120 mm at the rear and bottom. Rotatable PCIe slots enable a vertical graphics card without extra brackets.

Clearance limits and drive capacity

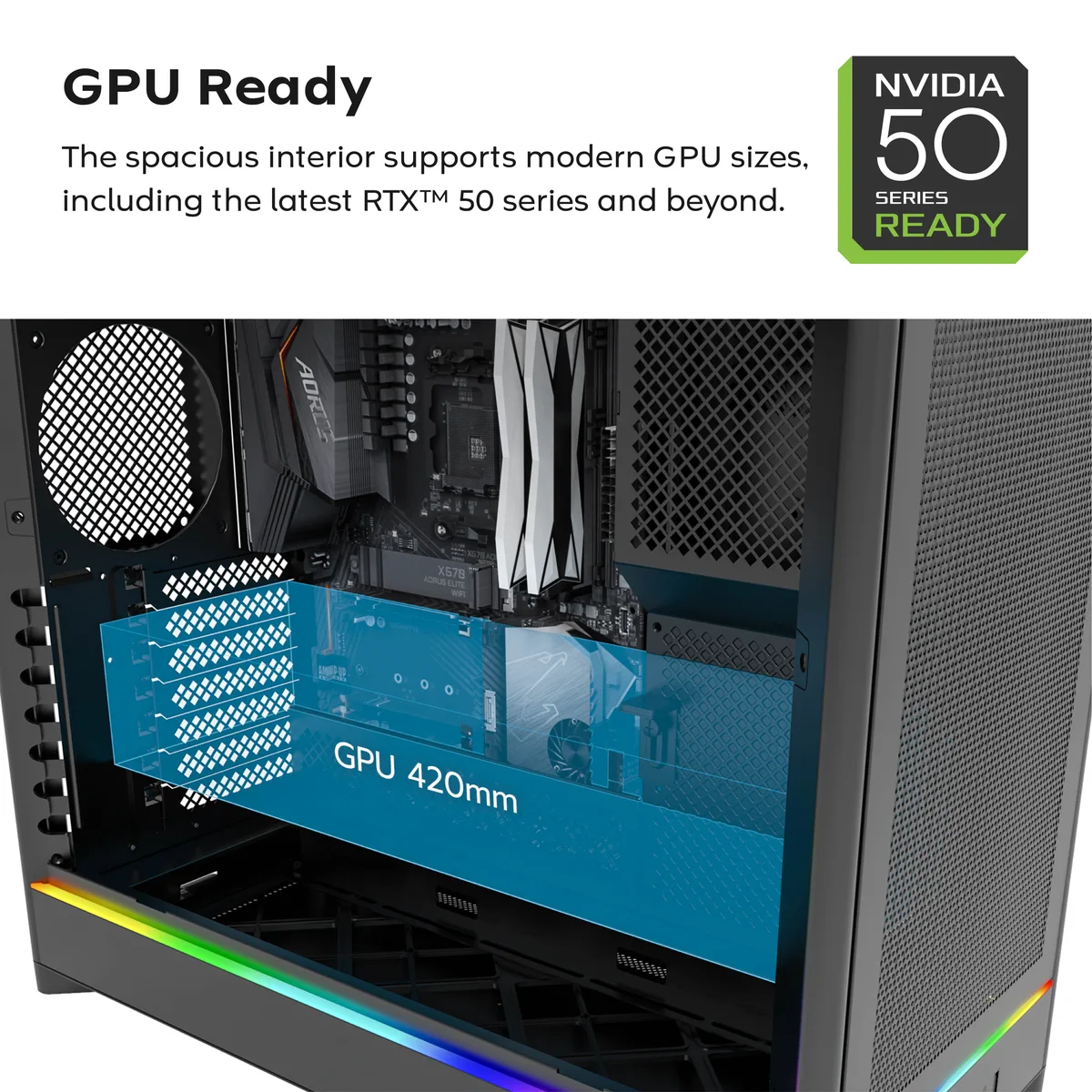

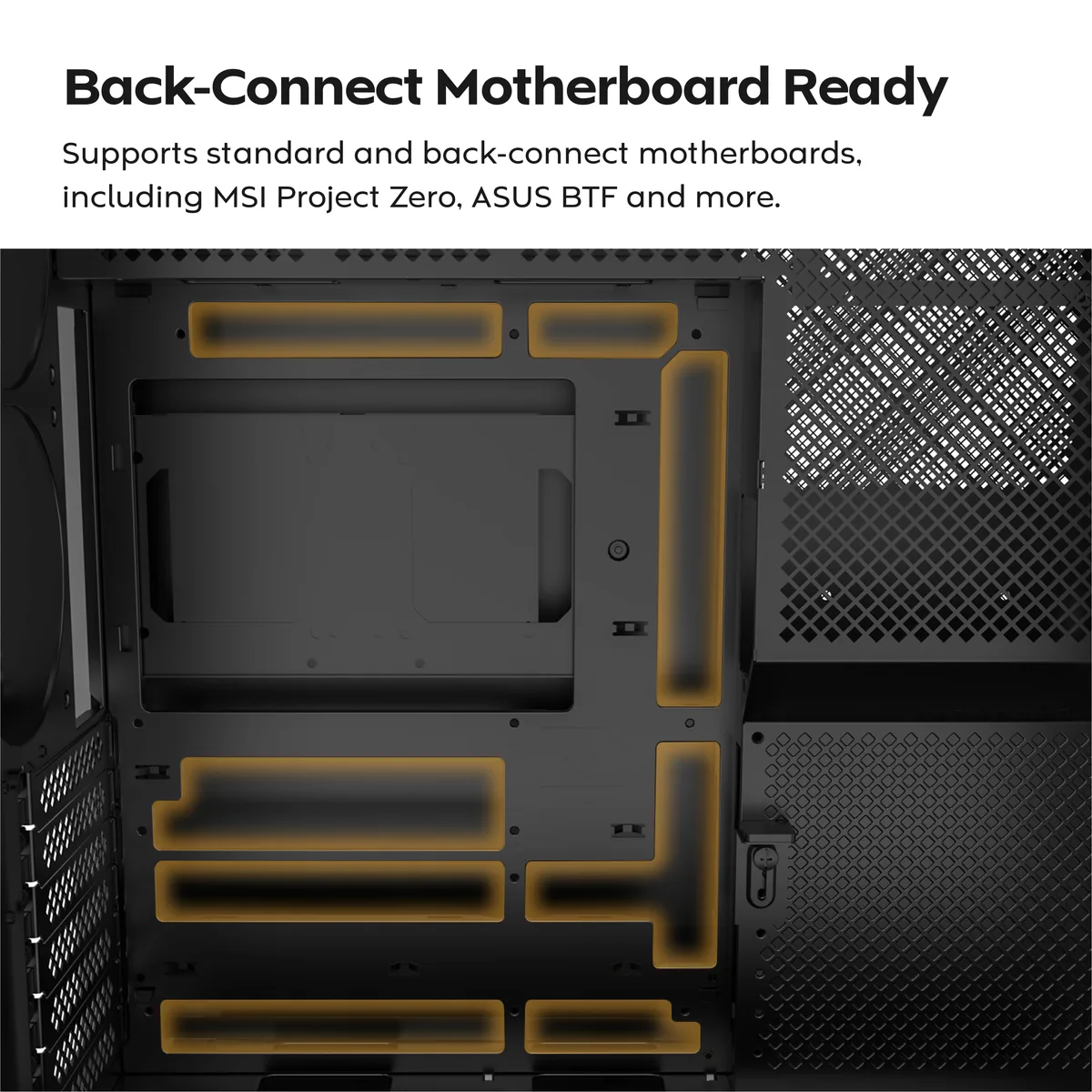

Maximum graphics card length is 420 mm, CPU cooler height is 175 mm and power supply length is 200 mm. Two internal 3.5 inch bays and two 2.5 inch bays handle storage. The relocated PSU area works with Back-Connect motherboards for cleaner cable routing. Check your cooler, GPU and PSU dimensions against these limits before ordering.

Highlights

  • Reversible layout lets you mirror the build left or right
  • Vertical airflow path draws cool air from below and exhausts it above
  • Mesh front panel supports up to 120 mm fans on three sides for high airflow
  • Rotatable PCIe slots enable a vertical GPU install without extra brackets
  • PSU relocated to the rear suits back-connect motherboards and hides cables

Specifications

BrandMontech
Part NumberHS01(B)
ColorBlack
Case MaterialSPCC / Tempered Glass
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots14
Fan OptionsBottom - 3 x 120mm / Front - 3 x 120mm / Rear - 2 x 120mm / Top - 3 x 120mm
Radiator OptionsBottom - Up to 120mm / Rear - Up to 120mm / Top - Up to 360mm
Max GPU Length420 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions18.91" x 9.45" x 18.91"
Shipping weight12.34 kg
Package size584 × 559 × 330 mm

Questions about this item

How often will the front mesh panel and bottom intake need cleaning to keep airflow strong?

The mesh front panel and bottom intake draw air directly into the case, so dust builds up on the filters. Remove and rinse the magnetic filters every few months, or more often in dusty rooms, to maintain the chimney-effect cooling path.

With a 420 mm graphics card and a 360 mm top radiator installed, which dimension hits its limit first?

The 420 mm maximum GPU length is the tighter constraint; a 360 mm radiator fits in the top, but long triple-fan cards leave only a few millimetres of clearance before the front panel.

How loud and hot does the case get when all thirteen fan mounts are populated and the system runs all day?

Noise and temperature depend on the fans you choose and their speed curves; the case itself adds no active cooling, so select quiet PWM fans and tune curves in BIOS for the acoustic and thermal profile you prefer.
