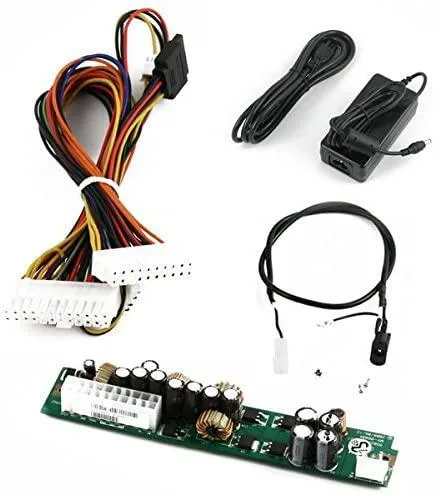

Compact 60W power kit with slim DC-DC board and external AC-DC adapter

MorexLab

MorexLab 60W Power Supply Kit 20-pin ATX DC-DC Board AC-DC Adapter

SKU CH-W5D0-JXC70

60 W kit with 20-pin ATX DC-DC board and AC-DC adapter, includes cables for SATA, Molex and 4-pin CPU power

  • TypeAT
  • 60W continuous power for compact builds via included AC-DC adapter
  • 20-pin ATX board with 20+4 cable fits 20-pin and 24-pin motherboards
  • Ready-to-use kit bundles DC-DC board, AC-DC adapter and all cables
  • SATA, Molex and Mini-Molex connectors cover drives and peripherals
  • 156 × 30 × 19 mm board installs in tight Morex Mini-ITX cases

MorexLab 60W Power Supply Kit

This kit provides a complete power solution for compatible Morex Mini-ITX cases. It includes a DC-DC board, an AC-DC adapter and all necessary cables. The unit delivers 60 W of power through a 20-pin ATX connector. It is built as a direct replacement for the standard supply found in those enclosures.

Builders repairing or upgrading a Morex Mini-ITX

The 20-pin to 20+4-pin cable fits both 20-pin and 24-pin motherboard sockets. Output connectors include one SATA, one Molex and one Mini-Molex plus an ATX 12V 4-pin plug. Systems requiring higher wattage or additional peripheral connectors will need a different power source. The kit operates between 0 and 45 °C.

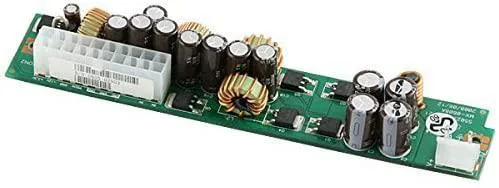

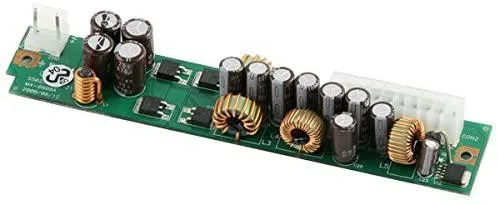

20-pin ATX DC-DC board with 60W AC-DC adapter

The board measures 156 mm by 30 mm by 19 mm and uses an AT type design without a -5 V rail. A 20-pin to 20+4-pin cable is supplied for motherboard compatibility. All DC input, ATX power and adapter cables are included in the package. This specification determines fit and power delivery for the target case.

Highlights

  • 60W continuous power for compact builds via included AC-DC adapter
  • 20-pin ATX board with 20+4 cable fits 20-pin and 24-pin motherboards
  • Ready-to-use kit bundles DC-DC board, AC-DC adapter and all cables
  • SATA, Molex and Mini-Molex connectors cover drives and peripherals
  • 156 × 30 × 19 mm board installs in tight Morex Mini-ITX cases

Specifications

TypeAT

Questions about this item

How can I confirm the 20-pin ATX DC-DC board is delivering power correctly after connecting it to my motherboard?

The board powers on when the 60W AC-DC adapter is plugged in and the 20-pin ATX cable is seated in the motherboard connector; the system should POST and show stable voltage rails in BIOS.

Which cables and adapters are included in the kit and what must I supply myself?

The kit includes the DC-DC board, 60W AC-DC adapter, DC input cable, ATX power cable with SATA, Molex, Mini-Molex and 12V 4-pin connectors, plus a 20-pin to 20+4-pin adapter; only the Mini-ITX case and motherboard are needed separately.

Should I choose the 20-pin or 24-pin ATX connection for my motherboard?

Use the included 20-pin to 20+4-pin cable — keep the extra 4 pins attached for a 24-pin motherboard socket or remove them for a 20-pin socket; the board itself has a 20-pin ATX connector.
