Green ATX motherboard with silver heatsinks, black slots and rear I/O panel

MSI

MSI 770T-C45 AMD 770 motherboard Socket AM2/AM2+ DDR2 8GB

SKU CH-GKK2-RF2SA

An ATX board for Socket AM2/AM2+ CPUs with AMD 770 chipset, dual-channel DDR2 up to 1066 MHz, 8 GB maximum memory, one PCI Express x16 2.0 slot, two PCI Express x1 slots, three PCI slots.

  • CPU Socket TypeSocket AM2/AM2+
  • CPU TypeSupports AMD Phenom, Athlon and Sempron processors
  • ChipsetAMD 770
  • Memory StandardSupport dual-channel DDR2 1066/800/667/533MHz memory
  • Maximum Memory Supported8GB
  • PCI Slots1 PCI Express x16 slot, supports PCIE 2.0 2 PCI Express x1 s
  • Supports AMD Phenom, Athlon and Sempron processors for flexible CPU choice
  • Dual-channel DDR2 1066/800/667/533MHz memory up to 8GB capacity
  • PCI Express x16 slot with PCIE 2.0 for graphics expansion
  • Realtek ALC889/ALC885 8-channel audio with Azalia 1.0 support
  • Realtek 8111DL Gigabit LAN plus six USB 2.0 ports

Socket AM2/AM2+ platform

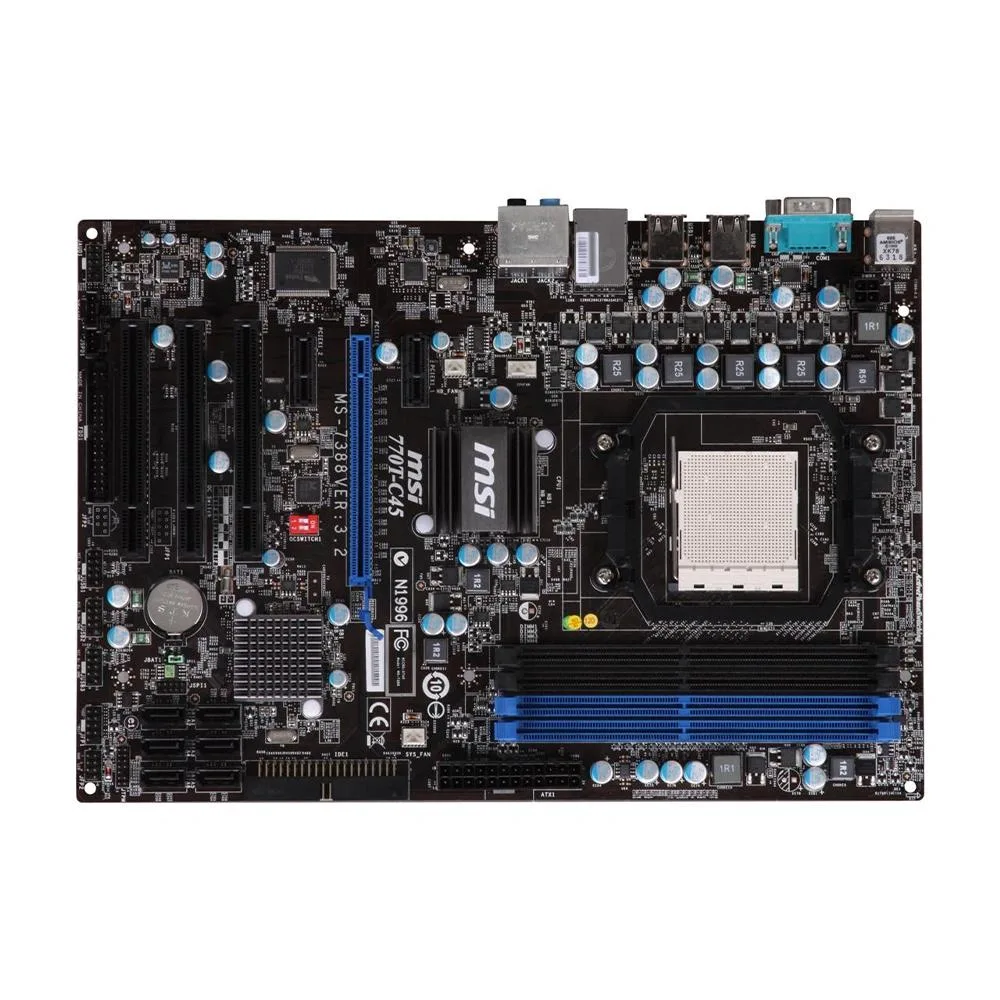

The MSI 770T-C45 is an ATX motherboard built around the AMD 770 chipset for Socket AM2 and AM2+ processors. It accepts Phenom, Athlon and Sempron CPUs, giving builders a foundation for legacy AMD systems that still need dual-channel DDR2 memory and a full complement of expansion slots.

Dual-channel DDR2 up to 8 GB

Four memory slots support DDR2 at 1066, 800, 667 or 533 MHz in dual-channel mode, with a maximum capacity of 8 GB. The board provides one PCI Express x16 slot at 2.0 speed, two PCI Express x1 slots and three conventional PCI slots for add-in cards. Six SATA II ports handle storage, while the Realtek 8111DL controller supplies a single gigabit Ethernet connection and the Realtek ALC889/885 audio codec delivers eight-channel sound compliant with Azalia 1.0.

Rear I/O and onboard headers

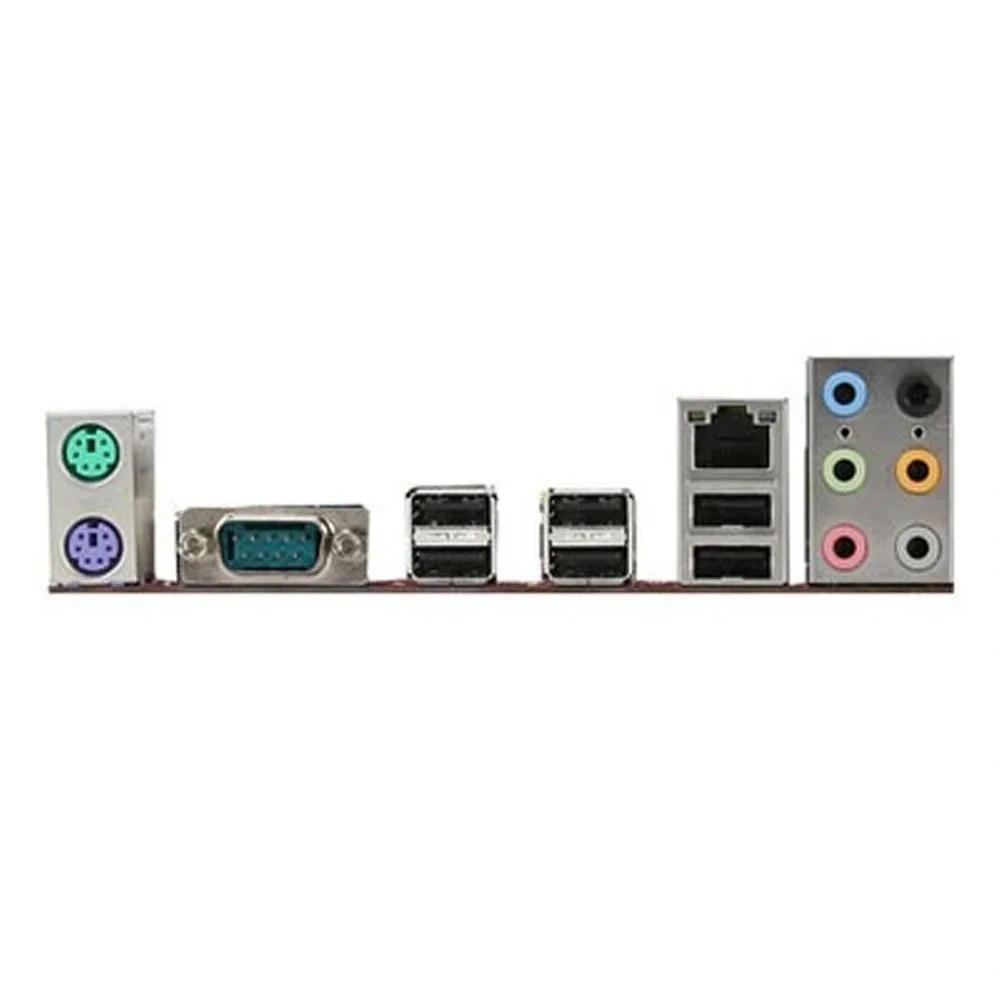

The back panel includes six USB 2.0 ports for peripherals. Onboard headers expose additional USB 2.0 connections, front-panel audio and the usual system controls. A CMOS battery, one SATA cable and an I/O shield are supplied in the package.

Highlights

  • Supports AMD Phenom, Athlon and Sempron processors for flexible CPU choice
  • Dual-channel DDR2 1066/800/667/533MHz memory up to 8GB capacity
  • PCI Express x16 slot with PCIE 2.0 for graphics expansion
  • Realtek ALC889/ALC885 8-channel audio with Azalia 1.0 support
  • Realtek 8111DL Gigabit LAN plus six USB 2.0 ports

Specifications

BrandMSI
SeriesMSI 770T-C45
ModelMSI 770T-C45
CPU Socket TypeSocket AM2/AM2+
CPU TypeSupports AMD Phenom, Athlon and Sempron processors
ChipsetAMD 770
Memory StandardSupport dual-channel DDR2 1066/800/667/533MHz memory
Maximum Memory Supported8GB
PCI Slots1 PCI Express x16 slot, supports PCIE 2.0
2 PCI Express x1 slots
3 PCI slots, supporting 3.3v/5v PCI main bus interface
SATA RAID6XSATA II interface
Audio ChipsetRealtek ALC889/ALC885 Chips
- Supports 8-channel sound effects detected by intelligent sound interface
Compatible with Azalia 1.0 specifications
LAN Chipset1 PCI Express network port supports 10/100/1000 Fast Ethernet provided by Realtek 8111DL
Onboard USB6 USB 2.0 ports (backplane)

Questions about this item

Will my existing DDR2 800 modules work with the 770T-C45 board?

The board runs dual-channel DDR2 at 1066, 800, 667 or 533 MHz so your 800 MHz sticks will operate at their rated speed.

How can I confirm the Realtek 8111DL Gigabit LAN is active after assembly?

Check Device Manager for a Realtek PCIe GBE Family Controller and verify the link light shows 1000 Mbps when a cable is plugged in.

What cables and brackets come in the box with the 770T-C45?

You receive the motherboard, one CMOS battery, one SATA cable and a chassis I/O back panel; no other accessories are included.
