ATX motherboard with black PCB and silver heatsinks

MSI

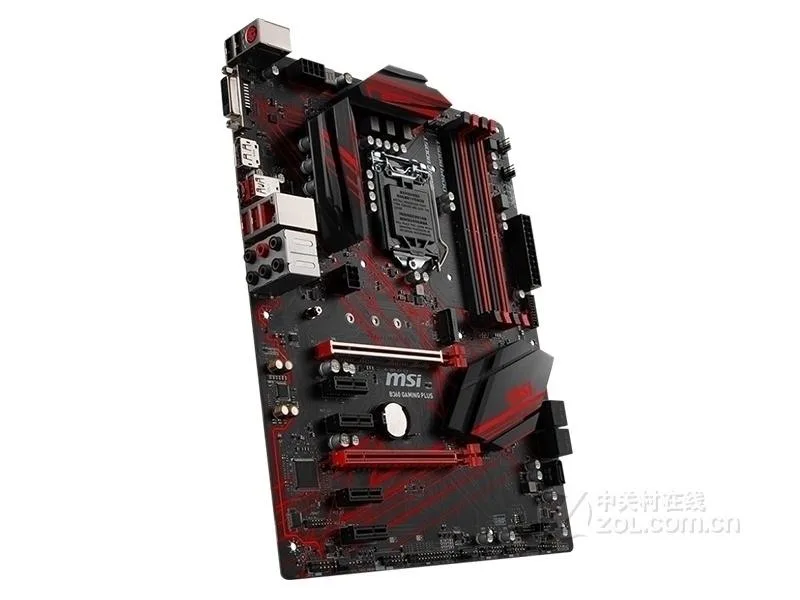

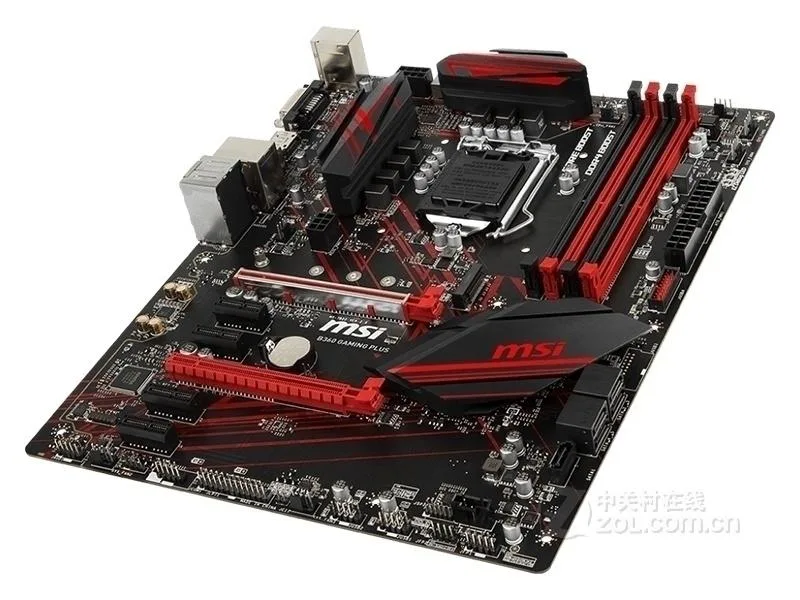

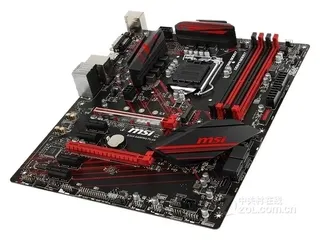

MSI B360 GAMING PLUS LGA 1151 DDR4 64GB ATX Intel motherboard

SKU CH-4H6D-7P32K

An Intel B360 ATX board for LGA 1151 CPUs with dual-channel DDR4 up to 64GB, two PCIe 3.0 x16 slots, five SATA III ports, one M.2 interface, dual Realtek ALC892 audio for 7.1 sound.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 8th generation Intel Core processors with LGA1151,
  • ChipsetIntel B360
  • Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 s
  • Supports 8th generation Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz for responsive performance
  • 64 GB maximum memory capacity handles demanding workloads
  • Intel I219-V Gigabit LAN delivers reliable wired connectivity
  • Dual Realtek ALC892 audio with 7.1 channel output for immersive sound

B360 Chipset for 8th Generation Core

This ATX motherboard uses the Intel B360 chipset and an LGA 1151 socket to support 8th generation Intel Core, Pentium Gold and Celeron processors. It provides a foundation for mainstream desktop builds that do not require overclocking features. Dual-channel DDR4 memory runs at 2666, 2400 or 2133 MHz with a maximum capacity of 64 GB.

Sustained Load Behaviour

The board delivers two PCIe 3.0 x16 slots operating in x16 and x4 modes alongside four PCIe 3.0 x1 slots for expansion cards. Storage connectivity includes one M.2 interface and five SATA III ports for drives. An Intel I219-V Gigabit network controller handles wired traffic while dual Realtek ALC892 chips produce 7.1 channel audio output.

Rear I/O and Build Details

The back panel supplies two USB 3.1 Gen2 ports at 10 Gbps, one Type-A and one Type-C, plus two USB 3.1 Gen1 ports and six USB 2.0 ports. Four additional USB 3.1 Gen1 ports are available through onboard headers. The package includes the motherboard, an I/O shield, one SATA cable and a metal battery with no original retail box.

Highlights

  • Supports 8th generation Intel Core processors via LGA 1151 socket
  • Dual-channel DDR4 memory up to 2666 MHz for responsive performance
  • 64 GB maximum memory capacity handles demanding workloads
  • Intel I219-V Gigabit LAN delivers reliable wired connectivity
  • Dual Realtek ALC892 audio with 7.1 channel output for immersive sound

Specifications

BrandMSI
SeriesMSI B360 GAMING PLUS
ModelMSI B360 GAMING PLUS
CPU Socket TypeLGA 1151
CPU TypeSupports 8th generation Intel Core processors with LGA1151, Pentium Gold and Celeron processors
ChipsetIntel B360
Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 5xSATA III interface
Audio ChipsetDual Realtek ALC892 Decoding Chip
7.1 channel high-quality sound effects
LAN Chipset1 x Intel I219-V Gigabit network interface card
Onboard USBIntel B360 chipset
2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the backplane)
4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 on the backplane, 2 via onboard USB ports)
6 USB 2.0 (High-speed USB) ports (2 on the back panel, 4 via onboard USB ports)

Questions about this item

Will this board run an 8th-generation Intel Core i5 without a BIOS update?

The socket is LGA 1151 and the chipset is Intel B360, which is designed for 8th-generation Core, Pentium Gold and Celeron processors, so a compatible CPU should work out of the box.

How many DDR4 slots are available and what is the total capacity limit?

The board supports dual-channel DDR4 at 2666, 2400 and 2133 MHz with a maximum of 64 GB across its memory slots.

What rear USB ports are provided and what speeds do they run at?

The back panel includes two USB 3.1 Gen2 ports (one Type-A, one Type-C) at 10 Gbps and two USB 3.1 Gen1 ports at 5 Gbps.
