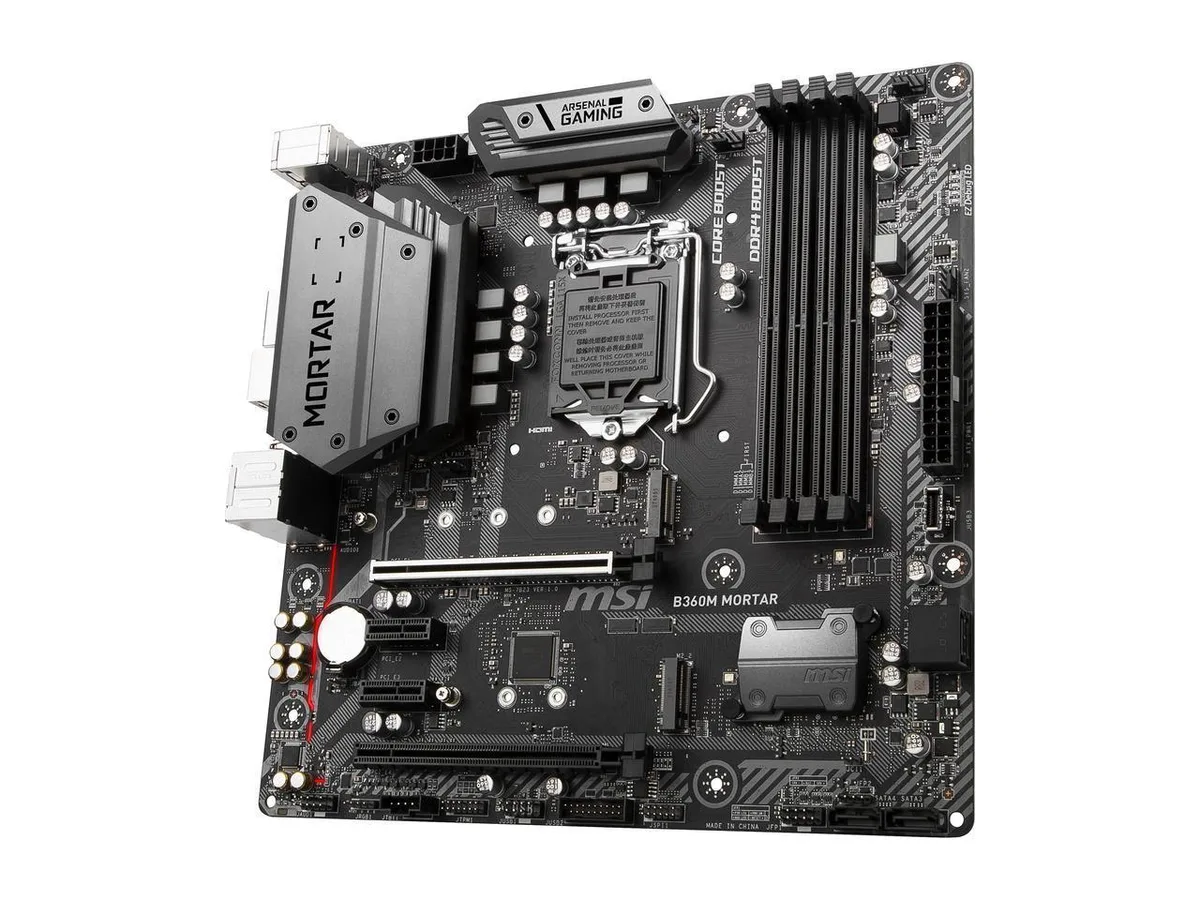

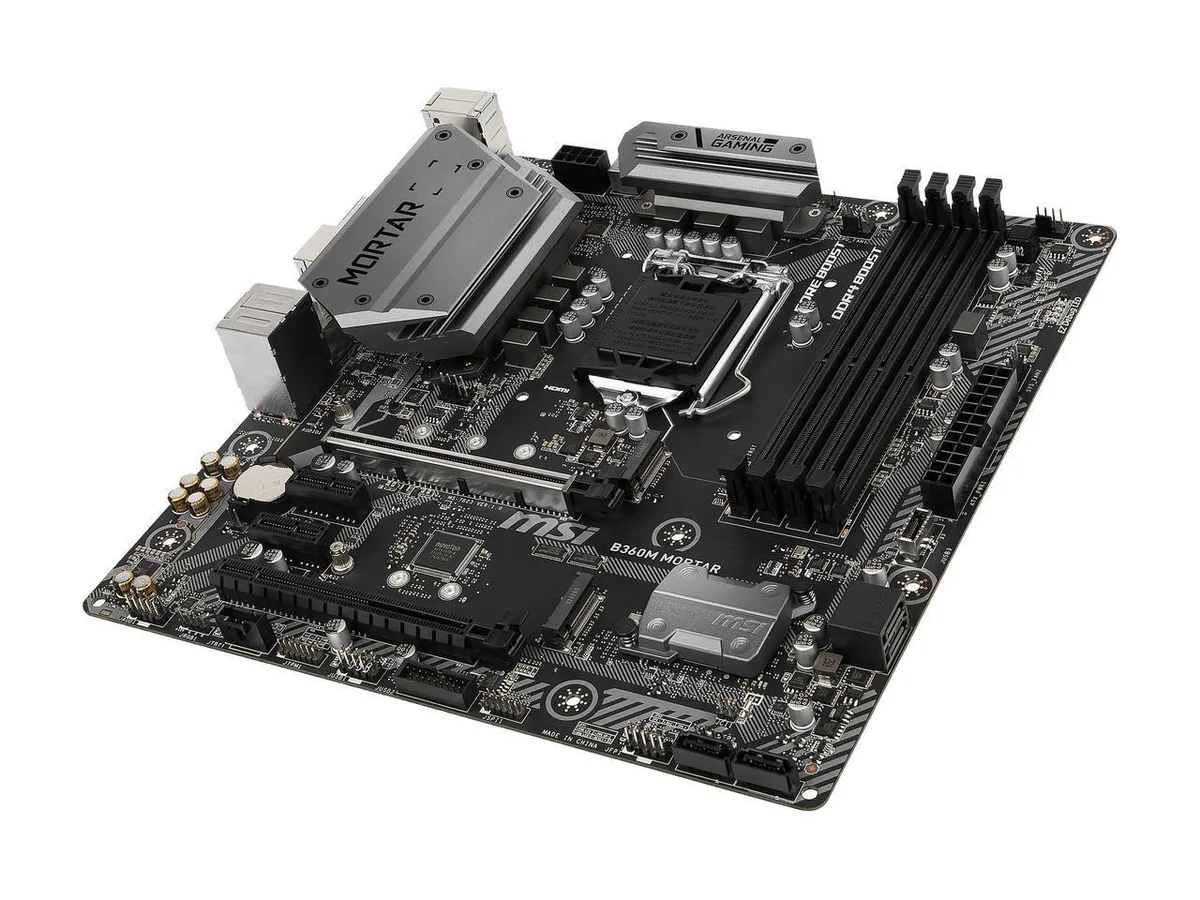

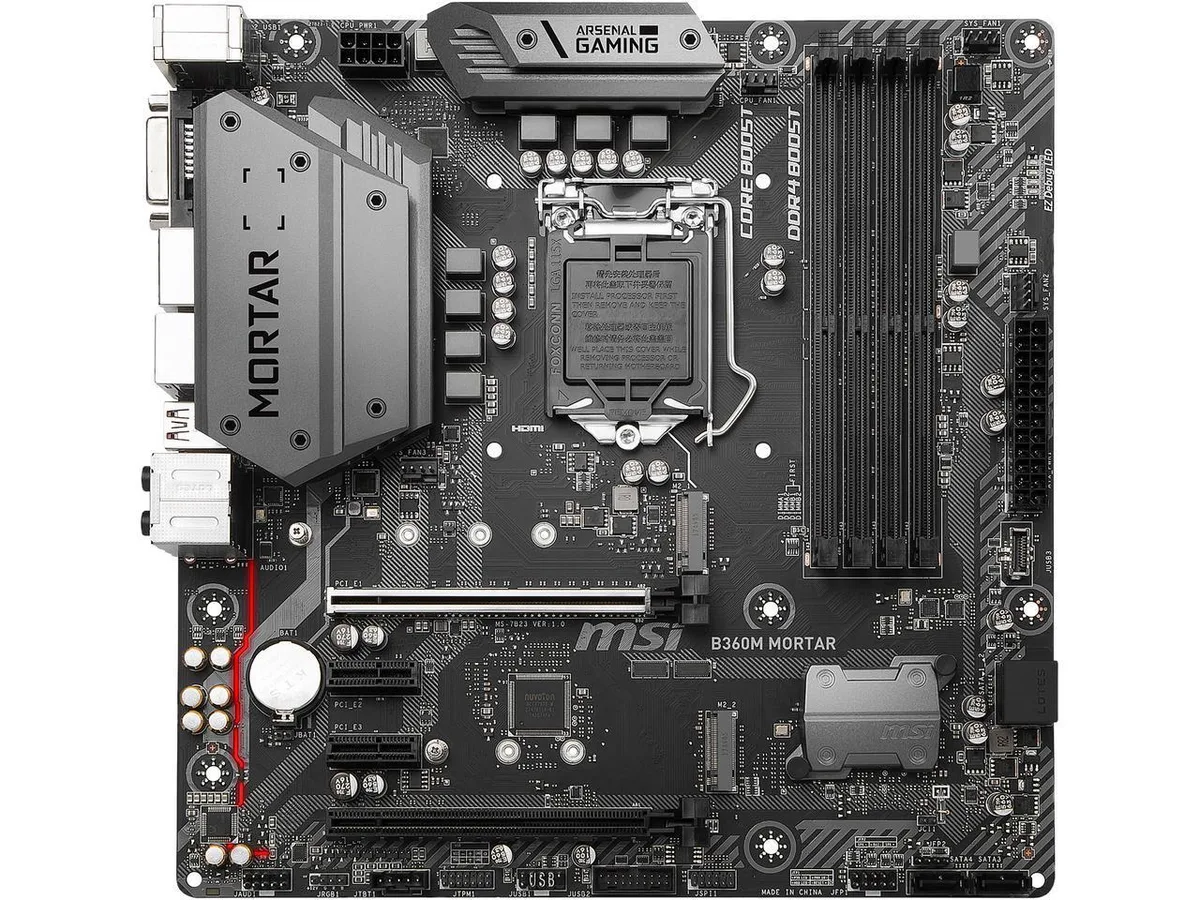

MSI B360M Mortar micro ATX motherboard, black PCB with grey heatsinks and reinforced slots

MSI

MSI B360M Mortar Intel motherboard

SKU CH-DWD6-T4SFB

Micro-ATX board for 8th-generation Intel Core CPUs on LGA 1151 (300 Series) with dual-channel DDR4, two M.2 slots, four SATA 6 Gb/s ports, Intel I219-V Gigabit LAN.

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU Type8th Generation Intel Core Processors * Not backward compatib
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Maximum Memory Supported64GB
  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB capacity
  • Intel I219-V Gigabit LAN for wired networking
  • Realtek ALC892 8-channel audio with premium capacitors
  • Micro-ATX form factor with two M.2 slots and four SATA ports

LGA 1151 (300 Series) micro-ATX board for 8th

This micro-ATX motherboard uses the Intel B360 chipset and the LGA 1151 (300 Series) socket. It accepts 8th Generation Intel Core processors and is not backward compatible with older LGA 1151 CPUs. The board provides four DDR4 memory slots with dual-channel support up to 64 GB total capacity. Two M.2 slots and four SATA 6Gb/s ports handle storage, while a Realtek ALC892 codec delivers eight-channel audio.

Sustained load on the extended PWM heatsink

The extended PWM heatsink and enhanced circuit design keep temperatures lower when a high-core-count processor runs continuously at full speed. Multiple fan headers with full PWM control let the builder match airflow to the thermal load. An Intel I219-V Gigabit LAN controller maintains a steady 1 Gbps network link during long transfers. Onboard video outputs — HDMI, DisplayPort and DVI — remain active only when the installed CPU includes integrated graphics.

64 GB DDR4 dual-channel memory ceiling

Four 288-pin DDR4 slots operate in dual-channel mode and top out at 64 GB of system memory. This limit defines the maximum RAM the platform can address and therefore decides whether the board suits a given workload. Exceeding this capacity is not possible on the B360 chipset, so buyers with larger memory requirements must choose a different chipset.

Highlights

  • Supports 8th Gen Intel Core processors on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB capacity
  • Intel I219-V Gigabit LAN for wired networking
  • Realtek ALC892 8-channel audio with premium capacitors
  • Micro-ATX form factor with two M.2 slots and four SATA ports

Specifications

BrandMSI
ModelB360M MORTAR
CPU Socket TypeLGA 1151 (300 Series)
CPU Type8th Generation Intel Core Processors * Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Maximum Memory Supported64GB
Channel SupportedDual Channel
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetRealtek ALC892
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x DisplayPort / 1 x HDMI
Video PortsDVI
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"

Questions about this item

How loud does the board get when an 8-core i7 runs full speed all day?

The extended PWM heatsink and enhanced circuit design keep an 8-core i7 at full speed without extra noise, so fan headers stay at low RPM under sustained load.

Which memory kits must I already own for the four 288-pin slots?

Four DDR4 modules up to 64 GB total in dual-channel mode; the board does not accept older DDR generations.

Will my older LGA 1151 processor work in the 300-series socket?

The 300-series socket only supports 8th Generation Intel Core processors; earlier LGA 1151 CPUs are not compatible.
