ATX motherboard in dark finish with silver heatsinks and four DDR5 slots

MSI

MSI B850 GAMING PLUS WIFI6E AMD motherboard

SKU CH-J5SQ-RTXPM MPN B850 GAMING PLUS WIFI6E

ATX board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 up to 8200 MT/s, PCIe 5.0 M.2, Wi-Fi 6E and 2.5G LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/
  • Maximum Memory Supported256GB

Option B850 GAMING PLUS WIFI6E

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • DDR5 memory overclocks to 8200 MT/s with Memory Boost technology
  • PCIe 5.0 M.2 slot for fastest storage performance
  • Wi-Fi 6E and 2.5G LAN deliver high-speed wired and wireless networking
  • Extended heatsink and M.2 Shield Frozr keep components cool under load

AM5 Motherboard for Ryzen 7000 8000 9000 Series

The MSI B850 GAMING PLUS WIFI6E is an ATX motherboard built on the AMD B850 chipset for AM5 socket processors. It supports Ryzen 7000 Series, Ryzen 8000 Series and Ryzen 9000 Series desktop CPUs. Four 288 pin DDR5 slots accept up to 256GB of unbuffered non ECC memory with AMD EXPO profiles. The board includes Wi-Fi 6E and a Realtek 8125D 2.5G LAN controller for wired and wireless networking.

Straightforward ATX Installation

Standard ATX mounting holes and labelled headers make the physical install routine for any builder familiar with the form factor. The primary PCI_E1 slot runs at PCIe 4.0 x16 from the CPU for Ryzen 9000 and 7000 series, dropping to x8 for Ryzen 8700 8600 8400 series. A second x4 slot PCI_E3 comes from the chipset at PCIe 4.0 while PCI_E2 is a PCIe 3.0 x1 slot. Dual 8 pin CPU power connectors feed the 12 Duet Rail P-PAK power system so ensure your PSU cables reach cleanly.

Check CPU Generation PCIe Lane Split

Verify which Ryzen generation you will install because the top slot lane count changes between series. M.2_1 is sourced from the CPU and supports PCIe 5.0 x4 for 22110 and 2280 devices while M.2_2 supports PCIe 4.0 x4 for 2280 and 2260 drives. Four SATA 6Gb/s ports provide RAID 0 1 10 and the M.2 NVMe RAID supports RAID 0 1. Confirm your cooler clears the extended PWM heatsink and that your case fits ATX dimensions.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • DDR5 memory overclocks to 8200 MT/s with Memory Boost technology
  • PCIe 5.0 M.2 slot for fastest storage performance
  • Wi-Fi 6E and 2.5G LAN deliver high-speed wired and wireless networking
  • Extended heatsink and M.2 Shield Frozr keep components cool under load

Specifications

BrandMSI
ModelB850 GAMING PLUS WIFI6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Maximum Memory Supported256GB
Memory Performance ProfileAMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureRyzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
PCI Express 4.0 x16PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E1 slot
- Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M2_2 slot
- Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
- Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID ControllerSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
LAN ChipsetRealtek 8125D 2.5G LAN
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.3
Back I/O Ports1 x Clear CMOS Button / 1 x DisplayPort / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 3 x Audio Jacks / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.0
Onboard USB4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Other Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
Form FactorATX
LED Lighting4 x EZ Debug LED
1 x EZ Memory Detection LED
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
Windows 11Supported

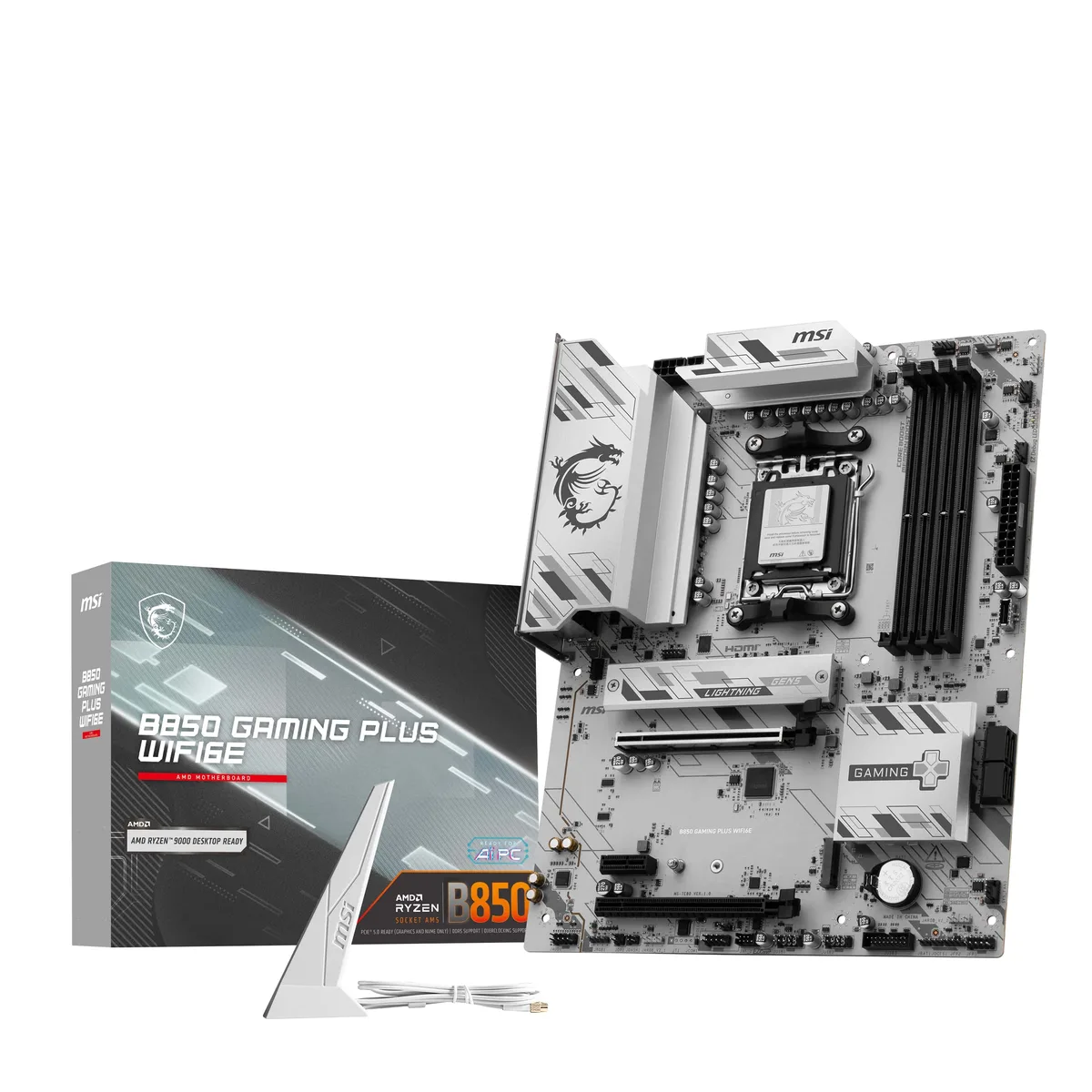

Package ContentsEZ Wi-Fi Antenna
Cable Sticker
EZ M.2 Clip II Remover
1 to 2 EZ Conn-Cable (V1)
SATA Cable
European Union Regulatory Notice
Quick Installation Guide
Shipping weight1.72 kg
Package size351 × 274 × 74 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my Ryzen 9000 series CPU fit this board?

Yes, the AM5 socket supports Ryzen 9000, 8000 and 7000 series desktop processors.

What is the maximum DDR5 speed I can run with four sticks?

With a Ryzen 9000 CPU and four single-rank modules the board reaches 6400+ MT/s; four dual-rank modules top out at 6000+ MT/s.

Can I add a PCIe 5.0 NVMe drive and a second PCIe 4.0 NVMe drive at the same time?

Yes, the primary M.2 slot runs at PCIe 5.0 x4 from the CPU and the second M.2 slot runs at PCIe 4.0 x4 from the CPU.
