Green Mini-ITX board with black sockets and silver heatsinks

MSI

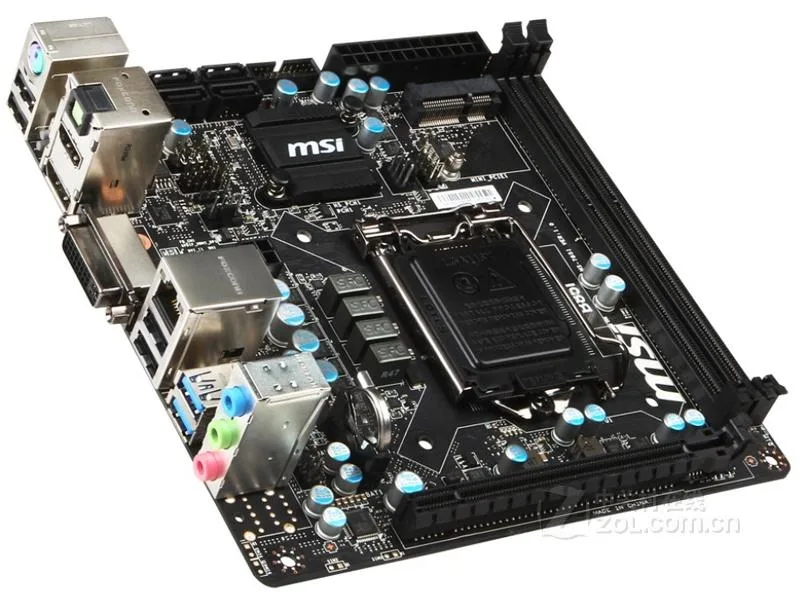

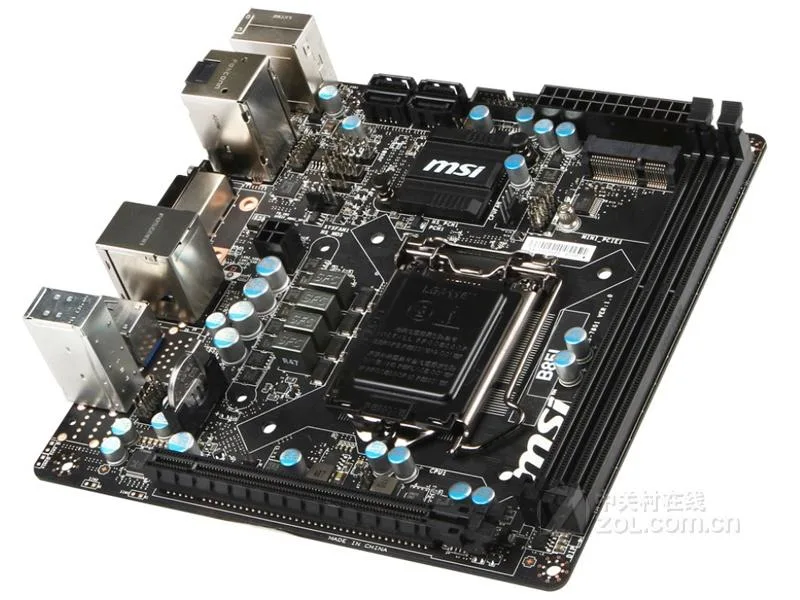

MSI B85I LGA 1150 Intel B85 DDR3 16GB Mini-ITX motherboard

SKU CH-CT2E-PA2Z5

Supports 4th generation Intel Core i7, i5, i3, Pentium and Celeron processors with dual-channel DDR3 1600/1333/1066MHz memory up to 16GB

  • CPU Socket TypeLGA 1150
  • CPU Type4th generation Intel Core i7/Core i5/Core i3/Pentium/Celeron
  • ChipsetIntel B85
  • Memory StandardSupports dual-channel DDR3 1600/1333/1066MHz memory
  • Maximum Memory Supported16GB
  • PCI Slots1 PCIe 3.0 x16 slot 1 half-size mini-PCIe slot
  • Supports 4th gen Intel Core i7/i5/i3/Pentium/Celeron via LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB at 1600/1333/1066 MHz
  • One PCIe 3.0 x16 slot plus half-size mini-PCIe for expansion
  • Four SATA III ports with RAID support for storage arrays
  • Realtek ALC892 7.1-channel audio with S/PDIF and Realtek 8111G Gigabit LAN

Mini-ITX board for fourth-generation Intel CPUs

This motherboard uses the Intel B85 chipset and an LGA 1150 socket to support fourth-generation Intel Core i7, i5, i3, Pentium and Celeron processors. It provides a compact foundation for a small-form-factor desktop build.

Suits builders reusing DDR3 memory and SATA storage

The board accepts up to 16 GB of dual-channel DDR3 at 1600, 1333 or 1066 MHz and offers four SATA III ports for drives. It is not suitable for newer CPU generations or memory types that require a different socket or chipset.

Single PCIe 3.0 x16 slot defines expansion

Only one full-size PCI Express 3.0 x16 slot is available alongside a half-size mini-PCIe slot, so the system can host just one full-length add-in card such as a graphics adapter.

Highlights

  • Supports 4th gen Intel Core i7/i5/i3/Pentium/Celeron via LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB at 1600/1333/1066 MHz
  • One PCIe 3.0 x16 slot plus half-size mini-PCIe for expansion
  • Four SATA III ports with RAID support for storage arrays
  • Realtek ALC892 7.1-channel audio with S/PDIF and Realtek 8111G Gigabit LAN

Specifications

BrandMSI
SeriesMSI B85I
ModelMSI B85I
CPU Socket TypeLGA 1150
CPU Type4th generation Intel Core i7/Core i5/Core i3/Pentium/Celeron processors with Socket 1150 architecture
ChipsetIntel B85
Memory StandardSupports dual-channel DDR3 1600/1333/1066MHz memory
Maximum Memory Supported16GB
PCI Slots1 PCIe 3.0 x16 slot
1 half-size mini-PCIe slot
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC892 Codec
- 7.1-channel high-quality sound effects
- Supports S/PDIF output
LAN Chipset1 PCI Express network port supporting 10/100/1000 Fast Ethernet provided by Realtek 8111G
Onboard USB4 USB 3.0 ports (2 on the backplane, 2 built-in)
6 USB 2.0 ports (4 on the backplane, 2 built-in)

Questions about this item

How loud or hot does the MSI B85I get when running a 4th generation Intel Core processor all day?

The board uses the Intel B85 chipset and a single PCIe 3.0 x16 slot, so heat output depends on the CPU cooler and case airflow you provide.

What memory and storage must I already own to use this motherboard?

You need DDR3 modules running at 1600, 1333 or 1066 MHz up to 16 GB total, plus SATA drives for the four SATA III ports.

Will my older PCI Express 2.0 graphics card work in the PCIe 3.0 x16 slot?

Yes, the slot is backward compatible, so a PCIe 2.0 card will run at its native speed in the x16 slot.
