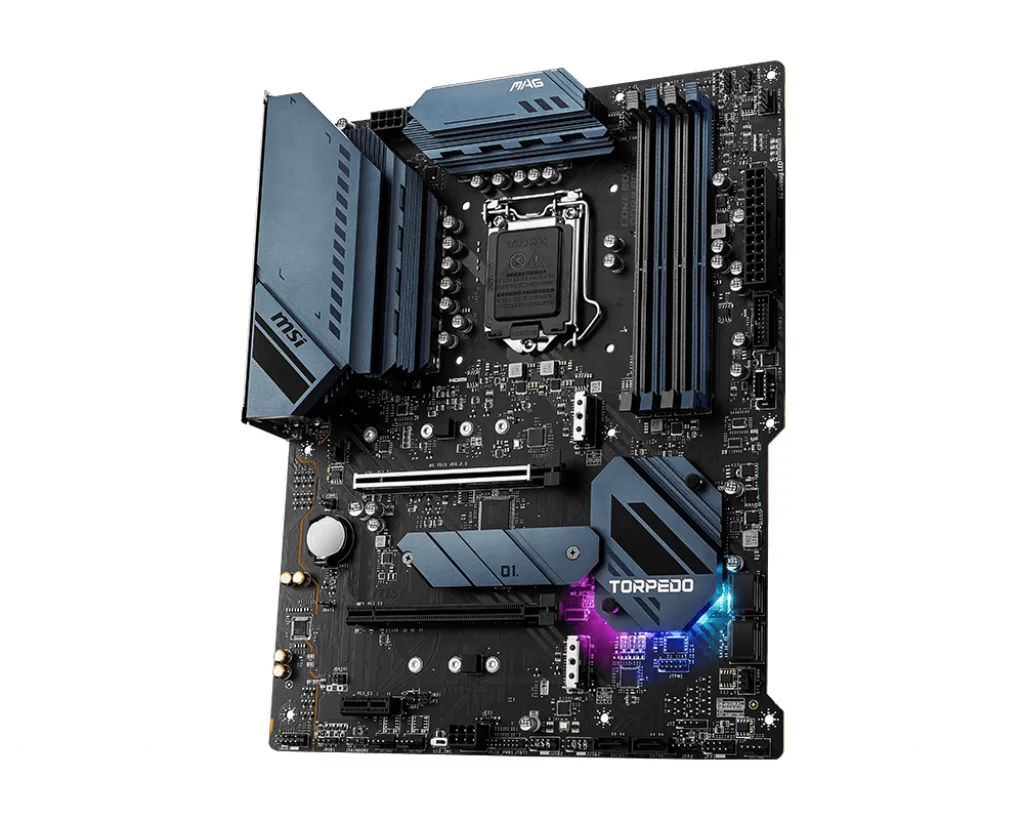

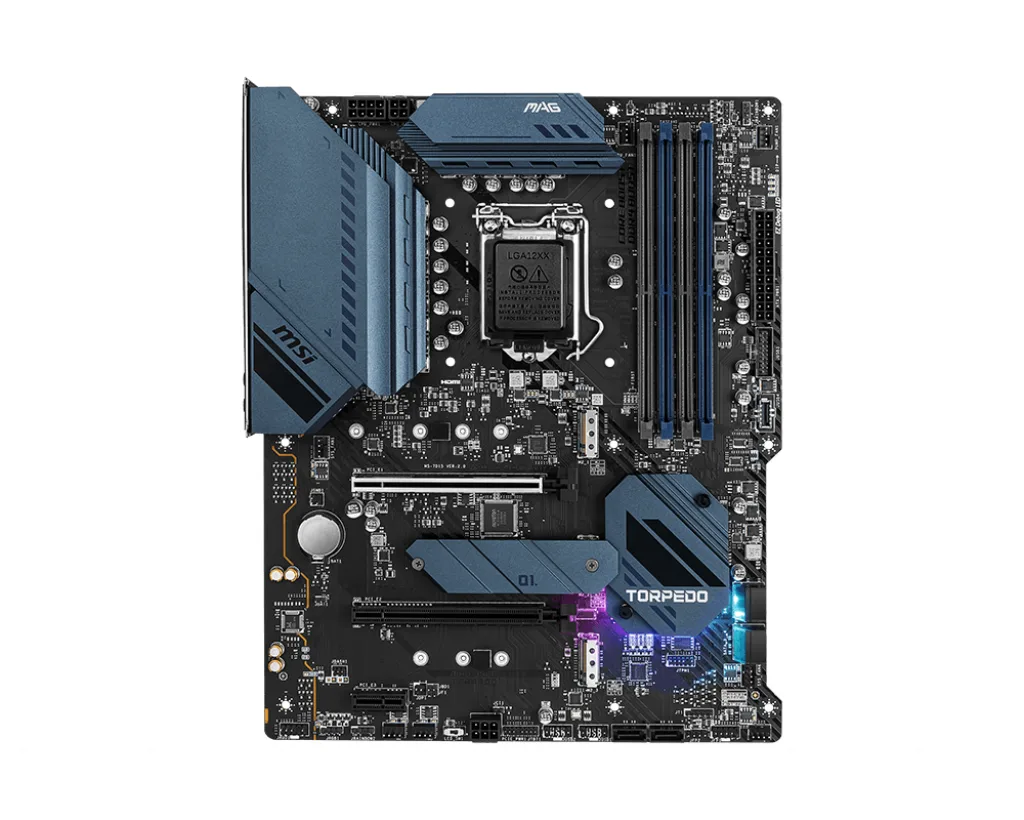

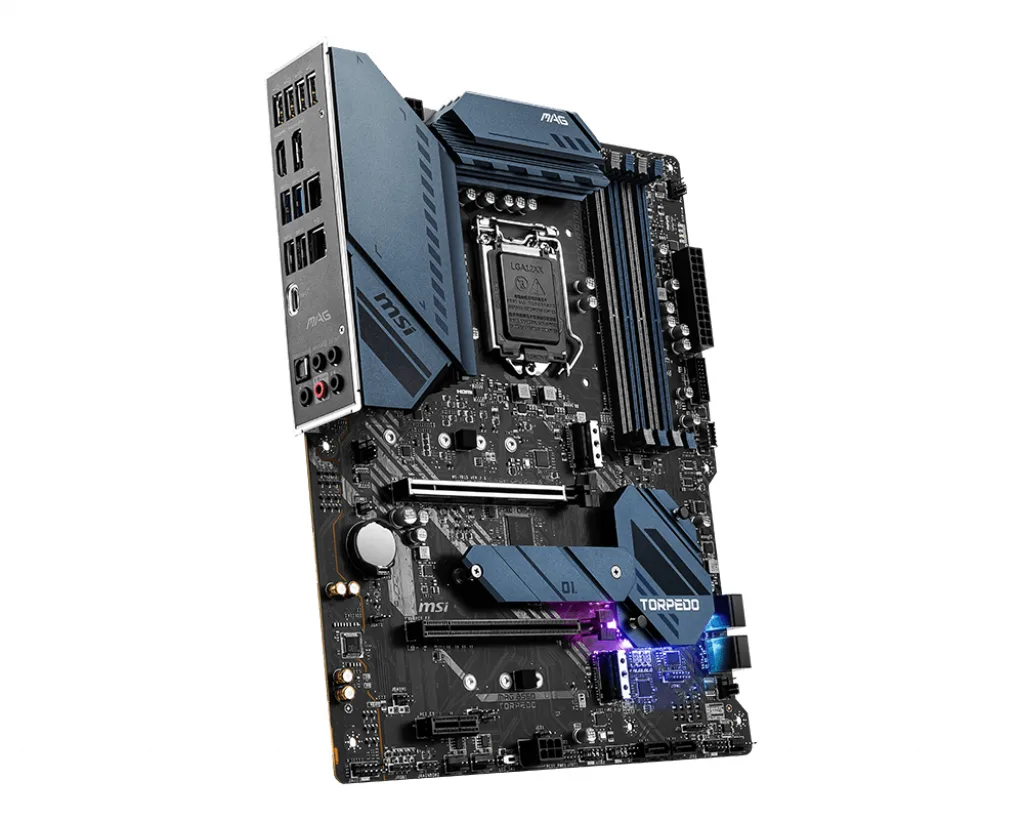

Black ATX motherboard with silver heatsinks and I/O shield

MSI

MSI MAG B560 TORPEDO Intel B560 LGA 1200 ATX Motherboard A

SKU CH-B0WR-ZAXV5

An ATX motherboard with Intel B560 chipset, LGA 1200 socket for 10 and 11 generation Core i9, i7, i5, i3 processors, DDR4 memory up to 128 GB, PCI Express 4.0 x16, three M.2 slots.

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel B560
  • Memory StandardDDR4
  • Maximum Memory Supported128GB
  • PCI Express x161
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 128 GB for high-capacity workloads
  • PCI Express 4.0 x16 slot delivers full bandwidth for modern GPUs
  • Three M.2 slots provide flexible storage expansion
  • ATX form factor fits standard desktop cases

Socket LGA 1200 ATX board for 10th

The MSI MAG B560 TORPEDO is an ATX motherboard built on the Intel B560 chipset and the LGA 1200 socket. It supports 10th and 11th Generation Intel Core i9, i7, i5 and i3 processors. The board carries four DDR4 slots with a maximum capacity of 128 GB. A single PCI Express 4.0 x16 slot and one legacy PCI slot handle expansion cards. Three M.2 sockets are available for storage devices.

Installation notes and common issues

The package contains only the motherboard and the I/O shield; no SATA cables, Wi-Fi antenna, driver disc or manual are supplied. Mount the board in a standard ATX case using the regular standoff pattern. Seat the CPU, lock the retention lever, install DDR4 modules and connect the 24-pin and 8-pin power leads. Builders often forget the 8-pin EPS connector or leave the I/O shield out of the case cut-out, which prevents the rear ports from aligning.

Compatibility checks before ordering

Verify that your chassis accepts ATX form-factor boards and that the power supply provides both a 24-pin ATX connector and an 8-pin EPS connector. Confirm that your cooler mounting hardware includes LGA 1200 brackets. Ensure the operating system you plan to install has drivers for the Intel B560 chipset. Check that any M.2 drives you intend to use are mechanically compatible with the three M.2 slots on this board.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • DDR4 memory up to 128 GB for high-capacity workloads
  • PCI Express 4.0 x16 slot delivers full bandwidth for modern GPUs
  • Three M.2 slots provide flexible storage expansion
  • ATX form factor fits standard desktop cases

Specifications

BrandMSI
ModelMAG B560 TORPEDO
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel B560
Memory StandardDDR4
Maximum Memory Supported128GB
PCI Express x161
PCI Slots1 x PCI Slot
Back I/O Ports1 x DisplayPort / 1 x USB 3.1 Gen 2 Type-A
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.11 x USB 3.1
Form FactorATX

Questions about this item

How can I verify the board is working after I install it and connect the DisplayPort?

Power on the system and check that video appears through the DisplayPort; the single PCI Express 4.0 x16 slot and three M.2 slots should be detected in BIOS, confirming the board is functional.

What ships with the motherboard and what must I source separately?

Only the motherboard and I/O shield are included; SATA cables, Wi-Fi antenna, M.2 screws, driver media and manual are not supplied.

Which memory capacity should I choose for this DDR4 board?

The board supports up to 128 GB of DDR4 across four slots; pick a kit that matches your workload and budget.
