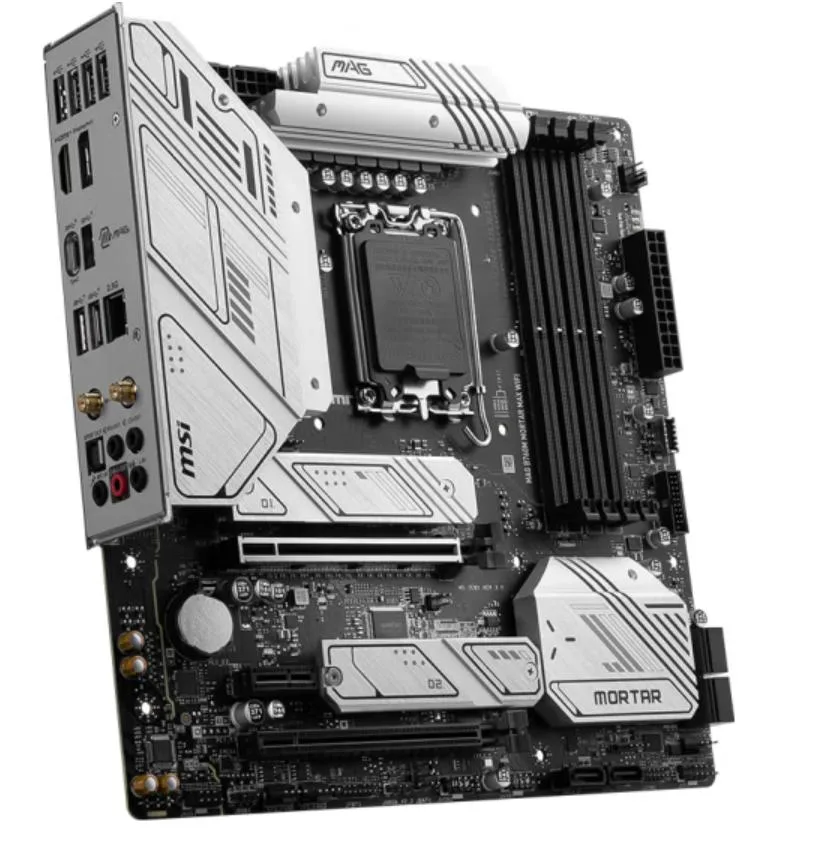

Dark grey rectangular mATX motherboard with black heatsinks and silver I/O shield

MSI

MSI MAG B760M MORTAR MAX WIFI Gaming Intel motherboard 12th 13th Gen LGA 1700 DDR5 PCIe 5.0 M.2

SKU CH-VMRT-SKC48

Supports 12th and 13th Gen Intel processors with DDR5 memory up to 7000 MHz, PCIe 5.0, Wi-Fi 6E and 2.5 Gbps LAN

  • CPU TypeIntel Core 13th Gen (LGA 1700)
  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • DDR5 memory up to 7000 MHz overclocked with Intel XMP profiles
  • PCIe 5.0 x16 slot for next-generation graphics cards
  • Two M.2 slots including PCIe 4.0 x4 from CPU for fast storage
  • 5Gbps LAN and Wi-Fi 6E for high-speed wired and wireless networking

Socket and chipset

This MSI motherboard uses the Intel B760 chipset and the LGA 1700 socket. It supports 12th and 13th generation Intel Core, Pentium Gold and Celeron processors. The board fits a micro-ATX form factor and provides four DDR5 memory slots with a maximum capacity of 192 GB.

Power and expansion upgrades

A 12+1+1 Duet Rail power system with dual 8-pin CPU connectors replaces simpler VRM layouts found on entry boards. PCIe 5.0 operates on the primary x16 slot while a second x16 slot runs at PCIe 3.0 x1 and a third at PCIe 4.0 x4. Two M.2 sockets connect to the CPU and chipset respectively, the first supporting PCIe 4.0 x4 speeds.

Builder fit and limits

The board suits builders who want DDR5 memory, PCIe 5.0 graphics bandwidth and 2.5 Gbps LAN in a compact mATX layout. Integrated graphics users gain HDMI 2.1 and DisplayPort 1.4 outputs. Buyers needing more than two M.2 drives or a full-size ATX board with additional expansion slots should look elsewhere.

Highlights

  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • DDR5 memory up to 7000 MHz overclocked with Intel XMP profiles
  • PCIe 5.0 x16 slot for next-generation graphics cards
  • Two M.2 slots including PCIe 4.0 x4 from CPU for fast storage
  • 5Gbps LAN and Wi-Fi 6E for high-speed wired and wireless networking

Specifications

CPU TypeIntel Core 13th Gen (LGA 1700)

Questions about this item

Will a 13th Gen Intel Core i7 fit the LGA 1700 socket and run with four DDR5 modules at 5600 MHz?

Yes. The board supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. It has four DDR5 slots and runs JEDEC speeds up to 5600 MHz with two dual-rank modules installed.

Can I install a PCIe 5.0 graphics card and two M.2 drives at the same time?

Yes. The top PCIe x16 slot is wired for PCIe 5.0 from the CPU. The first M.2 socket connects to the CPU at PCIe 4.0 x4 and the second comes from the chipset, so both drives work alongside a PCIe 5.0 graphics card.

Does the rear I/O include 2.5 Gbps LAN and Wi-Fi 6E for a wired and wireless network?

Yes. The motherboard provides a 2.5 Gbps LAN port and integrated Wi-Fi 6E on the back panel, giving you both a high-speed wired connection and the latest wireless standard without an extra card.
