MSI
MSI MAG B760M MORTAR WIFI II Intel motherboard
Micro ATX board for LGA 1700 CPUs with DDR5 up to 7800 MHz, PCIe 5.0 x16, three M.2 slots, 2.5Gbps LAN and Wi-Fi 6E
- CPU Socket TypeLGA 1700
- CPU TypeLGA 1700
- ChipsetIntel B760
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800
- Maximum Memory Supported192GB
- Supports Intel Core 12th 13th 14th Gen processors on LGA 1700 socket
- DDR5 memory up to 7800 MHz overclocked with four slots for 192GB capacity
- PCIe 5.0 x16 slot and three M.2 slots up to PCIe 4.0 x4 for fast storage
- 5Gbps LAN with Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connectivity
- 12+1+1 Duet Rail power design with dual 8-pin CPU connectors and extended heatsinks for stable operation

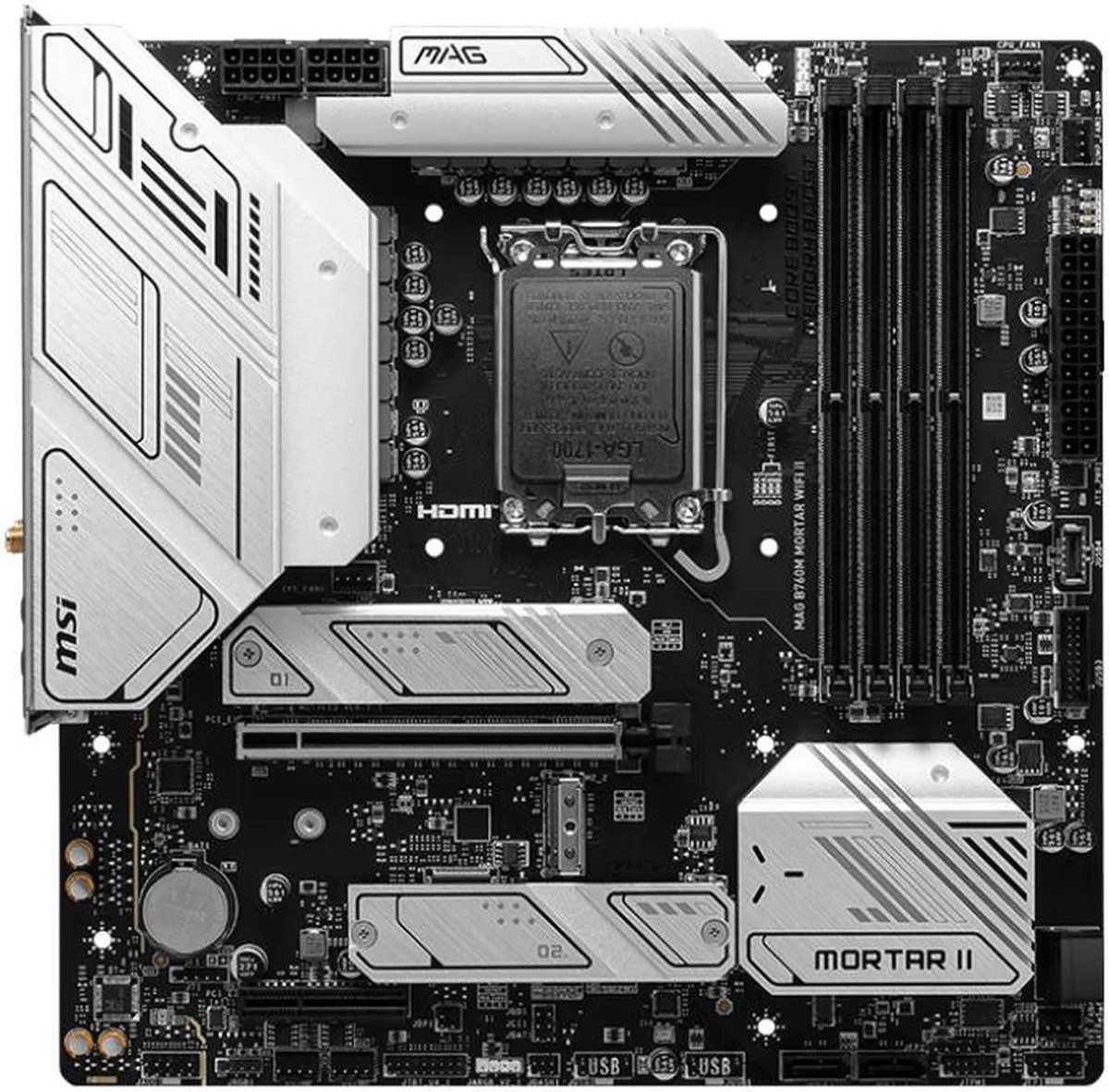

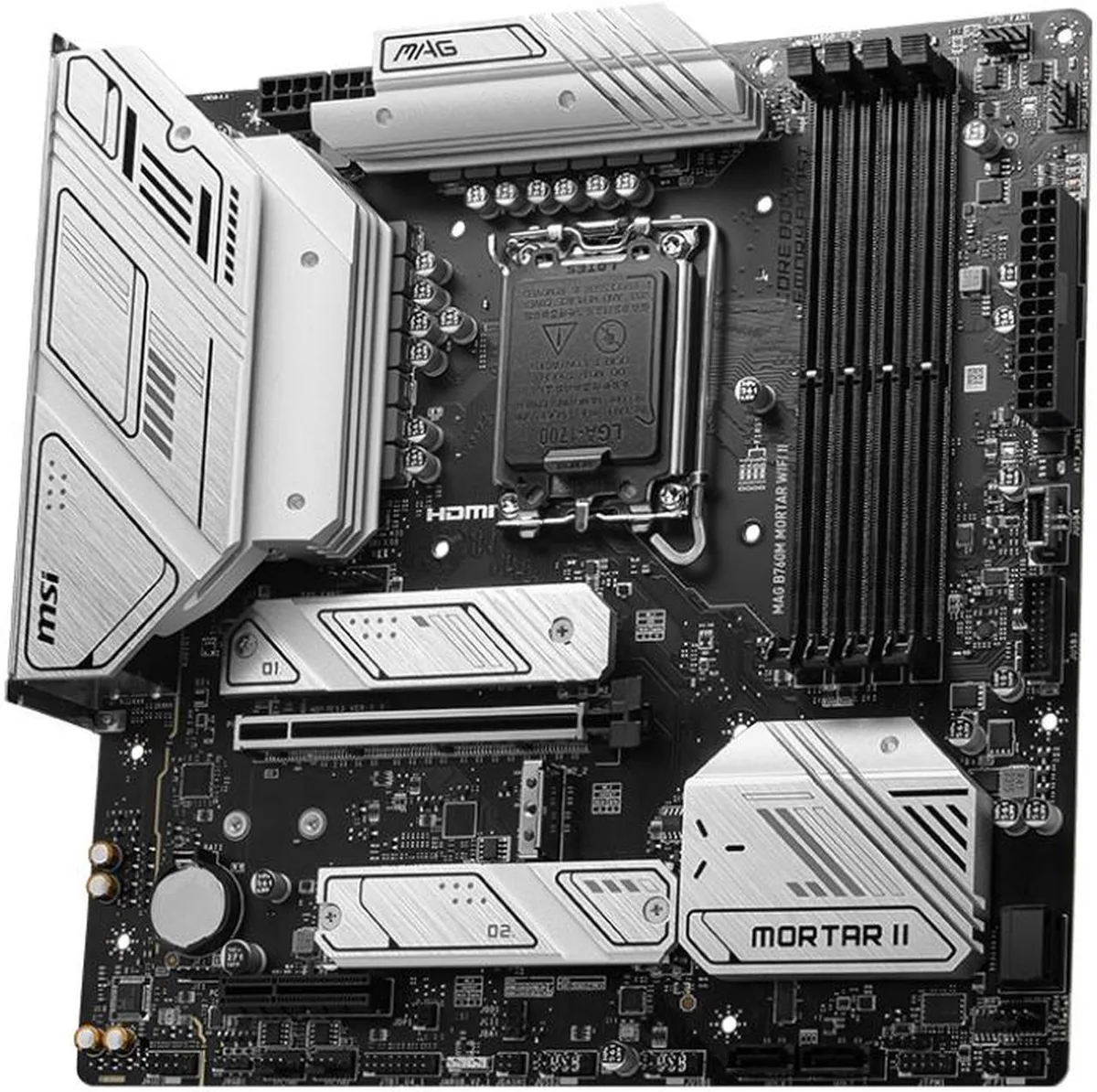

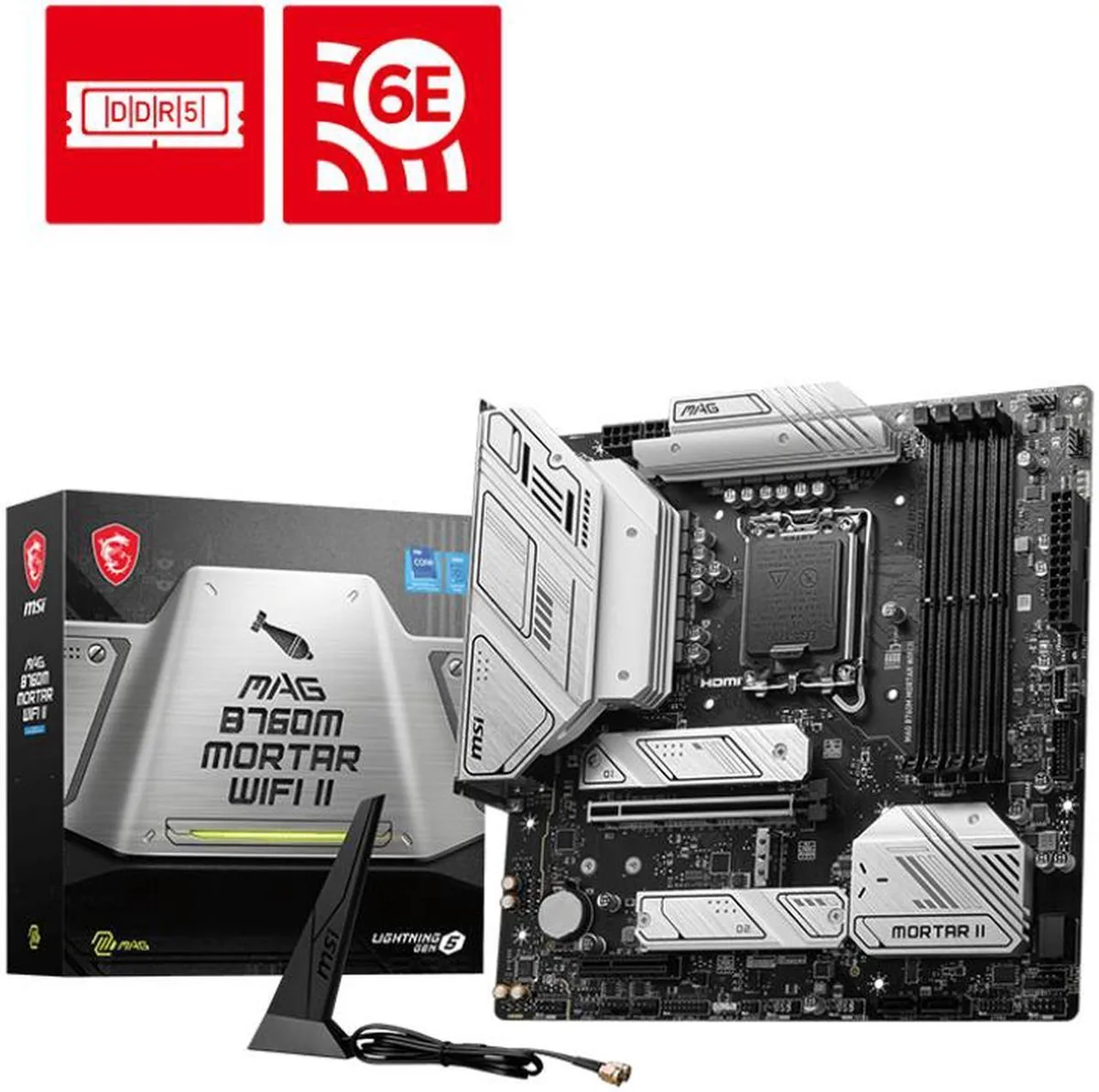

LGA 1700 Micro ATX Motherboard
The MSI MAG B760M MORTAR WIFI II fits LGA 1700 processors from the 12th, 13th and 14th generations, plus Pentium Gold, Celeron and the 300 series. It uses the Intel B760 chipset on a Micro ATX PCB with a 12+1+1 Duet Rail power system and dual 8-pin CPU connectors. Four DDR5 slots support up to 192GB in dual-channel mode.
DDR5 Overclocking Focus
Builders who want high DDR5 frequencies will appreciate the board's validated speeds up to 7800+ MHz with one single-rank module. Users planning to fill all four slots should expect lower ceilings, dropping to 5600+ MHz with two dual-rank kits. Systems that only need JEDEC speeds or ECC memory should consider other platforms.
Three M.2 Slots and 2.5Gbps LAN
The primary M.2 slot runs at PCIe 4.0 x4 from the CPU and accepts 2280, 2260 and 2242 drives. Two further chipset-linked slots add PCIe 4.0 x4 for 2280 and 2260 devices. A 2.5Gbps LAN port, Wi-Fi 6E with 160MHz channels and Bluetooth 5.3 handle networking. Four SATA 6Gb/s ports support RAID 0, 1, 5 and 10.
Highlights
- Supports Intel Core 12th 13th 14th Gen processors on LGA 1700 socket
- DDR5 memory up to 7800 MHz overclocked with four slots for 192GB capacity
- PCIe 5.0 x16 slot and three M.2 slots up to PCIe 4.0 x4 for fast storage
- 5Gbps LAN with Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connectivity
- 12+1+1 Duet Rail power design with dual 8-pin CPU connectors and extended heatsinks for stable operation
Specifications
| Brand | MSI |
|---|---|
| Model | MAG B760M MORTAR WIFI II |
| CPU Socket Type | LGA 1700 |
| CPU Type | LGA 1700 |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI Express x4 | PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth | Bluetooth 5.3 ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Back I/O Ports | 1 x DisplayPort 1.4 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 2 x Wi-Fi / Bluetooth 6 x HD Audio Connectors 4 x USB 2.0 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2x2 20Gbps Type-C |
| Onboard USB | 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports 1 x USB 3.2 Gen2 Type C ports |
| Other Connectors | 1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 1 x USB4 card connector (JTBT_U4_1, supports RTD3) |
| Windows 11 | Supported |
| Form Factor | Micro ATX |
| LED Lighting | 4 x EZ Debug LED |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) |
| Features | Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. PCI-E Steel Armor Protecting VGA cards against bending and EMI. Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Lightning USB 20G Built-in USB 3.2 Gen 2x2 port, offers 20Gb |
Questions about this item
Will my existing LGA 1700 CPU cooler fit the socket on this MAG B760M MORTAR WIFI II?
Yes, the board uses the standard LGA 1700 socket so any cooler rated for that mounting pattern will fit.
Can I keep my SATA SSDs and hard drives when moving to this motherboard?
The board provides four SATA 6Gb/s ports and supports RAID 0, 1, 5 and 10 for those drives.
How do I confirm the Wi-Fi 6E and Bluetooth 5.3 are active after building?
Open Windows Device Manager and check that an Intel Wi-Fi 6E adapter and a Bluetooth 5.3 radio appear without error icons.
