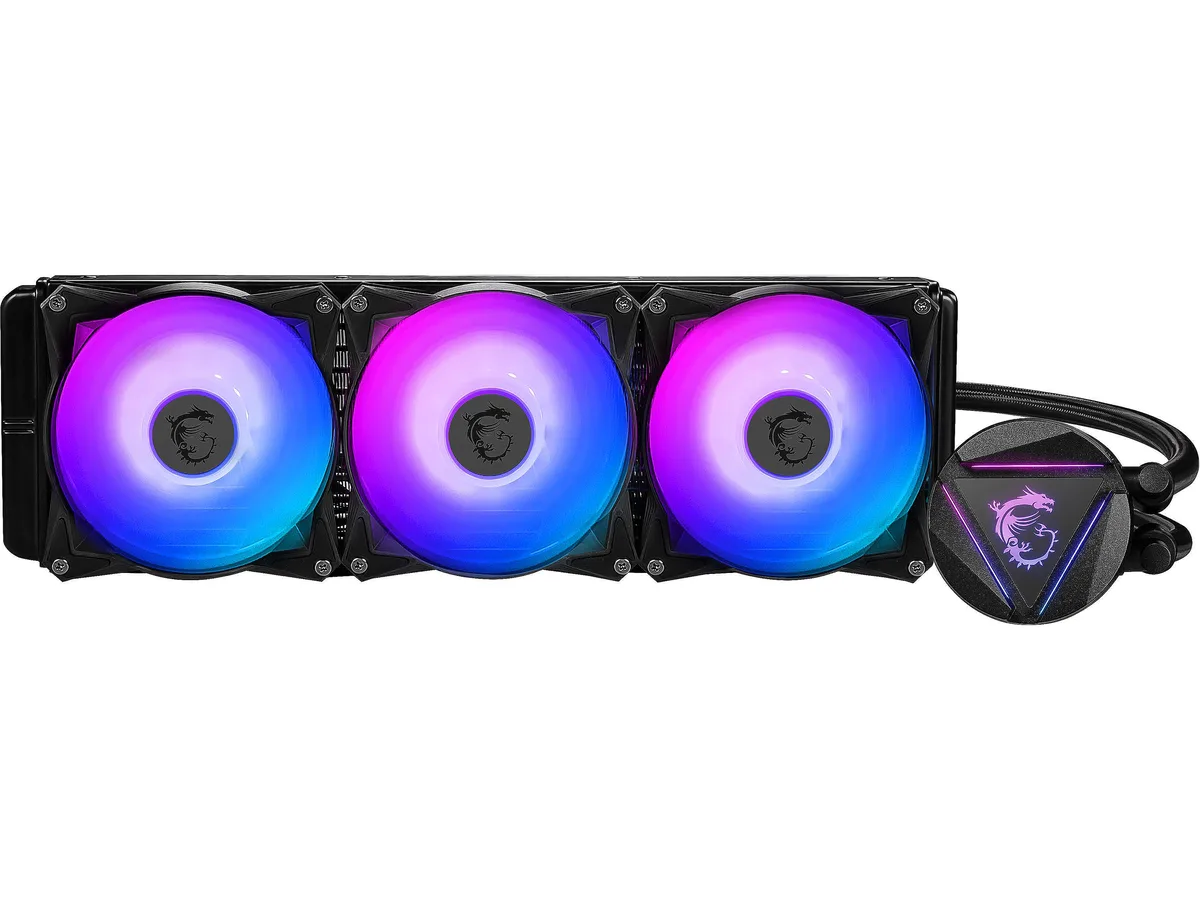

Black AIO liquid cooler with 360mm radiator, three 120mm ARGB fans and rotatable CPU block

MSI

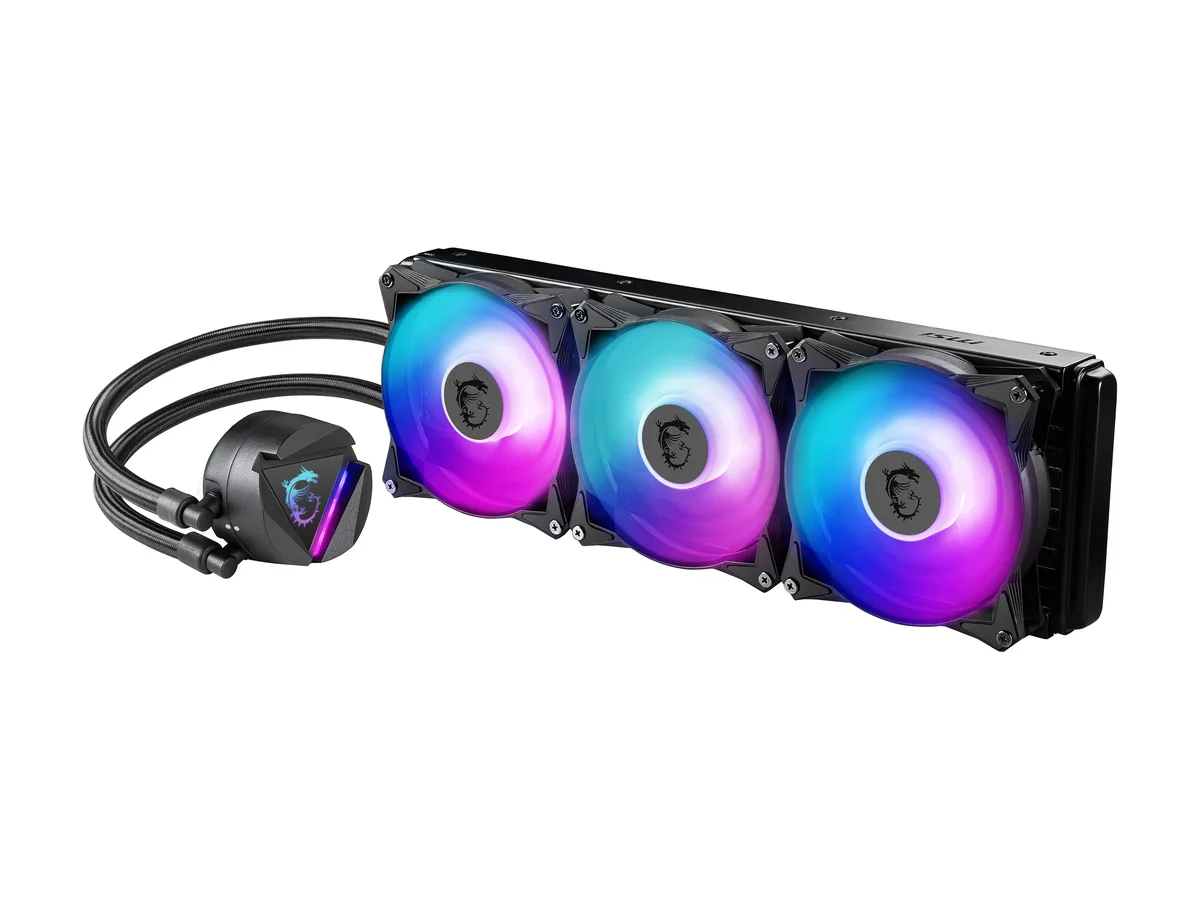

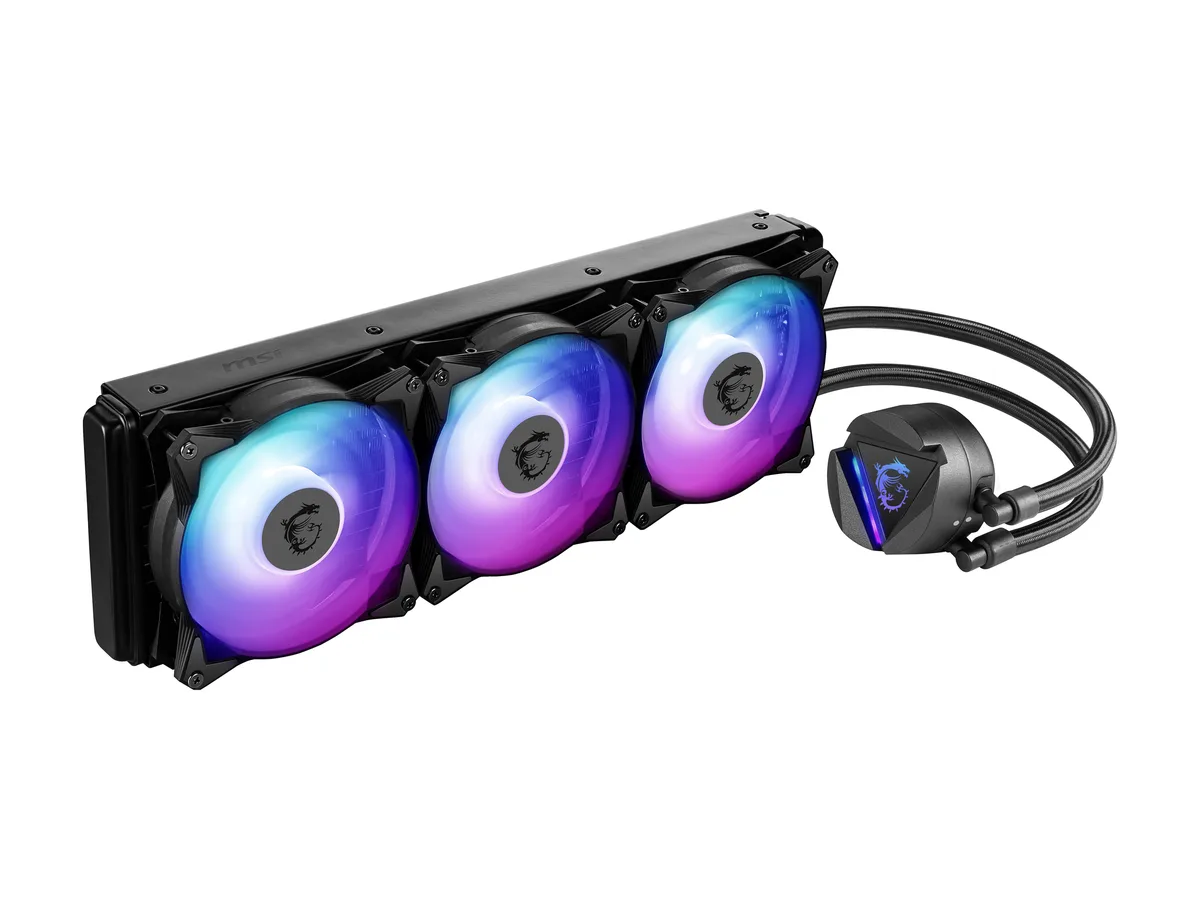

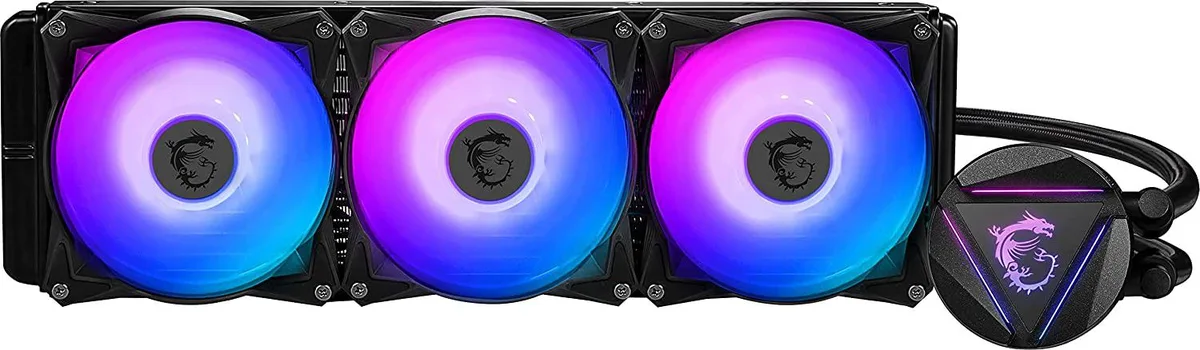

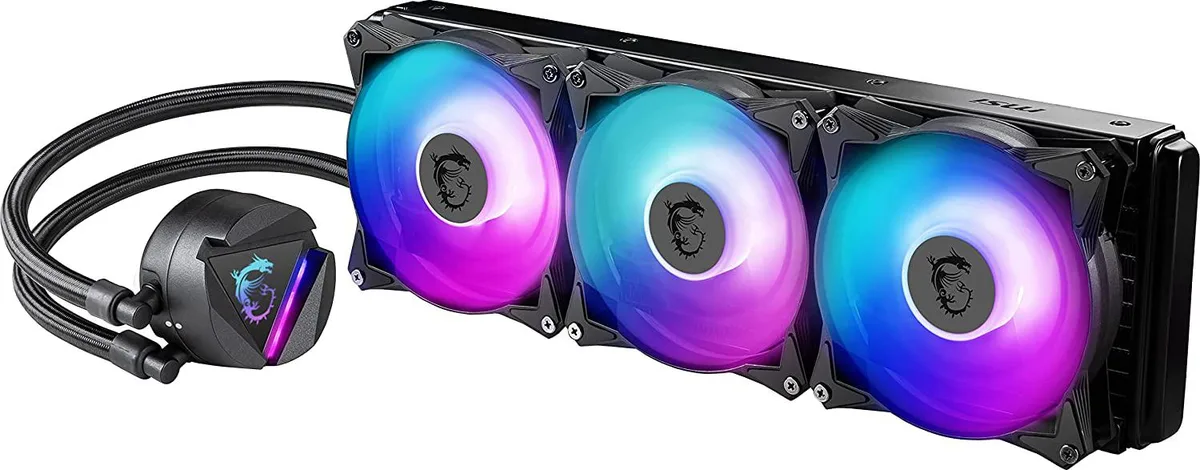

MSI MAG Core Liquid 360R liquid cooler

SKU CH-Y7DM-6H91T MPN MAG Core Liquid 360R

A 360 mm radiator with three 120 mm ARGB PWM fans cools the CPU while the pump sits inside the radiator for quieter operation

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block Dim.80.57 x 66.82 x 48.58 mm
  • Radiator Size394.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)

Series R Series

Fan Size 3 Fan Slots (120mm)

  • Rotatable blockhead up to 270 degrees simplifies installation in any case orientation
  • Pump integrated into radiator reduces noise by isolating vibration from the CPU block
  • Three 120 mm PWM ARGB fans deliver 21.63 to 78.73 CFM at 14.3 to 34.3 dBA
  • 360 mm aluminum radiator with split-flow pathway increases thermal dissipation surface
  • Three-layer netted tubing with reinforced mesh exterior prevents evaporation and leaks

Rotatable Blockhead Design

The MSI MAG Core Liquid 360R is an all-in-one liquid cooler built for mainstream and enthusiast CPU sockets. Its cold plate can be mounted at any orientation and the water blockhead rotates up to 270 degrees. This flexibility helps builders route tubes cleanly inside a wide range of chassis layouts.

Radiator Pump Design and Fan Range

The pump is integrated into the 394.00 x 120.00 x 27.00 mm aluminium radiator to dampen sound and reduce vibration. Three 120 mm fans with two ball bearings spin between 500 and 2000 RPM, moving 21.63 to 78.73 CFM while producing 14.3 to 34.3 dBA. A split pathway through the radiator dissipates heat quickly.

Bundled Cabling and Noise Reducer

The package includes a 1-to-3 PWM fan splitter cable and a PSU Molex 4-pin to 4-pin (2-pin wired) fan cable for flexible power options. A dedicated noise reducer is also supplied to further lower operating sound. Evaporation-proof tubing with three netted plastic layers and a reinforced mesh exterior completes the kit.

Highlights

  • Rotatable blockhead up to 270 degrees simplifies installation in any case orientation
  • Pump integrated into radiator reduces noise by isolating vibration from the CPU block
  • Three 120 mm PWM ARGB fans deliver 21.63 to 78.73 CFM at 14.3 to 34.3 dBA
  • 360 mm aluminum radiator with split-flow pathway increases thermal dissipation surface
  • Three-layer netted tubing with reinforced mesh exterior prevents evaporation and leaks

Specifications

BrandMSI
SeriesR Series
ModelMAG Core Liquid 360R
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150 / 1851
AMD Socket TR4 / sTRX4 / SP3 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Block Dim.80.57 x 66.82 x 48.58 mm
Radiator Size394.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Bearing TypeTwo Ball Bearing
Fan RPM500 - 2000 RPM
Fan Air Flow21.63 - 78.73 CFM
Fan Noise14.3 - 34.3 dBA
Fan Connector4-Pin (PWM), 3-Pin ARGB
ColorBlack
LED ColorARGB
Tube Dim.400mm Length
FeaturesMount the cold plate at any orientation, turn the water blockhead up to 270 degrees.
The pump has been integrated into the radiator for sound dampening and noise reduction.
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop.
Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3
Fan Power Consumption

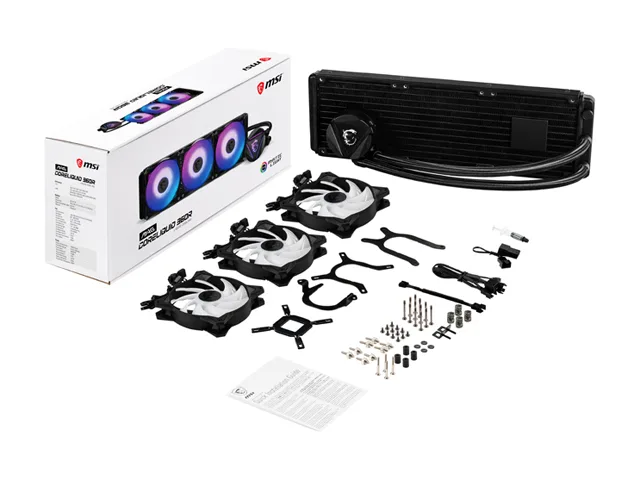

Package ContentsAccessories:
1 x 1 to 3 PWM Fan Splitter Cable
1 x PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable
1 x Noise Reducer
Shipping weight2.27 kg
Package size451 × 205 × 137 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I orient the rotatable blockhead during installation, and what step do people often miss?

The blockhead rotates up to 270 degrees so the MSI logo stays upright; the step often missed is securing the correct retention bracket for your socket before mounting the cold plate.

What maintenance will the 400 mm tubing and radiator pump need later?

The evaporation-proof tubing uses three netted plastic layers with a reinforced mesh exterior, so no coolant top-ups are required; only dust the 394 x 120 x 27 mm aluminum radiator and three 120 mm fans periodically.

At what fan speed does noise become noticeable under sustained load?

The three 120 mm two-ball-bearing fans run 500–2000 RPM producing 14.3–34.3 dBA; sustained loads typically push them toward the upper range where 34.3 dBA is audible in a quiet room.
