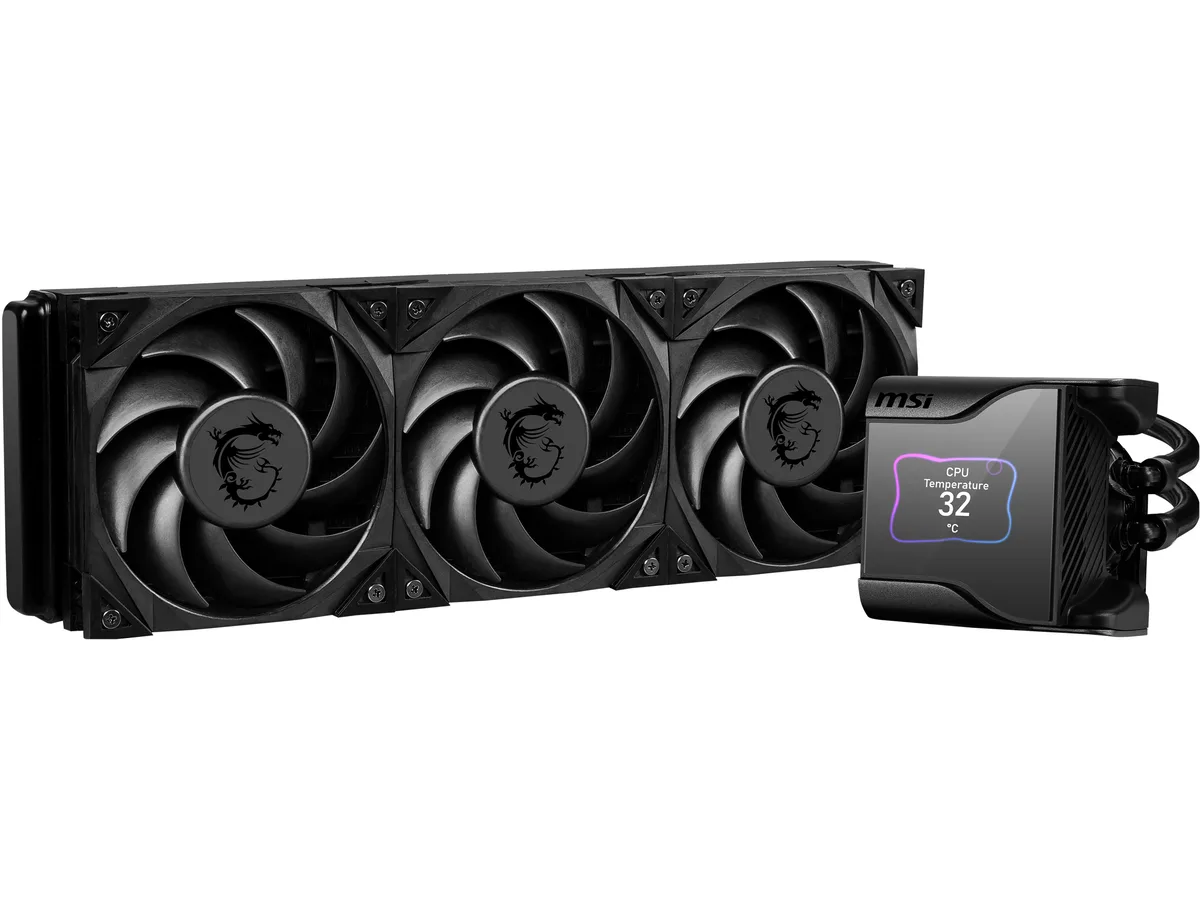

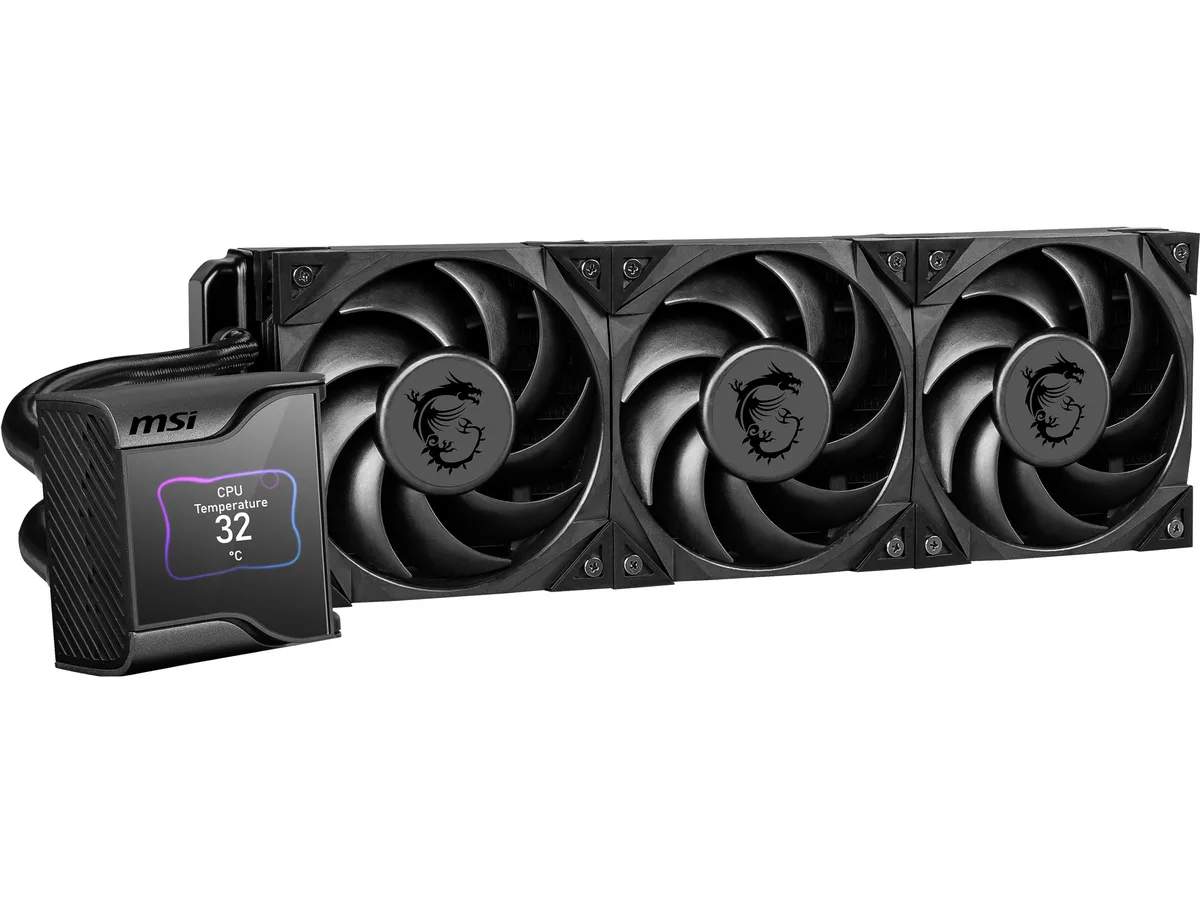

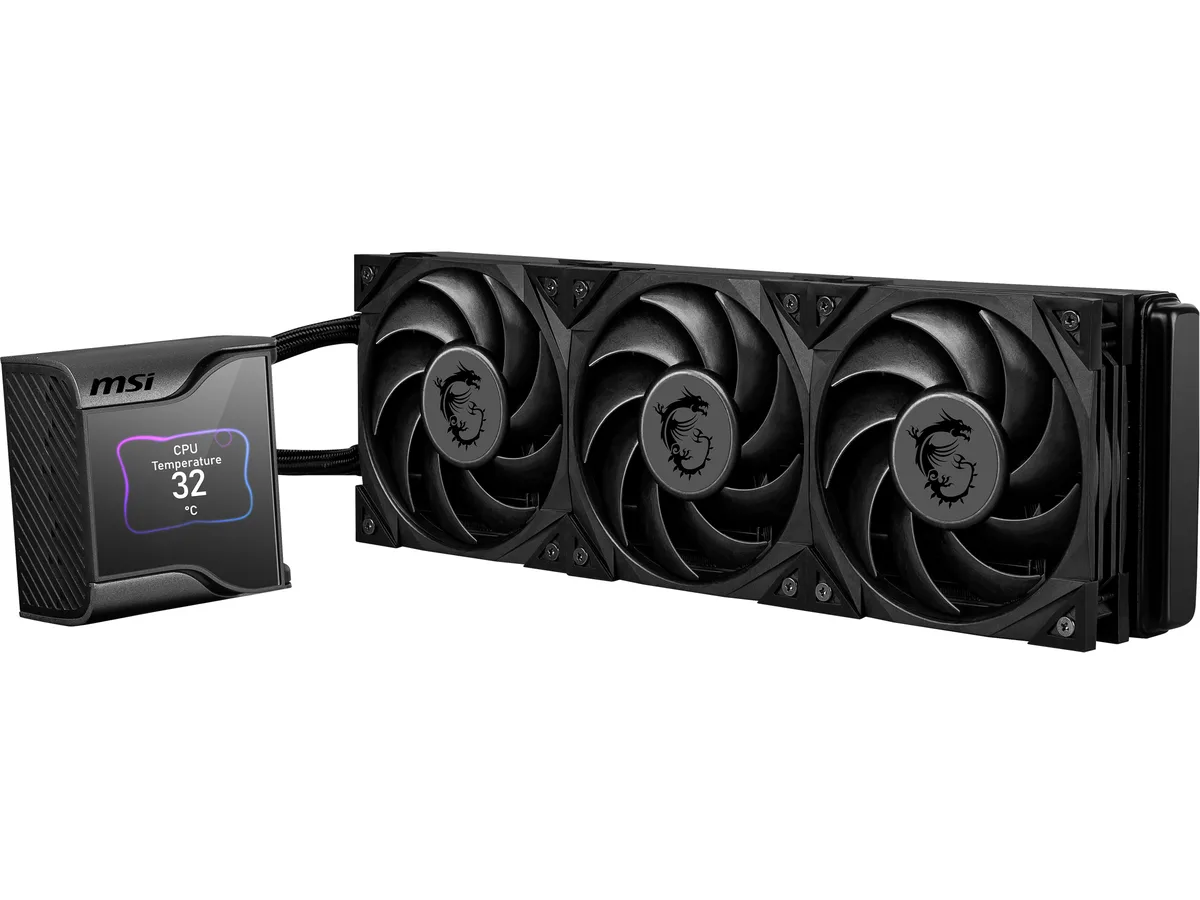

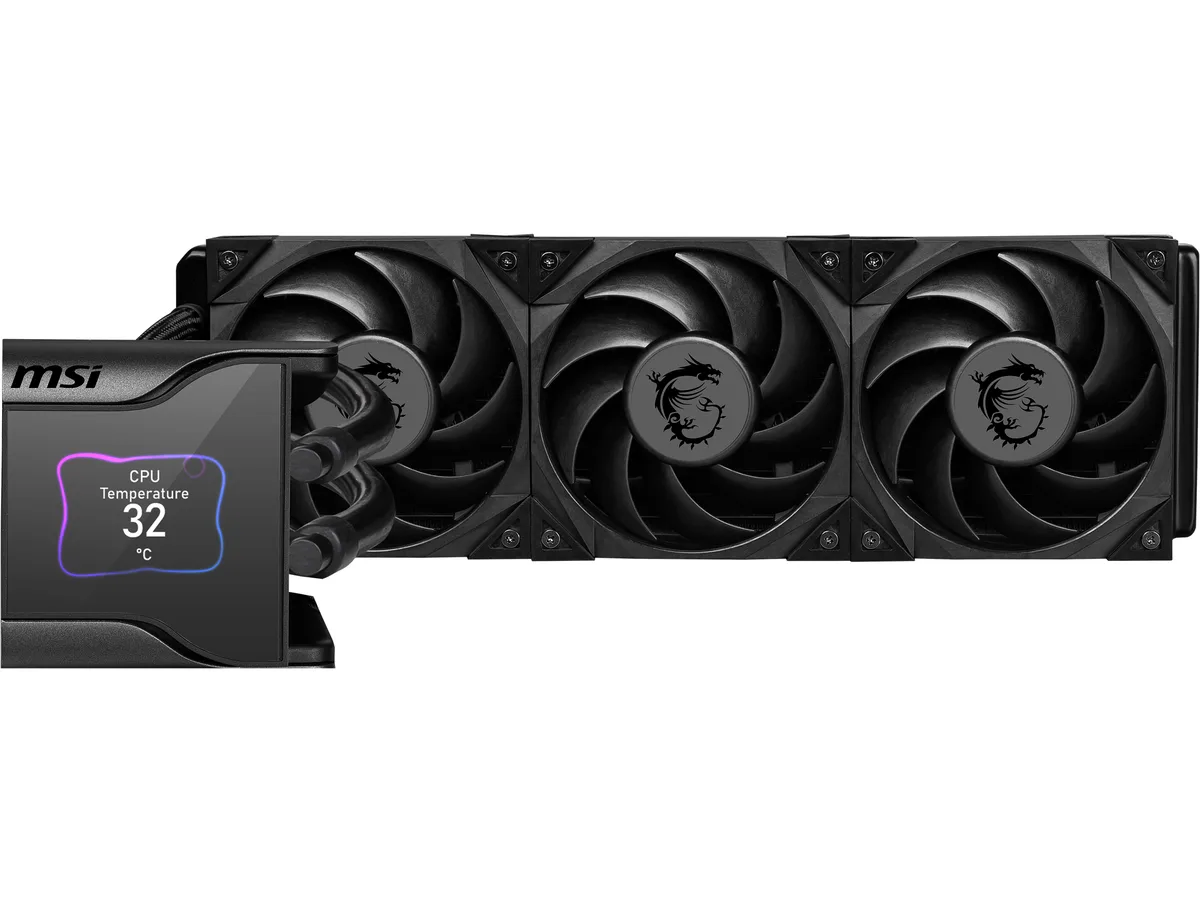

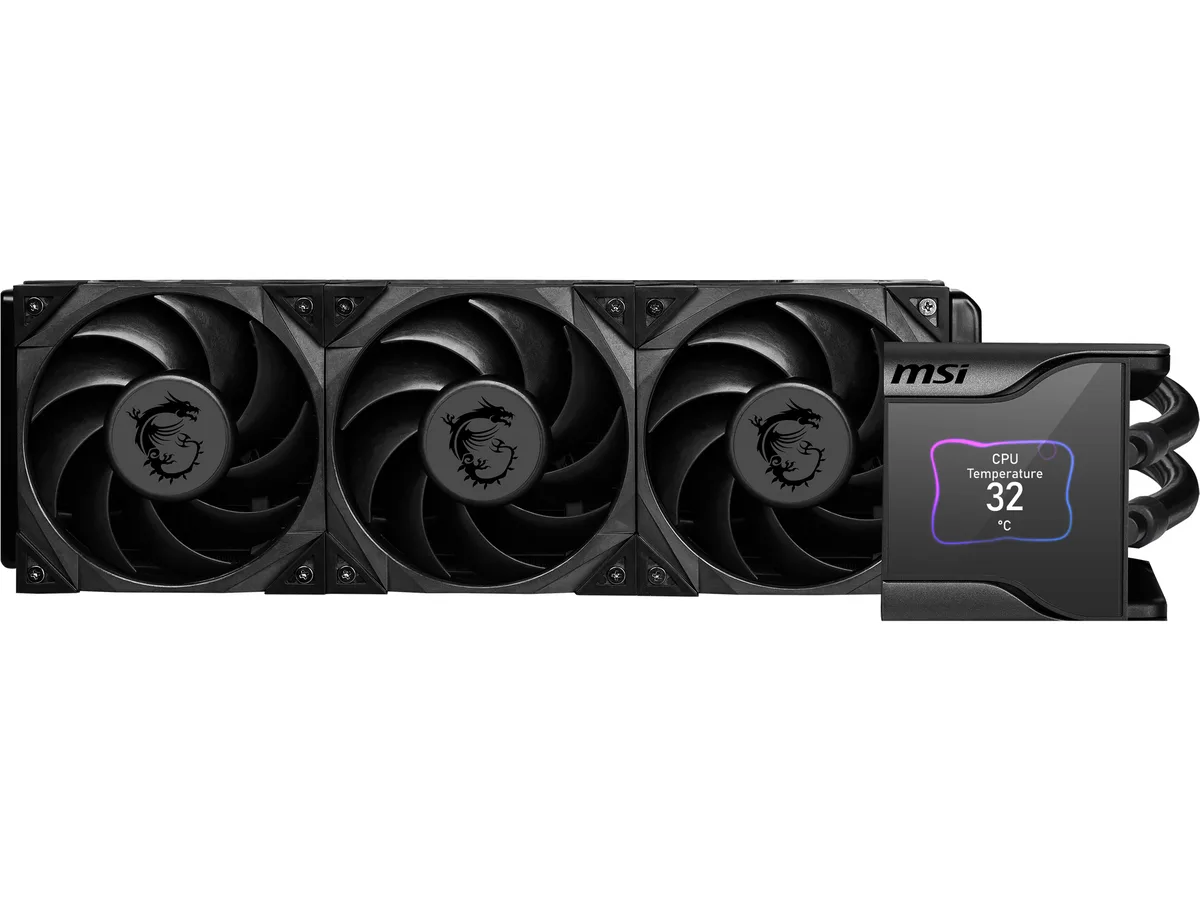

Black 360mm radiator with three 120mm fans and a square water block featuring a 2.4 inch IPS display

MSI

MSI MEG CoreLiquid S360 360mm liquid cooler

SKU CH-FN8R-N96FT MPN MEG CoreLiquid S360

A 360 mm all-in-one liquid cooler with a 2.4″ IPS display, triple 120 mm fans reaching 2000 RPM at 22.7 dBA and a 60 mm water-block fan for VRM and M.2 cooling

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1851 / 1700 Ready / 1200 /
  • Block Dim.95.00 x 95.00 x 54.00 mm
  • Radiator Size394.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (120 mm)

Series S Series

Fan Size 3 Fan Slots (120mm)

  • 4″ IPS display shows hardware stats and custom graphics
  • Triple 120 mm Silent Gale P12 fans reach 56.2 CFM at 2000 RPM
  • Fan noise stays at 22.7 dBA for quiet operation
  • 60 mm water-block fan cools VRMs and M.2 area
  • Supports Intel LGA 1851 and AMD AM5 sockets

360 mm AIO with integrated IPS display

This all-in-one liquid cooler uses a 360 mm aluminium radiator and three 120 mm PWM fans rated at 56.2 CFM and 22.7 dBA. A 2.4 inch IPS screen on the pump head shows hardware data, images or video. The package includes SATA power, USB 2.0 and fan cables for a single-cable software link to MSI Center.

Socket support and physical constraints

The cold plate mounts on Intel LGA 1851, 1700, 1200, 1150, 1151, 1155, 1156, 2066, 2011-3 and 2011 as well as AMD AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 and TR4. Builders whose case cannot fit a 394 mm long radiator or whose motherboard layout blocks the 95 mm square pump should choose a smaller cooler.

Radiator length decides case fit

The radiator measures 394.00 mm long, 120.00 mm wide and 27.00 mm thick, so the chassis must provide a 360 mm mounting zone with that clearance. If the available space is shorter, the cooler cannot be installed.

Highlights

  • 4″ IPS display shows hardware stats and custom graphics
  • Triple 120 mm Silent Gale P12 fans reach 56.2 CFM at 2000 RPM
  • Fan noise stays at 22.7 dBA for quiet operation
  • 60 mm water-block fan cools VRMs and M.2 area
  • Supports Intel LGA 1851 and AMD AM5 sockets

Specifications

BrandMSI
SeriesS Series
ModelCoreLiquid S360
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1851 / 1700 Ready / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4
Block Dim.95.00 x 95.00 x 54.00 mm
Radiator Size394.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan RPM0~2000 RPM
Fan Air Flow56.2 CFM
Fan Noise22.7 dBA
Fan Connector4 Pin
ColorBlack
Tube Dim.400 mm
Package Contents1 x Pump / CPU Fan Cable
1 x SATA Power Cable
1 x USB 2.0 Cable
1 x Radiator Fan Cable
Shipping weight1.91 kg
Package size444 × 207 × 146 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the pump block need a separate SATA power cable to run the built-in 60 mm fan and 2.4" IPS display?

Yes, the package includes a SATA power cable that must be connected to your power supply for the water-block fan and display to operate.

Can the three included 120 mm PWM fans be daisy-chained with older 4-pin case fans on the same motherboard header?

The cooler ships with a dedicated radiator fan cable for the three 120 mm fans; mixing them with other 4-pin fans on one header is not described in the specifications.

How can I confirm the 0 RPM mode is actually stopping the fans at low temperature?

In MSI Center software you can monitor real-time fan speed; when the CPU temperature drops below the configured threshold the fans will show 0 RPM on the 2.4" IPS display and in the software dashboard.
