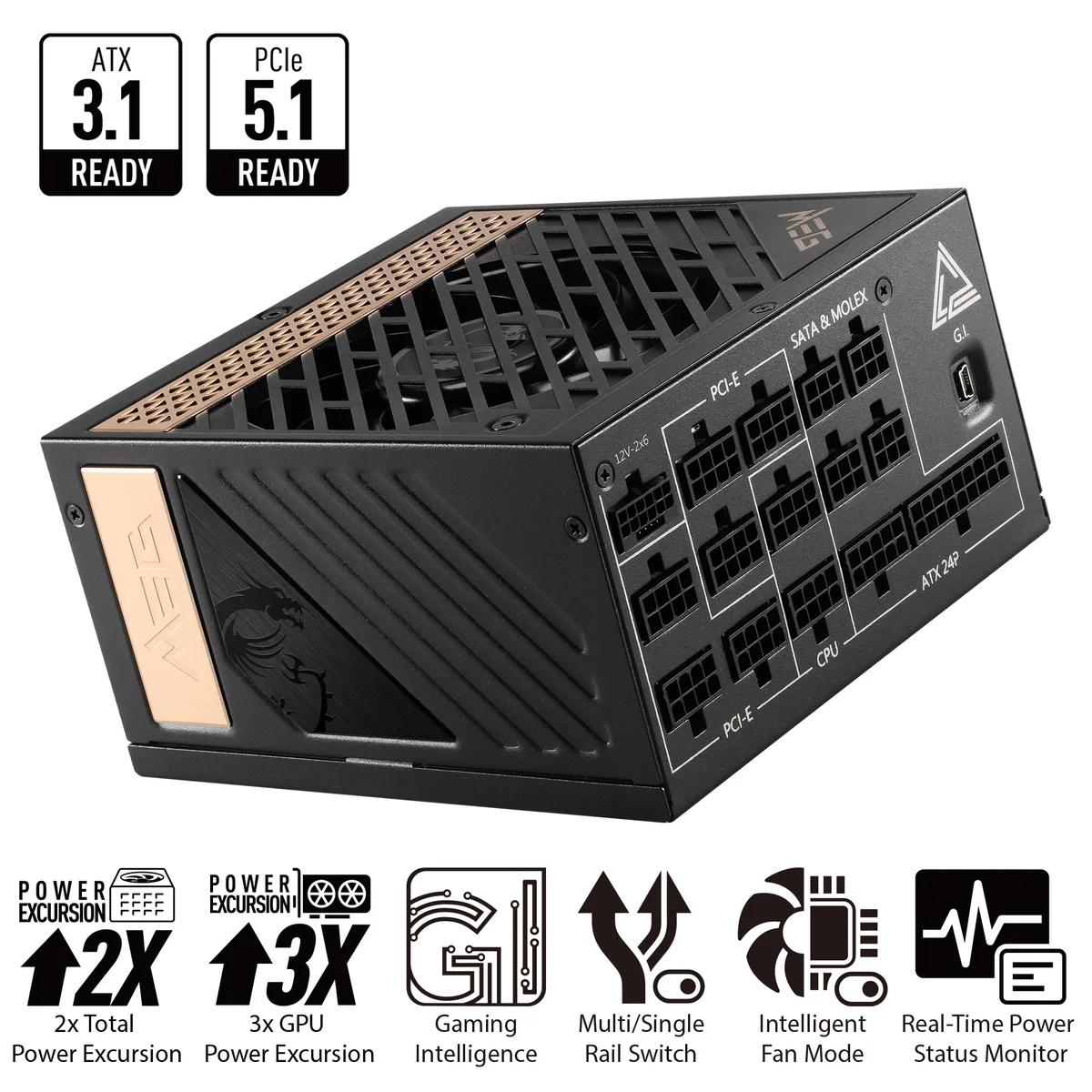

Rectangular black ATX power supply, 150 mm long, fully modular with sleeved cables and native 12V-2x6 connector

MSI

MSI MEG Ai1300P PCIE5 1300W power supply

SKU CH-NBBS-RKRA1 MPN MEG Ai1300P PCIE5

Fully modular 1300 W ATX unit with 80 PLUS Platinum efficiency, native 12V-2x6 connector, sleeved cables and 100 % Japanese capacitors

  • TypeATX12V
  • Maximum Power1300 W
  • FansHydro Dynamic Bearing
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options ATX 3.1 (1300W)

  • 1300 W output keeps high-end builds stable
  • 80 PLUS Platinum certification cuts energy waste
  • Fully modular design with sleeved cables reduces clutter
  • Native 12V-2x6 connector supports PCIe 5.1 graphics cards
  • 100 % Japanese 105 °C capacitors ensure long-term reliability

Ready for ATX 3.1 and PCIe 5.1 builds

The MSI MEG Ai1300P PCIE5 is a fully modular 1300 W ATX power supply built for high-end gaming systems. It delivers up to 92 % efficiency under the 80 PLUS Platinum programme and uses 100 % Japanese 105 °C capacitors. A native 16-pin 12V-2x6 cable supports modern graphics cards without adapters.

Verify case length and cable routing

Confirm your chassis can accommodate a 150 mm deep unit and plan cable paths for the sleeved 24-pin, two EPS, six 6+2-pin PCIe and one 16-pin PCIe connectors. The unit requires a 100–240 V, 50/60 Hz mains supply and provides 16 SATA power plugs for drives and peripherals. A mini-USB link enables software monitoring with a compatible motherboard.

Sustained output with hydro-dynamic cooling

The single +12 V rail maintains stable voltage during extended loads while the hydro-dynamic bearing fan meets Cybenetics Standard ++ acoustic limits. Industrial-grade OCP, OVP, OPP, OTP, SCP and UVP circuits protect components through long sessions. DC-DC module design keeps regulation tight when the system draws continuous power.

Highlights

  • 1300 W output keeps high-end builds stable
  • 80 PLUS Platinum certification cuts energy waste
  • Fully modular design with sleeved cables reduces clutter
  • Native 12V-2x6 connector supports PCIe 5.1 graphics cards
  • 100 % Japanese 105 °C capacitors ensure long-term reliability

Specifications

BrandMSI
ModelMEG Ai1300P PCIE5
TypeATX12V
Maximum Power1300 W
FansHydro Dynamic Bearing
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector16
Max PSU Length150 mm
ModularFull Modular
Power Good Signal100-500ms
Efficiencyup to 92%
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics Standard ++
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Connectors1 x ATX Sleeved Cable
1 x EPS (8 PIN to 4+4 PIN) Sleeved Cable
1 x EPS (8 PIN to 8 PIN) Sleeved Cable
6 x PCIe (8 PIN to 6+2 PIN) Sleeved Cable
1 x PCIe (16 PIN to 16 PIN) Sleeved Cable
1 x PCIe (16 PIN to 6+2 PIN) Sleeved Cable
4 x SATA Sleeved Cable
1 x MOLEX/FDD Sleeved Cable
1 x MINI USB to 9PIN
1 x MINI USB to USB Type-A
Dimensions6.30" x 5.91" x 3.39"
Shipping weight4.26 kg
Package size330 × 203 × 154 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables come with the MSI MEG Ai1300P PCIE5 and what must I buy separately?

The box includes a 24-pin ATX sleeved cable, two EPS cables (8-pin to 4+4-pin and 8-pin to 8-pin), six PCIe 6+2-pin sleeved cables, and a native 16-pin PCIe 5.1 cable. No extra cables are required for standard builds.

How do I choose between the available connectors for my GPU?

Use the single 16-pin 12V-2x6 cable for modern PCIe 5.1 graphics cards, or use the six 6+2-pin PCIe cables for older GPUs. Both connector types are included and fully modular.

What does the 1300 W rating mean when the unit is installed in a PC?

The unit can deliver 1300 W continuously with up to 92 % efficiency at 80 PLUS Platinum levels, handles 2x total power excursions and 3x GPU excursions per ATX 3.1, and runs quietly under Cybenetics Standard ++ noise certification.
