MSI
MSI MEG Ai1600T PCIE5 1600W power supply
Fully modular 1600 W ATX 3.1 power supply with dual native 12V-2x6 connectors, 80 Plus Titanium efficiency up to 94 %, server-grade SiC MOSFETs.
- ColorBlack
- TypeATX12V
- Maximum Power1600 W
- Fans1 x 135 mm
- PFCActive
- +12V Rails2
Options ATX 3.1 (1600W) Dual 12V-2x6
- Up to 94% efficiency with 80 PLUS Titanium certification
- Dual native 12V-2x6 connectors deliver 600W each for PCIe 5.1 GPUs
- Server-grade SiC MOSFETs boost efficiency and lower temperatures
- 135 mm double-ball bearing fan extends operational lifespan
- Fully modular braided cables with premium copper alloy connectors
1600 W Titanium ATX power supply

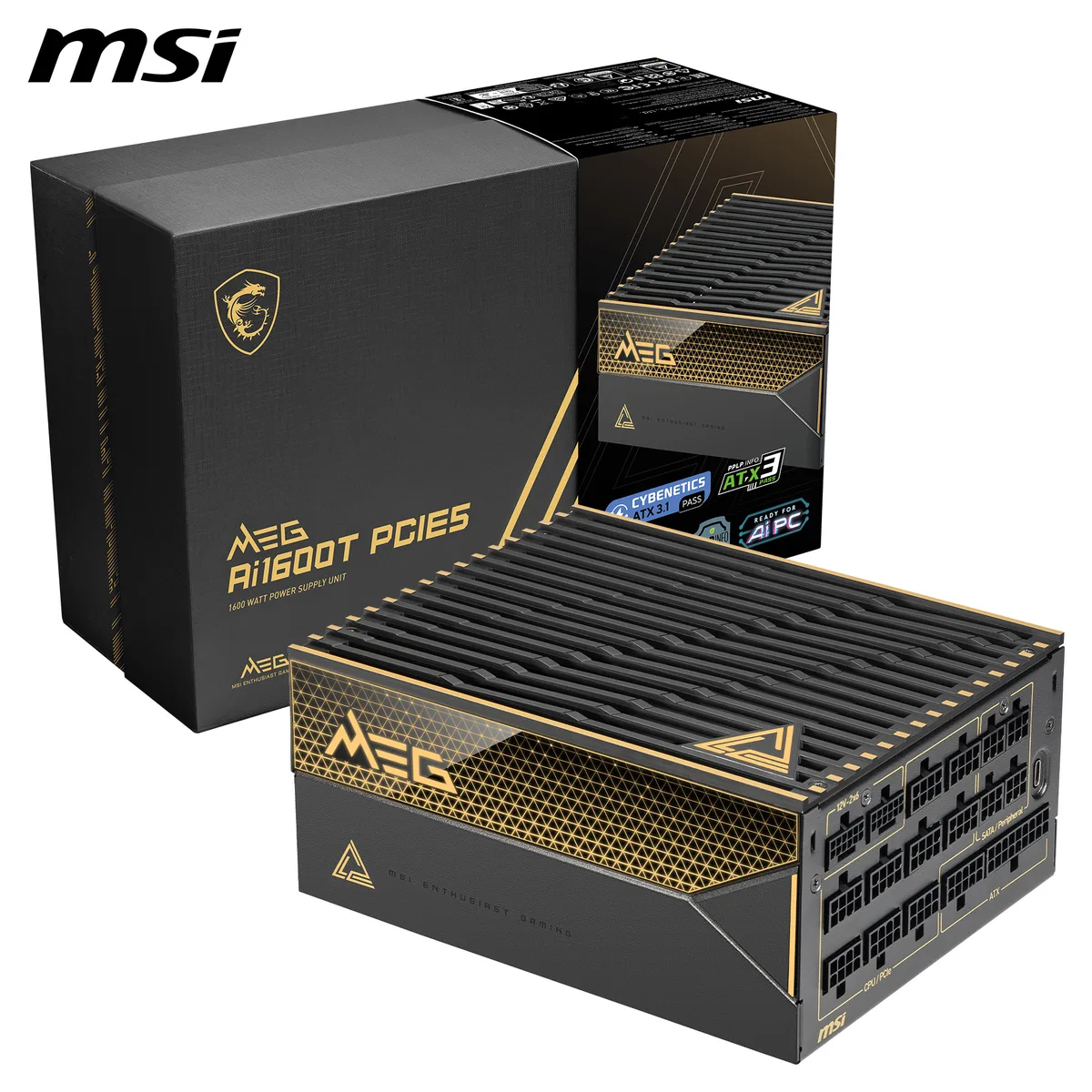

The MSI MEG Ai1600T PCIE5 is a fully modular ATX12V unit rated at 1600 W and certified 80 PLUS Titanium for up to 94 % efficiency. It targets high-end workstations and enthusiast builds that demand stable, high-wattage delivery from a single unit.
Dual 12V-2x6 connectors and server-grade SiC MOSFETs

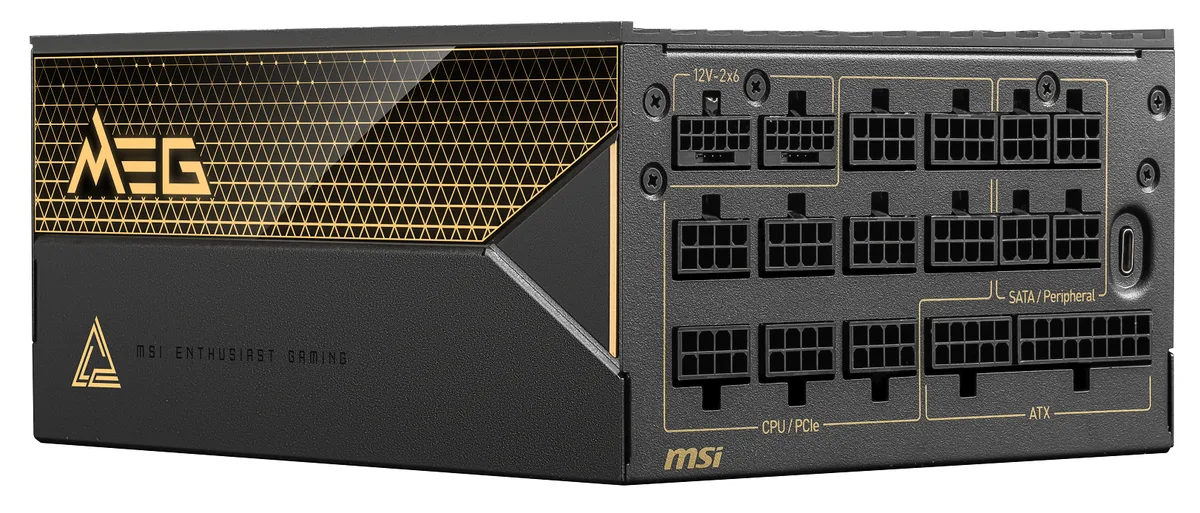

Dual-native 12V-2x6 PCIe connectors each supply up to 600 W, supporting modern GPU power demands. Server-grade SiC MOSFETs in the interleaved PFC stage reduce losses and keep temperatures low under sustained load, while a 135 mm double-ball bearing fan maintains airflow with long-term durability.
ATX 3.1 and PCIe 5.1 interface limits
The platform complies with ATX 3.1 and PCIe 5.1 specifications, defining the electrical and timing requirements for the 12V-2x6 connection. Protection circuits include OVP, OCP, OTP, OPP, SCP and UVP across two +12 V rails. Input range covers 100 to 240 V at 50 or 60 Hz.
Highlights
- Up to 94% efficiency with 80 PLUS Titanium certification
- Dual native 12V-2x6 connectors deliver 600W each for PCIe 5.1 GPUs
- Server-grade SiC MOSFETs boost efficiency and lower temperatures
- 135 mm double-ball bearing fan extends operational lifespan
- Fully modular braided cables with premium copper alloy connectors
Specifications
| Brand | MSI |
|---|---|
| Model | MEG Ai1600T PCIE5 |
| Color | Black |
| Type | ATX12V |
| Maximum Power | 1600 W |
| Fans | 1 x 135 mm |
| PFC | Active |
| +12V Rails | 2 |
| SATA Power Connector | 8 |
| Modular | Full Modular |
| Energy-Efficient | Up to 94% |
| Protection | OVP/ OCP/ OTP/ OPP/ SCP/ UVP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Shipping weight | 5.99 kg |
| Package size | 381 × 243 × 152 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Will the 1600 W output handle a top-tier graphics card and a high-end CPU together?
Yes, the unit delivers 1600 W total and each native 12V-2x6 connector can supply up to 600 W, matching the needs of current flagship GPUs and CPUs.
Does the fully modular design let me use only the cables my build requires?
All cables detach from the PSU, so you connect just the 24-pin, EPS, PCIe and SATA leads your system needs, reducing clutter and improving airflow.
What efficiency level does the 80 Plus Titanium rating guarantee at typical loads?
The certification ensures up to 94 % efficiency, lowering heat output and electricity cost compared with lower-rated units.
