Small square motherboard with black PCB and silver heatsinks, two memory slots and one PCIe slot visible

MSI

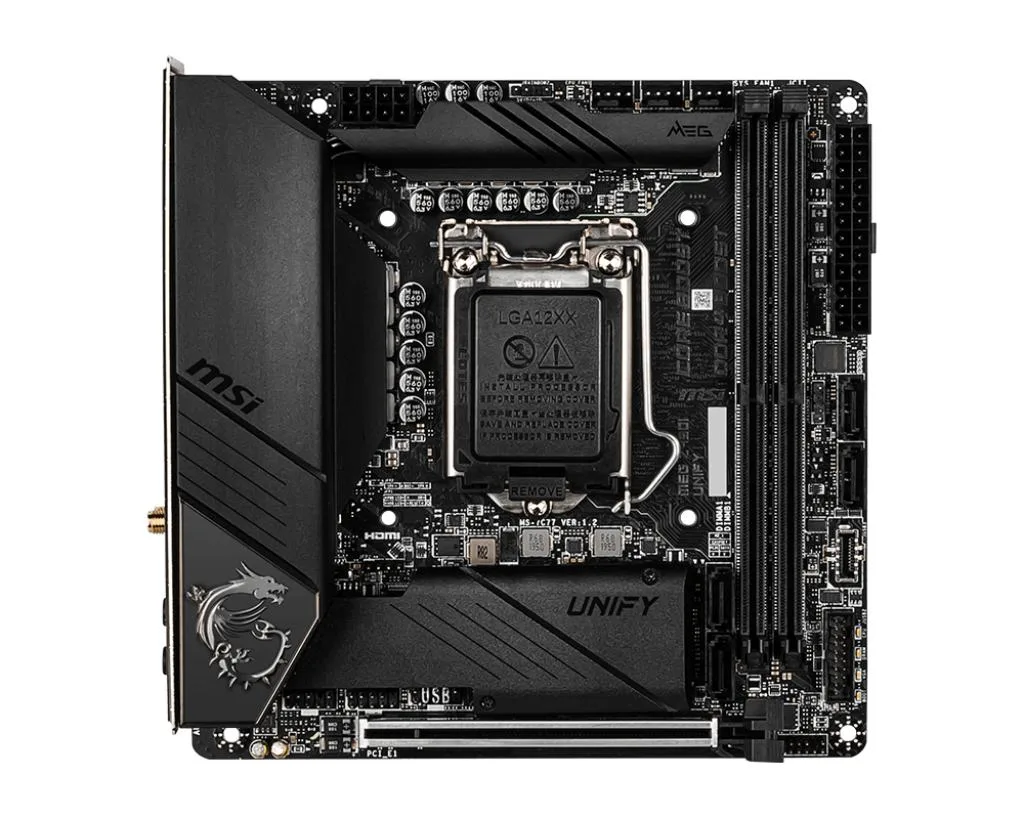

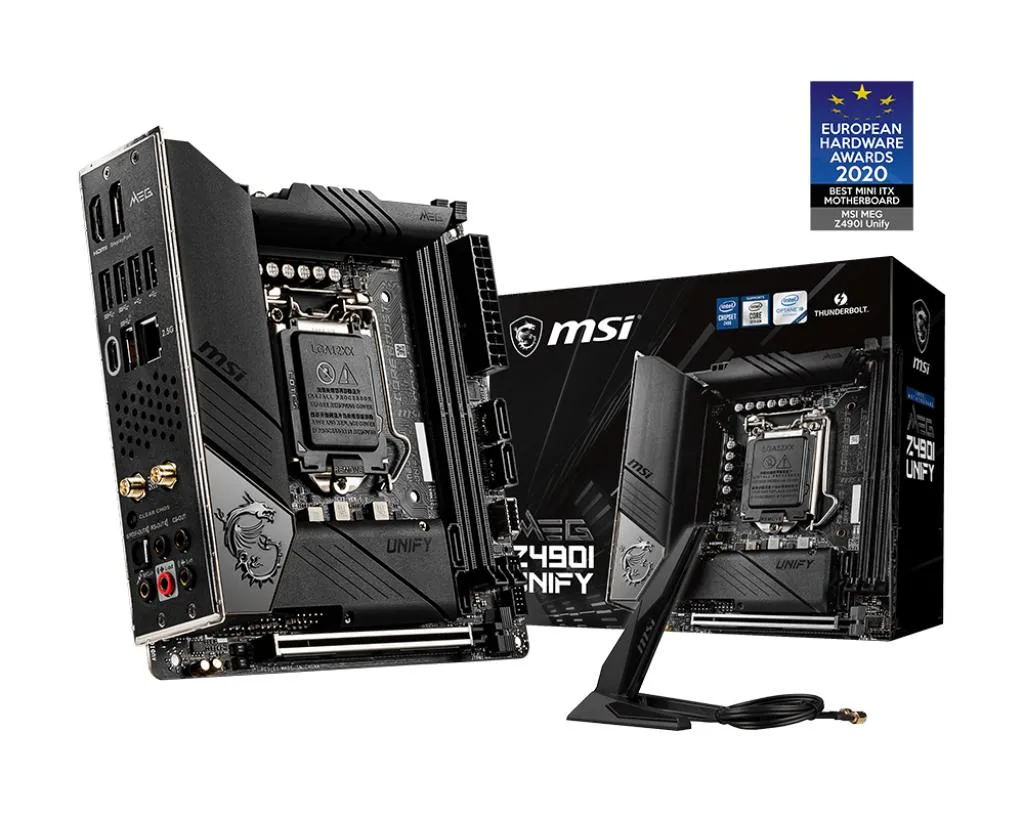

MSI MEG Z490I UNIFY Mini ITX Intel motherboard

SKU CH-QHVB-W2BV4

Mini ITX Intel Z490 board with LGA 1200 socket, dual-channel DDR4 to 64 GB, 2.5 Gbps LAN, WiFi 6 and Thunderbolt 3 controller

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron proc
  • ChipsetIntel Z490
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x DisplayPo
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardSupports 1R 2933/ 2666/ 2133 MHz * 1DPC 1R Max speed up to 5
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB with 5000+ MHz overclocking headroom
  • Two M.2 slots for PCIe 3.0 x4 storage devices in 2280 form factor
  • Integrated WiFi 6 and 2.5 Gbps LAN for high-speed networking
  • 1-channel Realtek ALC1220 audio with S/PDIF output

Mini ITX Z490 board for 10th Gen Intel

This motherboard uses the LGA 1200 socket and Intel Z490 chipset to support 10th Generation Intel Core, Pentium Gold and Celeron processors. It targets builders who want a high-end feature set inside a Mini ITX chassis. The board includes Intel Thunderbolt 3 via the JHL7540 controller and WiFi 6 through the pre-installed Intel AX201 module.

Two DDR4 slots and dual M.2 layout

Only two 288-pin DDR4 slots are present, so memory upgrades are limited to a maximum of 64 GB in dual-channel mode. The first M.2 slot shares bandwidth with the second SATA port; populating it with a SATA M.2 drive disables that SATA connector. The pre-installed Wi-Fi module occupies the Key-E M.2 slot, leaving the two Key-M slots for storage.

64 GB memory ceiling and 5000+ MHz headroom

Dual-channel DDR4 tops out at 64 GB, with validated speeds of 2933, 2666 and 2133 MHz. One DIMM per channel can reach 5000+ MHz with single-rank modules or 4600+ MHz with dual-rank modules. A single PCIe 3.0 x16 slot and four SATA 6 Gbps ports handle expansion, while 2.5 Gbps LAN and WiFi 6 on 160 MHz channels provide network throughput up to 2.4 Gbps.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB with 5000+ MHz overclocking headroom
  • Two M.2 slots for PCIe 3.0 x4 storage devices in 2280 form factor
  • Integrated WiFi 6 and 2.5 Gbps LAN for high-speed networking
  • 1-channel Realtek ALC1220 audio with S/PDIF output

Specifications

BrandMSI
ModelMEG Z490I UNIFY
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core and Pentium Gold / Celeron processors
ChipsetIntel Z490
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
1 x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
Intel JHL7540 Thunderbolt 3 Controller
1 x Thunderbolt 3 [Type-C] port on the back panel
Supports Thunderbolt 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60Hz
Maximum shared memory is 1GB
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports 1R 2933/ 2666/ 2133 MHz *
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4600+ MHz
* Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s ports 1
1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
M.22 x M.2 slots [Key M]:
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices 1
M2_2 supports up to PCIe 3.0 x4, 2280 storage devices
Intel Optane Memory Ready 2
Supports Intel Smart Response Technology for Intel Core processors
1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
2. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetRealtek RTL8125B
Max LAN Speed2.5Gbps
Wireless LANIntel AX201
The Wireless module is pre-installed in the M.2 [Key-E] slot
Supports MU-MIMO TX/RX, 2.4GHz/5GHz [160MHz] up to 2.4Gbps
Supports 802.11ac
WiFi 6 pre-certified
BluetoothSupports Bluetooth 5.1, FIPS, FISMA
Onboard USB1 x USB 3.2 Gen2 10Gbps Type-C port
1 x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports]
1 x USB 2.0 connector [supports additional 2 USB 2.0 ports]
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
2 x 3-pin RAINBOW LED connectors
1 x TPM module connector
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesSupports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Thunderbolt 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices
Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors
Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr en

Questions about this item

How do I verify the 2.5 Gbps LAN and WiFi 6 are active after first boot?

Open Device Manager and confirm the Realtek RTL8125B 2.5Gbps controller and Intel AX201 wireless adapter both show no errors; the WiFi 6 module is pre-installed in the M.2 Key-E slot and should list 2.4 GHz / 5 GHz 160 MHz bands.

Which items ship in the box and which must I purchase separately?

The board includes the pre-installed Intel AX201 WiFi 6 module, I/O shield, SATA cables and manuals; you must buy an LGA 1200 CPU, DDR4 memory modules, M.2 2280 storage and a CPU cooler separately.

Which M.2 slot should I use for a PCIe 3.0 x4 2280 drive if I also need all four SATA ports?

Install the drive in the M2_2 slot; M2_1 shares bandwidth with SATA2, so using M2_2 keeps all four SATA 6 Gb/s ports available.
