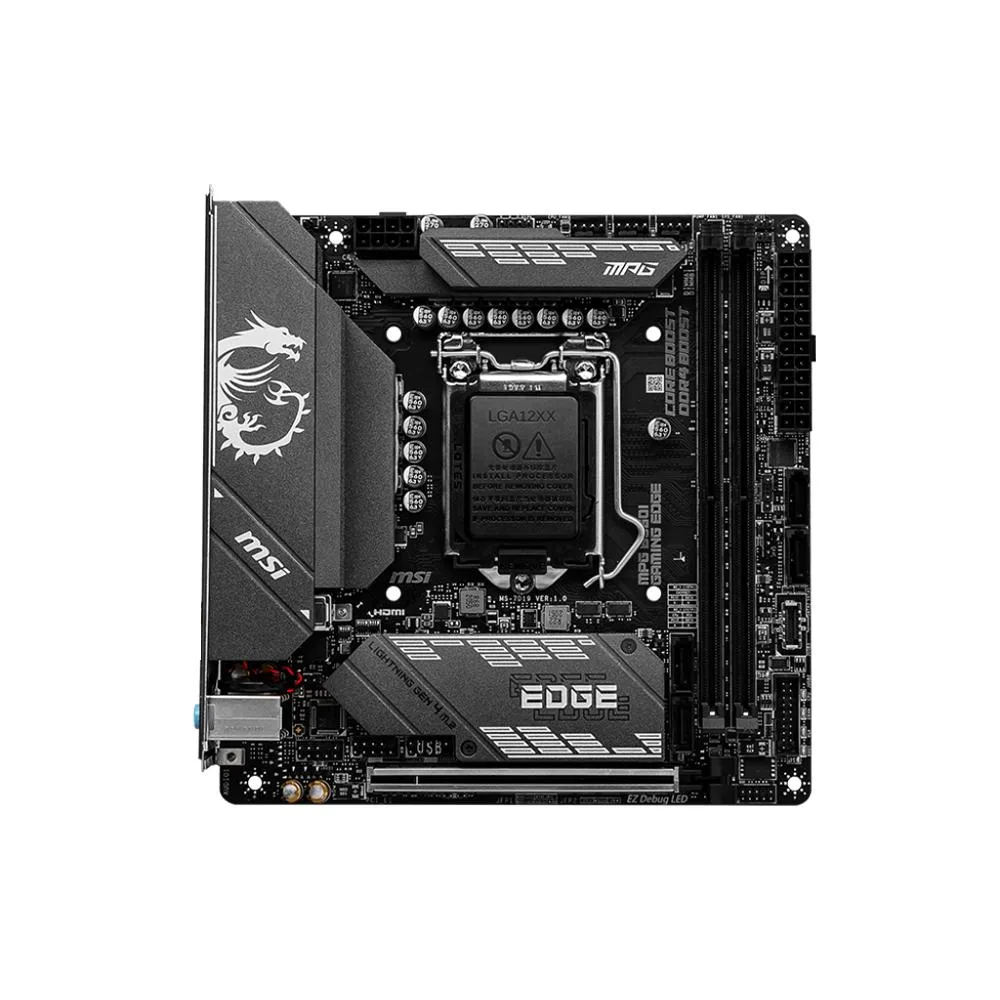

Compact Mini-ITX motherboard with black PCB and silver heatsinks

MSI

MSI MPG B560I Gaming Edge Intel motherboard

SKU CH-58BR-GESGF

Mini-ITX board for 10th and 11th Gen Intel CPUs with DDR4 up to 5200 OC, 2.5 Gb LAN and 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel B560
  • Memory StandardSupport dual channel DDR4 5200 (OC)/5000 (OC)/4800 (OC)/4600
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel C
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Up to 64GB dual-channel DDR4 with speeds reaching 5200 (OC)
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 for 10th Gen
  • Realtek ALC897 codec delivers 7.1-channel high definition audio
  • Realtek RTL8125B controller provides 2.5Gbps wired networking

Socket LGA 1200 Mini-ITX board

The MSI MPG B560I Gaming Edge is a Mini-ITX motherboard built on the Intel B560 chipset for LGA 1200 processors. It supports 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs in a compact form factor. Dual-channel DDR4 memory up to 64 GB can be installed across two slots.

Straightforward Mini-ITX installation

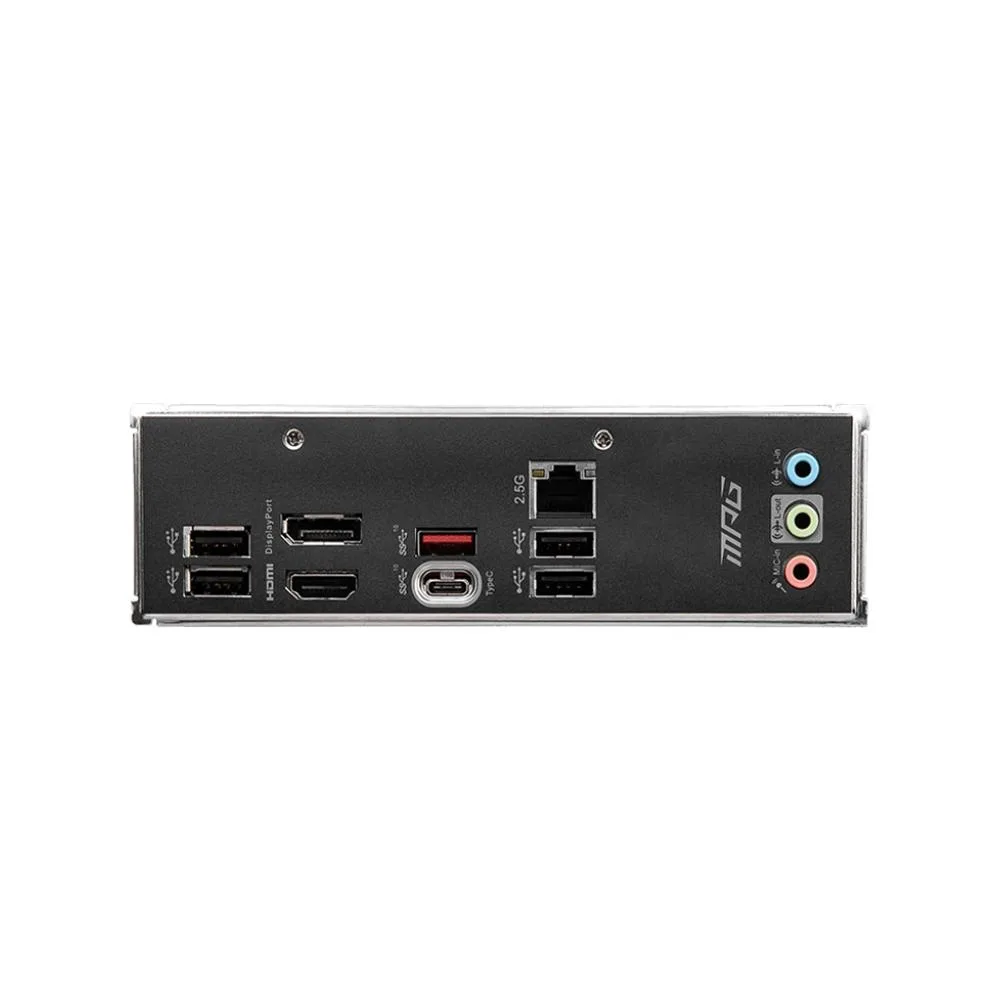

The board follows the standard Mini-ITX layout with a single PCIe x16 slot and a back-panel I/O shield included in the box. Builders should verify case clearance for the CPU cooler and ensure the 8-pin EPS power connector reaches the top-left corner. The two M.2 slots sit on opposite sides of the PCB, so check drive lengths before mounting.

Sustained-load behaviour with B560

Under continuous workloads the VRM heatsink keeps power delivery stable for multi-core CPUs. The 2.5 Gbps LAN controller maintains consistent throughput during long transfers. Audio output remains clean through the Realtek ALC897 codec during extended sessions. PCIe 4.0 support with 11th Gen CPUs preserves full bandwidth for high-speed storage and graphics over time.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Up to 64GB dual-channel DDR4 with speeds reaching 5200 (OC)
  • PCIe 4.0 x16 slot for 11th Gen CPUs and PCIe 3.0 for 10th Gen
  • Realtek ALC897 codec delivers 7.1-channel high definition audio
  • Realtek RTL8125B controller provides 2.5Gbps wired networking

Specifications

BrandMSI
SeriesMSI MPG B560I GAMING EDGE
ModelMSI MPG B560I GAMING EDGE
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200
ChipsetIntel B560
Memory StandardSupport dual channel DDR4 5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek RTL8125B 2.5Gbps LAN controller
Onboard USB2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel]
3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors]
6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]

Questions about this item

How can I confirm the 2.5Gbps LAN and 7.1 audio are working after I build with this board?

After installing the Realtek RTL8125B driver the network adapter will show a 2.5Gbps link speed in Windows, and the Realtek ALC897 codec will list 7.1 channels in Sound control panel when speakers are connected.

Which accessories are included with the MPG B560I Gaming Edge and what must I source myself?

The box contains the motherboard, a CMOS battery, one SATA cable and the rear I/O shield; you must supply the CPU, DDR4 memory, storage drives, cooler and power supply.

Which memory speed should I target for an 11th Gen Core i7 versus a 10th Gen Core i5 on this B560 board?

With an 11th Gen processor the board supports DDR4 up to 5200 MT/s overclocked, while a 10th Gen CPU limits the maximum to 3200 MT/s, so choose faster kits only if you run 11th Gen.
