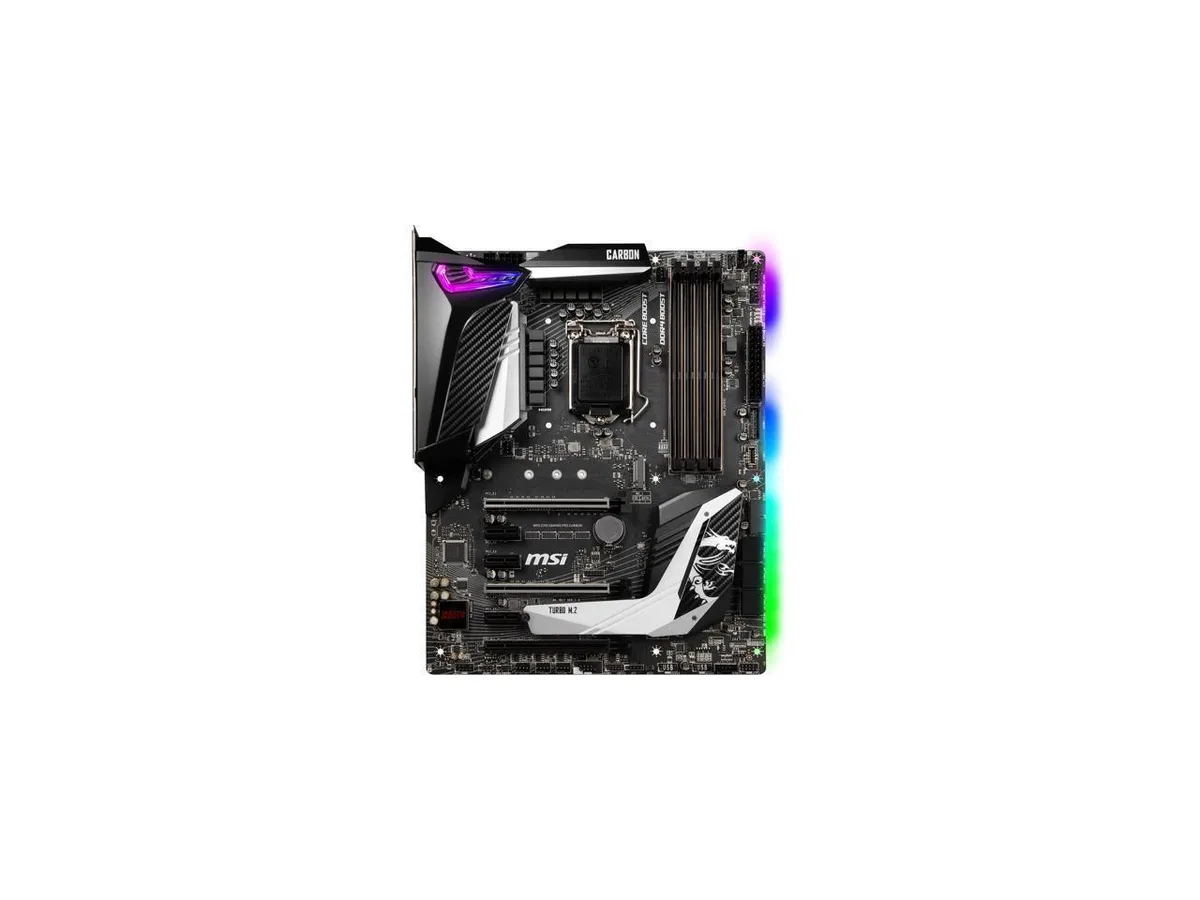

Black ATX motherboard with carbon-fibre pattern heatsinks and four DDR4 slots

MSI

MSI MPG Z390 GAMING PRO CARBON 9th/8th Gen Intel motherboard

SKU CH-XGKH-MN02P

ATX board for 9th and 8th Gen Intel CPUs with four DDR4 slots up to 128 GB, three PCIe 3.0 x16 slots, six SATA ports and two M.2 slots

  • CPU TypeLGA1151(300 series)
  • ChipsetIntel Z390
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x HDMI port
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(
  • Maximum Memory Supported128GB
  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Four DDR4 slots handle up to 128 GB dual-channel memory
  • Three PCIe 3.0 x16 slots offer x16/x0/x4 or x8/x8/x4 configurations
  • Two M.2 Key M slots plus six SATA ports with RAID 0/1/5/10
  • Intel I219-V Gigabit LAN and 7.1-channel audio with S/PDIF out

Z390 ATX board for 9th and 8th Gen Intel

The MSI MPG Z390 GAMING PRO CARBON is an ATX motherboard built around the Intel Z390 chipset and the LGA 1151 (300 series) socket. It accepts 9th and 8th generation Core, Pentium Gold and Celeron processors. Four 288-pin DDR4 slots support up to 128 GB in dual-channel mode with a long list of overclocked speeds.

VRM heatsinks and fan headers manage heat

Extended heatsinks cover the power delivery area to keep VRM temperatures down during sustained loads. Multiple fan headers allow the builder to tune airflow for quiet operation or maximum cooling. The board draws power through standard ATX and EPS connectors without extra requirements.

Dual M.2 and six SATA share bandwidth

Two Key M M.2 slots accept 2242, 2260, 2280 and 22110 drives running at PCIe 3.0 x4 or SATA 6 Gb/s. Six SATA 6 Gb/s ports are also provided, though M.2 and SATA share bandwidth. Three PCIe 3.0 x16 slots support x16/x0/x4 or x8/x8/x4 modes, plus three PCIe 3.0 x1 slots for add-in cards.

Highlights

  • Supports 9th and 8th Gen Intel Core processors on LGA 1151 socket
  • Four DDR4 slots handle up to 128 GB dual-channel memory
  • Three PCIe 3.0 x16 slots offer x16/x0/x4 or x8/x8/x4 configurations
  • Two M.2 Key M slots plus six SATA ports with RAID 0/1/5/10
  • Intel I219-V Gigabit LAN and 7.1-channel audio with S/PDIF out

Specifications

BrandMSI
CPU TypeLGA1151(300 series)
ChipsetIntel Z390
Onboard Video ChipsetSupported only by CPU with integrated graphic:
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x163 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.
M.22 x M.2 slot (Key M)*
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
* M.2 slots and SATA ports share the bandwidth.
Intel Optane ReadyYes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID0/1/5/10
Audio Channels7.1-Channel High Definition Audio
Supports S/PDIF output
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 3 x USB 3.1 Gen 2 Type-A
PS/21 x PS/2 keyboard/mouse port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.13 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)
USB 1.1/2.02 x USB 2.0 (High-speed USB) ports (Type-A)
USB Type-C1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-C)
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector

Questions about this item

Will the board run a 9th-generation Intel Core i9 without a BIOS update?

The socket is LGA1151 revision 300 and the chipset is Intel Z390, which natively supports 9th- and 8th-generation Core, Pentium Gold and Celeron CPUs.

Can I use the onboard HDMI and DisplayPort with a processor that lacks integrated graphics?

No — video outputs are only active when the installed CPU includes an integrated graphics engine.

How many M.2 drives can I install before losing SATA ports?

The board has two M.2 Key-M slots; each shares bandwidth with the six SATA 6Gb/s ports, so populating either M.2 slot will disable the corresponding SATA connections.
