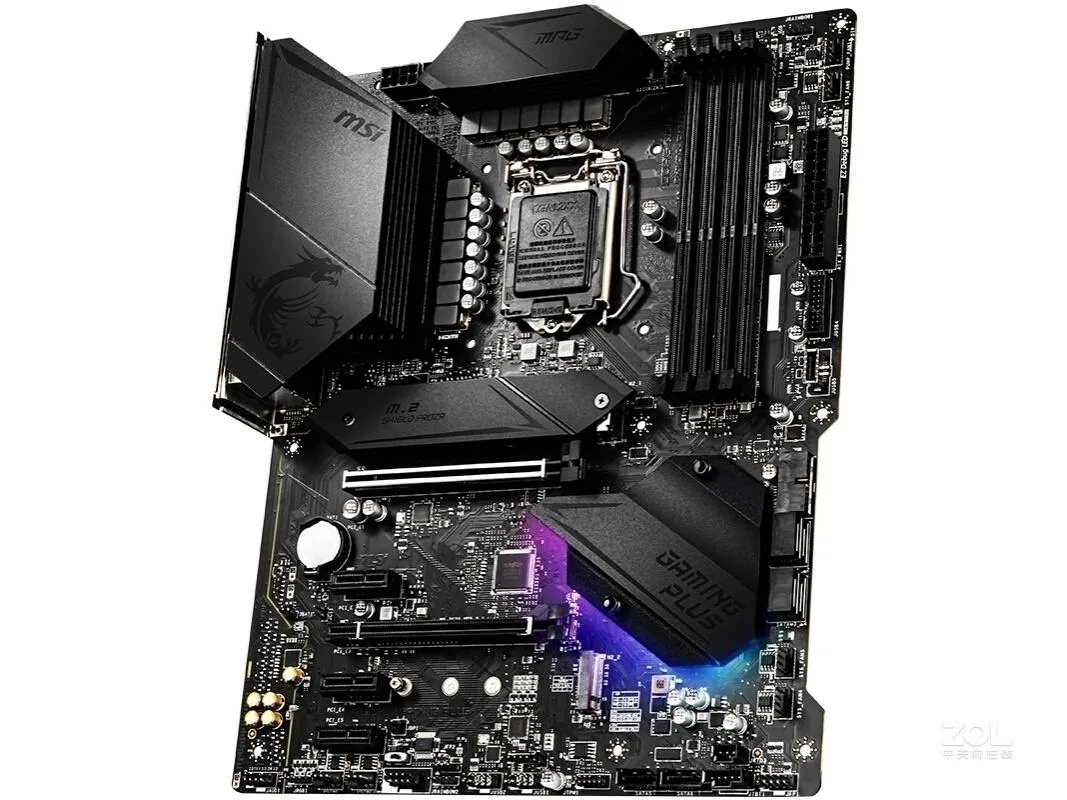

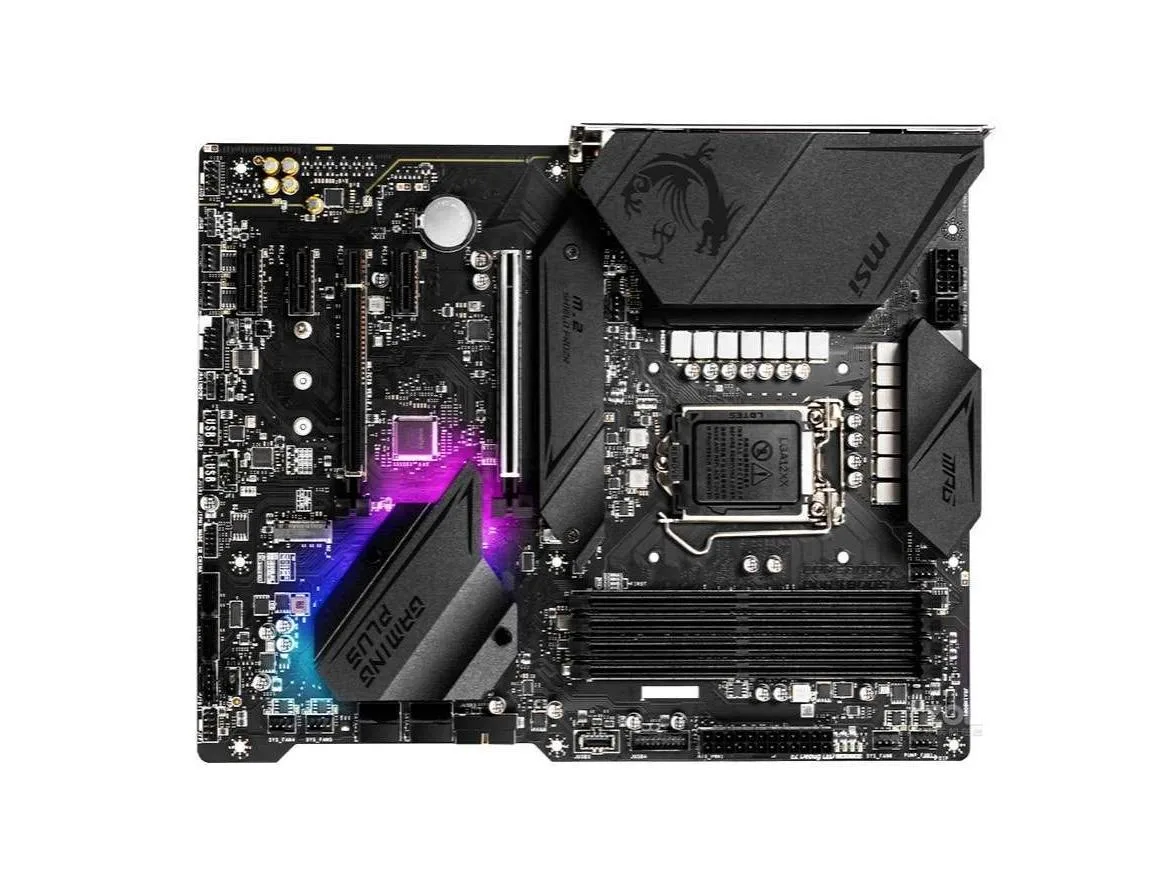

ATX motherboard black PCB silver heatsinks LGA 1200 socket

MSI

MSI MPG Z490 GAMING PLUS Intel Motherboard

SKU CH-ZHG2-4Z64F

ATX motherboard for 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors using LGA 1200 socket with Intel Z490 chipset, dual-channel DDR4 up to 4000MHz, 128GB maximum memory.

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium
  • ChipsetIntel Z490
  • Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200
  • Maximum Memory Supported128GB
  • PCI Slots1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 1
  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 128GB at speeds from 2133 to 4000MHz
  • Primary PCIe 3.0 x16 slot runs at 4.0 with 11th Gen CPUs
  • 5G LAN controller plus 10Gbps USB 3.2 Gen 2 Type-A and Type-C ports
  • 1-channel Realtek ALC1200 audio with S/PDIF output

Targeted at 10th and 11th Gen Intel builds

The board fits 10th and 11th Gen Intel Core, Pentium Gold and Celeron CPUs using the LGA 1200 socket. It suits gamers and creators who want a Z490 chipset with 2.5G LAN and 7.1 audio. Builders needing newer chipsets or smaller form factors should consider other models.

PCIe lane allocation depends on CPU generation

With an 11th Gen CPU the primary slot runs at PCIe 4.0 x16. With a 10th Gen CPU the same slot is limited to PCIe 3.0 x16. This distinction decides whether the board can deliver full bandwidth to a modern graphics card.

Highlights

  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 128GB at speeds from 2133 to 4000MHz
  • Primary PCIe 3.0 x16 slot runs at 4.0 with 11th Gen CPUs
  • 5G LAN controller plus 10Gbps USB 3.2 Gen 2 Type-A and Type-C ports
  • 1-channel Realtek ALC1200 audio with S/PDIF output

Specifications

BrandMSI
SeriesMSI MPG Z490 GAMING PLUS
ModelMSI MPG Z490 GAMING PLUS
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™, 11th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1200 socket
ChipsetIntel Z490
Memory StandardSupport dual-channel DDR4 2133/2200/2400/2666/2800/3000/3200/3400/3600/3800/4000MHz memory
Maximum Memory Supported128GB
PCI Slots1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
1x PCIe 3.0 x16 slot (from chipset, supports x4 mode)
3x PCIe x1 slots (from chipset)
SATA RAID2XM.2 interface
6XSATA III interface
Audio ChipsetRealtek ALC1200-VD1 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125B-CG 2.5G LAN Controller
Onboard USBIntel Z490 Chipset

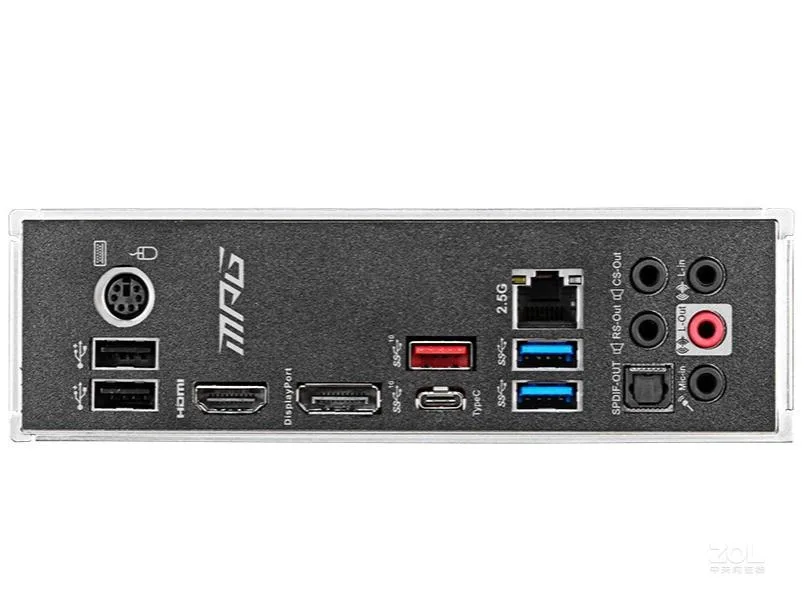

2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel)
7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Questions about this item

What PCIe standard does the Z490 chipset provide for the primary x16 slot with a 10th Gen CPU?

The primary PCIe 3.0 x16 slot runs at PCIe 3.0 speeds when a 10th Gen processor is installed.

What form factor and CPU socket does this board use?

It is an ATX motherboard with an LGA 1200 socket for 10th and 11th Gen Intel Core, Pentium Gold and Celeron processors.

How are the M.2 drives mounted and which screw size is required?

Two M.2 slots are onboard; each drive is secured with a single M2 standoff screw (typically M2×3 mm) after inserting the module at an angle.
