Black ATX motherboard with silver heatsinks and reinforced PCIe slots

MSI

MSI MPG Z590 GAMING FORCE Intel motherboard

SKU CH-2K9S-4W3XP

ATX board for 10th and 11th Gen Intel CPUs with Z590 chipset, DDR4 up to 5333 OC, 128 GB maximum, three PCIe x16 slots, 2.5 Gbps LAN, USB 3.2 Gen2x2 20 Gbps Type‑C, Realtek ALC4080 7.1 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Cor
  • ChipsetIntel Z590
  • Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800
  • Maximum Memory Supported128GB
  • PCI Slots3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 P
  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 with 11th Gen CPUs for faster GPU and storage bandwidth
  • Dual-channel DDR4 memory up to 128GB with overclocked speeds reaching 5333 MHz
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I225V 2.5Gbps LAN provides low-latency wired networking for gaming and transfers

Z590 ATX Motherboard for 10th

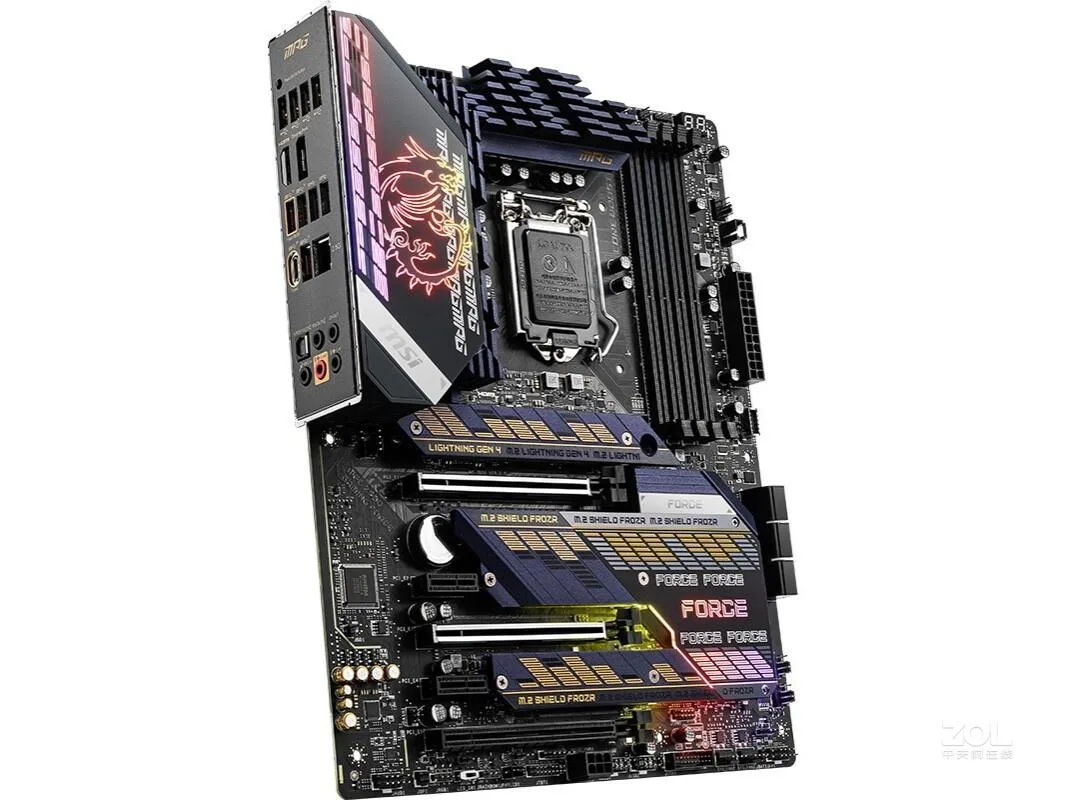

The MSI MPG Z590 GAMING FORCE is an ATX board built around the Intel Z590 chipset and LGA 1200 socket. It supports 10th and 11th Gen Intel Core processors along with Pentium Gold and Celeron chips. Four memory slots accept up to 128GB of DDR4.

PCIe 4.0 from the CPU with 11th Gen chips

Three PCIe x16 slots are wired for x16/x0/x4 or x8/x8/x4 operation. The top two slots connect to the CPU and run at PCIe 4.0 when an 11th Gen processor is installed, otherwise they operate at PCIe 3.0. The third slot comes from the chipset at PCIe 3.0 speeds.

2.5Gbps LAN, USB 20Gbps Type-C and 7.1 audio

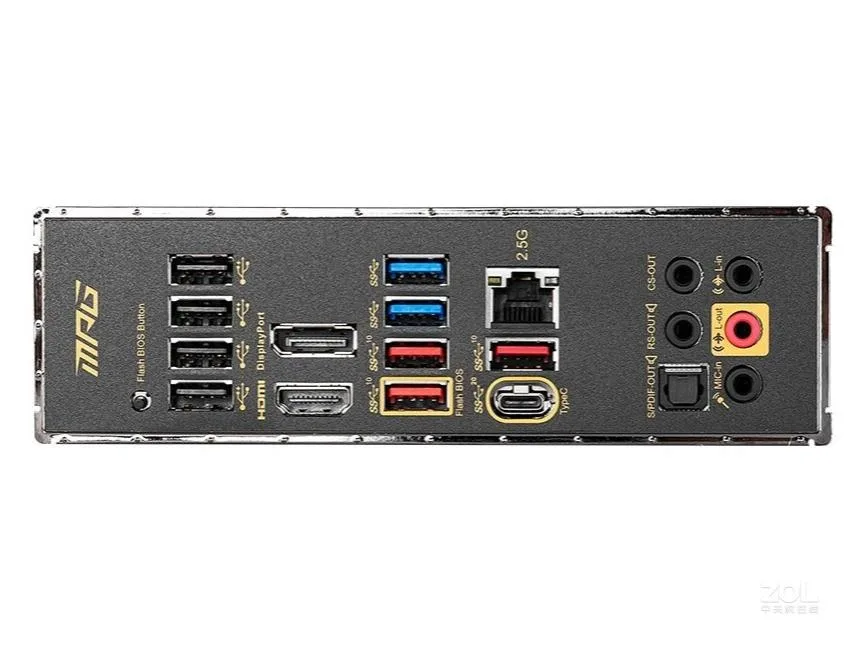

A single Intel I225V controller provides 2.5Gbps wired networking. The rear I/O includes one USB 3.2 Gen2x2 Type-C port at 20Gbps plus additional USB 3.2 Gen 2 and Gen 1 ports. Realtek ALC4080 codec delivers 7.1-channel high definition audio. Six SATA III and three M.2 interfaces handle storage.

Highlights

  • Supports 10th and 11th Gen Intel Core processors via LGA 1200 socket
  • Intel Z590 chipset enables PCIe 4.0 with 11th Gen CPUs for faster GPU and storage bandwidth
  • Dual-channel DDR4 memory up to 128GB with overclocked speeds reaching 5333 MHz
  • Realtek ALC4080 codec delivers 7.1-channel high-definition audio for immersive sound
  • Intel I225V 2.5Gbps LAN provides low-latency wired networking for gaming and transfers

Specifications

BrandMSI
SeriesMSI MPG Z590 GAMING FORCE
ModelMSI MPG Z590 GAMING FORCE
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core™ Processors, 11th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors 1
Processor socket LGA1200
ChipsetIntel Z590
Memory StandardSupport dual channel DDR4 5333 (OC)/5200 (OC)/5000 (OC)/4800 (OC)/4600 (OC)/4533 (OC)/4400 (OC)/4300 (OC)/4266 (OC)/4200 (OC)/4133 (OC)/4000 (OC)/3866 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3400 (OC)/3333 (OC)/3300 (OC)/3200 (OC)/3000 (OC)/2933 (JEDEC)/2666 (JEDEC)/2400 (JEDEC)/2133 (JEDEC) MHz memory
Maximum Memory Supported128GB
PCI Slots3x PCIe x16 slots
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
PCI_E1 & PCI_E3 slots (From CPU)
Support PCIe 4.0 for 11th Gen Intel CPU
Support PCIe 3.0 for 10th Gen Intel CPU
PCI_E5 slot (From Z590 Chipset)
Supports PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)
SATA RAID3XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I225V 2.5Gbps LAN controller
Onboard USBIntel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
Hub-GL850G
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

Questions about this item

Should I choose the 128GB maximum memory version of this motherboard?

The board supports up to 128GB of DDR4 across four slots, so select that capacity if you need the full limit for heavy workloads or virtualisation.

What does the 5333MHz DDR4 figure mean once the board is installed in a system?

5333MHz is the highest overclocked memory speed the board can run; actual speed depends on the CPU memory controller and the modules you install.

How does the Z590 chipset affect PCIe 4.0 and 3.0 support on this motherboard?

With an 11th Gen Intel CPU the top two x16 slots run at PCIe 4.0; with a 10th Gen CPU they run at PCIe 3.0, while the third x16 slot stays at 3.0 from the chipset.
