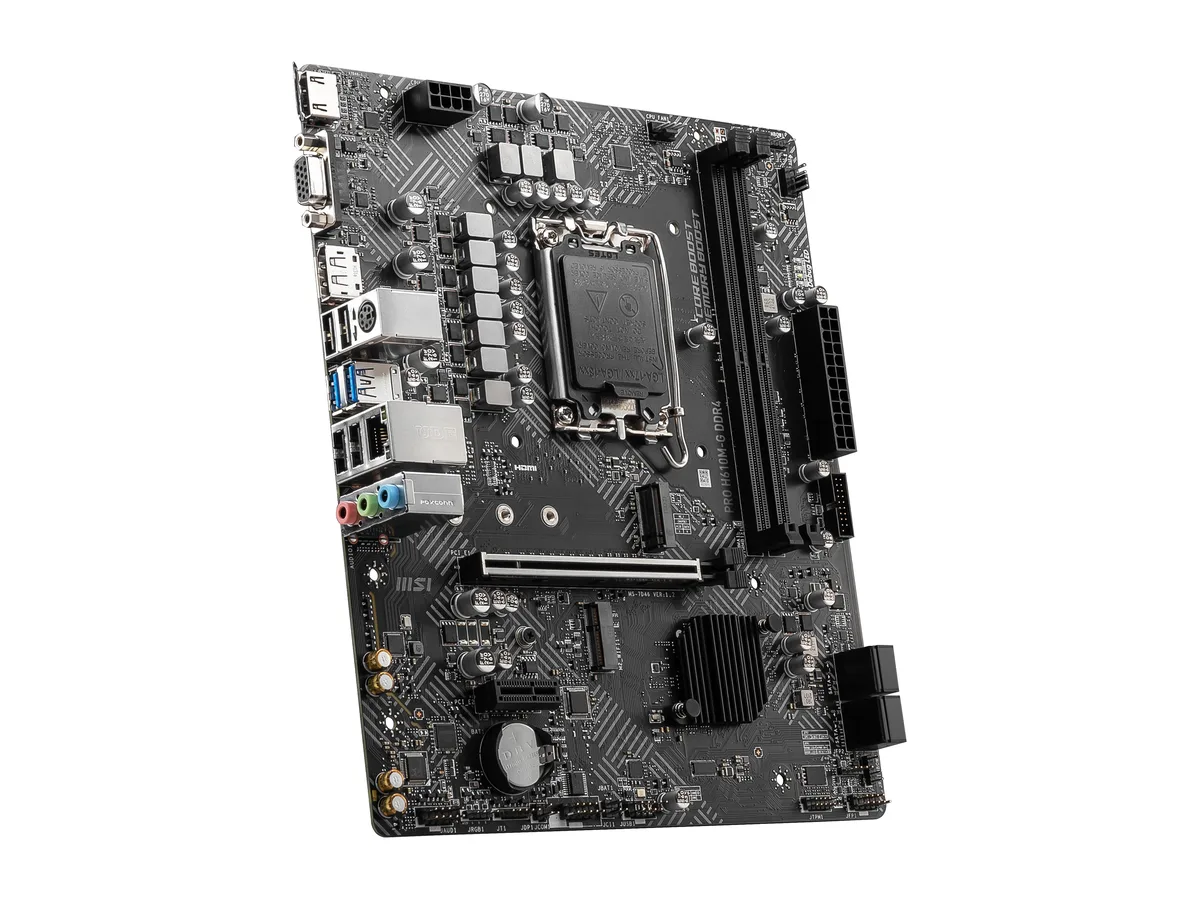

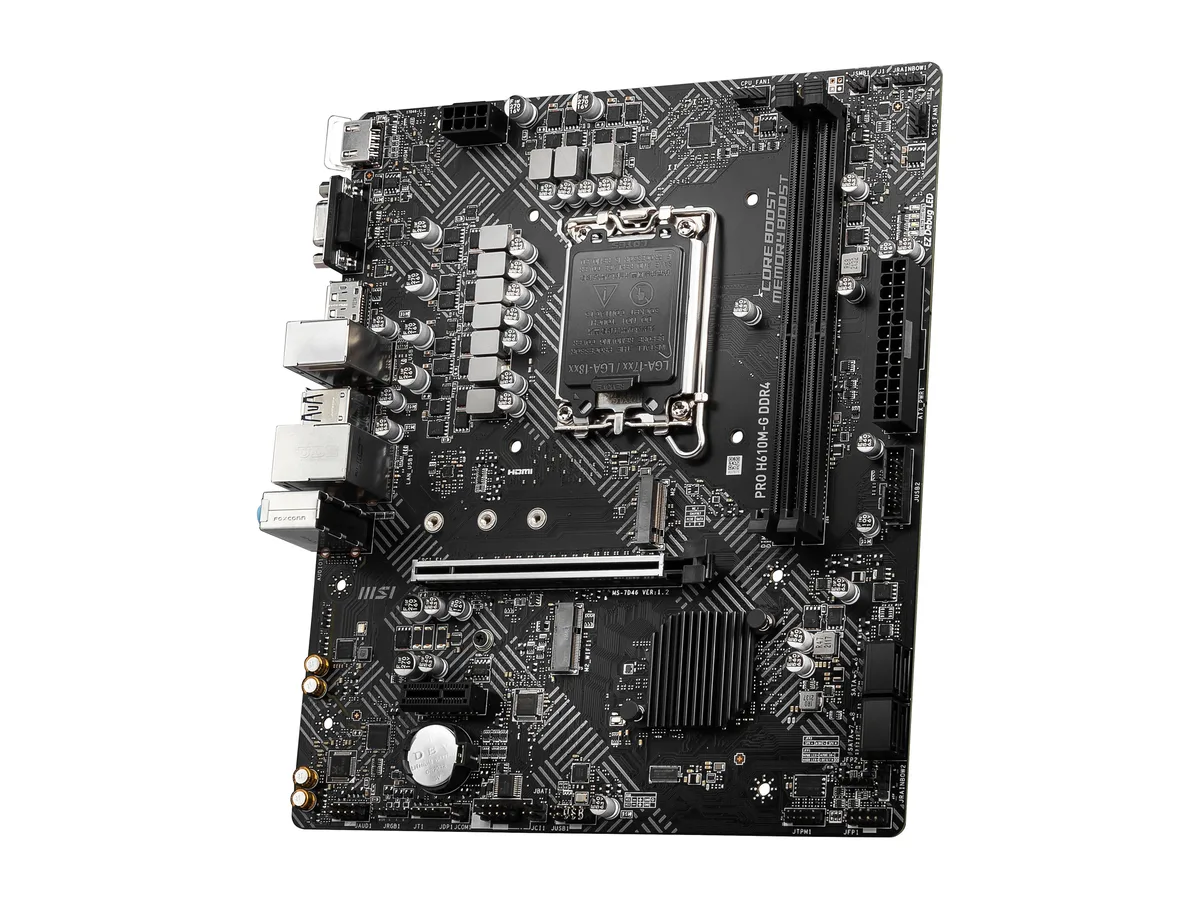

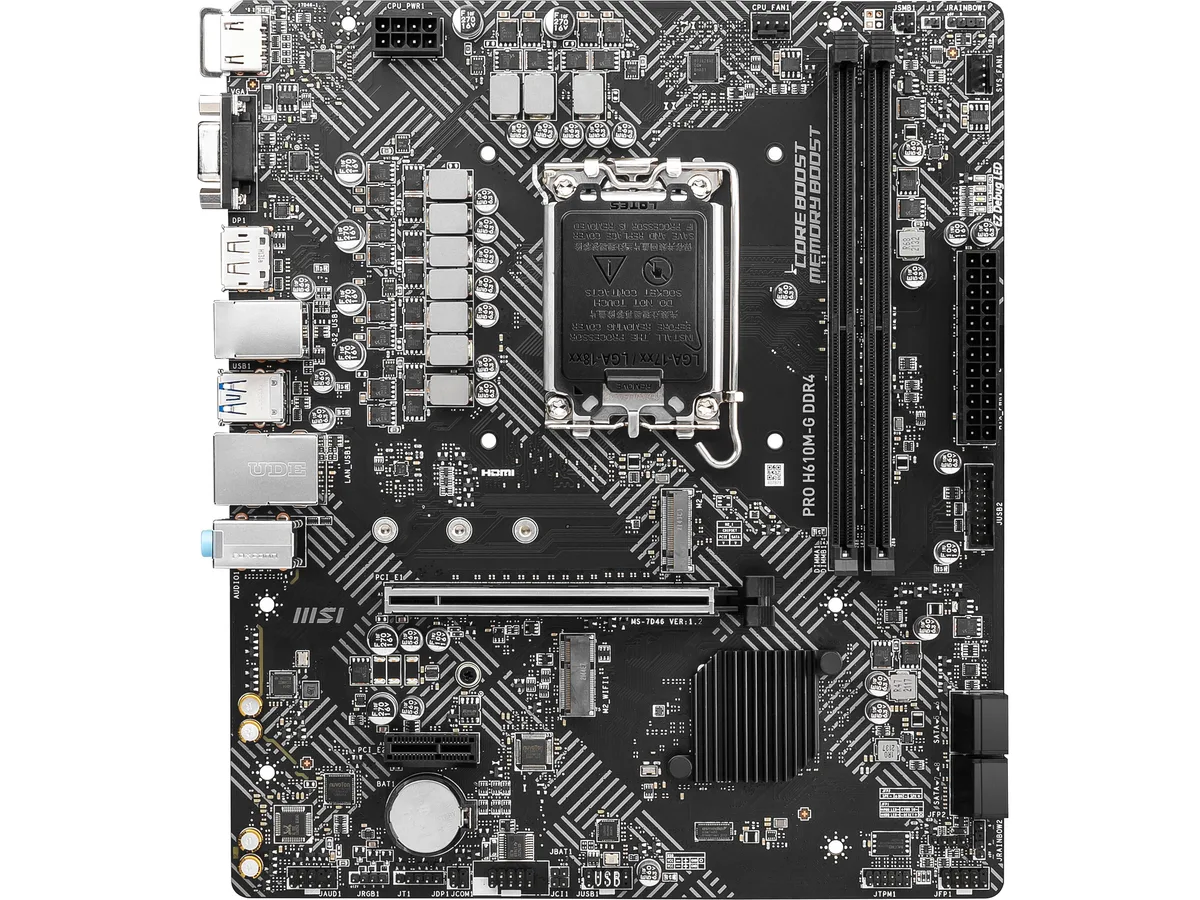

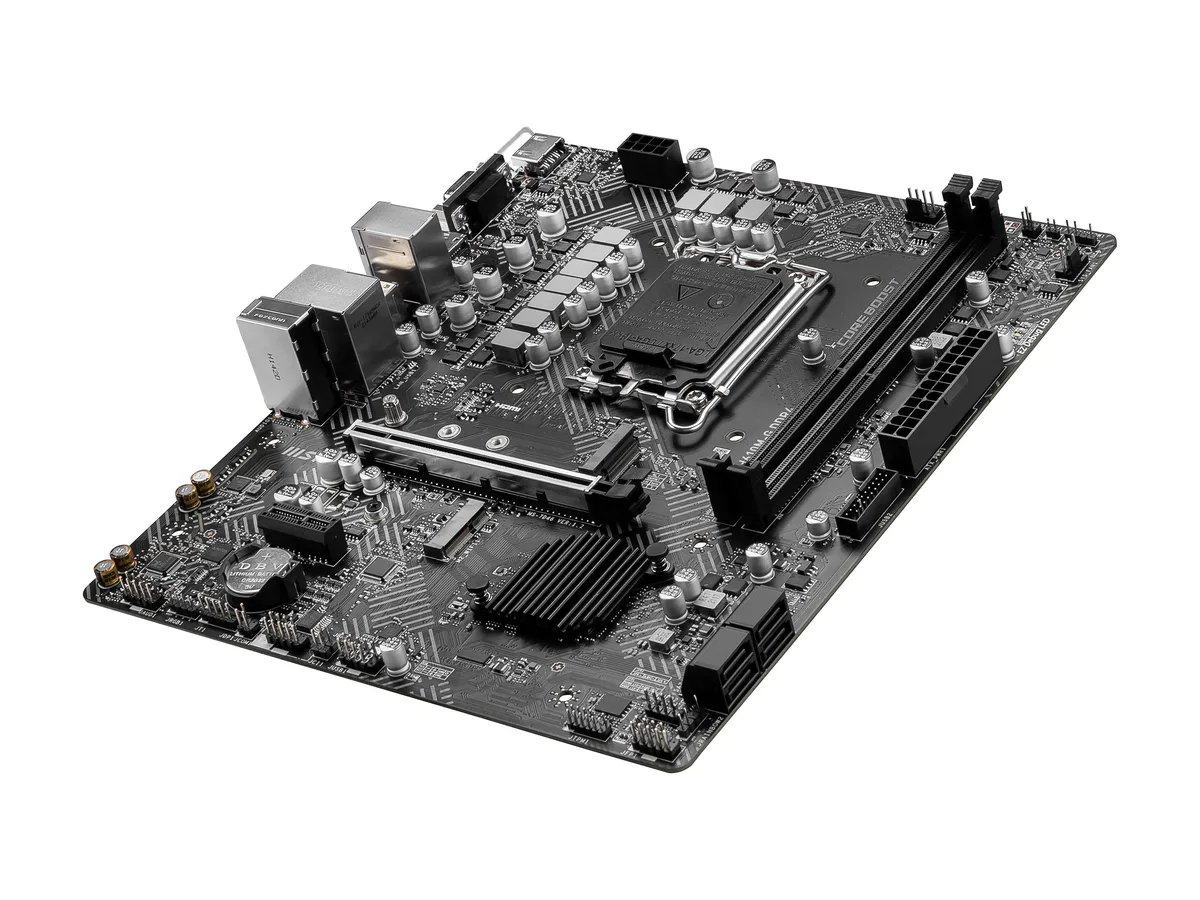

Micro-ATX motherboard, black PCB, silver heatsinks, LGA 1700 socket, two DDR4 slots, PCIe steel armor slot

MSI

MSI PRO H610M-G DDR4 Intel motherboard

SKU CH-P971-V62TF MPN PRO H610M-G DDR4

Micro-ATX LGA 1700 board with Intel H610 chipset, two DDR4 3200 slots up to 64 GB, PCIe 4.0 x16, Gen3 M.2, four SATA 6Gb/s and Intel 1 GbE LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel H610
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 3200

Option PRO H610M-G DDR4

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot with Steel Armor reinforcement for heavy graphics cards
  • M.2 slot supporting 2242, 2260 and 2280 devices at PCIe 3.0 x4 speeds
  • Intel I219-V 1 Gbps LAN plus Realtek ALC897 7.1-channel audio for business connectivity

Target Build & Audience

This micro-ATX board fits Intel LGA 1700 processors from the 12th, 13th and 14th generations. It supports DDR4 memory up to 3200 MHz across two slots for a 64 GB maximum. A single PCIe 4.0 x16 slot with Steel Armor and four SATA 6Gb/s ports cover essential expansion.

Who It Suits & Who Should Look Elsewhere

Office and home-office systems that need legacy display outputs — D-Sub, HDMI, DisplayPort — and PS/2 connectivity will fit well. Builds requiring more than two memory slots, multiple M.2 sockets, PCIe 4.0 storage speeds or Wi-Fi should consider a different chipset.

Deciding Specification

The H610 chipset provides one M.2 slot (Key M) limited to PCIe 3.0 x4 and SATA modes, plus four SATA 6Gb/s ports. If your storage plan needs a second M.2 drive or PCIe 4.0 throughput, this board will not meet that requirement.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 3200 MHz with 64 GB maximum capacity
  • PCIe 4.0 x16 slot with Steel Armor reinforcement for heavy graphics cards
  • M.2 slot supporting 2242, 2260 and 2280 devices at PCIe 3.0 x4 speeds
  • Intel I219-V 1 Gbps LAN plus Realtek ALC897 7.1-channel audio for business connectivity

Specifications

BrandMSI
ModelPRO H610M-G DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel H610
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

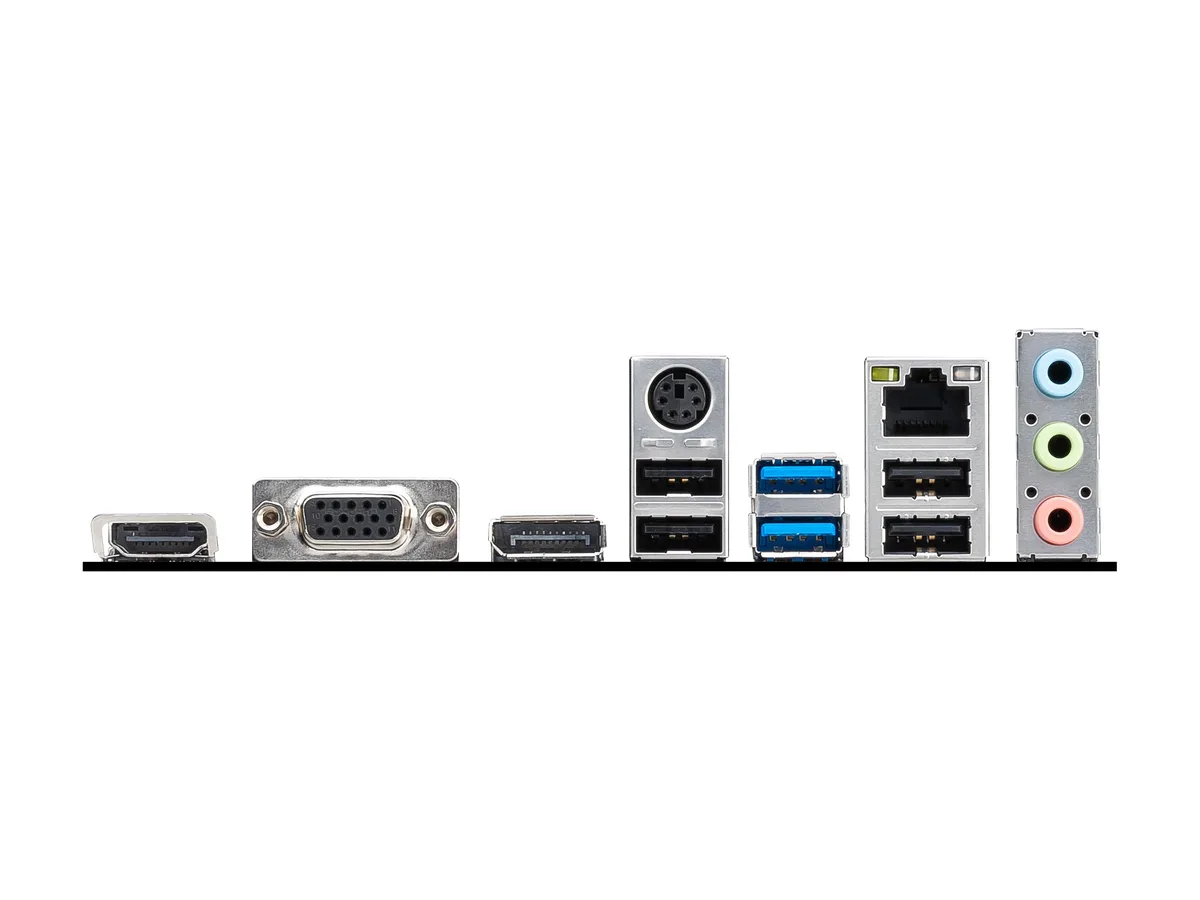

Back I/O Ports1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
3 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0/1.1
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Shipping weight1.23 kg
Package size279 × 272 × 79 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which CPU socket and chipset must my processor match for this board?

The board uses an LGA 1700 socket and the Intel H610 chipset, so the installed CPU must be a 12th, 13th or 14th Gen Intel Core, Pentium Gold or Celeron processor that fits LGA 1700.

Will my existing DDR4 3200 modules run in dual-channel mode on the two memory slots?

Yes, the board has two 288-pin DDR4 slots that support dual-channel operation up to 3200 MHz and Intel XMP 2.0 profiles, so a matched pair of DDR4 3200 sticks will run at full speed.

How can I confirm the Steel Armor PCIe 4.0 x16 slot is running at Gen 4 speeds after I install a graphics card?

In the BIOS or Windows Device Manager check the link speed shown for the PCI Express x16 slot; it should read 4.0 x16 (16 GT/s) when a PCIe 4.0 graphics card is seated in the Steel Armor slot.
