Green micro-ATX board with silver PCIe slot, two black DDR4 slots, four SATA ports, one M.2 slot, black rear I/O shield

MSI

MSI PRO H610M-G WIFI DDR4 Intel motherboard

SKU CH-M643-04JGG MPN PRO H610M-G WIFI DDR4

Micro-ATX board for LGA 1700 CPUs with dual-channel DDR4, PCIe 4.0 x16, one M.2 slot, four SATA ports, 1 GbE LAN and 7.1 audio

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Ce
  • ChipsetIntel H610
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  • Maximum Memory Supported64GB

Option PRO H610M-G WIFI DDR4

  • Supports 12th 13th 14th Gen Intel Core CPUs with LGA 1700 socket
  • Dual channel DDR4 memory up to 3200 MHz and 64 GB capacity
  • PCIe 4.0 x16 slot delivers full GPU bandwidth for graphics cards
  • M.2 slot accepts 2242 2260 2280 drives with PCIe 3.0 x4 or SATA 6Gbps
  • Intel I219 LAN and Realtek ALC897 7.1 audio for wired networking and sound

Socket LGA 1700 DDR4 micro-ATX board

This Intel H610 motherboard fits LGA 1700 processors from the 12th, 13th and 14th generations plus Pentium Gold and Celeron CPUs. Two 288-pin slots accept up to 64 GB of dual-channel DDR4 at JEDEC speeds of 2133, 2666 or 3200 MHz with XMP 2.0 support. The compact micro-ATX layout suits office builds and budget gaming rigs alike.

Steel-armoured PCIe 4.0 x16 and single M.2 slot

A reinforced PCIe 4.0 x16 slot from the CPU protects heavier graphics cards from bending. The chipset adds one PCIe 3.0 x1 slot for extra cards. Four SATA 6 Gb/s ports handle traditional drives, while the sole M.2 Key M socket takes 2242, 2260 or 2280 devices at up to PCIe 3.0 x4 or SATA speeds. Note that populating the M.2 slot with a SATA drive disables one SATA port.

1 Gbps Intel LAN and 7.1 audio

Networking relies on an Intel I219 controller delivering 1 Gbps wired throughput. Realtek ALC897 provides 7.1-channel high-definition audio for everyday media and conferencing. EZ Debug LEDs simplify post troubleshooting, and the Core Boost digital power design keeps the CPU stable under load.

Highlights

  • Supports 12th 13th 14th Gen Intel Core CPUs with LGA 1700 socket
  • Dual channel DDR4 memory up to 3200 MHz and 64 GB capacity
  • PCIe 4.0 x16 slot delivers full GPU bandwidth for graphics cards
  • M.2 slot accepts 2242 2260 2280 drives with PCIe 3.0 x4 or SATA 6Gbps
  • Intel I219 LAN and Realtek ALC897 7.1 audio for wired networking and sound

Specifications

BrandMSI
SeriesPRO
ModelPRO H610M-G WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
* Please go to www.msi.com to get the newest support status as new processors are released
ChipsetIntel H610
Number of Memory Slots2x288pin (DDR4)
Memory StandardSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
Memory FeatureSupports non-ECC, un-buffered memory
* Please refer to www.msi.com for more information on compatible memory
PCI Express 4.0 x161 x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16
PCI Express x11 x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s ports (From H610 chipset)*
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
M.21 x M.2 slot (Key M, from H610 chipset)*
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
Second LAN ChipsetIntel I219
Max LAN Speed1Gbps
Wireless LANIntel Dual Band Wireless-AC 3168
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2

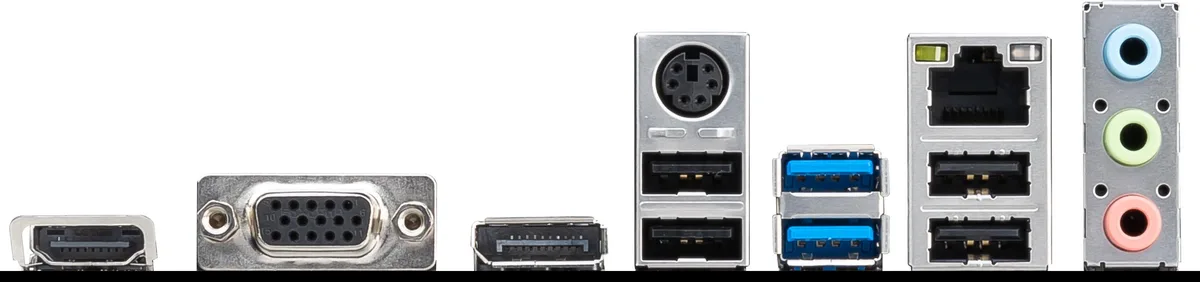

Back I/O Ports1 x HDMI port
1 x VGA port
1 x DisplayPort port
1 x PS/2 keyboard/ mouse combo port
4 x USB 2.0 Type-A ports (From H610 chipset)
2 x USB 3.2 Gen 1 5Gbps Type-A ports (From H610 chipset)
1 x LAN (RJ45) jack
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
1 x USB 2.0 connector (From H610 chipset)
Supports additional 2 USB 2.0 ports
Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
4 x EZ Debug LED
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.3" (24.4 cm x 21.1 cm)
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMSI Center Features
- Mystic Light
- User Scenario
- Hardware Monitor
- Frozr AI Cooling
- True Color
- Live Update
- Speed Up
- Super Charger
Audio
- Audio Boost
LED
- Mystic Light Extension (RAINBOW/RGB)
- Mystic Light SYNC
- Ambient Devices Support
- EZ DEBUG LED
Performance
- Memory Boost
- Core Boost
- Lightning Gen 4 PCI-E Slot
Protection
- PCI-E Steel Armor
Experience
- Click BIOS 5
- EZ M.2 Clip
- CPU Cooler Tuning
Shipping weight0.82 kg
Package size264 × 262 × 56 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What PCIe generation does the single M.2 slot support and what bandwidth does that cap at?

The M.2 slot connects through the H610 chipset and runs up to PCIe 3.0 x4, limiting maximum throughput to the 3.0 x4 ceiling.

What mounting holes and back-panel cut-out does this Micro-ATX board need in a case?

Standard Micro-ATX standoff pattern and a rectangular I/O shield cut-out matching the board's rear ports.

How do you install a DDR4 DIMM correctly, and which mistake causes a no-post?

Align the notch with the slot key, press straight down until both retention clips click; the common error is stopping before the clips engage.
