MSI

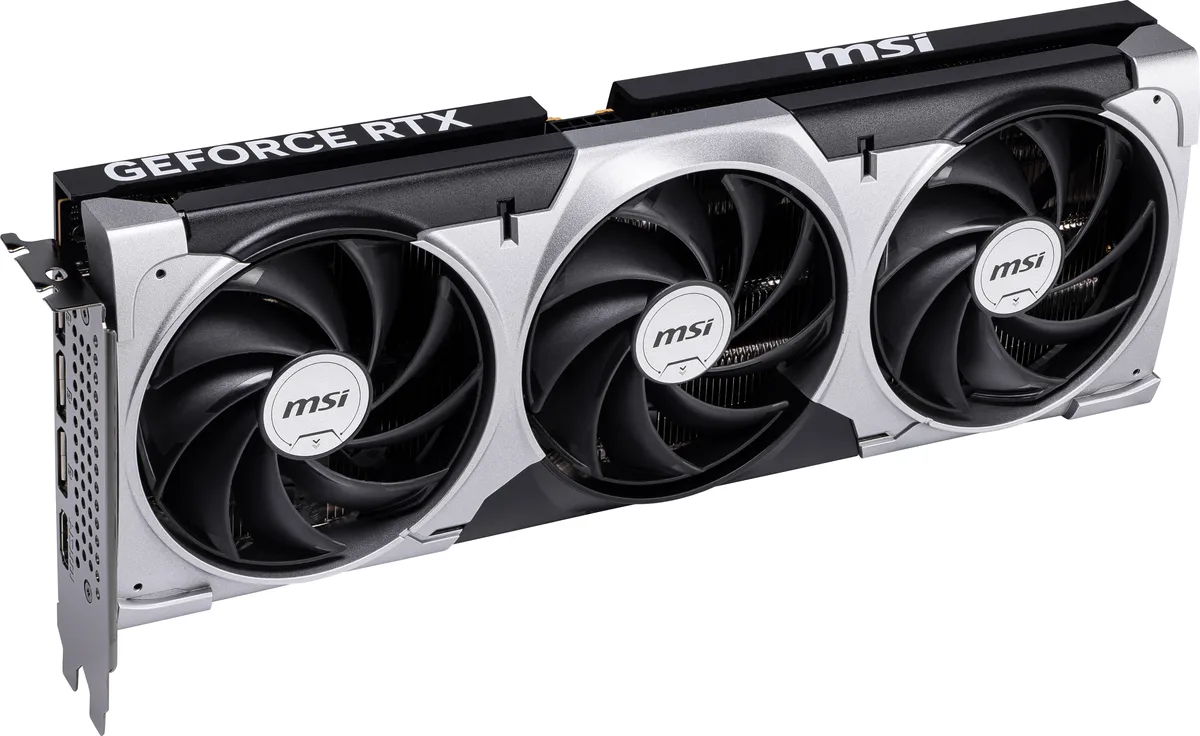

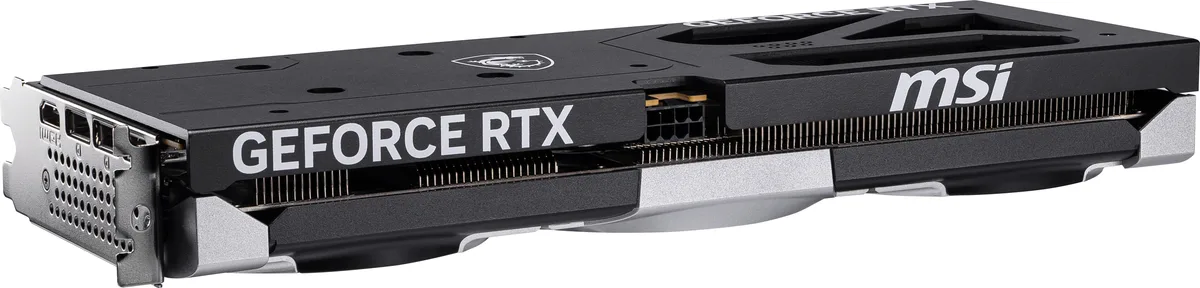

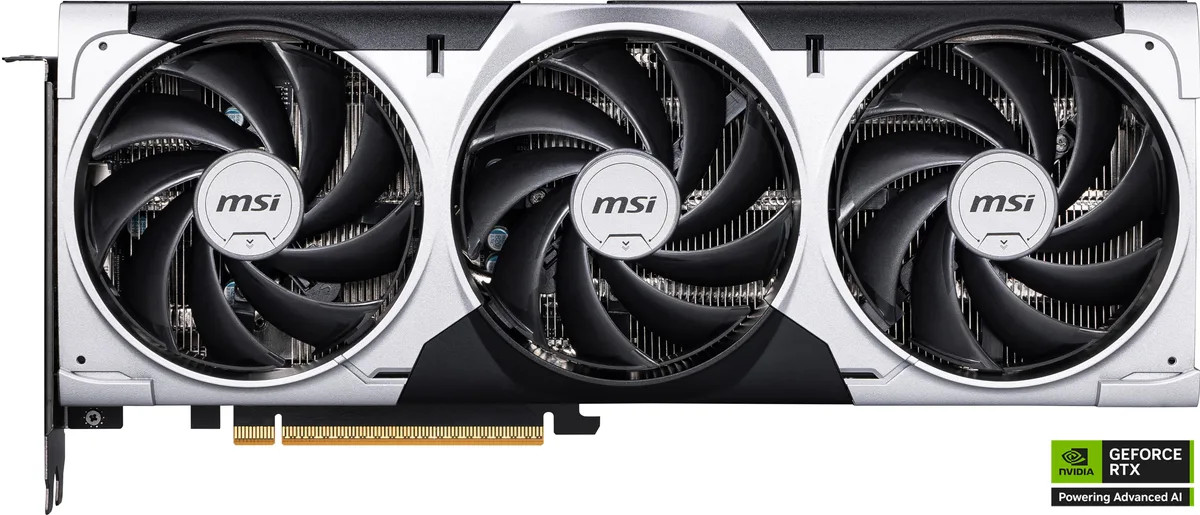

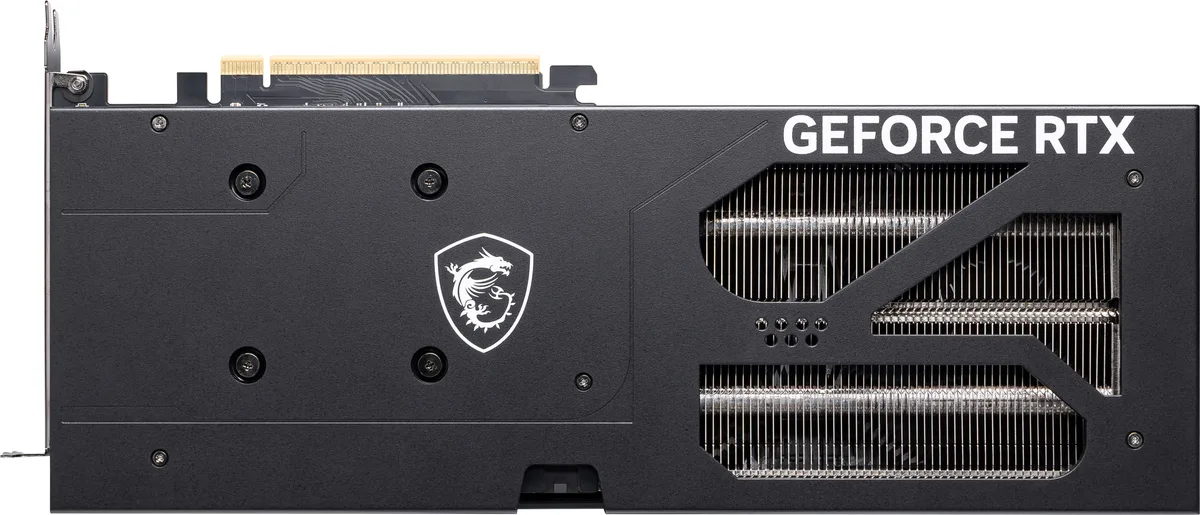

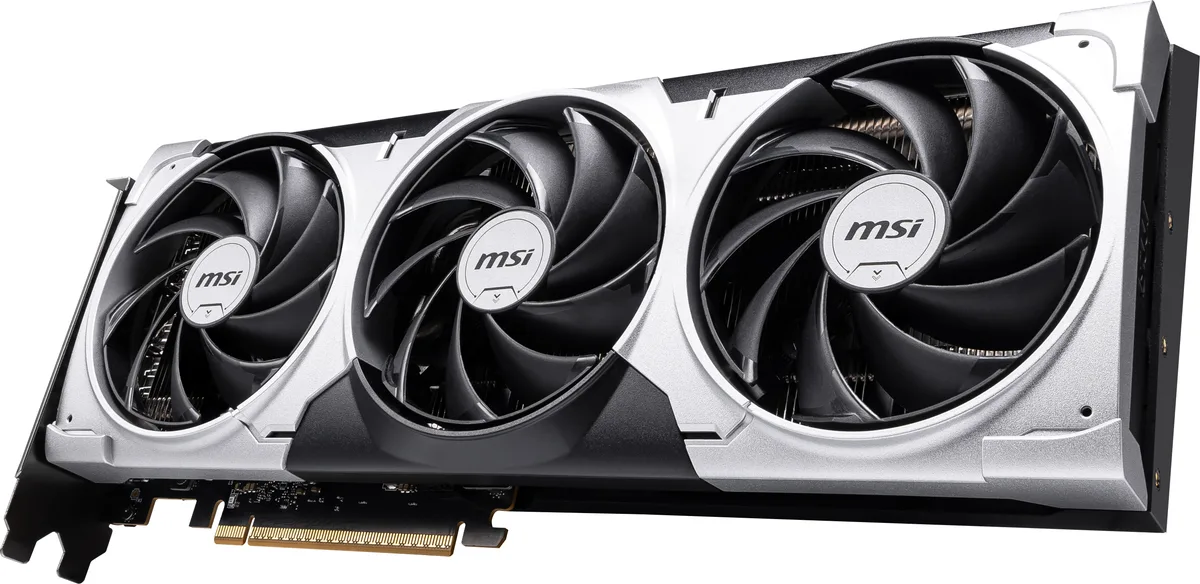

MSI RTX 5060 8G VENTUS 3X OC graphics card
Delivers 8 GB of 128-bit GDDR7 memory, 3840 CUDA cores and a 2535 MHz boost clock over PCIe 5.0 x8 with HDMI 2.1b and three DisplayPort 2.1b outputs
- InterfacePCI Express 5.0 x 16 (use x8)
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060
- Boost Clock2535 MHz
- CUDA Cores3840
Edition VENTUS 3X OC
- GAMING OC
- GAMING TRIO OC
- GAMING TRIO WHITE OC
- Inspire 2X OC
- SHADOW 2X OC
- VENTUS 2X OC
- VENTUS 2X WHITE OC
- VENTUS 3X OC
Struck-through versions exist but are not stocked here.
- 8 GB GDDR7 memory delivers high bandwidth for 1440p gaming
- Boost clock reaches 2535 MHz for strong out-of-the-box performance
- 3840 CUDA cores accelerate ray tracing and AI workloads
- PCI Express 5.0 x16 interface provides modern platform bandwidth
- HDMI 2.1b and three DisplayPort 2.1b outputs drive four displays
RTX 5060 8GB Ventus 3X OC graphics card
This MSI graphics card uses the NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores and 8GB of GDDR7 memory on a 128-bit interface. The boost clock reaches 2535 MHz while the memory runs at 28 Gbps. It connects via a PCI Express 5.0 x16 slot that operates at x8 electrical width.
Best for 1080p gaming and entry creative work
The 8GB frame buffer suits 1080p gaming with DLSS 4 and ray tracing enabled. Content creators using NVIDIA Studio tools at 1080p will also benefit. Users targeting 1440p or 4K workloads, or applications that need more than 8GB VRAM, should consider a card with a larger memory buffer.
PCIe 5.0 x8 interface and 128-bit GDDR7 memory
The card installs in a PCIe 5.0 x16 slot but runs at x8 electrical lanes, so platform lane allocation matters for multi-GPU or high-bandwidth add-in cards. The 128-bit memory bus paired with 28 Gbps GDDR7 defines the memory throughput ceiling for this model.
Highlights
- 8 GB GDDR7 memory delivers high bandwidth for 1440p gaming
- Boost clock reaches 2535 MHz for strong out-of-the-box performance
- 3840 CUDA cores accelerate ray tracing and AI workloads
- PCI Express 5.0 x16 interface provides modern platform bandwidth
- HDMI 2.1b and three DisplayPort 2.1b outputs drive four displays
Specifications
| Brand | MSI |
|---|---|
| Series | Ventus |
| Model | RTX 5060 8G VENTUS 3X OC |
| Part Number | RTX 5060 8G VENTUS 3X OC |
| Interface | PCI Express 5.0 x 16 (use x8) |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 |
| Boost Clock | 2535 MHz |
| CUDA Cores | 3840 |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | Silver |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Cooler | Triple Fans |
| Thermal Design Power | 145W |
| Recommended PSU Wattage | 600W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Max GPU Length | 303 mm |
| Card Dimensions (L x H) | 303 x 121 x 41 mm |
| Shipping weight | 1.05 kg |
| Package size | 392 × 204 × 85 mm |
Other versions of this model
4 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
MSI
MSI RTX 5060 8G GAMING TRIO OC graphics card
- PCI Express 5.0 x 1…
- NVIDIA
$489.99
0.00630593BTC
In stockQuestions about this item
Will this card fit in a PCIe 5.0 x16 slot and run at x8?
Yes, the interface is PCI Express 5.0 x16 and the card operates at x8 electrical.
Can I drive four monitors with the available outputs?
The card provides one HDMI 2.1b and three DisplayPort 2.1b connectors with multi-monitor support for up to four displays.
Does the 8 GB GDDR7 memory on a 128-bit bus deliver 28 Gbps effective speed?
The specifications list 8 GB GDDR7 memory, a 128-bit interface and an effective memory clock of 28 Gbps.
