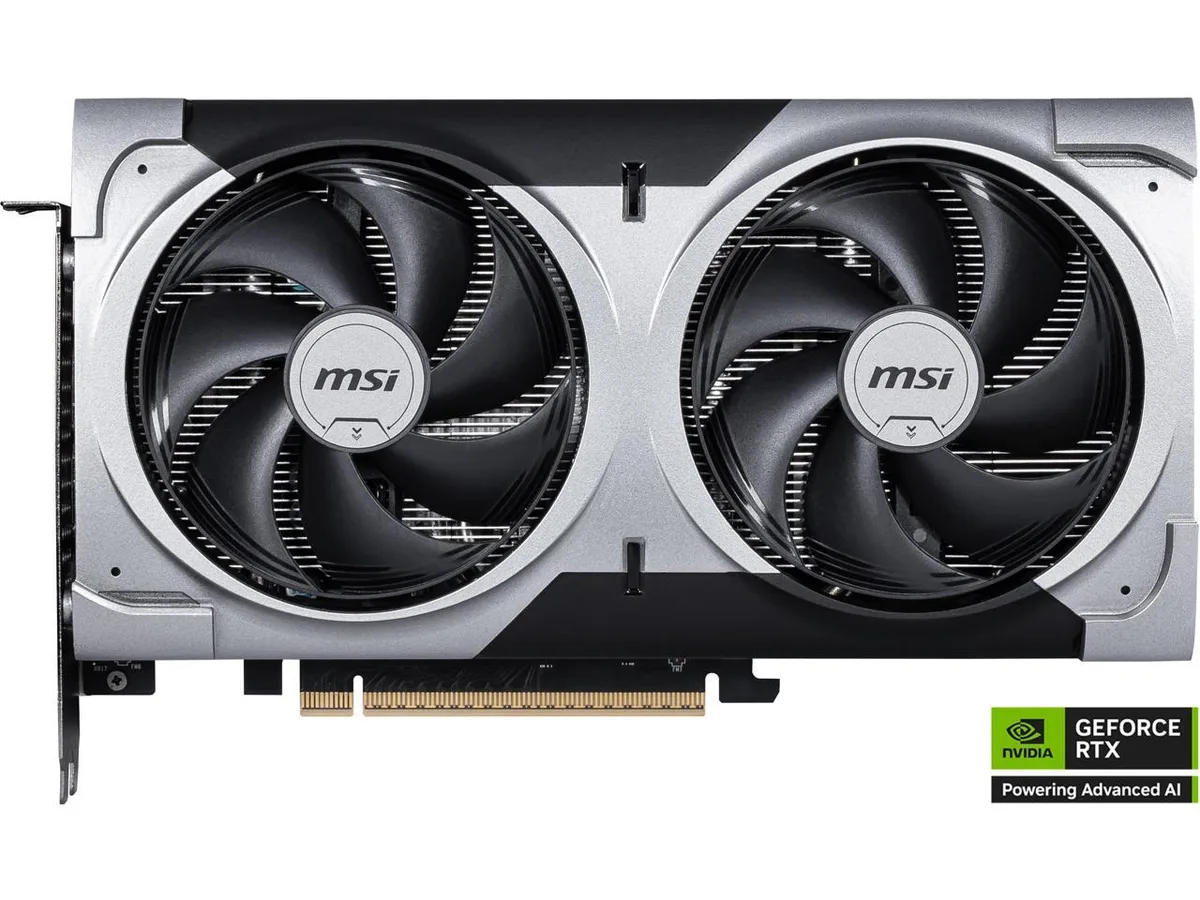

Silver dual-fan graphics card, 227 mm long, compact ATX form factor

MSI

MSI RTX 5060 Ti 8G VENTUS 2X OC PLUS graphics card

SKU CH-3BMY-YQTXY MPN RTX 5060 Ti 8G VENTUS 2X OC PLUS

GeForce RTX 5060 Ti with 4608 CUDA cores, 8GB GDDR7 at 28 Gbps on a 128-bit bus, dual-fan cooler, 180 W TDP

  • InterfacePCI Express 5.0 x 16 (use x8)
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • CUDA Cores4608
  • Effective Memory Clock28 Gbps

Edition VENTUS 2X 8G OC PLUS

Struck-through versions exist but are not stocked here.

  • 8GB GDDR7 memory at 28 Gbps for high-speed texture handling
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x16 interface with x8 electrical link
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan thermal design keeps the 180W GPU cool under load

Eight-gigabyte GDDR7 mid-range card

The MSI RTX 5060 Ti 8G VENTUS 2X OC PLUS is a dual-fan graphics card built on the NVIDIA GeForce RTX 50 Series architecture. It carries 4608 CUDA cores and 8GB of GDDR7 memory on a 128-bit bus running at 28 Gbps. The design targets 1440p gaming and entry-level creative workloads.

PCIe 5.0 x8 electrical limit

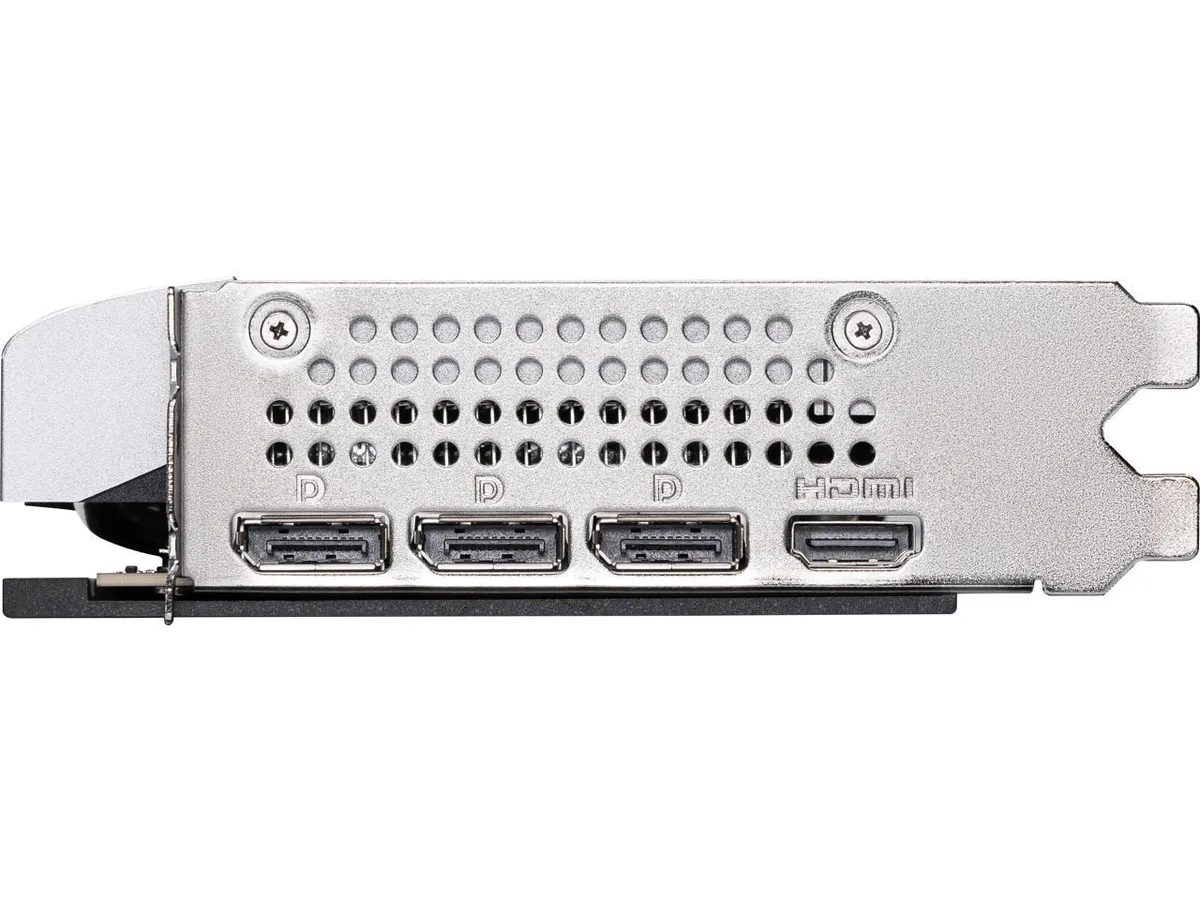

The card plugs into a PCI Express 5.0 x16 slot but operates electrically at x8 width. Bandwidth is therefore halved compared with a full x16 link, which can appear in very heavy compute or multi-GPU scenarios. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1b connectors supporting up to 7680 x 4320 resolution across four monitors.

Straightforward ATX fit with 8-pin power

At 227 mm long, 127 mm tall and 41 mm thick, the board fits most ATX cases without clearance issues. A single 8-pin connector feeds the 180 W thermal design power; a 600 W supply is recommended. The dual-fan cooler exhausts heat into the case, so adequate chassis airflow prevents temperature build-up.

Highlights

  • 8GB GDDR7 memory at 28 Gbps for high-speed texture handling
  • 4608 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 x16 interface with x8 electrical link
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan thermal design keeps the 180W GPU cool under load

Specifications

BrandMSI
SeriesVentus
ModelRTX 5060 Ti 8G VENTUS 2X OC PLUS
Part NumberRTX 5060 Ti 8G VENTUS 2X OC PLUS
InterfacePCI Express 5.0 x 16 (use x8)
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorSilver
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage600W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length227 mm
Card Dimensions (L x H)227 x 127 x 41 mm
Shipping weight0.91 kg
Package size305 × 203 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 8GB version or wait for a 16GB model of this Ventus 2X OC Plus?

The 8GB GDDR7 frame buffer is fixed on this SKU; no 16GB variant of the Ventus 2X OC Plus is listed in the specifications.

What does the 28 Gbps effective memory clock deliver in actual use?

The 28 Gbps GDDR7 memory feeds the 4608 CUDA cores at high bandwidth, supporting smooth 1440p gaming and compute workloads within the 8GB capacity.

How does the PCIe 5.0 x16 (use x8) interface limit performance?

The slot negotiates at PCIe 5.0 x8, halving the theoretical lane count but still providing ample throughput for the RTX 5060 Ti GPU in typical gaming scenarios.
