Triple-fan graphics card in dark grey, rectangular ATX form factor

MSI

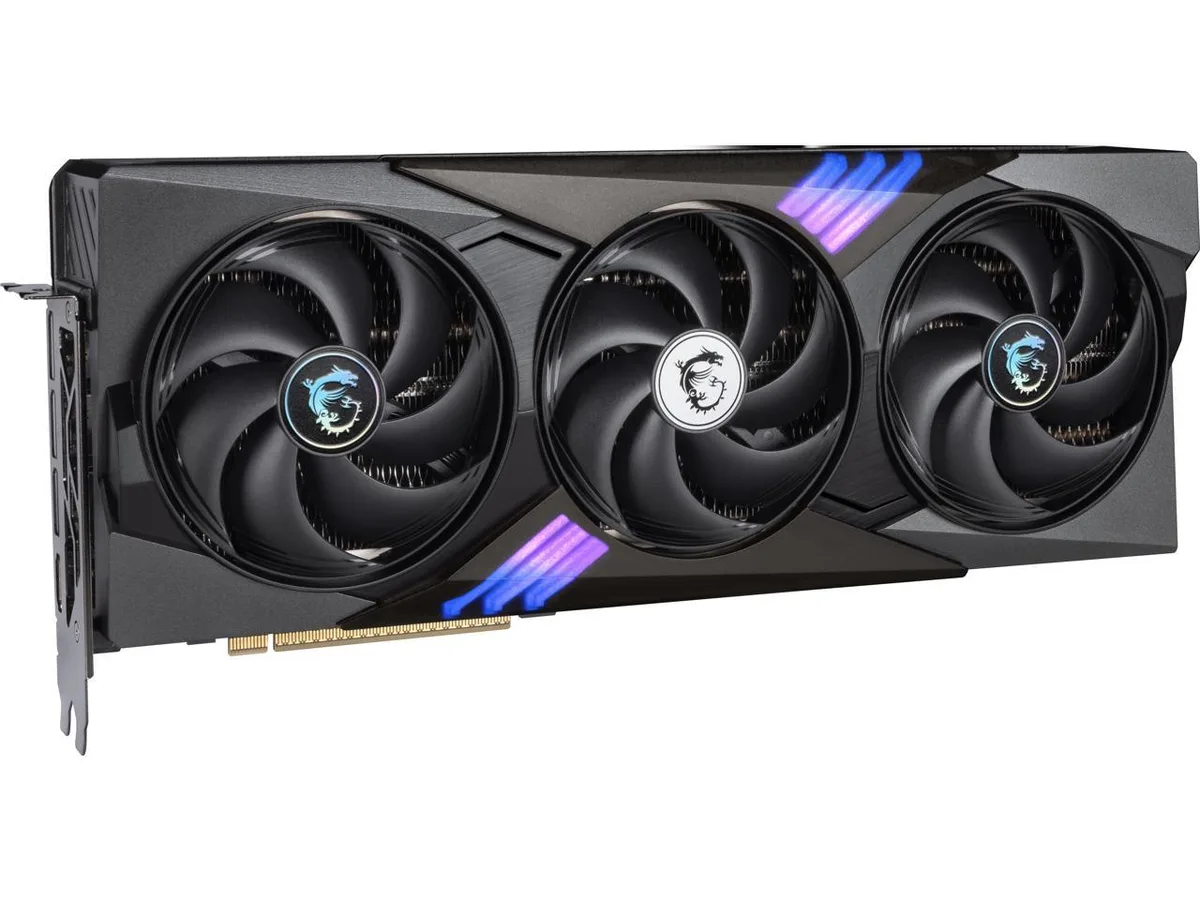

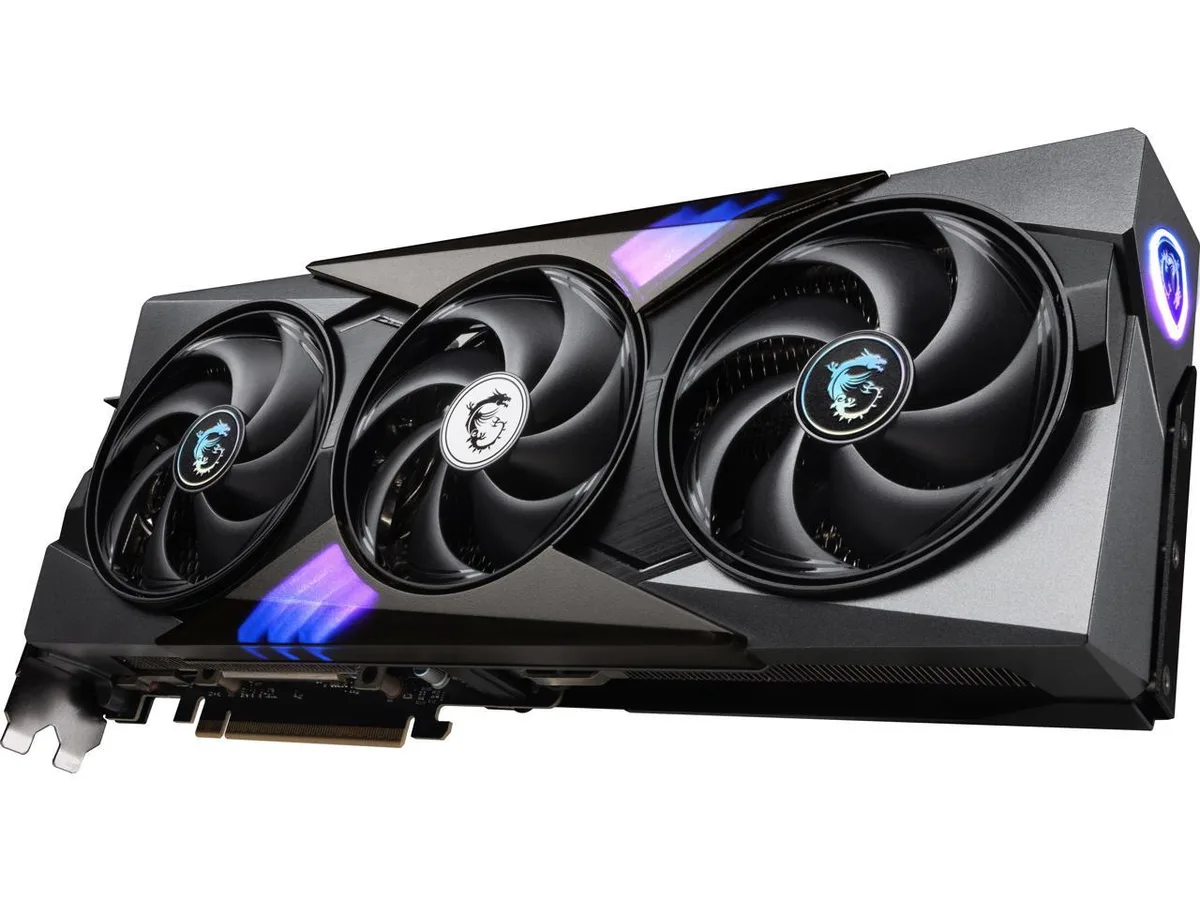

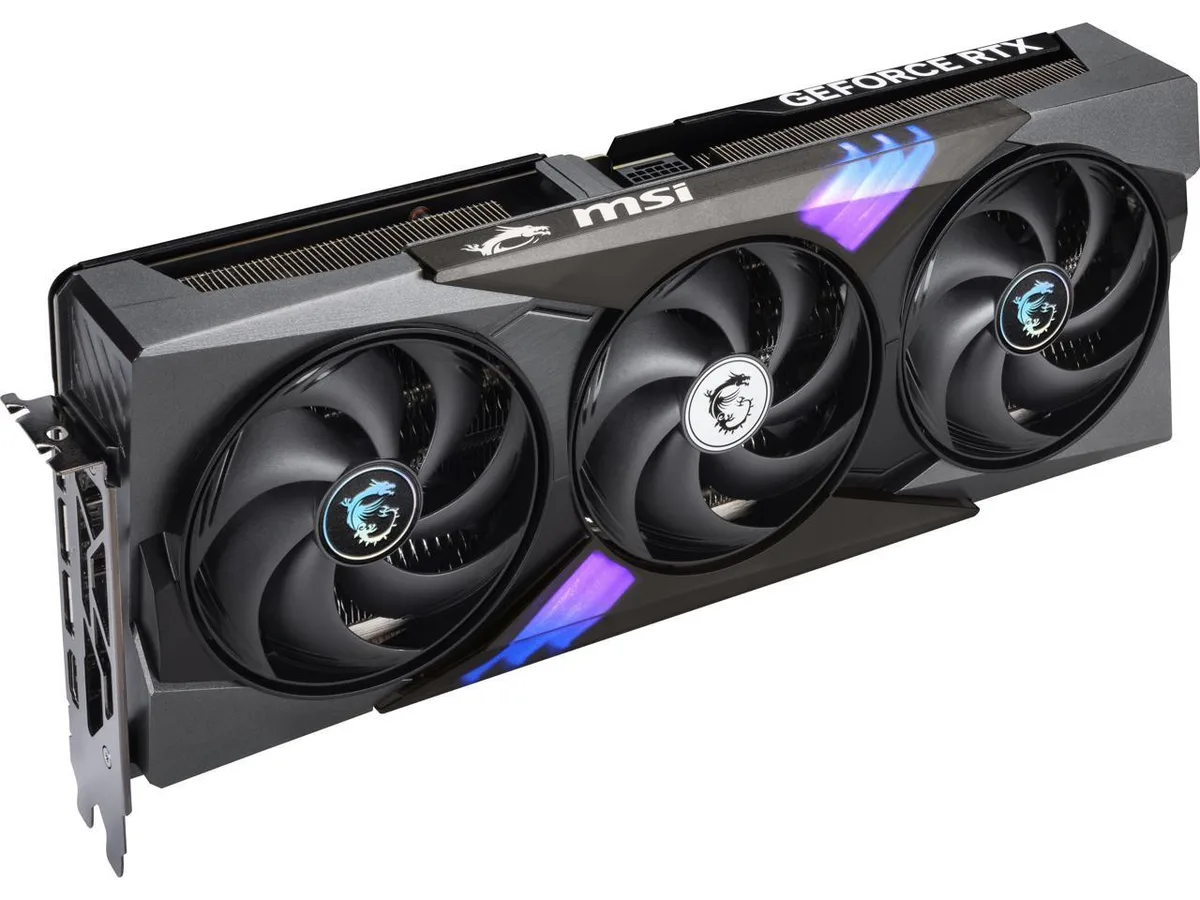

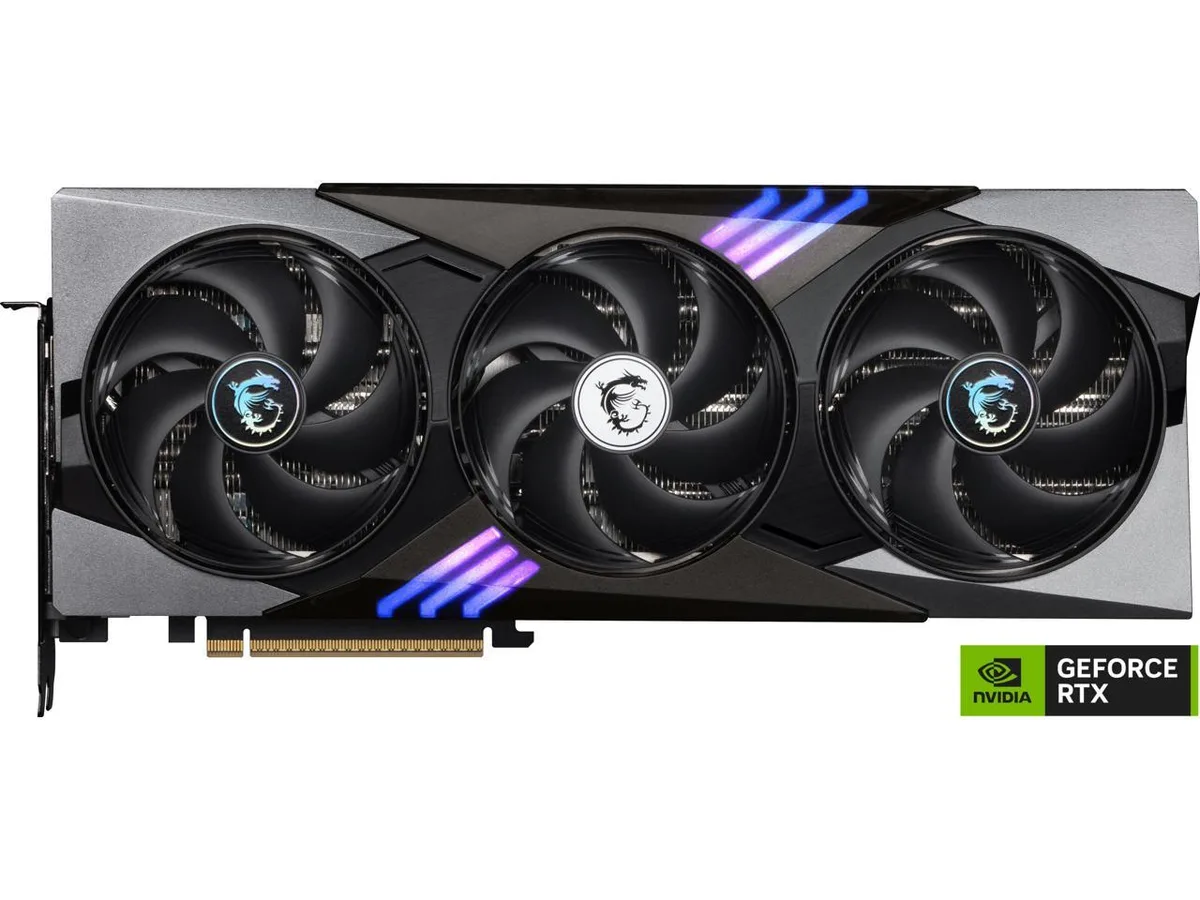

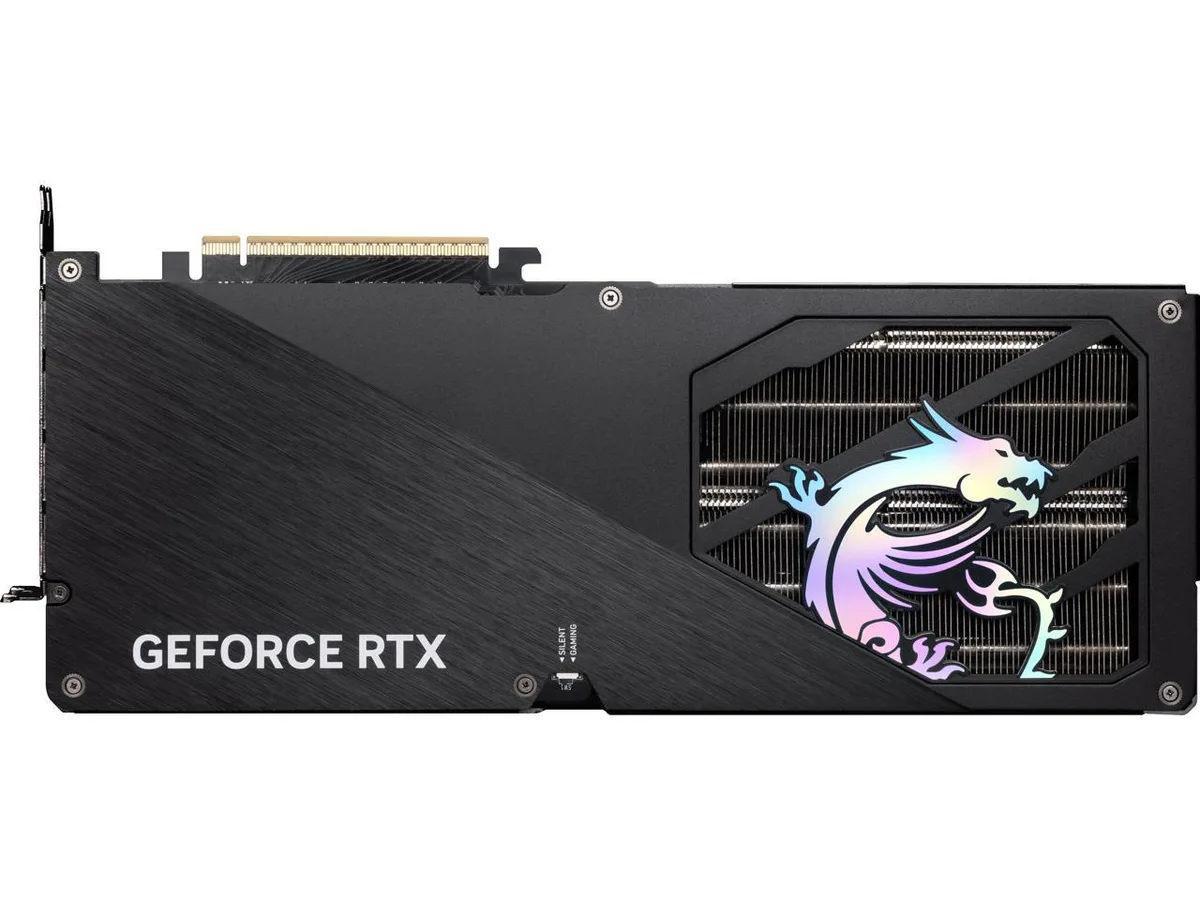

MSI RTX 5080 16G GAMING TRIO OC graphics card

SKU CH-02WF-8K030 MPN RTX 5080 16G GAMING TRIO OC

A GeForce RTX 5080 GPU with 16GB GDDR7 memory, 10752 CUDA cores and a triple-fan cooler on a PCI Express 5.0 interface

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5080
  • CUDA Cores10752
  • Effective Memory Clock30 Gbps

Edition GAMING TRIO OC

  • SUPRIM LIQUID SOC
  • SUPRIM SOC
  • VANGUARD SOC LAUNCH EDITION
  • VANGUARD SOC
  • GAMING TRIO OC WHITE
  • GAMING TRIO OC
  • INSPIRE 3X OC
  • VENTUS 3X OC PLUS
  • VENTUS 3X OC
  • VENTUS 3X
  • SHADOW 3X OC

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR7 memory at 30 Gbps feeds 4K and 8K textures without stutter
  • 10752 CUDA cores accelerate ray-tracing and AI workloads in real time
  • PCI Express 5.0 interface doubles bandwidth headroom for next-gen CPUs
  • Triple-fan TRIO cooler keeps the 360 W TDP card quiet under load
  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays simultaneously

16GB GDDR7 Memory Subsystem

The card equips 16GB of GDDR7 memory across a 256-bit bus running at an effective 30 Gbps. This bandwidth supports high-resolution textures and large frame buffers in modern titles. The 10752 CUDA cores feed compute workloads for rendering and AI tasks. PCI Express 5.0 provides the host link for data transfers.

Sustained 360W Thermal Load

The graphics processor carries a 360W thermal design power that appears during extended gaming or compute sessions. An 850W power supply is recommended to maintain stable voltage under this continuous draw. The single 16-pin connector delivers the required current without adapter cables. Steady cooling performance depends on case airflow matching this heat output.

ATX Form Factor 338mm Length

The board measures 338mm long, 140mm tall and occupies a standard ATX slot profile. Gray shroud colour matches neutral build themes. One HDMI 2.1b port and three DisplayPort 2.1a outputs drive up to four displays at 7680 x 4320 resolution. HDCP support enables protected content playback. No SLI connector is present.

Highlights

  • 16 GB GDDR7 memory at 30 Gbps feeds 4K and 8K textures without stutter
  • 10752 CUDA cores accelerate ray-tracing and AI workloads in real time
  • PCI Express 5.0 interface doubles bandwidth headroom for next-gen CPUs
  • Triple-fan TRIO cooler keeps the 360 W TDP card quiet under load
  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays simultaneously

Specifications

BrandMSI
SeriesGaming
ModelRTX 5080 16G GAMING TRIO OC
Part NumberRTX 5080 16G GAMING TRIO OC
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5080
CUDA Cores10752
Effective Memory Clock30 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorGray
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power360W
Recommended PSU Wattage850W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length338 mm
Card Dimensions (L x H)338 x 140 x 50 mm
Shipping weight2.27 kg
Package size406 × 254 × 102 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the RTX 5080 Gaming Trio OC get when running at its 360W TDP all day?

The card draws up to 360W and uses MSI's triple-fan Gaming Trio cooler to move that heat, so expect noticeable fan noise under sustained load and case airflow becomes critical.

What power supply and connector must I already have for the 16-pin power input on this RTX 5080?

An 850W PSU is recommended and you need a native 12VHPWR 16-pin cable or a reliable 3x 8-pin to 16-pin adapter that can deliver 360W continuously.

Will the 338mm length and 50mm thickness of this RTX 5080 fit alongside my existing ATX motherboard and drive cages?

The card occupies a standard ATX triple-slot footprint at 338mm long and 50mm thick; measure your case clearance past the motherboard edge and any front-mounted drives before buying.
