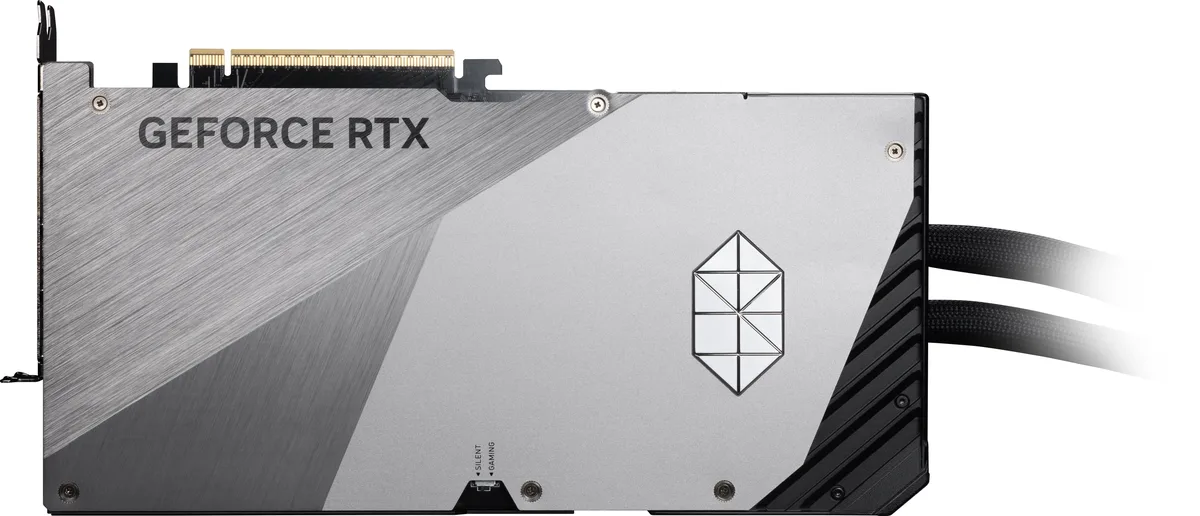

MSI RTX 5080 16G SUPRIM LIQUID SOC graphics card

16GB GDDR7 GPU for 4K Workloads

The MSI RTX 5080 16G SUPRIM LIQUID SOC delivers 16GB of GDDR7 memory on a 256-Bit bus with an effective 30 Gbps clock. It targets creators and enthusiasts who need high frame rates at 4K or compute headroom for AI tasks. The GeForce RTX 5080 chipset provides 10752 CUDA cores and a 2745 MHz boost clock. This card suits builds where memory bandwidth and raw shader throughput matter most.

PCI Express 5.0 x16 Bandwidth Ceiling

The card connects through a PCI Express 5.0 x16 slot, so the host platform must expose that lane width and signalling rate to avoid a bottleneck. A motherboard limited to PCIe 4.0 will halve the theoretical peak transfer rate between GPU and system memory. The single 16-pin power connector draws up to 360 W, requiring an 850 W supply with the correct native cable or a quality adapter. SLI is not supported, so multi-GPU scaling is unavailable.

Liquid-Cooled ATX Form Factor

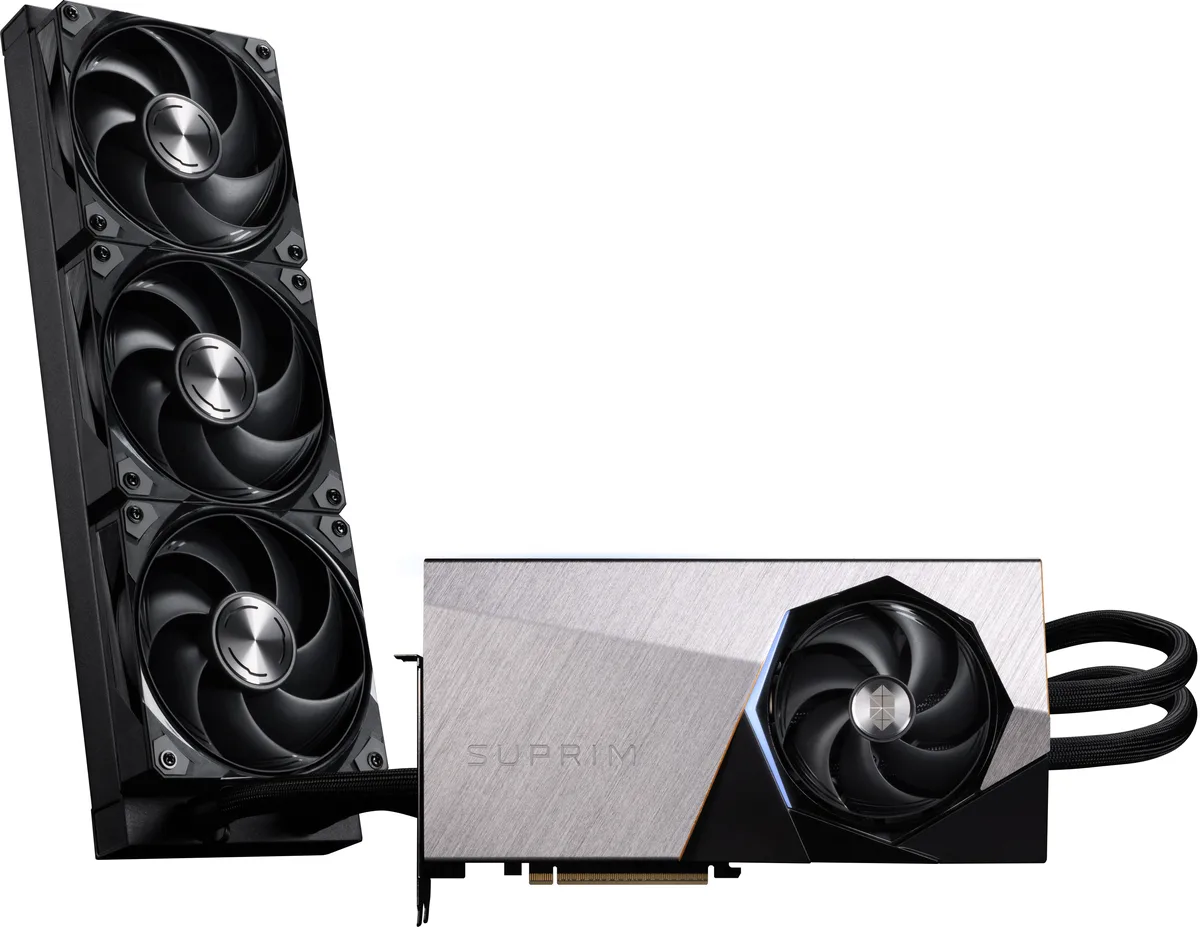

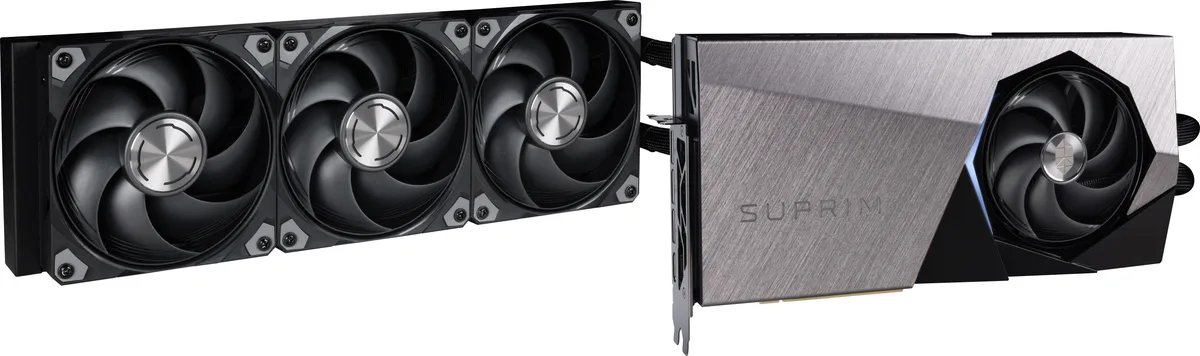

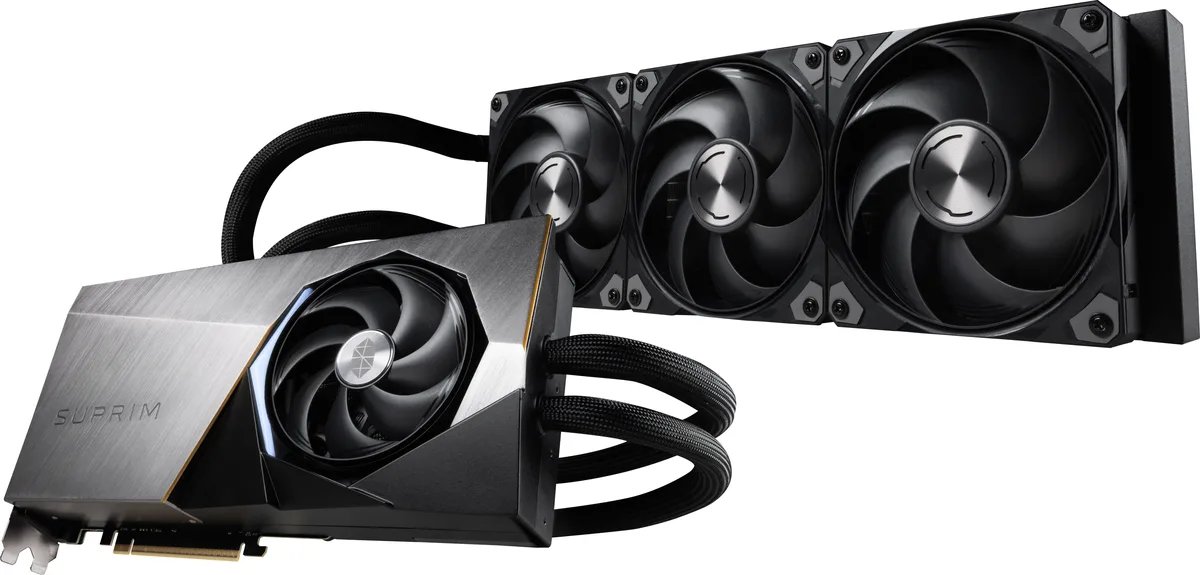

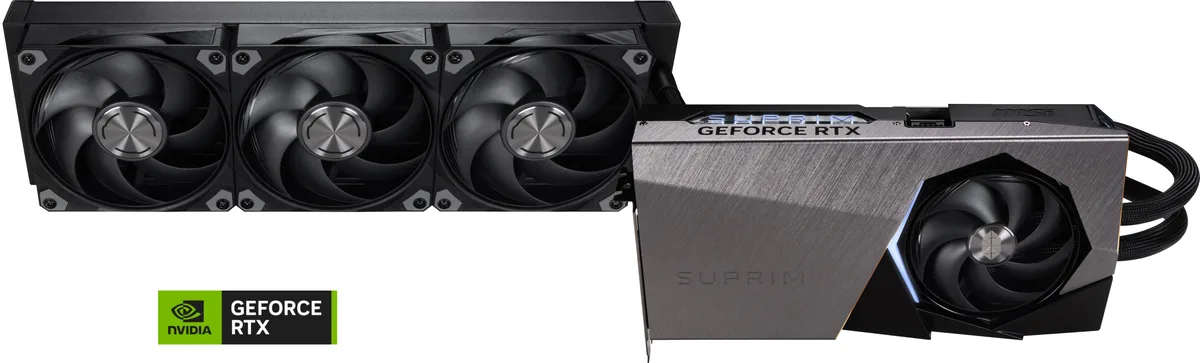

A sealed liquid loop moves heat from the GPU to an external radiator, reducing the card itself to a 280 x 148 x 51 mm footprint that fits standard ATX cases. The compact block leaves clearance for adjacent slots and cable routing. Three DisplayPort 2.1b outputs and one HDMI 2.1b port drive up to four displays at 7680 x 4320 resolution. Gray finish matches neutral build themes.
