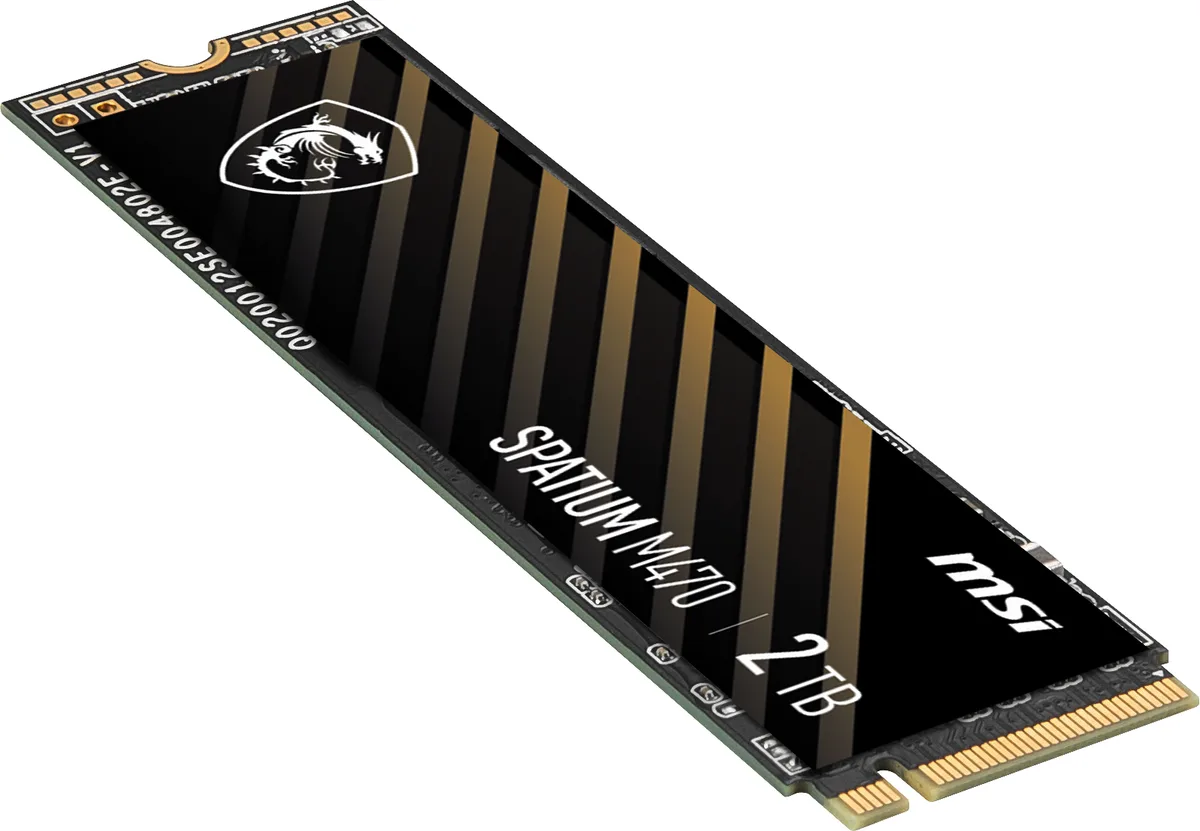

Green circuit board M.2 2280 SSD with black controller and gold edge connector

MSI

MSI SM470PN2TB 2TB internal SSD

SKU CH-D9KD-QSX5Q MPN SM470PN2TB

M.2 2280 2TB NVMe drive with PCIe 4.0 x4, 6000 MB/s read, 5000 MB/s write, 2 GB DRAM cache and 640 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4

Options 2 TB

  • Fast boot and load times with sequential read up to 6000 MB/s
  • Quick file saves and installs with sequential write up to 5000 MB/s
  • Responsive multitasking from 950,000 IOPS random read and write
  • Long service life backed by 640 TBW endurance and 1,500,000 hours MTBF
  • Hardware-level data protection via TCG OPAL2.0/Pyrite encryption

Drive identity

The MSI SPATIUM M470 PRO is a 2TB internal SSD built for consumer workloads on desktops and notebooks. It uses a PCIe 4.0 x4 interface and the NVMe 1.4 protocol with a PHISON E27T controller and 2GB DRAM cache. Sequential reads reach 6000 MBps and writes 5000 MBps, while random 4KB performance hits 950000 IOPS read and write.

Build and fit

The M.2 2280 module measures 22mm wide, 80mm long and 2.15mm high with no heatsink, so it fits standard slots in thin laptops and compact boards. 3D NAND flash and LDPC error correction protect data integrity, while end-to-end data path protection and TCG OPAL2.0/Pyrite encryption secure stored files. The drive operates from 0°C to 70°C and idles at 25mW in PS3 state.

Included features

TRIM support keeps sustained performance consistent when the OS enables it, and SMART monitoring reports health metrics such as the 640TB TBW rating and 1500000-hour MTBF. APST automatically shifts the controller to lower power states during idle periods, reducing energy draw without user intervention.

Highlights

  • Fast boot and load times with sequential read up to 6000 MB/s
  • Quick file saves and installs with sequential write up to 5000 MB/s
  • Responsive multitasking from 950,000 IOPS random read and write
  • Long service life backed by 640 TBW endurance and 1,500,000 hours MTBF
  • Hardware-level data protection via TCG OPAL2.0/Pyrite encryption

Specifications

BrandMSI
ModelSPATIUM M470 PRO PCIe 4.0 NVMe M.2
Part NumberSM470PN2TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
ControllerPHISON E27T
Cache2GB DRAM
EncryptionTCG OPAL2.0/Pyrite
Max Sequential ReadUp to 6000 MBps
Max Sequential WriteUp to 5000 MBps
4KB Random ReadUp to 950,000 IOPS
4KB Random WriteUp to 950,000 IOPS
Terabytes Written (TBW)640TB
MTBF1,500,000 hours
HeatSinkwithout HeatSink
FeaturesTRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
TCG OPAL2.0/Pyrite (Encryption, Data Security)
Power Consumption (Idle)PS3 25mW
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height2.15mm
Width80mm
Depth22mm
Shipping weight0.05 kg
Package size160 × 79 × 15 mm

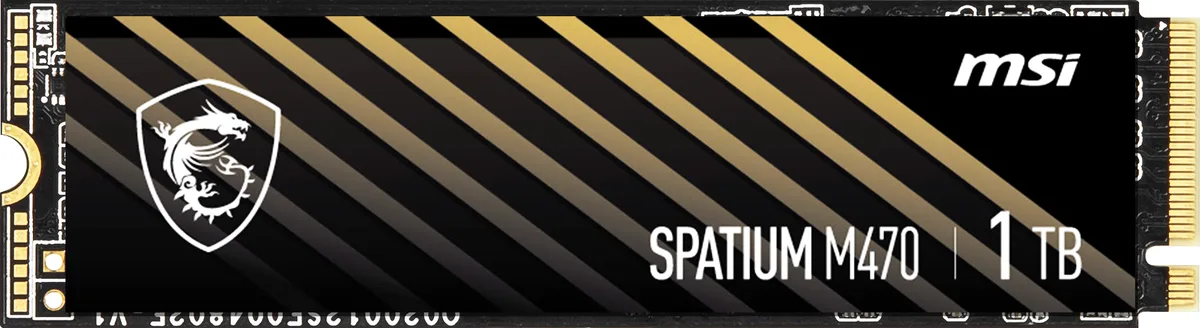

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What real-world throughput does the PCIe 4.0 x4 interface cap the SPATIUM M470 PRO at?

The PCIe 4.0 x4 link limits this drive to 6000 MBps sequential read and 5000 MBps sequential write in practice.

What physical slot and clearance does the M.2 2280 form factor require?

It needs an M.2 key-M slot 80 mm long and 22 mm wide with 2.15 mm vertical clearance for the single-sided PCB.

How is the drive installed and which step is often missed?

Insert the module at an angle into the M.2 slot, press flat and secure with the motherboard screw; the step often missed is enabling the NVMe 1.4 driver in BIOS before cloning or installing the OS.
