MSI

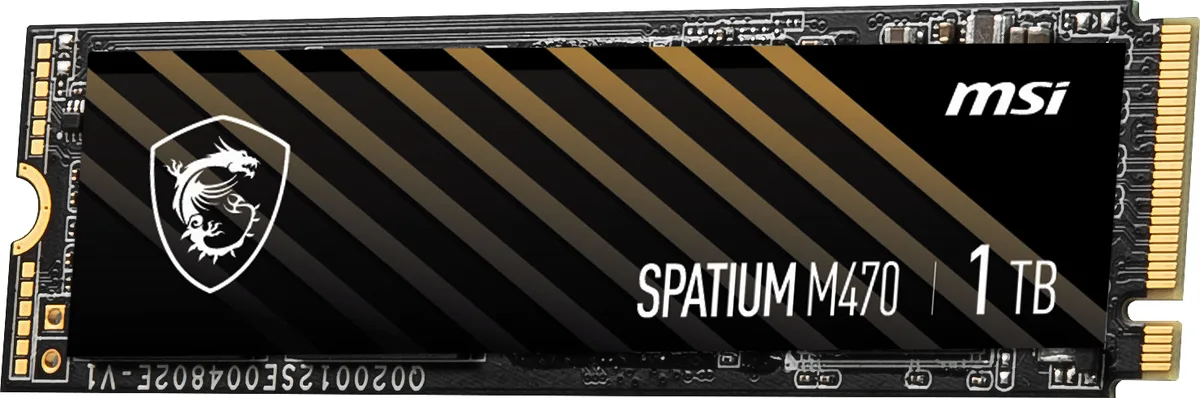

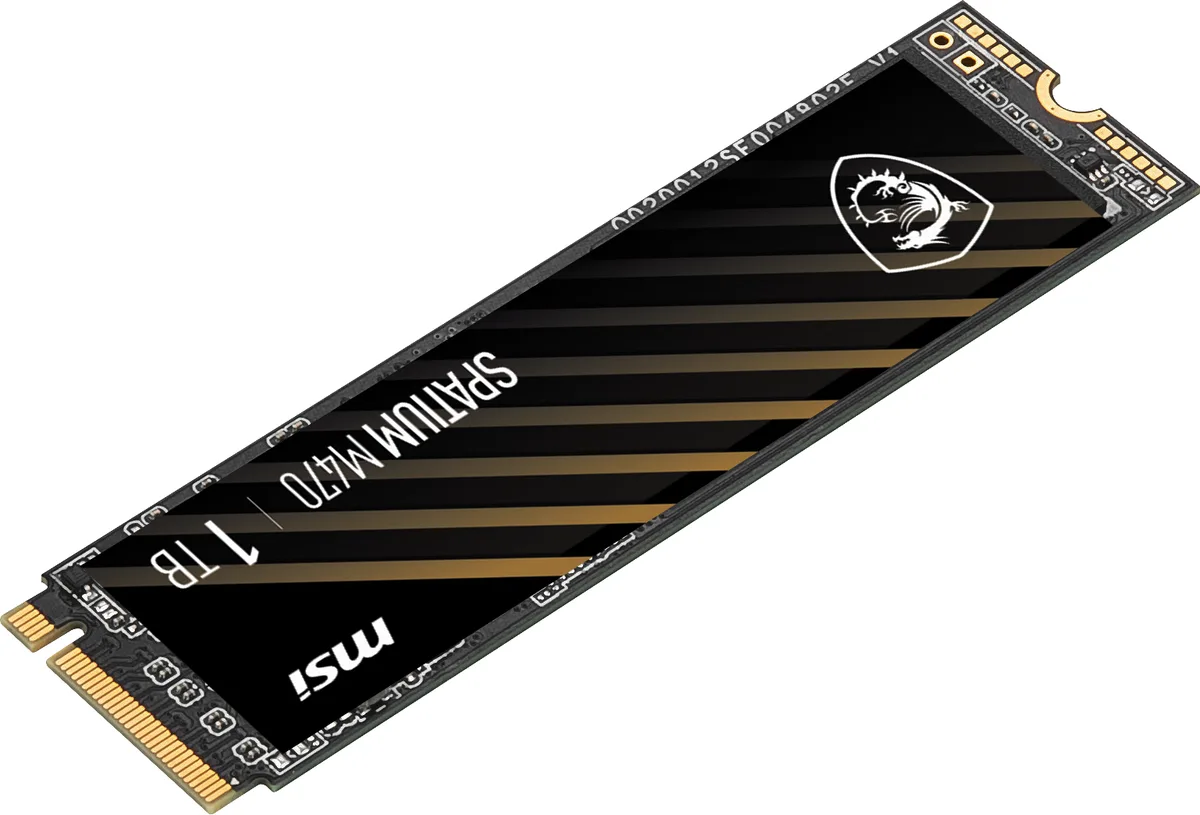

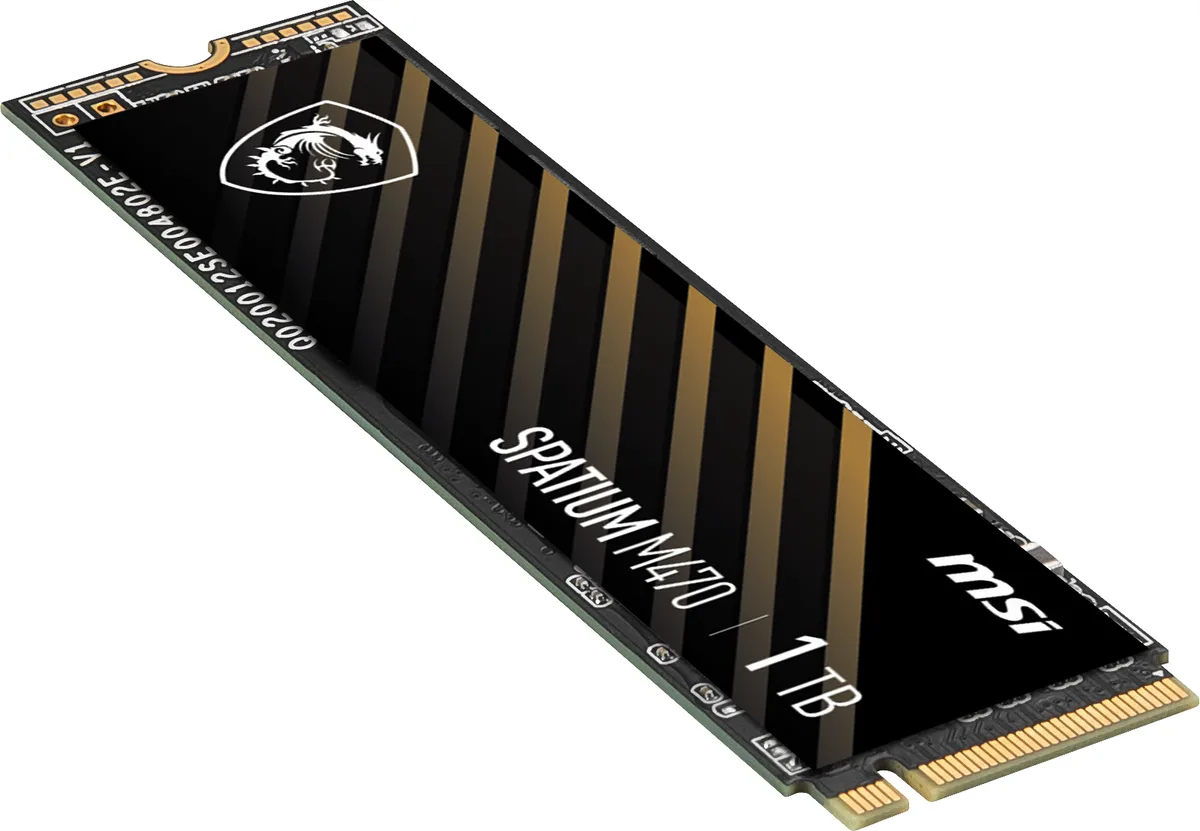

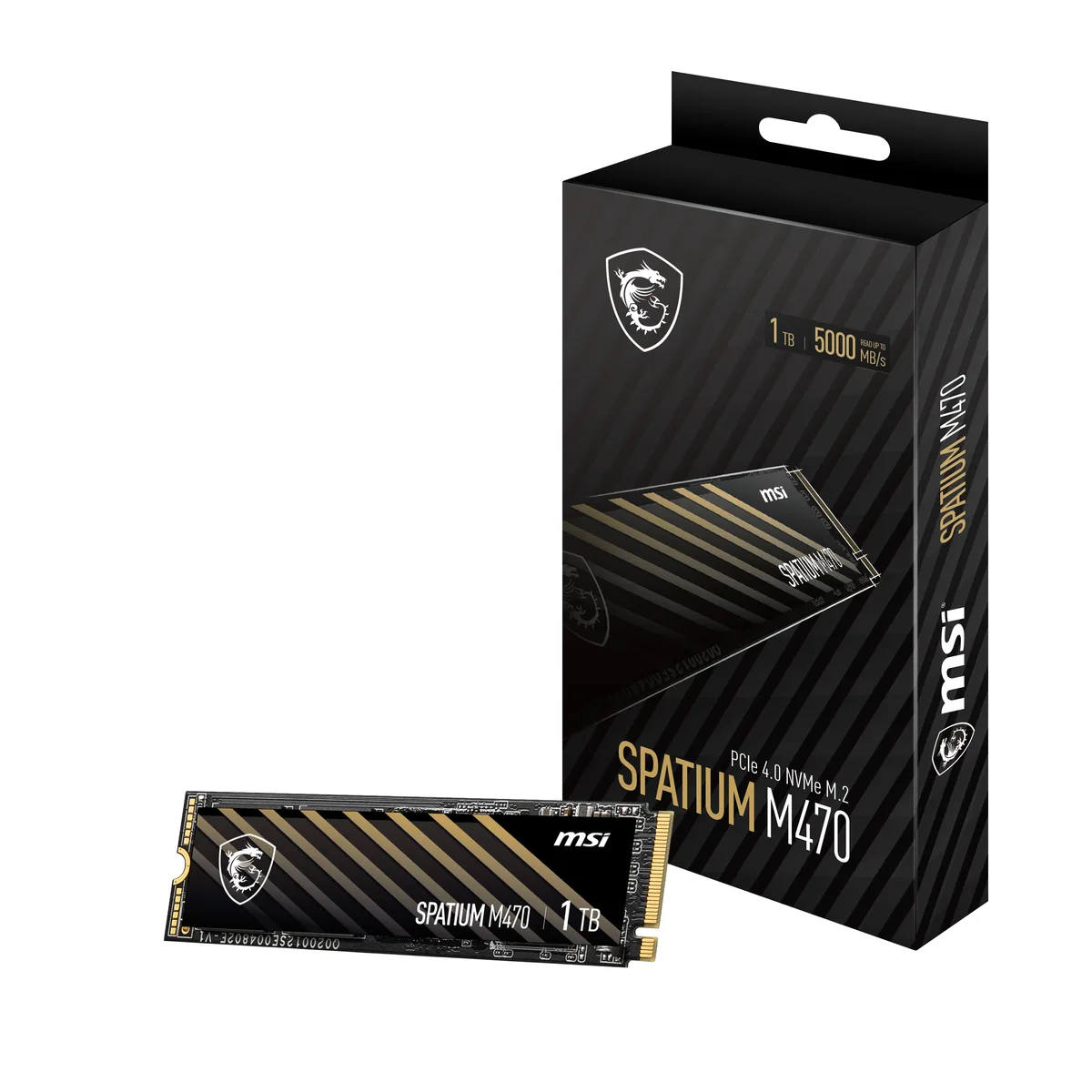

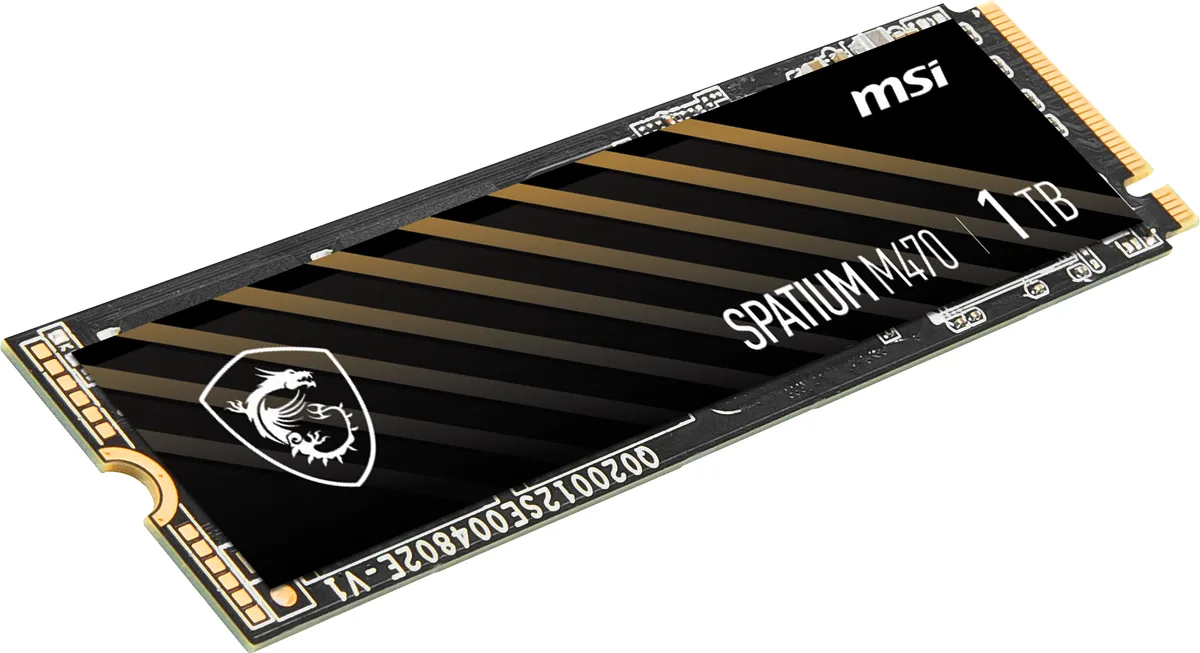

MSI SPATIUM M470 PRO 1TB internal SSD SM470PN1TB
PCIe 4.0 x4 internal SSD with 1TB 3D NAND, up to 6000 MBps read and 4500 MBps write, 320 TBW endurance
- Device TypeInternal Solid State Drive (SSD)
- Used ForConsumer
- Form FactorM.2 2280
- Capacity1TB
- Memory Components3D NAND
- InterfacePCI-Express 4.0 x4
Options 1 TB
- 1 TB
- 2 TB
- PCIe 4.0 x4 interface delivers up to 6000 MB/s sequential read
- 1 GB DRAM cache sustains up to 4500 MB/s sequential write
- 950,000 IOPS random read and write accelerate heavy workloads
- 320 TBW endurance rating supports long-term write-intensive use
- TCG OPAL 2.0 encryption protects data at rest
1TB PCIe 4.0 NVMe drive for consumers
The MSI SPATIUM M470 PRO is an M.2 2280 internal SSD built for consumer desktops and notebooks. It uses a PHISON E27T controller with 1GB DRAM cache and 3D NAND flash. The drive connects over a PCI-Express 4.0 x4 link and follows the NVMe 1.3 protocol.
320 TBW endurance and 6000 MBps peak reads
Sequential reads reach up to 6000 MBps while writes hit 4500 MBps. Random 4KB performance scales to 950,000 IOPS for both read and write. The 320 TBW rating and 1.7 million hour MTBF provide headroom for heavy workloads; sustained writes will throttle once the SLC cache fills.
TCG OPAL2.0 encryption and LDPC error correction
Hardware encryption meets TCG OPAL2.0 and Pyrite standards for data security. LDPC ECC, end-to-end data path protection and SMART monitoring maintain integrity. TRIM and APST keep performance consistent and power draw low at 20 mW idle and 2 mW in L1.2.
Highlights
- PCIe 4.0 x4 interface delivers up to 6000 MB/s sequential read
- 1 GB DRAM cache sustains up to 4500 MB/s sequential write
- 950,000 IOPS random read and write accelerate heavy workloads
- 320 TBW endurance rating supports long-term write-intensive use
- TCG OPAL 2.0 encryption protects data at rest
Specifications
| Brand | MSI |
|---|---|
| Model | SPATIUM M470 PRO PCIe 4.0 NVMe M.2 |
| Part Number | SM470PN1TB |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 1TB |
| Memory Components | 3D NAND |
| Interface | PCI-Express 4.0 x4 |
| Protocol | NVMe 1.3 |
| Controller | PHISON E27T |
| Cache | 1GB DRAM |
| Encryption | TCG OPAL2.0/Pyrite |
| Max Sequential Read | Up to 6000 MBps |
| Max Sequential Write | Up to 4500 MBps |
| 4KB Random Read | Up to 950,000 IOPS |
| 4KB Random Write | Up to 950,000 IOPS |
| Terabytes Written (TBW) | 320TB |
| MTBF | Up to 1,700,000 Hours |
| HeatSink | without HeatSink |
| Features | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) TCG OPAL2.0/Pyrite (Encryption, Data Security) |
| Power Consumption (Idle) | PS3 20mW |
| Power Consumption (Active) | L1.2 2mW |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Height | 2.15mm |
| Width | 80mm |
| Depth | 22mm |
| Shipping weight | 0.05 kg |
| Package size | 160 × 79 × 15 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Will the SPATIUM M470 PRO 1TB run at full speed in a PCIe 3.0 M.2 slot?
It will operate at PCIe 3.0 x4 speeds, so sequential reads are limited to the slot's lower bandwidth rather than the 6000 MBps ceiling.
How can I verify the PHISON E27T controller is healthy after installation?
Use a tool that reads SMART data and check that the drive reports zero media errors, correct temperature under load, and the expected 1GB DRAM cache size.
Does the 1TB M.2 2280 drive ship with a heatsink or mounting screw?
The unit is supplied without a heatsink; a motherboard standoff screw is usually provided by the board maker, not in the SSD box.
