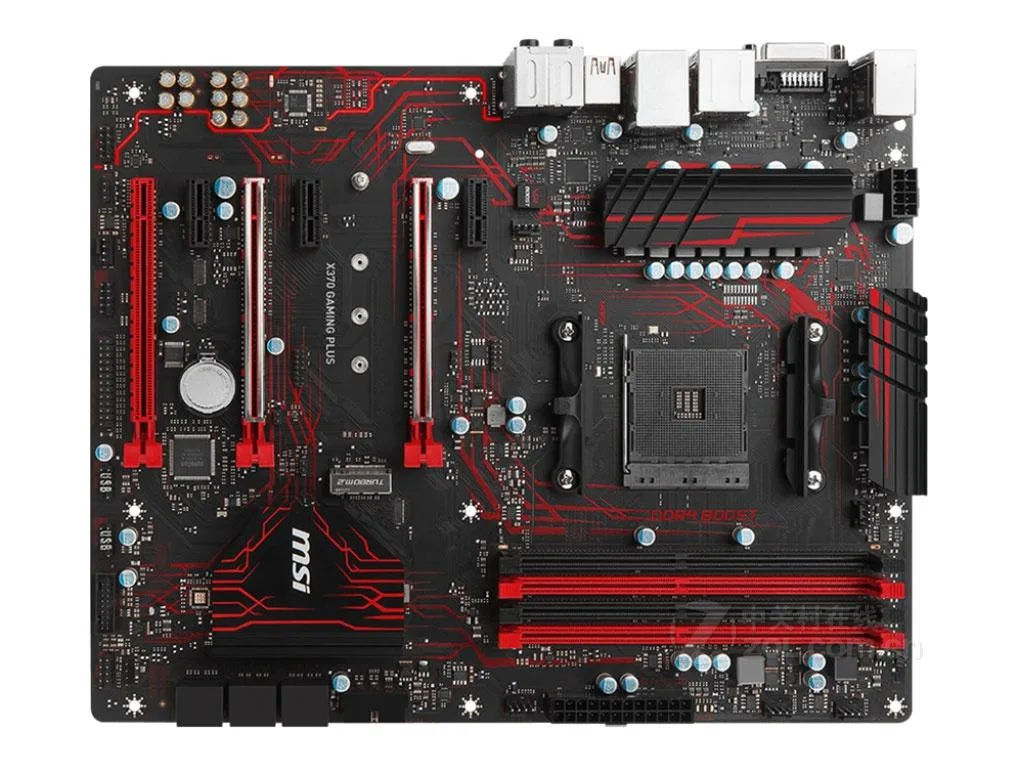

ATX motherboard black PCB red accents silver heatsinks

MSI

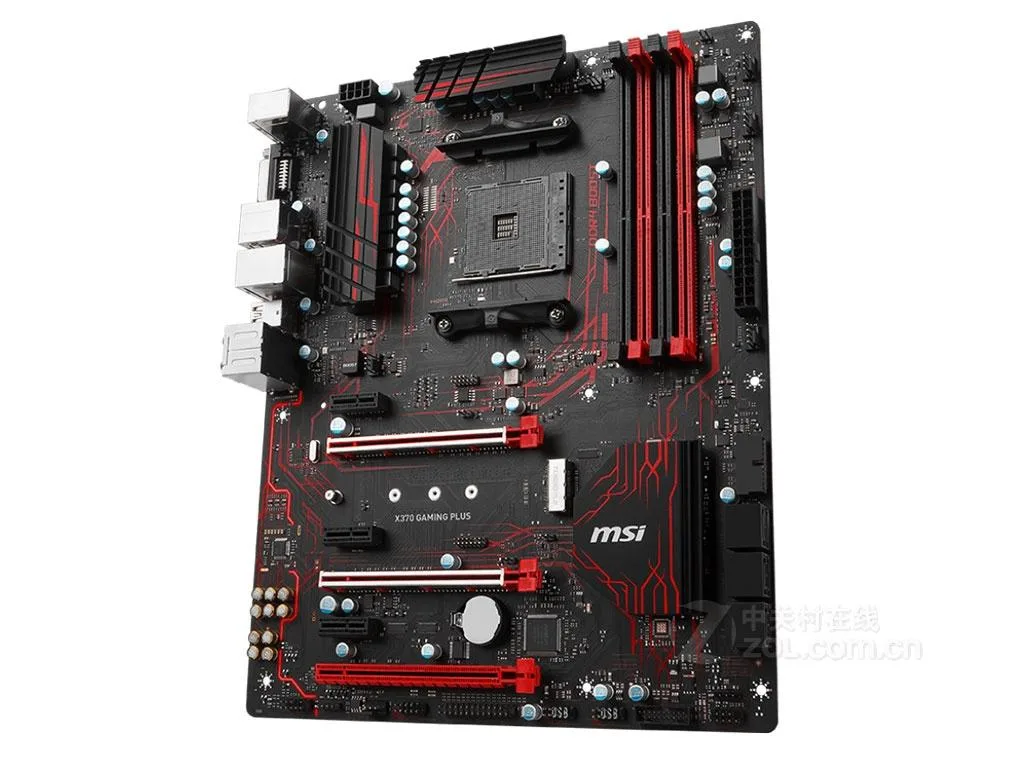

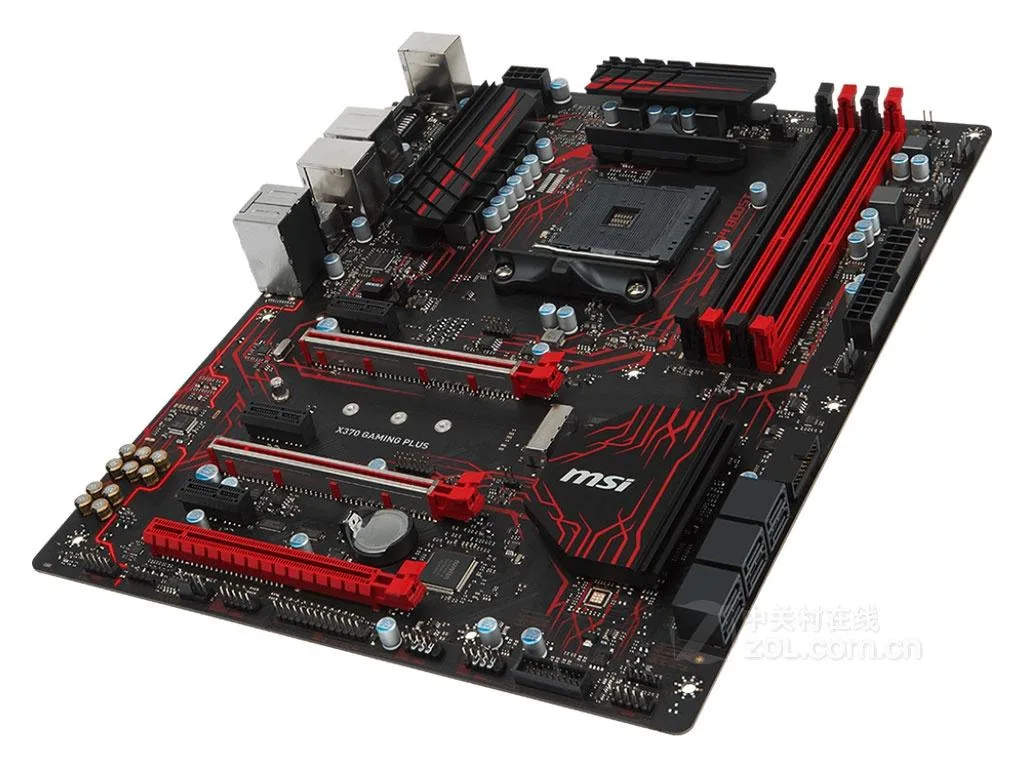

MSI X370 GAMING PLUS AMD motherboard

SKU CH-RRW0-KRMM6

ATX board for first- and second-generation Ryzen CPUs with X370 chipset, dual-channel DDR4 up to 3200 OC, 64 GB max, two PCIe 3.0 x16 slots, six SATA III ports.

  • CPU Socket TypeSocket AM4
  • CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen
  • ChipsetAMD X370
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC)
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (PCIE_2, PCIE_4) - RYZEN series process
  • Socket AM4 supports first and second generation Ryzen processors
  • AMD X370 chipset enables dual-channel DDR4 up to 3200 MHz
  • 64 GB maximum memory capacity for demanding workloads
  • Realtek ALC892 delivers 7.1 channel high-quality audio
  • Realtek 8111H provides Gigabit LAN connectivity

AM4 X370 board for Ryzen builders

The MSI X370 GAMING PLUS uses the AMD X370 chipset and Socket AM4 to support first and second generation Ryzen processors as well as Ryzen with Radeon Vega graphics and A-series CPUs. It targets DIY builders who want a mainstream ATX platform for gaming or productivity without moving to newer chipsets. Dual-channel DDR4 support reaches 3200 (OC) MHz across four slots.

Standard ATX install with legacy PCIe

Installation follows normal ATX mounting and the board ships with a CMOS battery, one SATA cable and an I/O shield. The layout includes two PCIe 3.0 x16 slots that run at x16/x0 or x8/x8 with Ryzen, plus one PCIe 2.0 x16 slot wired for x4 mode and three additional PCIe 2.0 x1 slots. Builders should verify graphics card length against their case because the lower slots sit close to the bottom edge.

64 GB DDR4 ceiling and six SATA ports

Four DIMM slots accept up to 64 GB of dual-channel DDR4 at speeds from 1866 to 3200 (OC) MHz, giving ample headroom for most gaming and content-creation workloads. Storage connectivity covers one M.2 interface and six SATA III ports with RAID support. Rear I/O supplies 7.1-channel audio via Realtek ALC892, a Realtek 8111H Gigabit LAN port, one USB 3.1 Gen2 Type-C and one Type-A at 10 Gbps, plus four additional USB 3.1 Gen1 ports from the chipset.

Highlights

  • Socket AM4 supports first and second generation Ryzen processors
  • AMD X370 chipset enables dual-channel DDR4 up to 3200 MHz
  • 64 GB maximum memory capacity for demanding workloads
  • Realtek ALC892 delivers 7.1 channel high-quality audio
  • Realtek 8111H provides Gigabit LAN connectivity

Specifications

BrandMSI
SeriesMSI X370 GAMING PLUS
ModelMSI X370 GAMING PLUS
CPU Socket TypeSocket AM4
CPU TypeFirst and second generation AMD Ryzen ™ with AM4 pins/Ryzen ™ processors with Radeon ™ Vega graphics and AMD A series/Ryzen ™ processors
ChipsetAMD X370
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC)/3200 (OC) + MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 modes
- 7th generation A-series/Athlon ™ processors support x8/x0 modes
1 PCIe 2.0 x16 slot (PCIE_6, x4 mode supported) *
3 PCIe 2.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USBASMedia ASM2142 Chipset
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C interface located on the backplane
- 1 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A interface located on the backplane
AMD X370 chipset
- 4 USB 3.1 Gen1 (SuperSpeed USB) ports are provided via the onboard USB port
- 6 USB 2.0 (High-speed USB) ports (2 Type-A ports on the backplane, 4 ports provided via onboard USB ports
AMD CPU
- 4 USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Questions about this item

How do I confirm the Realtek ALC892 audio is delivering 7.1 channel sound after setup?

Play a multichannel test file in Windows sound control panel and verify all eight speakers produce distinct tones.

Which accessories are included and which must be purchased separately?

The box contains the motherboard, a CMOS battery, one SATA cable and the I/O back panel; CPU cooler, memory modules and additional SATA cables are not supplied.

Should I choose a DDR4 kit rated at 2400 MHz or one rated at 3200 (OC) MHz for this board?

Both speeds are supported; 2400 MHz runs at default settings while 3200 MHz requires enabling the overclock profile in BIOS.
